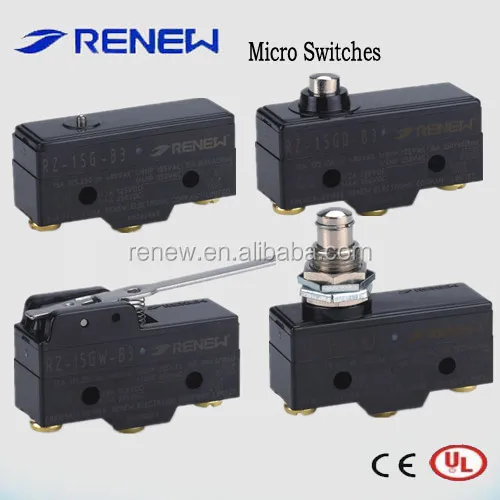

Z series 25t85 pressure transducer sensor micro switch

Product Overview

Description

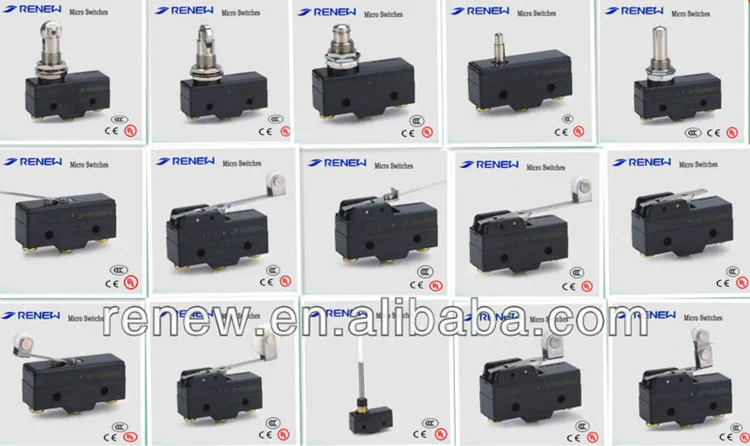

RZ type micro switch

Rated data and performance

Item                     Type		RV-21 RV-16 RV-15  RV-11 RV-10
Allowable operating speed		0.1mm~1m/s (pin plunge type)
Allowable operating frequency		Mechanical 600 operations/min Electrical  30 operations/min
Insulation resistance		Above 100 mΩ (use the DC500V insulation resistance test)
Contact resistance (initial value )		Max 15mΩ
Dielectric strength	Between the non-continuous  terminals	AC 1000V 50/60HZ for 1min
	Between non voltage metal parts and each terminal	AC 2000V 50/60HZ for 1min
	Betweenground and  each terminal
Vibration resistance	Malfunction	10-55HZ double amplitude 1.5mm(contact gap is less than 1ms )
Shock resistance		OF 0.49N type: less 98m/s2  OF 1.96N,3.29N type :less 294m/s2 OF 0.98 N type : 196m/s2
Expected Life	Mechanical life (order OT)	50,000,000 operations min. (frequency is 60 operations/min)
	Electrical life(resistive load )	contact gap G and H: 500,000 operations above (frequency is 20 operations/min)   contact gap F and E: 100,000operations above (frequency is 20 operations/min)
Ambient operation temperature & Ambient humidity		-25~+80(with no icing ),   85%RH max. (at +5~35)
Contact material		AgNi alloy ; AgCdO alloy (not in the ROHS order )
Weight		About 6.2g(pin plunger type )

Remark : switch operation with the slow / high speed and shock , or used in the high temperature and more humidity , the life and the capability may be down because of the load capacity , so please consultation us freely .







Packing details





WHY CHOOSE US?



1. More than 26 years experience on producing and developing micro switch, limit switch, toggle switch. Have our own brand "RENEW".



2. High quality raw materials, long life and secure switches.



3. Dust-free plant, strict quality control, provide you satisfactory switches.



4. CE, CCC, UL. ROHS Certificates.



5. Plentiful stocks, solve your urgent needs.



?FAQ



1.Q:What are your payment terms? Do you accept paypal?



    A: 100% T/T in advance. We do not have a paypal account at present.



2. Q: Do you have a price list?



     A: We do not have a published list, however you can contact customer service and they can supply you with the pricing that you need.



3. Q: What are your warranties?



    A: 12 months from the date of invoice. Renew offer the free maintenance or replacement of malfuctioning products.



4. Q: Can you accept OEM?



     A: Yes, need your trademark authorization letter.



5. Q: What about the package?



     A: All use thickening export carton with "RENEW" mark, you specified mark or none.



6. Q: Do you provide sample?



     A: Yes, free sample can provide to you, express freight collect.



7. Q: Do you accept small order quantity?



     A: Yes, order quantity without limited.



8. Q: How about the delivery mothod?



     A: In small quantity, we suggest by express DHL, TNT, FEDEX, UPS......  If not by sea or by air transport.



9.Q: Do you bear the freight charge?



    A: We can offer you EXW, FOB or CIF price.
