Width 4000mm woven Gabion mesh machine

Product Overview

Description

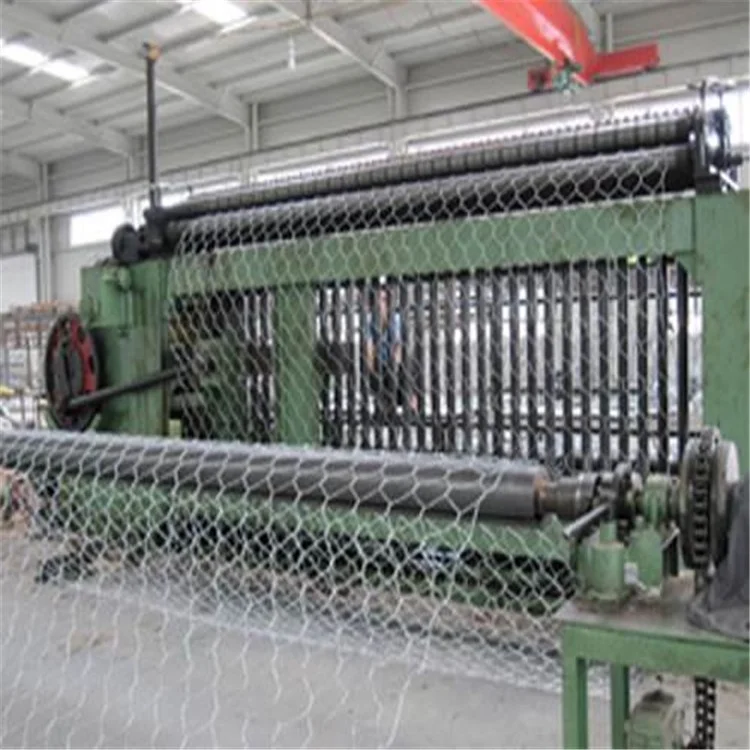

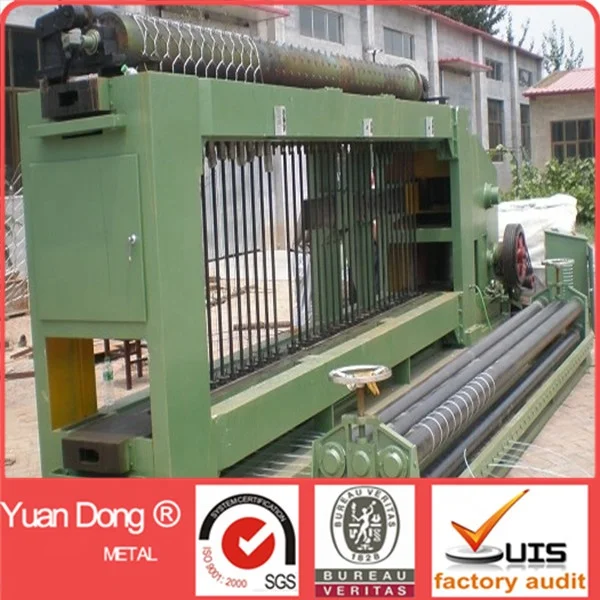

Width 4000mm woven Gabion mesh machine



YDL-02 Hexagonal netting machine is specially used to produce the large side and heavy duty hexagonal wire mesh for the fence and stone gabion mesh.



It has nine models for three size of mesh and maximum netting width is up to 4 meters, YDL-02 series hexagonal wire netting machine have the properties of high efficiency in producing and easy to operation and maintenance.



Woven Gabion mesh machine specification:



Model type	Mesh size	Max.Wire Dia.	Max.With	Speed	Motor power
YD6080-2.4	60*80	3.0mm	2400mm	>2.0m/min	15kw
YD6080-3.2		2.8mm	3200mm		18.5kw
YD6080-4.0		2.8mm	4000mm		22kw
YD80100-2.4	80*100	3.0mm	2400mm	>2.4m/min	15kw
YD80100-3.2		3.0mm	3200mm		15kw
YD80100-4.0		3.0mm	4000mm		18.5kw
YD100120-2.4	100*120	3.2mm	2400mm	>2.8m/min	13kw
YD100120-3.2		3.2mm	3200mm		15kw
YD100120-4.0		3.0mm	4000mm		15kw









We can also supply the complete of equipment for manufacturing mesh . If needed contact me freely!
