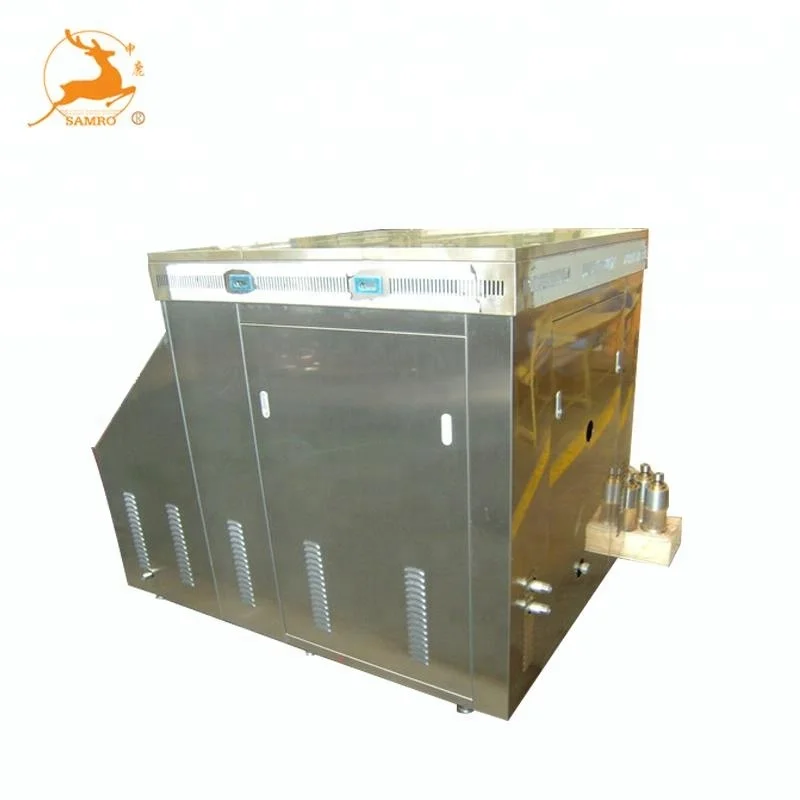

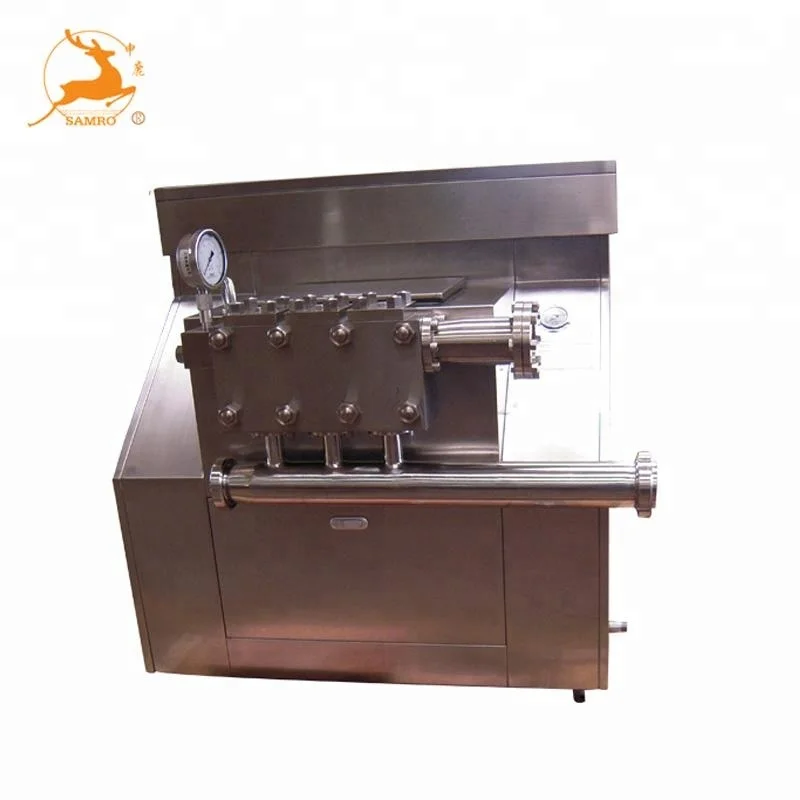

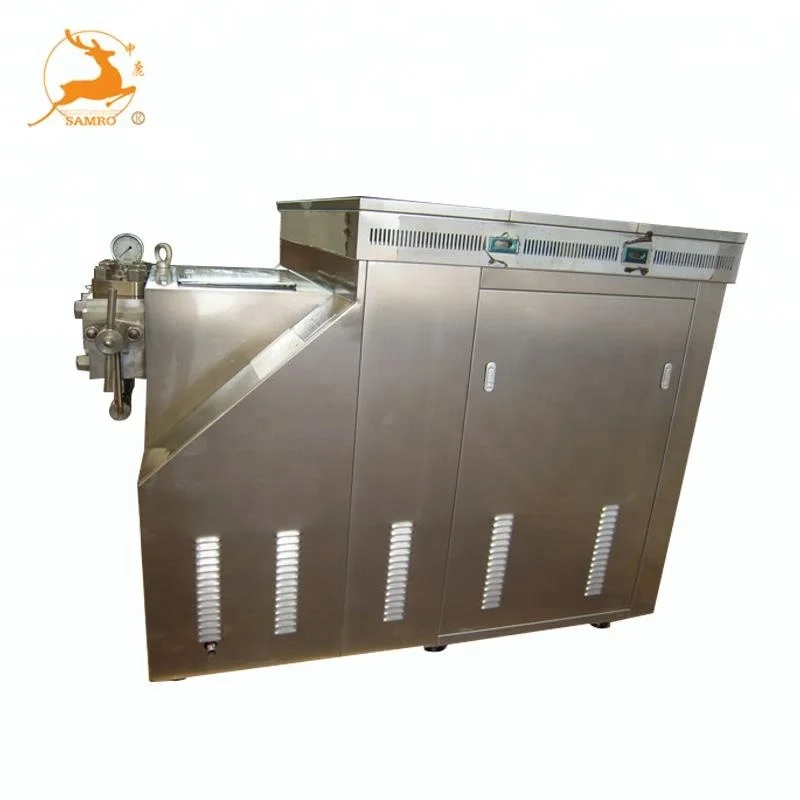

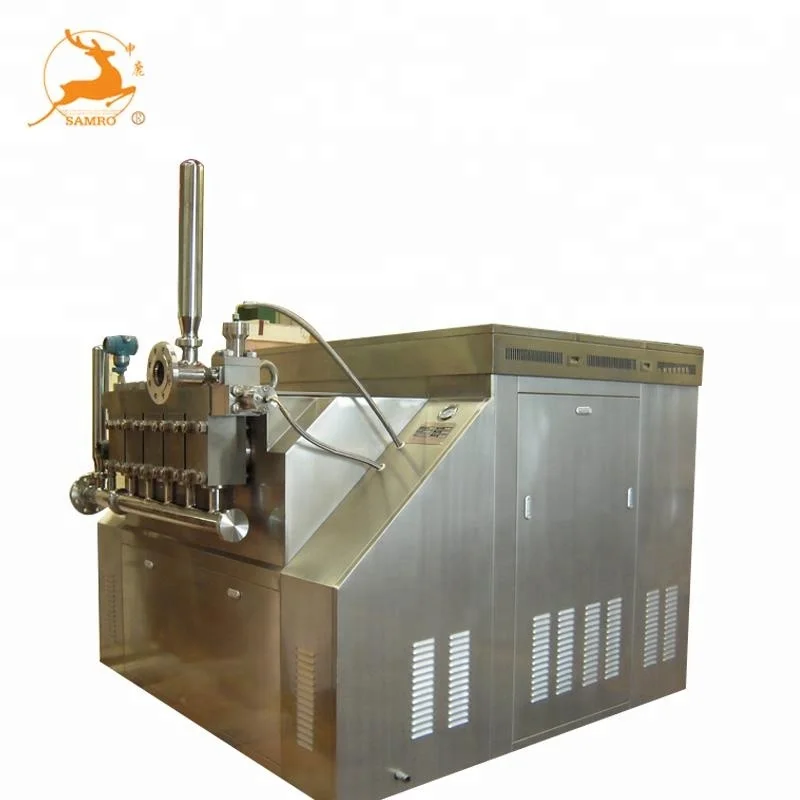

SRH2000 25 25Mpa Chinese supplier gea niro soavi homogenizer

Product Overview

Description

SRH2000-25 25Mpa Chinese supplier gea niro soavi homogenizer:

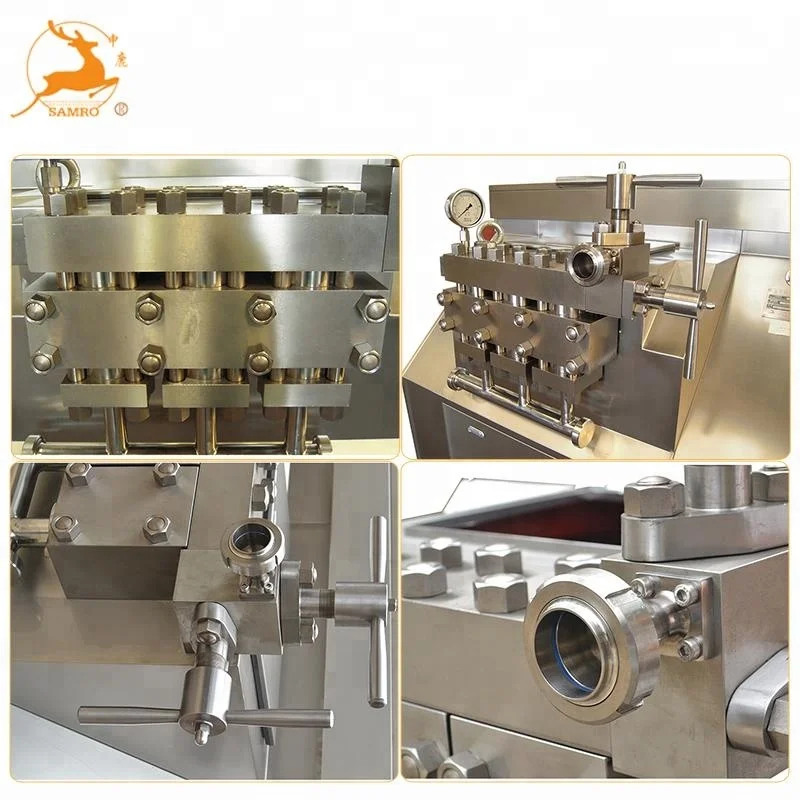

Features:

Driving assembly:House is made of grey cast iron HT200, and crank shaft, connecting rod, and gears are made of ductile cast iron.

Plunger:the 4th generation stainless alloy(PH-type).

Check valve:the 4th generation stainless alloy (GrMoFr),abrade-resisting and impact-resisting.

Pump block: stainless steel.

Plunger sealing:X4310 and PP spacer with heat-proof reaching 150°C.

Homogenizing valve: the 3rd special stainless alloy.

All the above-mentioned material are according with sanitary rules and suitable for CIP cleaning.



Specification:



Type and Specification	SRH2000-25
Rated volume of flow: L/H	2000
Max pressure: Mpa(=10bar)	≤25MPa
Rated working pressure: Mpa	≤20MPa
Feeding pressure	0.2-0.3MPa
CIP	150°C/≤1000CP
Motor power : KW	15
Machine size: m	156x122x137cm
Weight	1000Kg
Driving traits	An eccentric shaft, symmetrical gears driving, splash-type lubrication, special alloy bush, main rolling bear and low noise
Pressure regulation	First-stage rated high pressure :Mpa	≤22
	Second-stage rated low  pressure: Mpa	≤8

We pack all our machine in wooden box. It's very stable and safe.



1. If you have special request, please kindly let us know. We will try our best to meet your demand.

2. We provide you free service of one year (under the normal operation). The additional fee (the tickets, the fee of living and eating for our engineer, etc) shall be charged if you need overseas service.

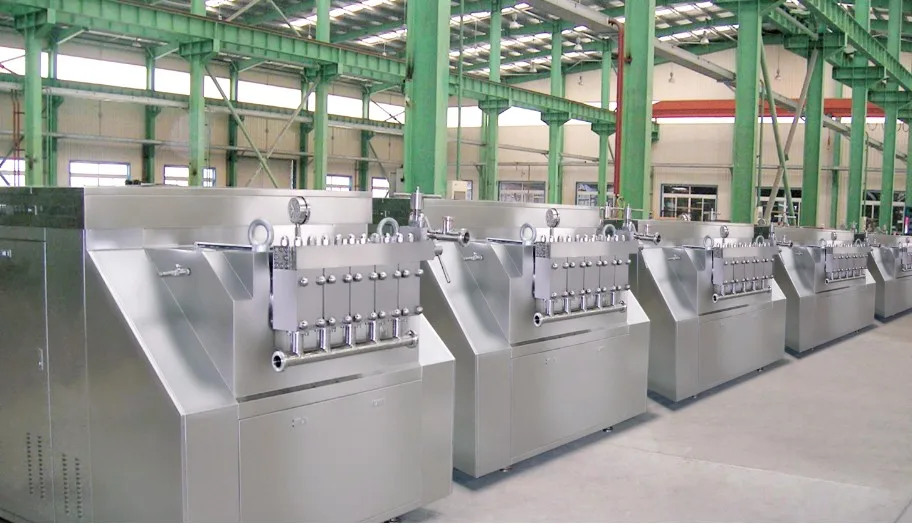

Factory:
