Carbonated soft drink counter pressure bottle filler
- Category: >>>
- Supplier: Zhangjiagang Sheenstar Technology Co. Ltd.
Share on (1918458301):
Product Overview
Description
Carbonated soft drink counter pressure bottle filler

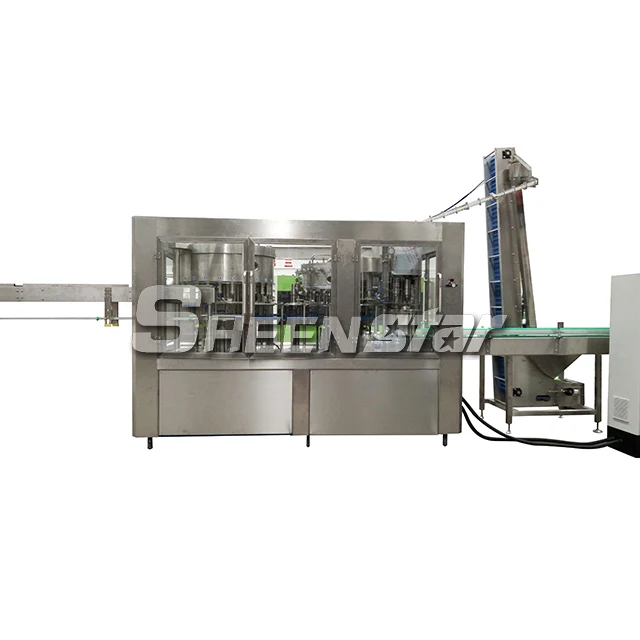

The whole machine

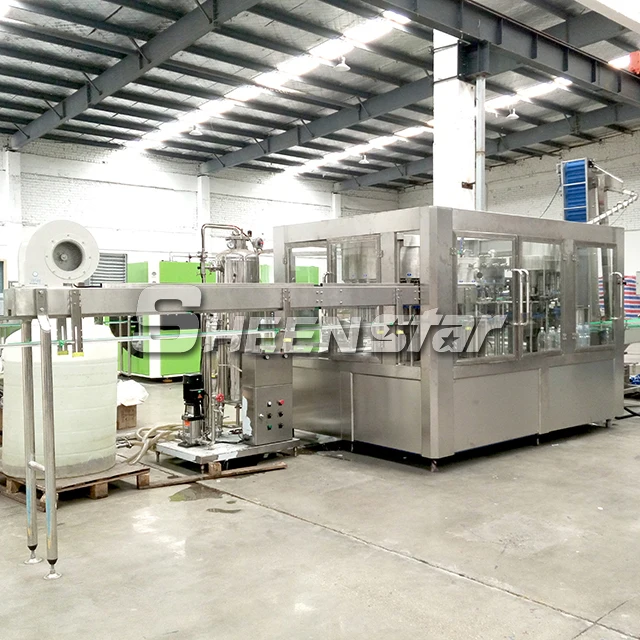

Inside

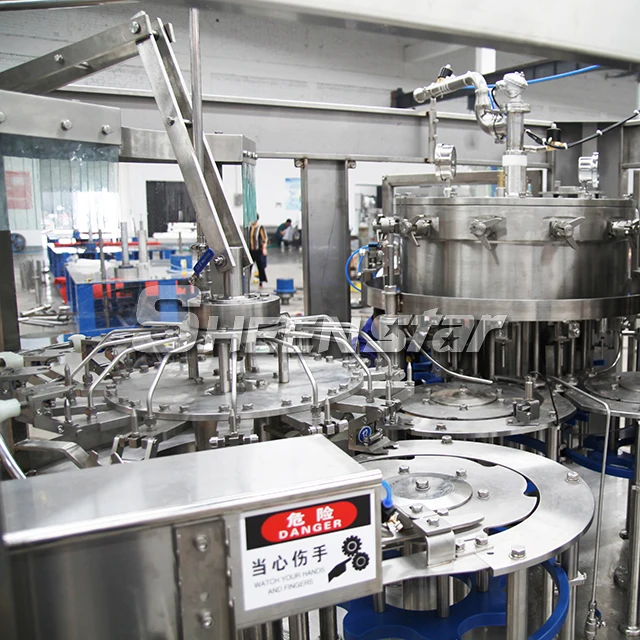

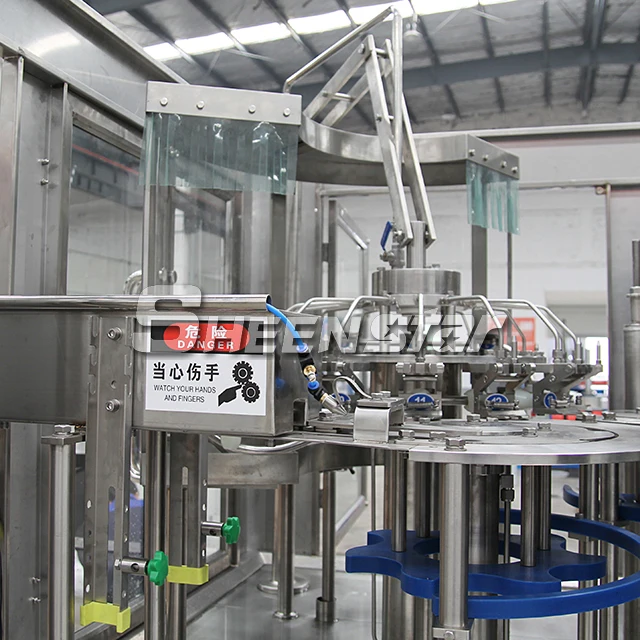

Washing

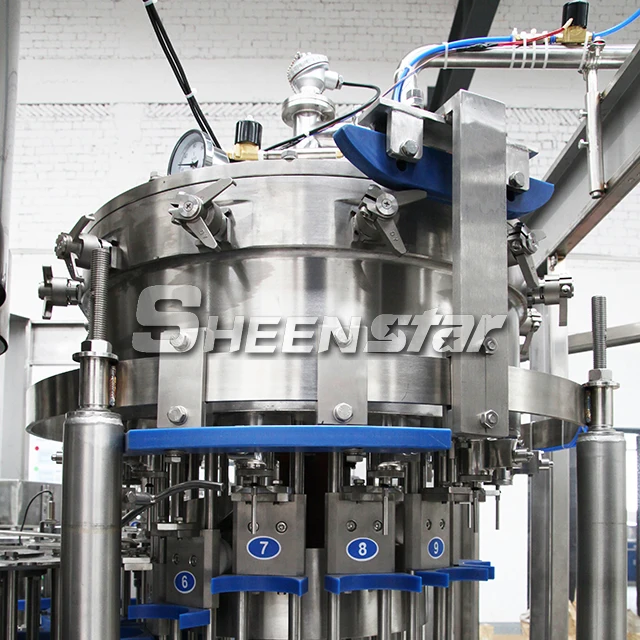

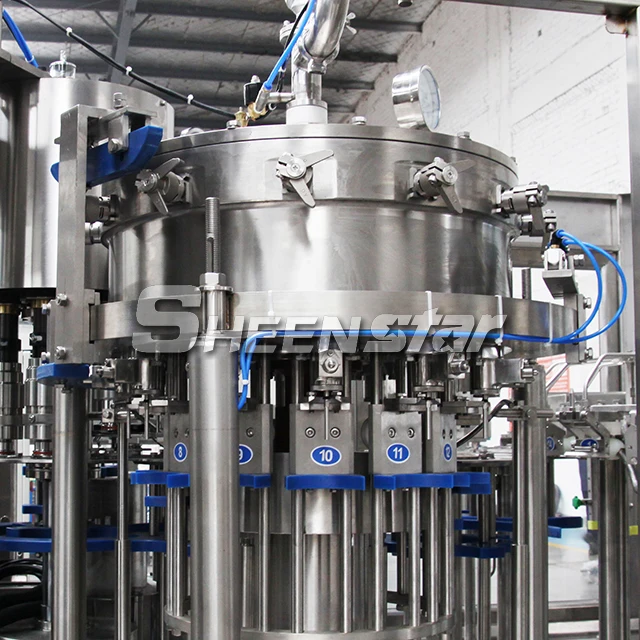

Filling

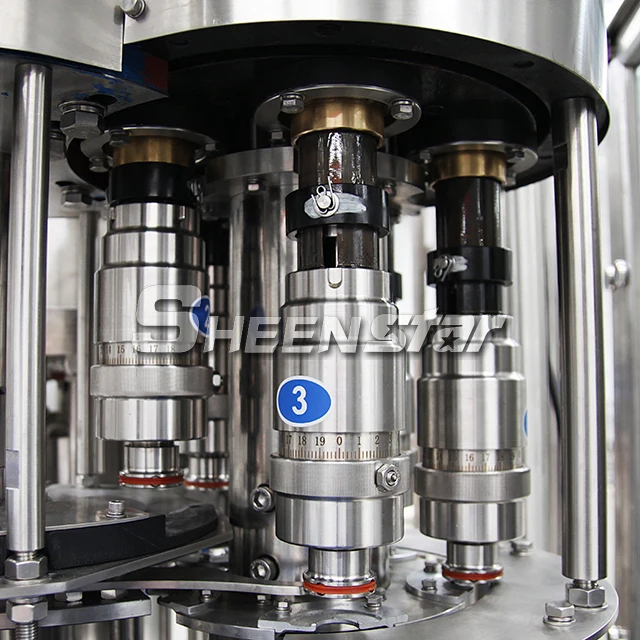

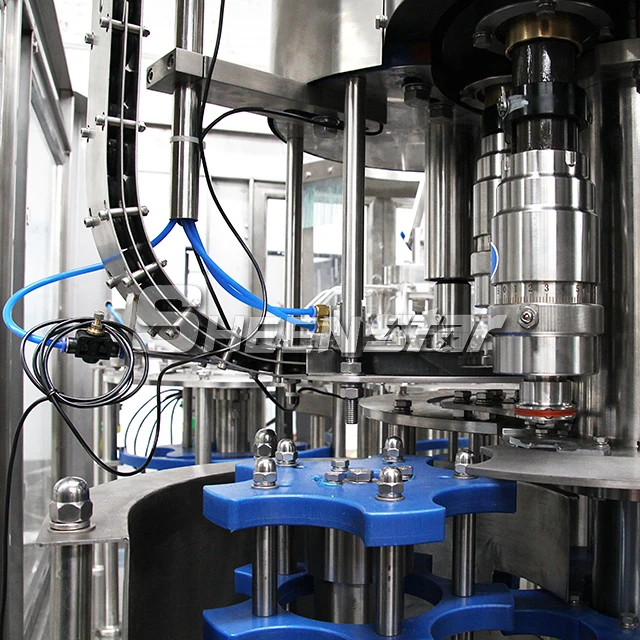

Capping
Product Description
Counter pressure bottle filler
(1)This bottling machine is a unique design combining the three machines of bottle washing, filling and capping in one to decrease main power, to save space and to diminish the air pollution among the three machines.
(2)It is applicable for carbonated drink filled in plastic bottles and capped with plastic caps, with optional capacity from 2000BPH to 28000BPH.
(3)It is easy to change the shape of bottles, which can be done by changing the thumb wheel without adjusting the height of the machine.
(4)Adopting suspensory transmission gear can easily upkeep and be repaired.
(5)The machine case and the parts contacting with the materials are made of stainless steel which ensures the good external look and easy washing.
(6)It uses frequency changer to conrtol the main machine motor. And it has an output number indicating function which is easy to control the adjustment of the output.
- Rinser / filler / capper monobloc
- Bottle material: PET, glass, metal
- Bottle volume: 150ml - 2.5L
- Production capacity: 1000 - 18,000bottles/h
- Can design according to customers' demands
- We can supply filling line solution and filling machines for soft drinks (carbonated drinks)
Buying Guides

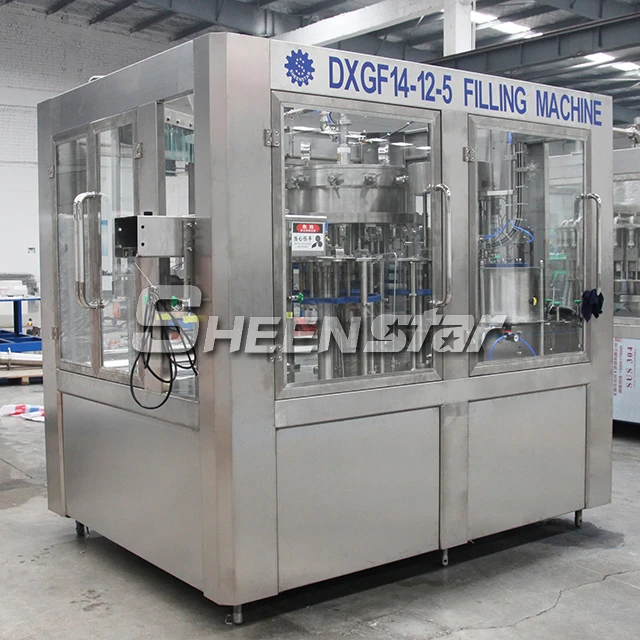

| Model | DCGF14-12-5 | DCGF16-16-6 | DCGF18-18-6 | DCGF24-24-8 | DCGF32-32-10 | DCGF404-40-12 |
| Capacity(500ml) | 1800-2000 | 2000-3000 | 3000-5000 | 5000-7000 | 7000-10000 | 10000-15000 |
| Bottle shape | Round or square | |||||
| PET bottle(mm) | (Bottle Diameter):φ50-.φ110mm (Height):150-340mm | |||||
| Cap | PE srew cap | |||||
| Filling precision | ≤±5mm | |||||
| Filling pressure(Mpa) | 0.15-0.35 | |||||
| Washing pressure(Mpa) | 0.2-0.25 | |||||
| Oversize(mm) | 2100*1750*2250 | 2250*1650*2250 | 2450*1800*2350 | 2780*2200*2350 | 3600*2650*2350 | 3800*2950*2400 |
| Weight(kg) | 2200 | 2500 | 3500 | 4500 | 5500 | 6500 |

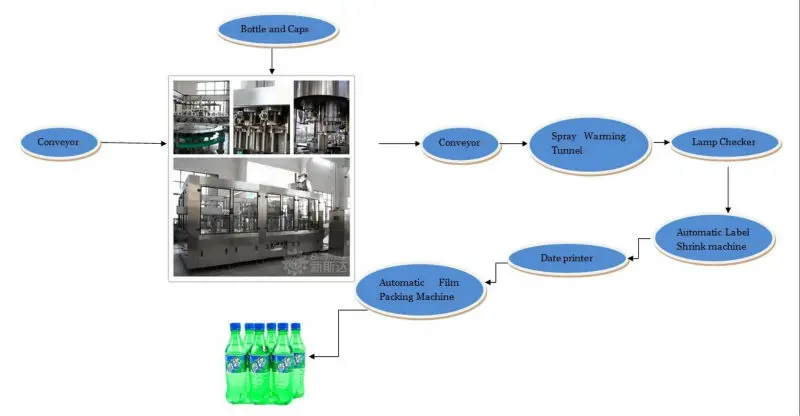

Production Flow
Associated Brands
Certifications
Our service
The sample service
1.We can send you the video of the running machine.
2.You are welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city.
3.If we get the permission of the customer who has brought the machines from us,we can tell you our customers' contact imformation,you can go to vist their factory.
Customized service
1.We can design the machines according your requirements(materil,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.
2. We can offer free technical support and consultation such as design your factory,draw the factory layout and so on.
After-sales service
1.We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly
2.When you finish the Preparation conditions,our fast and professional after service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.
3. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.
4.We provide one year warranty with spare parts free.
