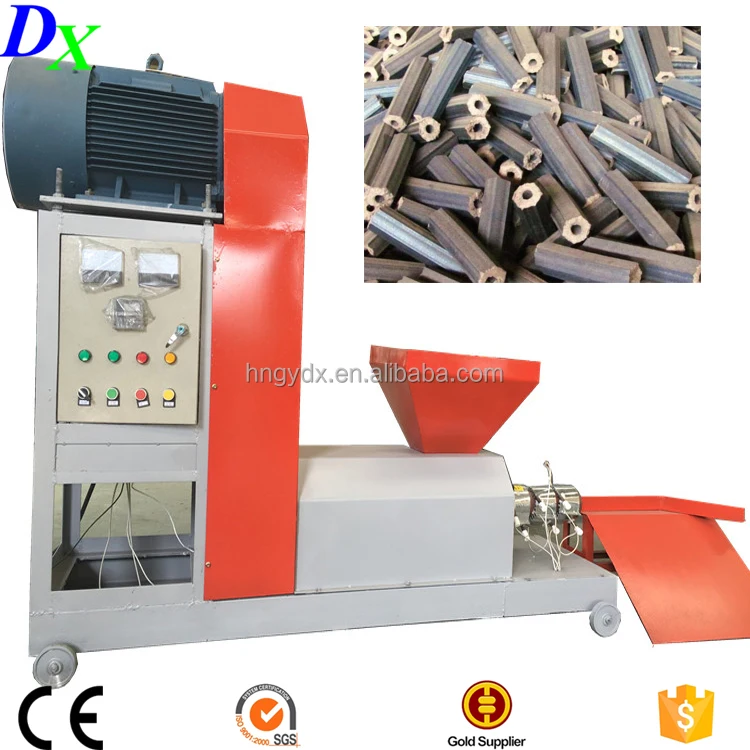

High efficiency brickett maker / swarf briquette with reasonable price

Product Overview

Description

High efficiency brickett maker / swarf briquette with reasonable price

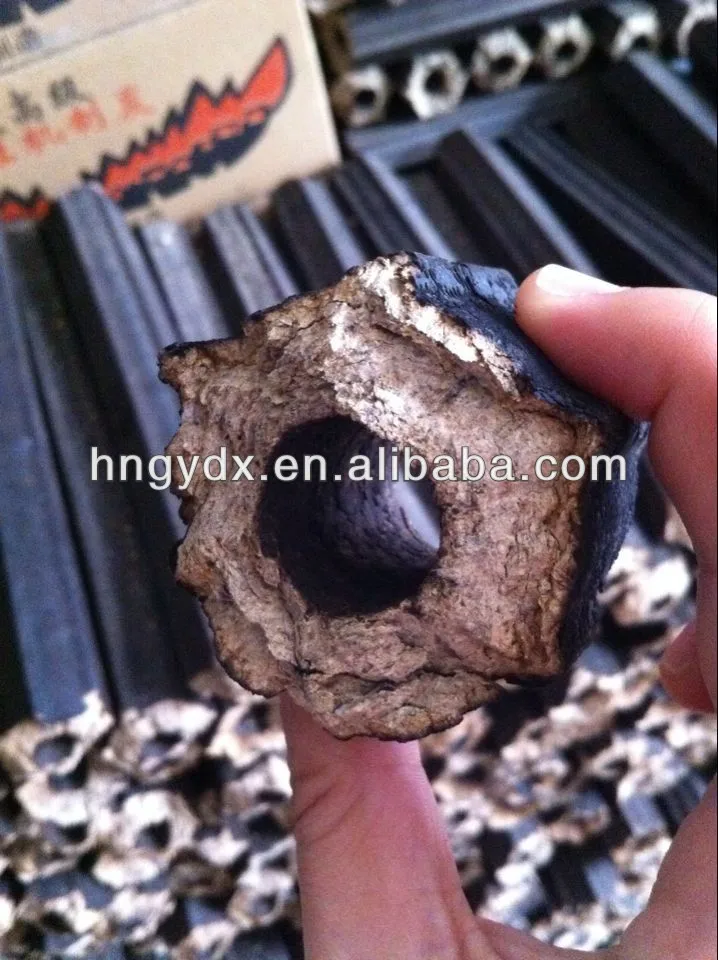

1 Hexagon shape briquette, 50mm, 80mm wood briquette diameter hot sale in market.

2 Raw material used for wood briquette machine can be corn cob,wheat straw, cotton straw,wood

   chips,tree branch ,corn stalk ,sawdust etc.

3 Wood Briquette machine screw propeller equiped with automatic temperature control system.

4 Wood Briquette machine can be 15kw/18.5-3phase-380v-50hz or customer made .

5 16 working hours per day.

6 Industrial boiler fuel, BBQ,warming.

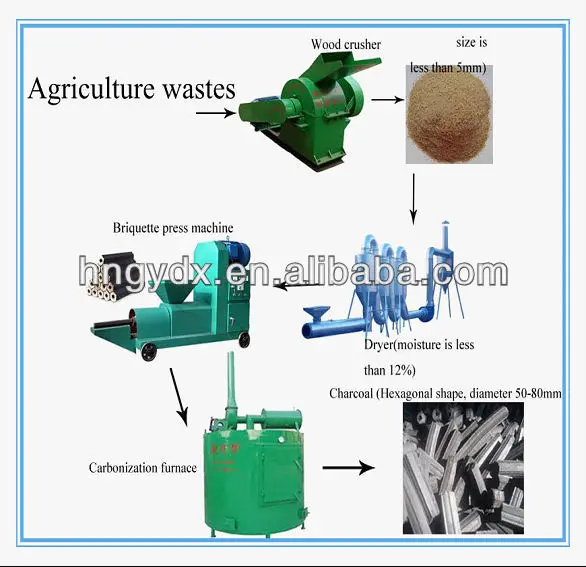

Processing flow - chart:

Biomass material → Crush → Dry → Briquette → Carbonize → Charcoal(for charcoal briquette)







The advantages of wood briquette machine

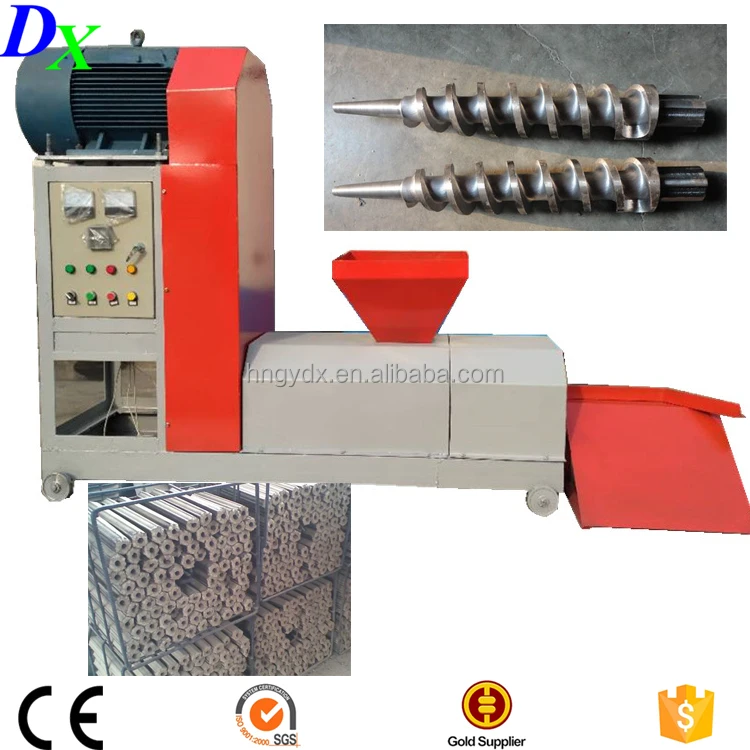

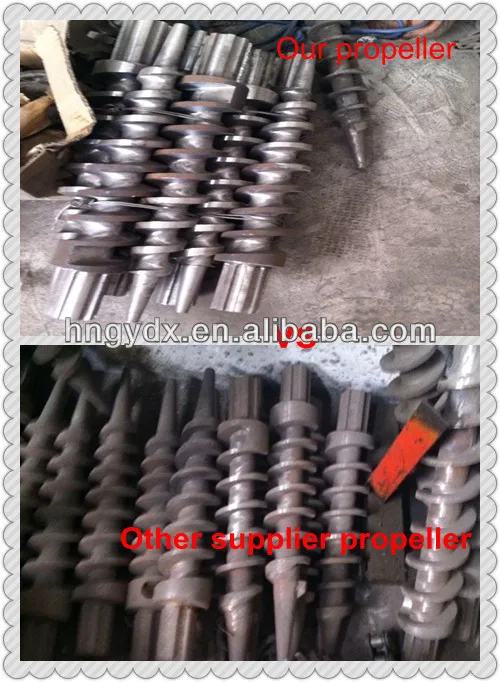

♦ Our wood briquette machine adopt special alloy coating technique to manufacture the most important parts - screw propeller.



♦ The wood briquette machine electric control panel can protect the briquette machine when sudden stop or overload.



♦ Uniform in size and quality as a kind of biofuel briquette.
♦ Wood Briquette machine equiped with automatic cutting device and can decide the briquette length.







Parameter



Model	Power	Output	Briquette diameter	Weight	Dimension
ZBJ-11	11 kw	140-180 kg/h	40-80mm	600kg	1.65*0.6*1.55m 1.8*0.6*1.6
ZBJ-15	15 kw	180-200 kg/h	40-80 mm	600kg
ZBJ-18.5	18.5	200-250 kg/h	40-80mm	700kg
ZBJ-22	22 kw	260-350 kg/h	40-80mm	850kg



Automatic sawdust screw briquette  machine production line













 If you are interested in our machine,you want to learn more information about wood charcoal production line,please do not hesitate to contact us.

Weclome to our factory.
