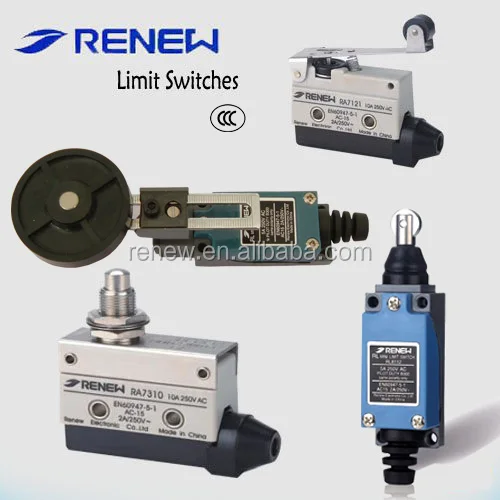

Types of industrial gear limit switch

Product Overview

Description

RL7 series omron limit switch

gear limit switch





Rated value and characteristics of limit switch RL7 series

Rated working current	10A 125V, 250VAC; 0.4A 115VDC(resistor load)
Contact type	Contact resistance (initial value )		Under 15 mΩ (not include copper resistance )
	Contact material		Sliver cadmium oxide contact(if no need cadmium,[according with ROSH certificate ] can customize
Electrical	Insulation resistance (initial value)		100 mΩ min. (use the DC500V insulation resistance test)
	Dielectric strength		Between Non-continuous terminals (initial value): 1500V 50/60HZ for 1 min Between dead metal parts and each terminal: 2000V 50/60HZ for 1min Between ground and each terminal:  2000V 50HZ for 1 min
Mechanical	Shock resistance	In the free position	Less than 98m/s2(10G)
		In the full operating position	Less than 294m./s2(30G)
	Vibration resistance		1.5mm double amplitude  10-55HZ (contact gap is under 1 ms)
Expected Life	Mechanical		10,000,000 operations min. (on/off frequency 50 operations/min)
	Electrical		200,000 operations min.(on/off frequency is 20 operations/min)
Using condition	Ambient temperature /Ambient humidity		-20~+60 (with no icing),   95%RH max. (at +5~20)
	The max on/off frequency		120 operations/min











WHY CHOOSE US?



1. More than 17 years experience on producing and developing micro switch, limit switch, toggle switch. Have our own brand "RENEW".



2. High quality raw materials, long life and secure switches.



3. Dust-free plant, strict quality control, provide you satisfactory switches.



4. CE, CCC, UL. ROHS Certificates.



5. Plentiful stocks, solve your urgent needs.



 Micro switch

 Toggle switch



?FAQ



1.Q:What are your payment terms? Do you accept paypal?



    A: 100% T/T in advance. We do not have a paypal account at present.



2. Q: Do you have a price list?



     A: We do not have a published list, however you can contact customer service and they can supply you with the pricing that you need.



3. Q: What are your warranties?



    A: 12 months from the date of invoice. Renew offer the free maintenance or replacement of malfuctioning products.



4. Q: Can you accept OEM?



     A: Yes, need your trademark authorization letter.



5. Q: What about the package?



     A: All use thickening export carton with "RENEW" mark, you specified mark or none.



6. Q: Do you provide sample?



     A: Yes, free sample can provide to you, express freight collect.



7. Q: Do you accept small order quantity?



     A: Yes, order quantity without limited.



8. Q: How about the delivery mothod?



     A: In small quantity, we suggest by express DHL, TNT, FEDEX, UPS......  If not by sea or by air transport.



9.Q: Do you bear the freight charge?



    A: We can offer you EXW, FOB or CIF price.
