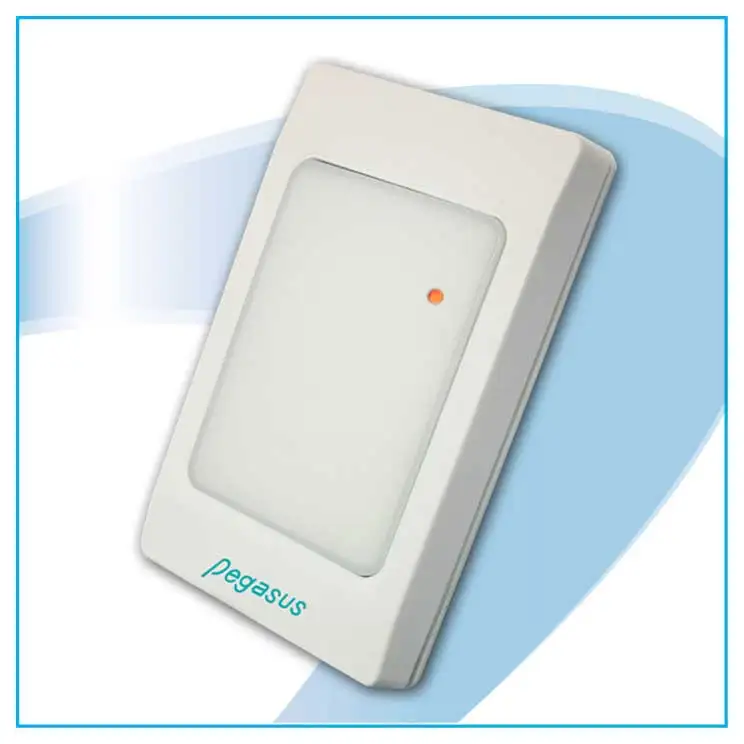

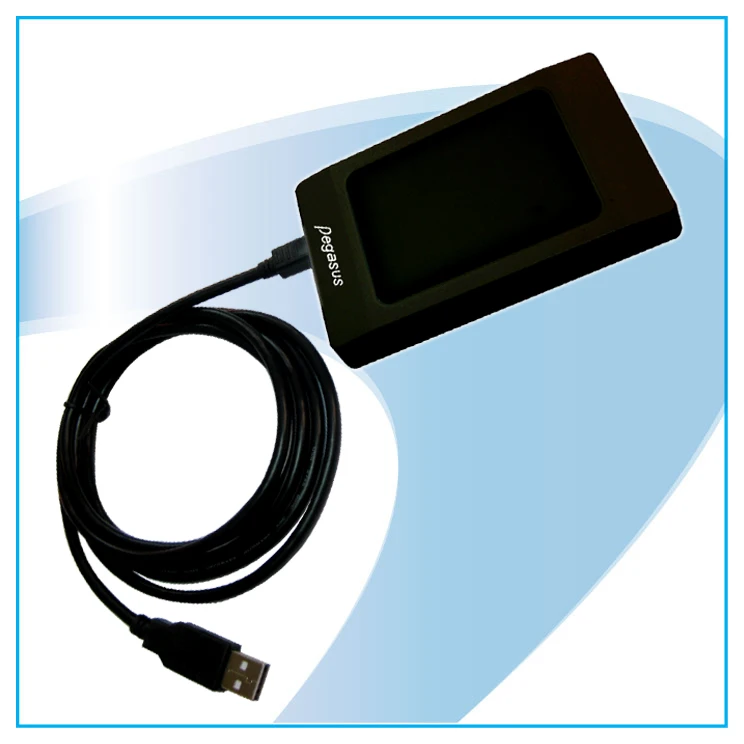

LF125KHz EM Card Reader with USB interface keyboard emulation, ID Card Reader

Product Overview

Description

125KHz RFID card reader with USB interface

Product Description

• This product is the RFID card reader with USB interface. It can be used to read either 125KHz EM. It can provide easy ID filing by USB keyboard emulator without any driver (plug & play) and no request of external power supply. So it is especially applicable to various software applications which need to input card number instead of editing it manually.


• With multi card formats output thru DIP switch selection.(ASCII ID, Decimal and Hexadecimal)



Features
•Registration ID card for access control system.
•System login / logout application.
•Member system.
•POS.(Inventory management, logistics system,
food and drinks industry and so on.)
•Support Android 4.0 system.

Specifications

•Dimensions (L x W x H)	: 118 x 75 x 17 mm / 4.6 x 3 x 0.7 inch
•Mounting	: Desktop
•Material	: PC
•Power supply	: By USB
•Operation temperature / Humidity	: -15 °C ~ 55 °C ,20%~90% RH, Non condensation
•Frequency of Operation	: 125KHz EM
•Output Interface	: USB 2.0
•Card number type	: Decimal / Hexadecimal, 8 digits / 10 digits   *Selected the card number type by jumper. (Optional)
•Card type	: EM4100, EM4102, EM4200, TK4100, EM4305, ATA5577, T5567, Temic5557

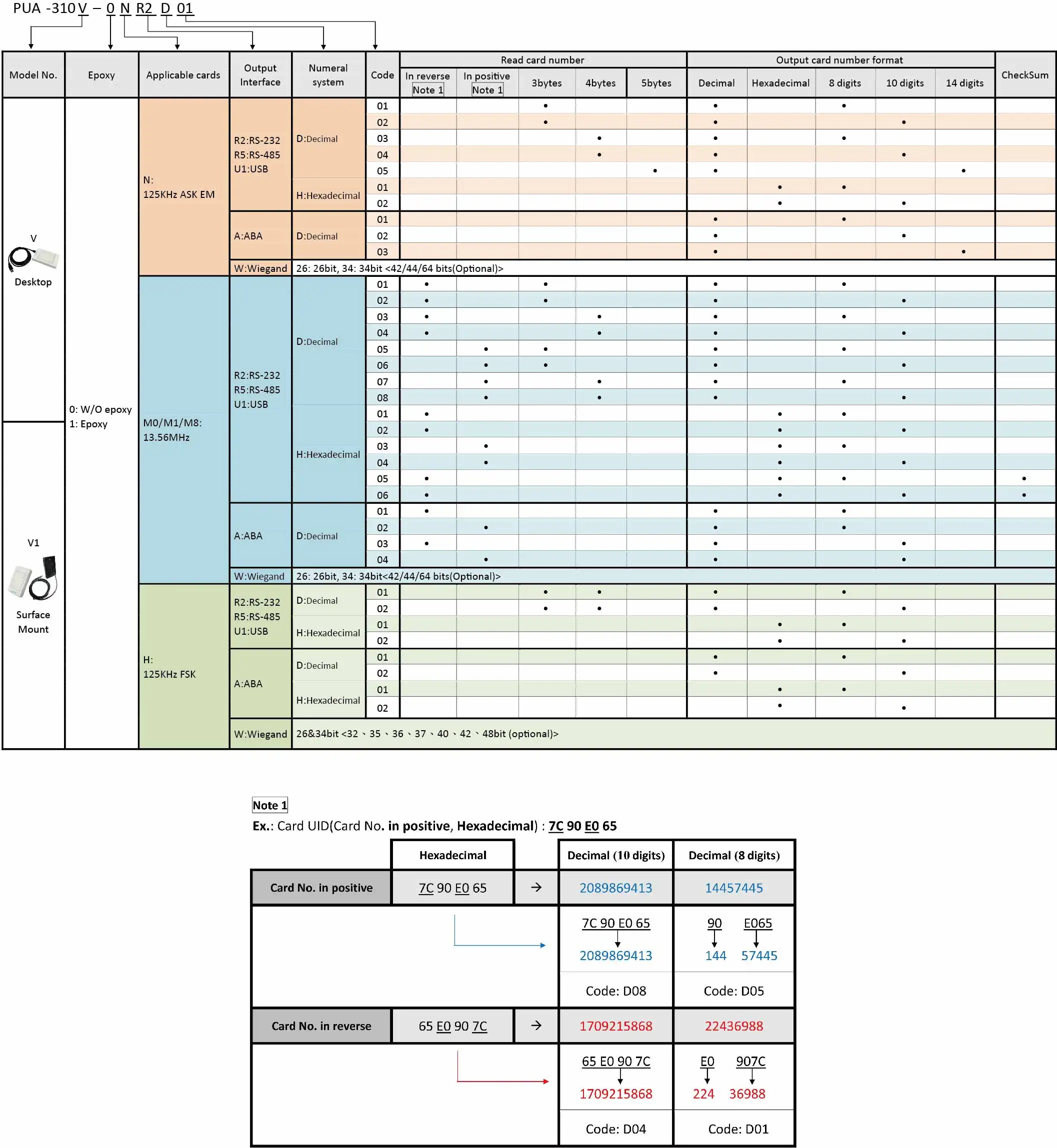

Ordering Information For Proximity Reader

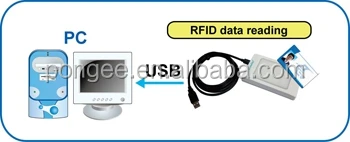

*U1 : Plug & Play, USB, keyboard emulation(without any PC driver)
*U3 : Serial port emulator thru USB interface



*Standard RS-232 output format: <STX>000043090892<CR><LF><ETX>
*Standard RS-485 output format: <STX>000043090892<CR><LF><ETX>











We reserve the right to change the specification without prior notice or obligation!
