RFID Multi door Access Control Board, TCP/IP, RS485,RS232

Product Overview

Description

Introduction

• The PC-1074 is designed for high-security access control and real-time monitoring environments from medium size to complex multi-site installations.

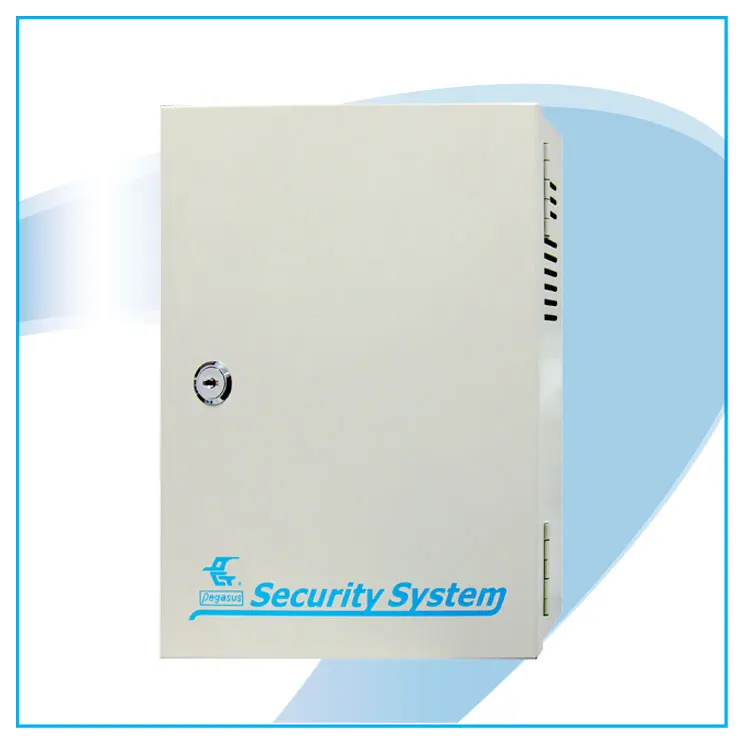

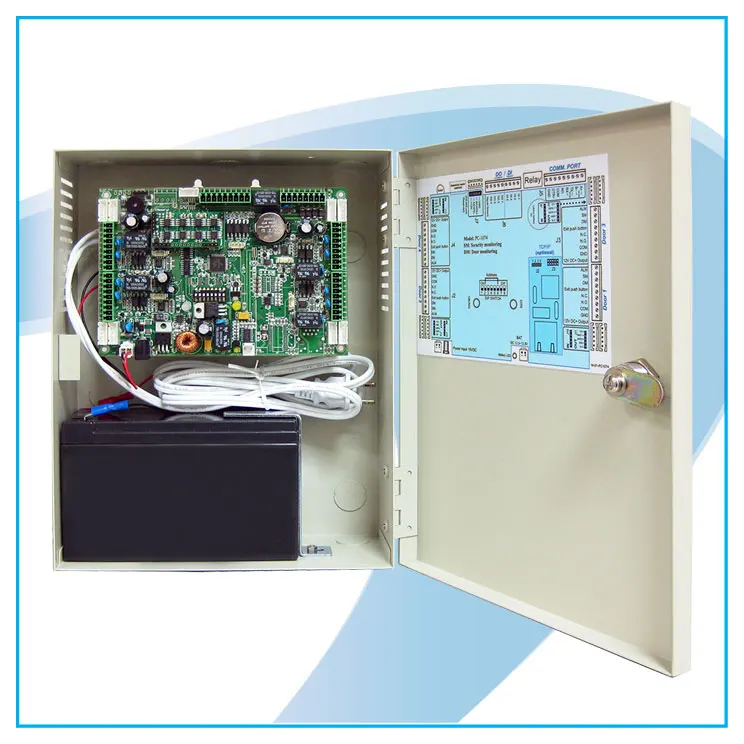

• It is an independent processing 4 doors access control package with metal enclosure, backup battery charger as an efficient space saving design.

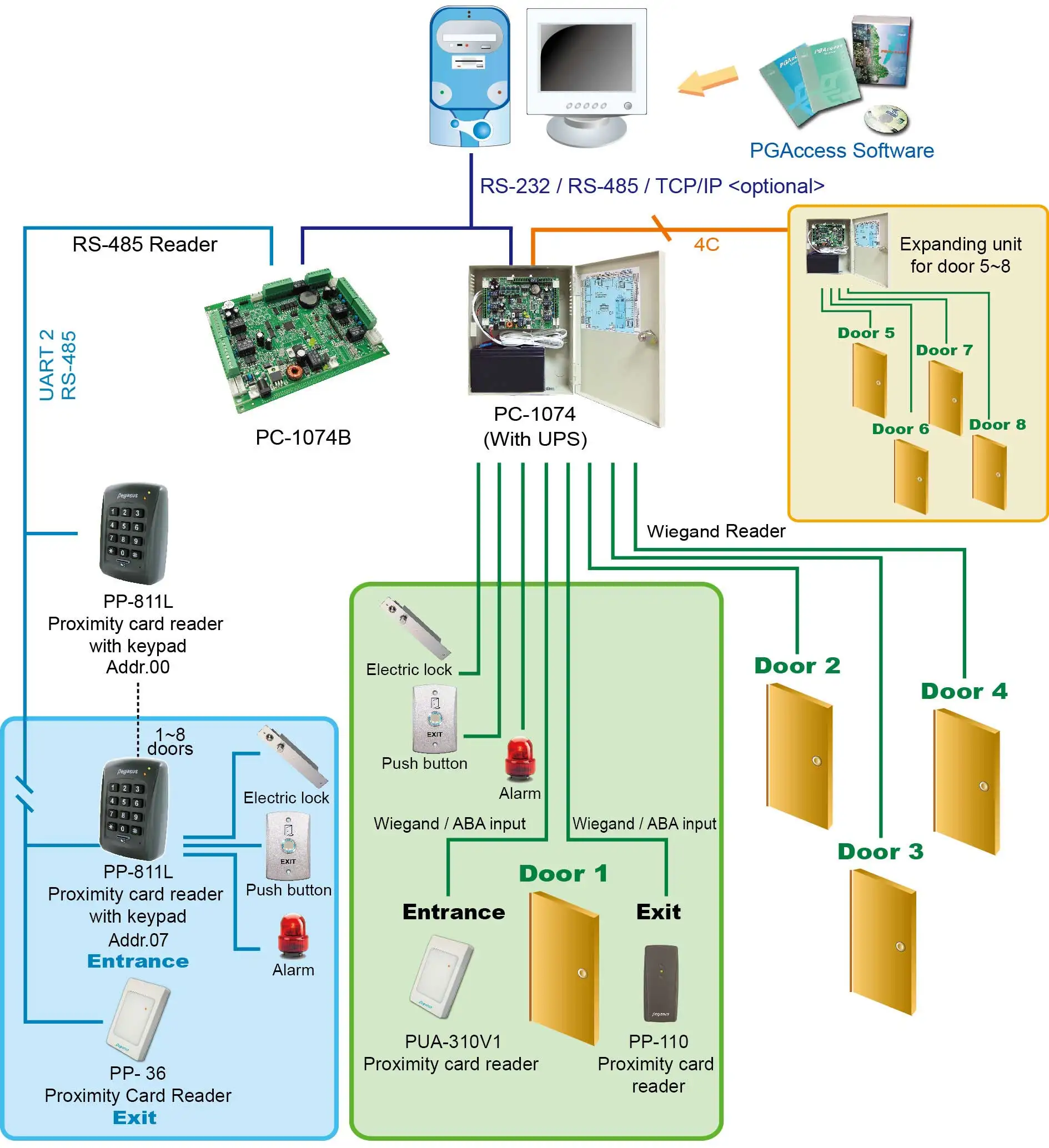

• Suitable for applications with up to 64,000 users across a modular 1024 doors, allowing maximum flexibility for securing a growing enterprise. Each unit supports 8 Wiegands or RS-485 ports for entry & exit control.
• The system support Bar Code, Magnetic Stripe, Biometric and Smart Card Readers thru. Wiegand or ABA interface.
• Designed with 4 DI (digital input) and 4 DO (digital outputs) for light, air conditioning, surveillance, fire prevention or urgent rescuing system control.
•  Free SDK available.

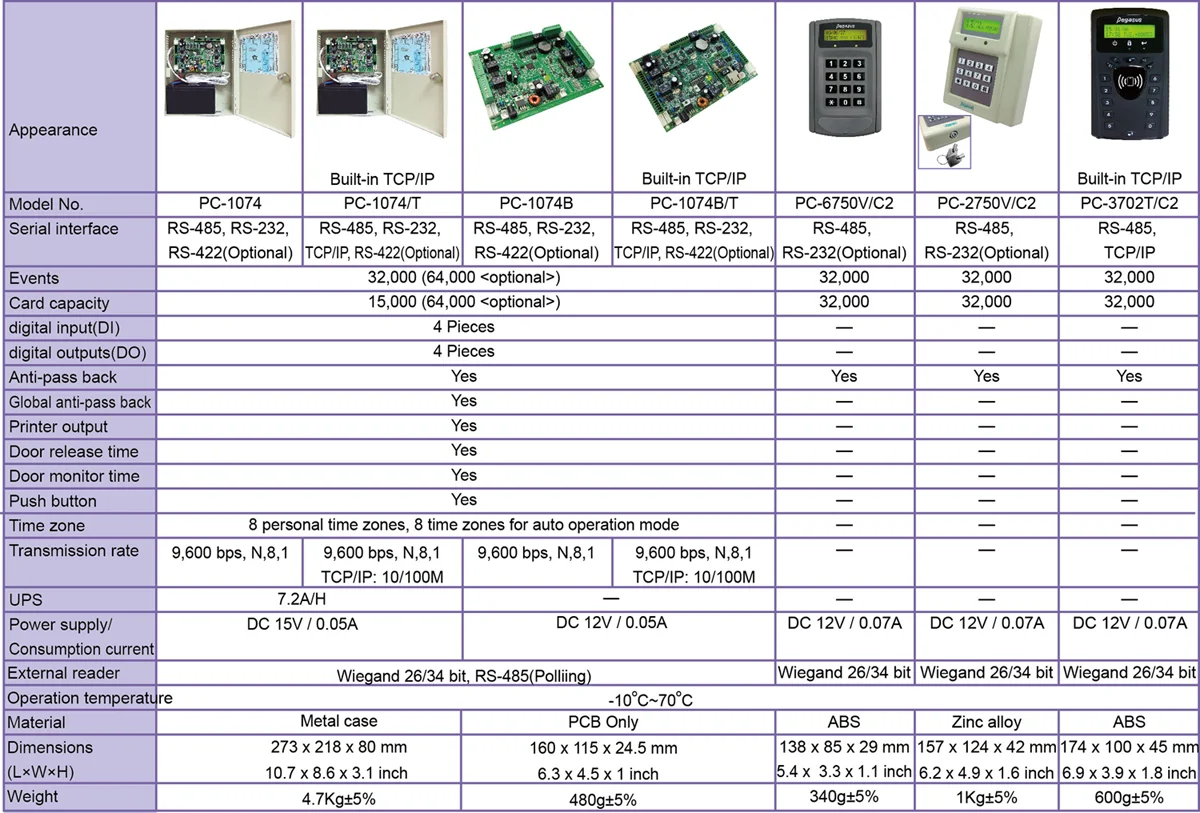

Features

• Online Network with on board selectable RS-485/RS-232/RS-422(optional) and TCP/IP Ethernet.
• Up to 15,000 cards with 32,000 events. Optional 64,000 cards with 64,000 events.
• Multi technology of badges include proximity, smart card, biometric, hand free active card, mag. cards, etc.,
• 8 wiegand readers for 4 doors. expandable to 16 wiegand readers for 8 doors. Optional 8 or 16 RS-485 readers for 8 doors by 2nd RS-485 port.
• 4 digital inputs and 4 digital outputs with expansible 24/48/64 relays output for floors control.
• Global (4 or expandable 8 doors) or single doors APB without PC autonomous decision at local level without degradation and removable connectors.
• Optional baud rate from 2,400 to 38,400 with optional encryption for communication security.
