Heat Exchangers Parts Refrigeration Vertical Liquids Reservoir Tank With Sight Glass Check Valve Rotalock Valve
- Category: >>>
- Supplier: Shengzhou City Refrigeration Equipment Factory
Share on (1920919102):
Product Overview
Description
Heat Exchangers Parts Refrigeration Vertical Liquids Reservoir Tank With Sight Glass Check Valve Rotalock Valve
| Remark | ||
| 1:Working Pressure [PS]:33 Bar; | 4:Inlet Connection (3/8"SEA Rotalock Valve); | |
| 2:Test Pressure [PT]:48 Bar; | 5:Outlet Connection (3/8"SEA Rotalock Valve); | |
| 3:Allowable Temperature [TS]:Min. - 10 ~Max.-130 Celsius ; | 6:Check Valve Connection (3/8"SEA); |
Production :

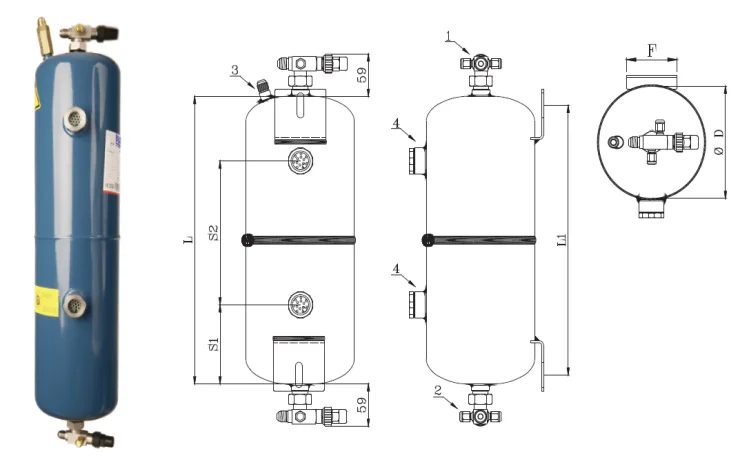

| Model | Volume (L) | Dimension(mm) | Sight Glass | |||||
| D | L | L1 | F | Type Tip | S1(mm) | S2(mm) | ||
| OR-10 | 3.8 | 140 | 290 | 265 | HFC-75 | Sw36 with Swiming Ball Toplu | 90 | 130 |
| OR-20 | 7.2 | 160 | 400 | 375 | HFC-75 | 110 | 200 | |
| OR-30 | 10.8 | 180 | 480 | 455 | HFC-75 | 140 | 220 | |
| OR-40 | 14.6 | 220 | 440 | 415 | HFC-75 | 130 | 200 | |
| OR-50 | 18 | 220 | 525 | 500 | HFC-75 | 150 | 245 | |
| OR-60 | 23.3 | 273 | 450 | 385 | HFC-120 | 130 | 210 | |
