Two color EVA Slipper making machine
- Category: Shoemaking Machines >>>
- Supplier: Zhejiang Kingrich Machinery Co. Ltd.
Share on (1920965913):
Product Overview
Description

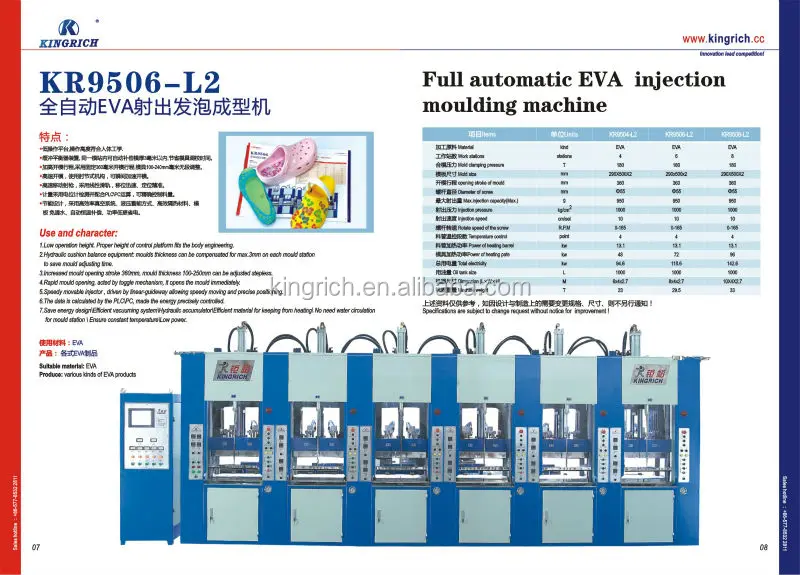

EVA injection moulding machine
No: KR9504-L2 KR9506-L2 KR9508-L2 KR9510-L2
Suit for the material:EVA

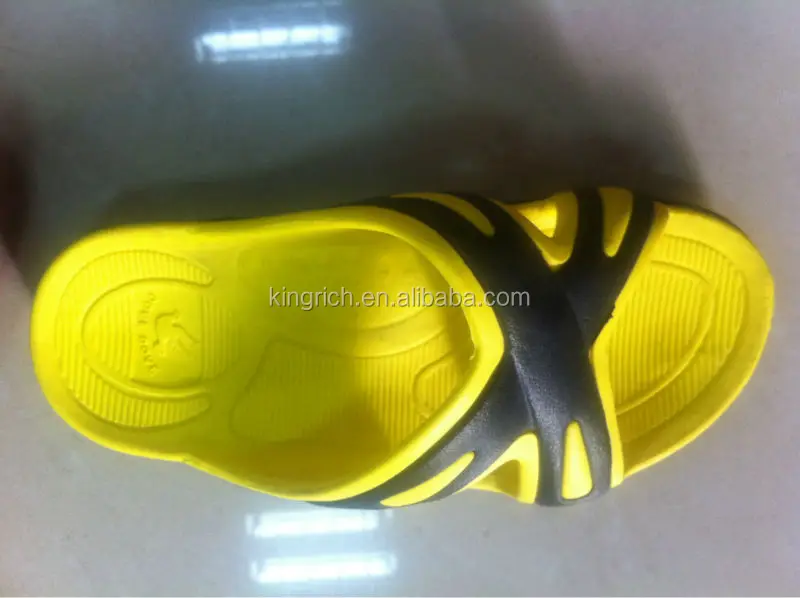

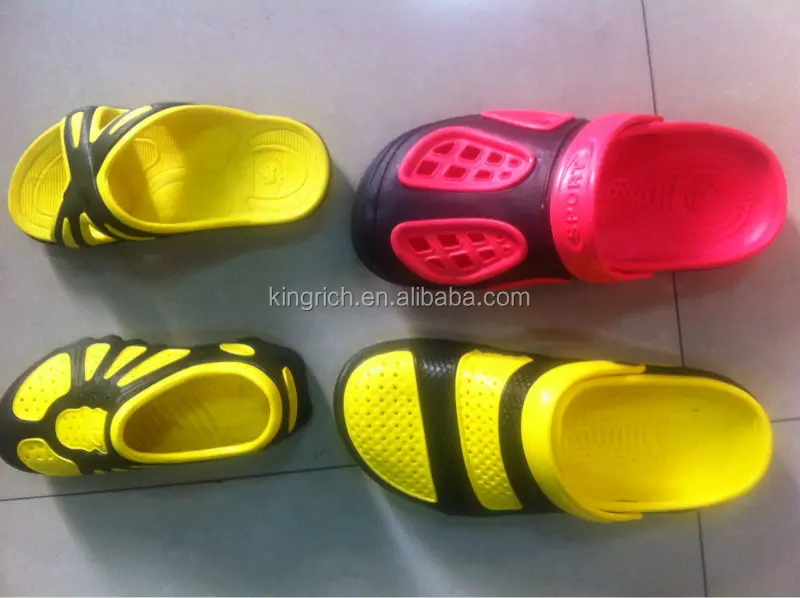

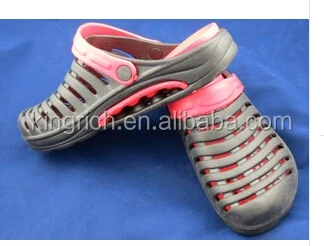

Use for:various kinds of EVA products
Items | Units | KR9504-L2 | KR9506-L2 | KR9508-L2 |
Material | kind | EVA | EVA | EVA |
Work stations | stations | 4 | 6 | 8 |
Mold clamping pressure | T | 180 | 180 | 180 |
Mold size | mm | 290*500*2 | 290*500*2 | 290*500*2 |
Opening stroke of mould | mm | 360 | 360 | 360 |
Diameter of screw | mm | 60 | 55 | 55 |
Max.injection capacity(Max.) | g | 950 | 900 | 900 |
Injection pressure | kg/cm2 | 1000 | 1000 | 1000 |
Injection Speed | cm/sel | 10 | 10 | 10 |
Rotate speed of the screw | R.P.M | 0-165 | 0-165 | 0-165 |
Temperature Control | point | 4 | 4 | 4 |
Power of heating Barrel | kw | 13.1 | 13.1 | 13.1 |
Power of heating plate | kw | 48 | 72 | 96 |
Total electricity | kw | 94.6 | 118.6 | 142.6 |
Oil tank size | L | 1000 | 1000 | 1000 |
Dimension(L×W×H) | M | 6*4*2.7 | 8*4*2.7 | 10*4*2.7 |
Machine weight | T | 23 | 29.5 | 33 |
EVA injection moulding machine
No: KR9504-L2 KR9506-L2 KR9508-L2 KR9510-L2
Suit for the material:EVA
Use for:various kinds of EVA products
Use and character
- 1. Low operation height. Proper height of control platform fits the body engineering.
- 2. Hydraulic cushion balance equipment:moulds thickness can be compensated for max.3mm on each mould station to save mould adjusting time.
- 3. Increased mould opening stroke 360 mm,mould thickness 100-250mm can be adjusted step less.
- 4. Rapid mould opening,acted by toggle mechanism,it opens the mould immediately.
- 5. Speedy movable injector,driven by linear-guideway allowing speedy moving and precise positioning.
- 6. The data is calculated by the PLC\PC, made the energy precisely controlled.
- 7. Save energy design\Efficient vacuuming system\Hydraulic accumulator\Efficient material for keeping from heating\No need water circulation for mould station\Ensure constant temperature\Low power
