DC12V pan tilt head motorized low price

Product Overview

Description



DC12V pan tilt motor

Cangzhou Haina Electronic Technology Co.,ltd. Products are widely used in coastal defense monitoring, the monitoring of the military airport, ships, military vehicles and other military project, Qingdao Olympic sailing competition, large venues such as the 11th national games field monitoring, as well as a number of provinces and cities "safe city", such as oil field, railway, water monitoring projects, and exported to the United States, north Korea, Iran, Malaysia, Saudi Arabia, etc.



Model	MG-5010-DC12V
Voltage	DC12V
Power	30W
Optical heating device	30W
Pan range	0°~355°
Tilt	70°±70°max90°±90°
Pan speed	4.3°/S
Tilt speed	4°/S
Working environment	-20°C~65°C;  -35°C~60°C(H auto heating)
Humidity	<90%RH

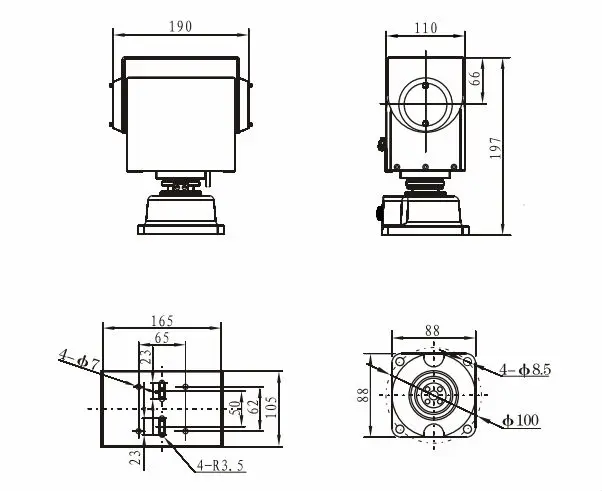

Size	190mm(L)×110mm(W) ×197mm(H)
Weight	4.6kg
Core material	Aluminum
Load	Top load,10kg

 Outside decoder optional

Model	MG-7314
Voltage	DV12V
Power	20W
Communication	RS485 P/D protocol
Lens control voltage	DC12V
Working temperature	-25°C~+60 °C
Size	105mm×71mm×46mm









  WORKSHOP



QUALITY CONTROL

QC / Technical Support
The QC department of us is fully equipped with all the necessary testing and inspection facilities. We also have experienced professional inspectors and Engineers guided by an ISO 9001:2000 certified quality management system.
QC Staff
14-20
Materials/Components
Some QC instruments and meters are sourced domestically, and some are imported form the Germany and Japan.
Procedures/testing details
All raw material and components are subject to rigid metallurgical tests and only qualified materials are used.
All components processed in every manufacturing stage are inspected and tested strictly.
100 percent inspection and testing is carried out before packing.
Inspection flow:
1. Packing checking: products quantity, packing method, packing mark, products putting.
2. Appearance checking: Put products at the place of 46cm from eyes, inspect with seeing, feeling plug gauge and graduated scale.
3. Machine performance inspection.
4. Electricity performance inspection.
5. Insides of products inspection.
6. Character and reliability testing: Life testing and Temperature test in operation
