Product Overview

Description

audiovisual system meeting table 3 pin socket ethernet ports

connectivity box description

1, BW-T60 pop up socket is an innovative equipment which used together with furniture.

2, It provides electrical and AV access. Integrate the electronics technology and automation into the model furniture.

3, Cable management--All cable connect at the bottom of the socket. Make the table tidy.

4, Cable connection--Need to be weld when you use it.

5,  Adopted the mechanism design of pneumatic and machinery fastener. Skillfully satisfied with the rise and lock.

6,Mainly used for advanced office, modern hotel, meeting room, training room, shool etc.



connectivity box specification

Product name	Pop up socket
Item No.	BW-T60
Module qty/pc	3 modules position
Panel shape	Square, round/straght corner
Material	zinc alloy+plastic
Color	silver/black
N.W	1.4kg/pc
Product size	138*135*67mm
Package size	165*145*85mm/pc
Voltage	110-220V/50HZ
Working environment	at -10 °C or above
Certificate	CE approved
Available modules	power(Universal,UK, USA,EU,AU),data(cat5/cat6),tel,vga,audio,vedio, hdmi,usb,MIC
Remark:1.Universal/UK/EU/AU power take 2 modules position 2.Above size information is just for your reference. Exact size please refer to the actural goods.





connectivity box interface

Power	110V-240 VAC 50/60Hz 13A(with power-off indicator)
computer	15-Pin HD VGA female
audio	3.5mm stereo female jack/RCA female
video	RCA female
LAN	RJ-45(CAT.5E) network/cat6/data/connector
Telephone	RJ-11 voice(CAT3)
USB	USB2.0 female
HDMI	HDMI1.3 female
MIC	6.35mm stereo female jack
shift	press switch

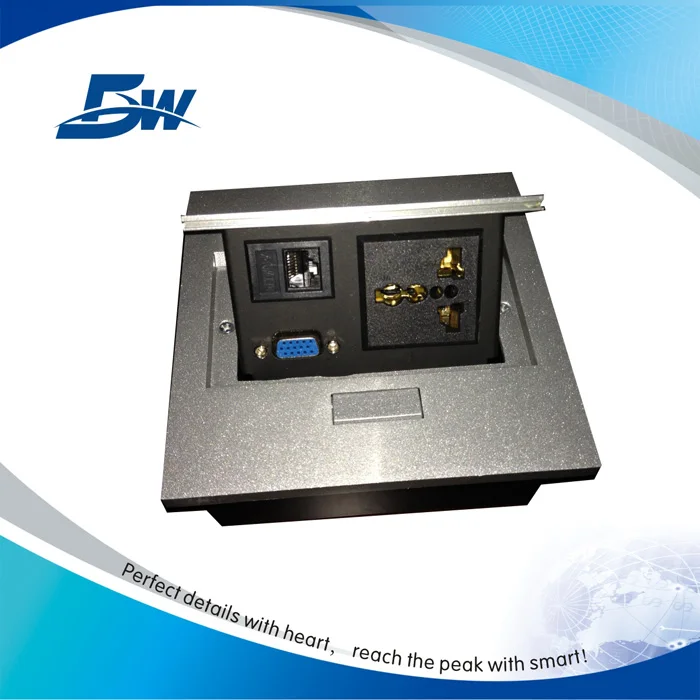

connectivity box images

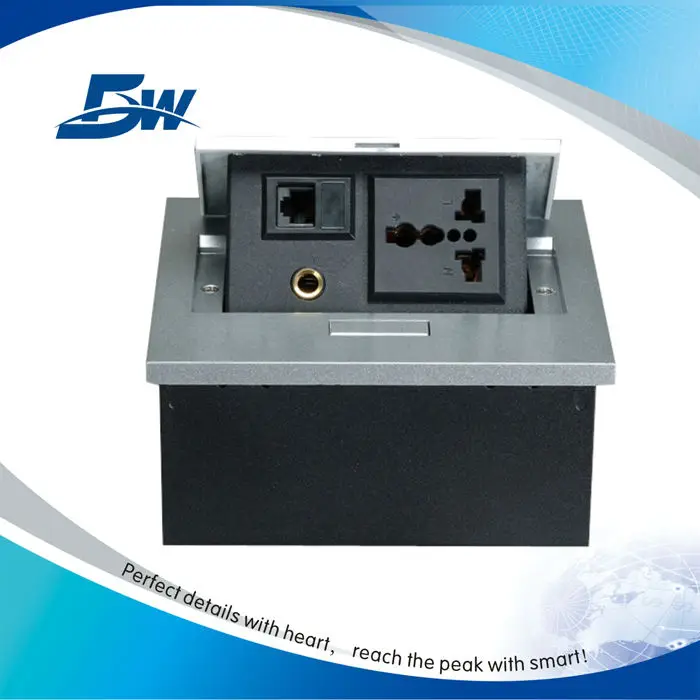

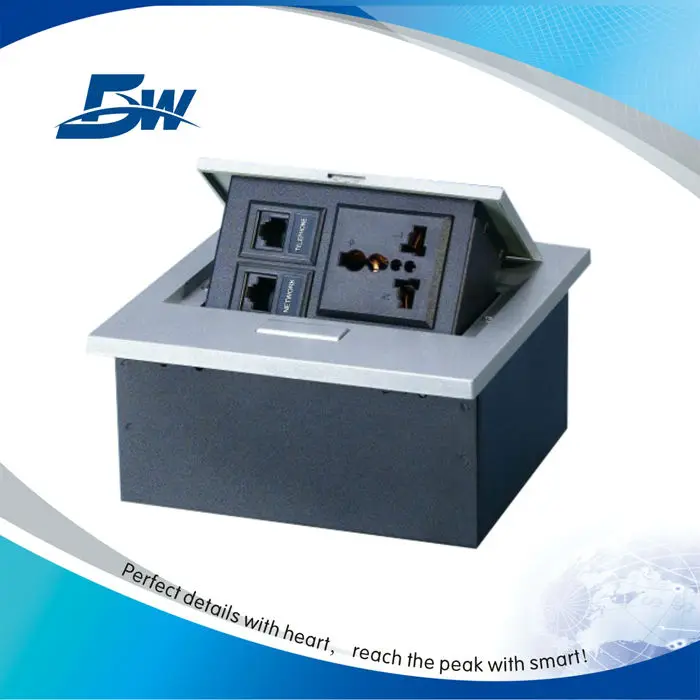

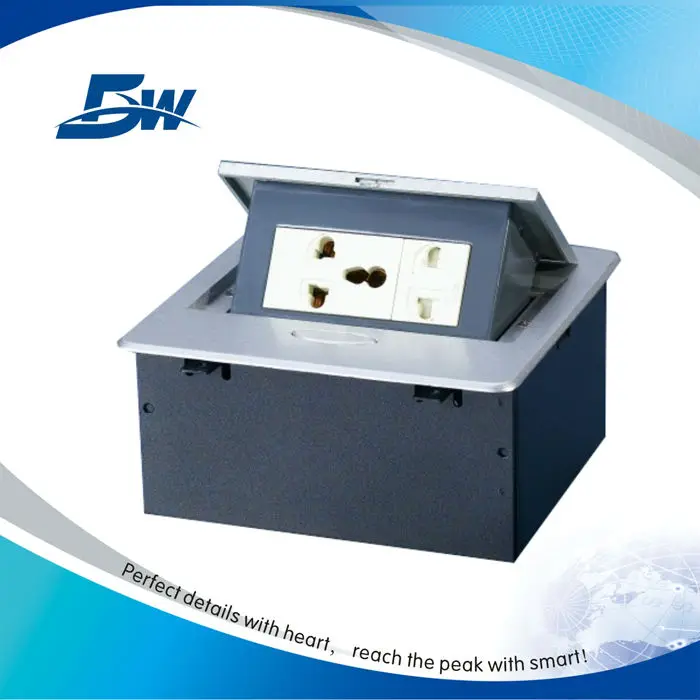

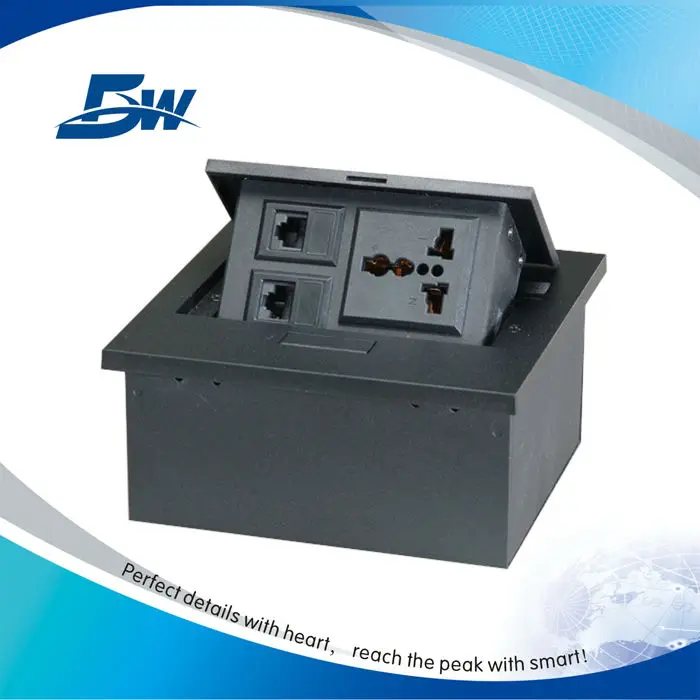

Related connectivity box show



connectivity box operation process

1, Press the button on the panel. Socket will be fliped up. Connectors are ready.

2, After finishing the use of socket, press top panel. Socket will be locked by machinary lock. Connectors concealed.



connectivity box after-sale service

1, Shipment tracking. B/L(other document) or tracking number will be gave at the first time.

2, Any problem will be solved in 24 hours.

3, Technical support always on line.

4, Regular follow-up service.
