steel sheet plate shot blasting machine with paint and drying

Product Overview

Description

Introduction of machine:

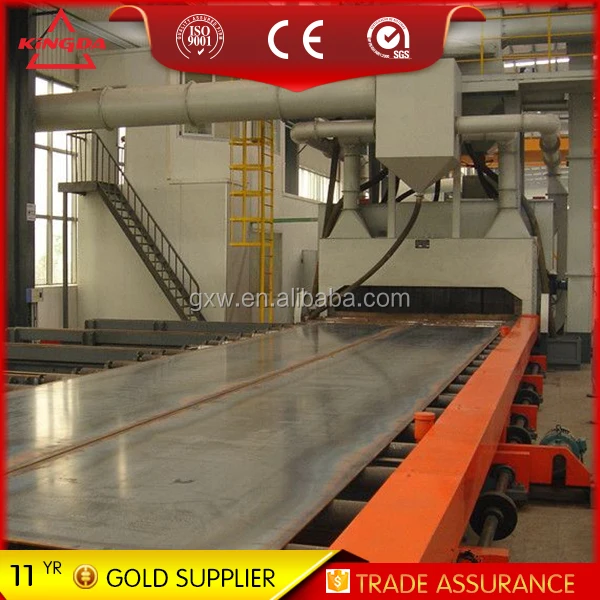

 steel profiles steel plate h-beam  trailer body shot blasting machine  applies to shipping,car,motorbike,bridge,steel structure to remove the rusty spot,rusty layer and scale cinder on it to abtain a uniform,smooth and glossy metal surface to allow improved coating quality and higher anti-corrosion performance.

Feature:

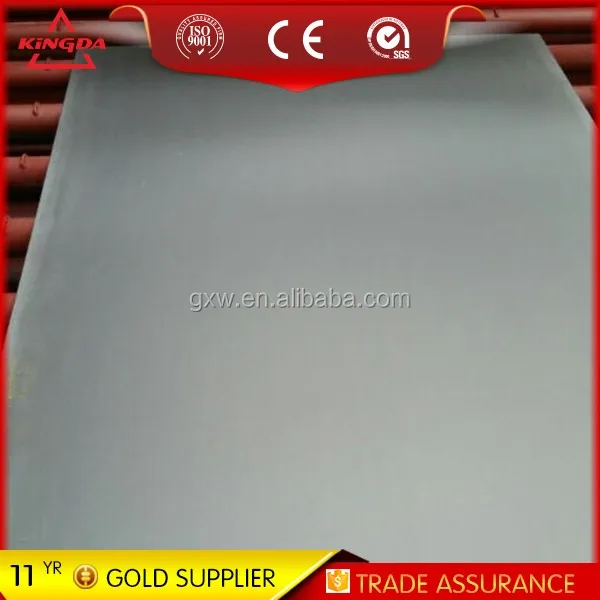

 1.Used to remove the rusty spot, rusty layer and scale cinder on steel to obtain a uniform, smooth and glossy metal surface

  2. Allowing improved coating quality and higher anti-corrosion performance

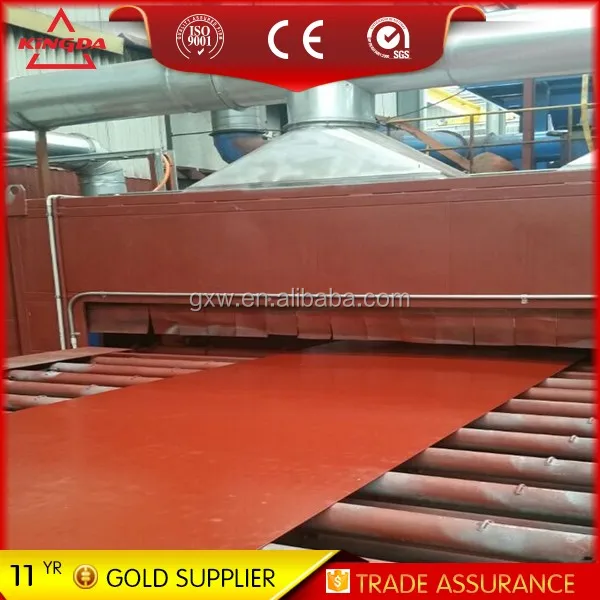

 3.This series of steel sheet shot  blasting machine is consist of pre-heat,shot blasting, spray painting ,drying systems

Specification of different models:

Model	Q6908	Q6910	Q6920	Q6925	Q6930	Q6950
Effective cleaning width(mm)	800	1000	2000	2500	3000	5000
Dimension of inlet size (mm)	1100*400	1300*400	2300*400	2800*400	3300*400	5300*400
Length of cleaning workpiece(mm)	2000~12000	2000~12000	2000~12000	2000~12000	2000~12000	2000~18000
Work speed of roller (m/min) frequency control of speed	0.5~5	0.5~5	0.5~5	0.5~5	0.5~5	0.5~5
The thickness of cleaning steel sheet (mm)	3~60	3~60	3~60	3~60	4.5~60	5~60
Steel profiles(mm)	800*300	1000*300	2000*300	2500*300	3000*300	5000*300
Qty of shot blasting (kg/min)	4*200	4*250	6*250	8*250	6*360	10*420
First time load shots qty(kg)	2000	2000	3000	4000	5000	10000
Roller brush height(mm)	350	350	400	450	800	850
Lift elevator capacity(t/h)	48	60	90	120	130	260
Separator capacity (t/h)	48	60	90	120	130	260
Air rate (m3/h)	17560	19000	22000	28000	35000	68000
Total power	80	86	155	189	210	450
