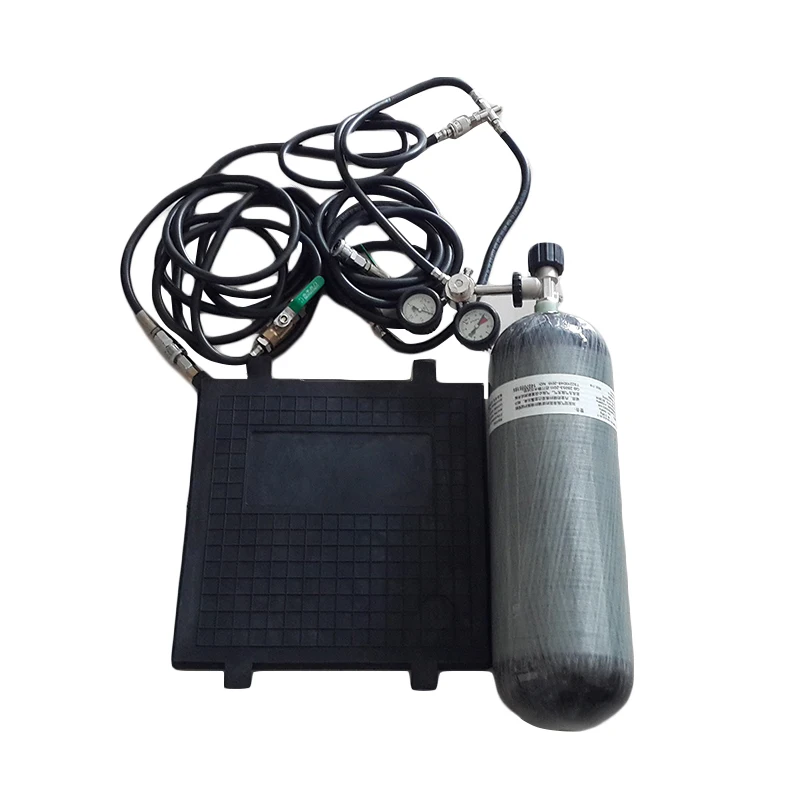

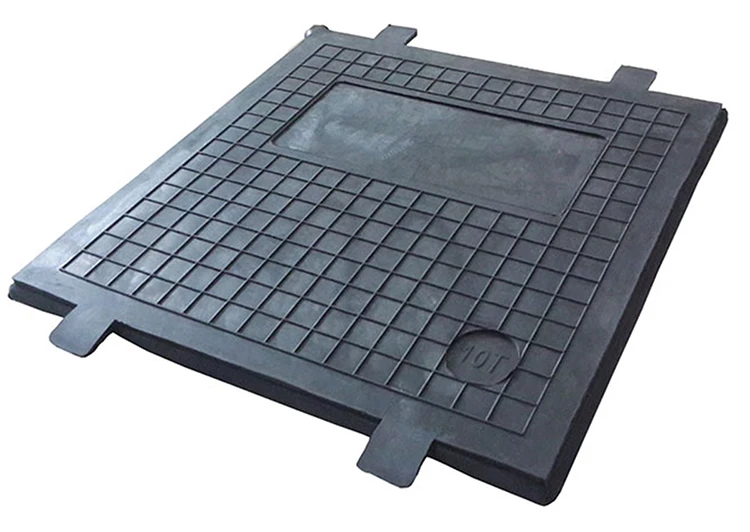

Traffic Accident Vehicle Extrication Rescue Inflatable Bags Air Lifting Cushion
The high pressure air lifting bags is made up of aromatic polyamide fiber reinforcement, 4 layers in total. Primarily used in low insertion situations with heavy weights to be lifted such as, building lifting, emergency rescue, vehicle extrication, heavy recovery and truck moving and so on. Only thickness of 25mm can lift tons of objectives easily. Can be powered by high pressure gas cylinder, foot air pump or pump station. Anti-skipping design on the surface and thicken edge ensures the safety for operation.
Application
Vehicle extrication, building collapse, disaster rescue, aircraft accident etc. namely rescue situations.
Features
1. Noiseless, shamble, lift the heaviest object stably;
2. Long using life, the special anti-skip design on surface can maintain the skid resistance when work on grass/ sediment etc;
3. Wear-Resisting & Anti-crack;
4. Corrosion resisting, Flexible.
2. Long using life, the special anti-skip design on surface can maintain the skid resistance when work on grass/ sediment etc;
3. Wear-Resisting & Anti-crack;
4. Corrosion resisting, Flexible.
Product Specifications
Model | Area | Thickness | Lifting Force | Max Lift Height | Air Volume Needed | Weight |
B1 | 150*150 mm | 26 mm | 1 ton | 70 mm | 0.6 L | 0.6 kg |
B5 | 250*250 mm | 26 mm | 5 ton | 110 mm | 2.1 L | 1.5 kg |
B8 | 320*320 mm | 26 mm | 8 ton | 130 mm | 5.2 L | 2.5 kg |
B10 | 370*370 mm | 26 mm | 10 ton | 160 mm | 8.6 L | 4 kg |
B15 | 450*450 mm | 26 mm | 15 ton | 200 mm | 16.9 L | 5.3 kg |
B18 | 500*500 mm | 26 mm | 18 ton | 220 mm | 22 L | 6.5 kg |
B22 | 550*550 mm | 26 mm | 22 ton | 250 mm | 32.9 L | 8.1 kg |
B28 | 600*600 mm | 26 mm | 28 ton | 280 mm | 43.8 L | 11.2 kg |
B32 | 650*650 mm | 26 mm | 32 ton | 360 mm | 56.7 L | 13.3 kg |
B40 | 750*750 mm | 26 mm | 40 ton | 420 mm | 86.5 L | 18.2 kg |
B45 | 850*850 mm | 26 mm | 45 ton | 450 mm | 126.2 L | 22.5 kg |
B54 | 900*900 mm | 26 mm | 54 ton | 500 mm | 148.9 L | 25.3 kg |
B68 | 950*950 mm | 26 mm | 68 ton | 550 mm | 182.8 L | 28.6 kg |

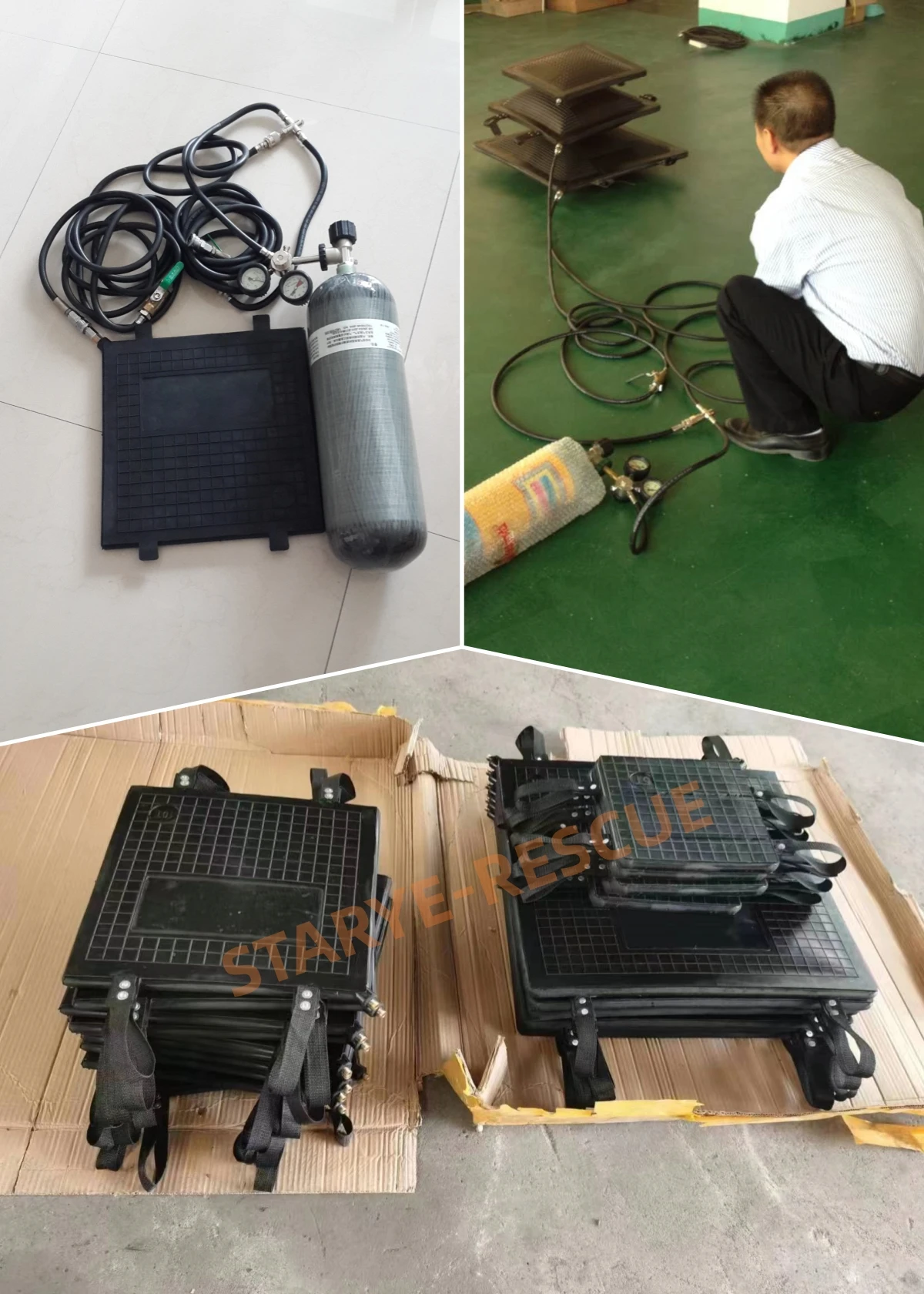

Product Actual Shooting
Product Details

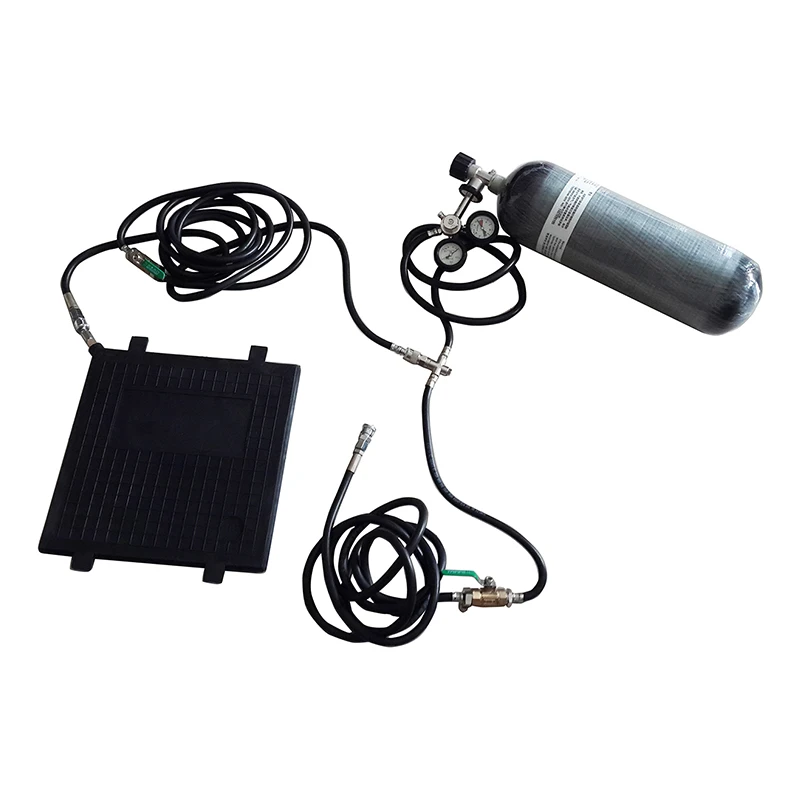

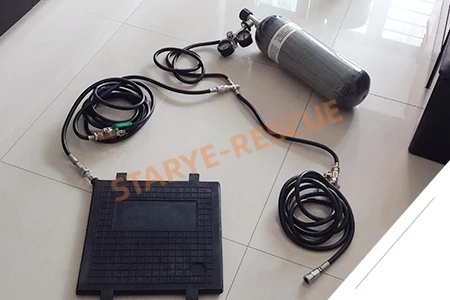

01 Whole set
The whole set consists of air bags, pipe controller and air cylinder that can be replaced by an air compressor

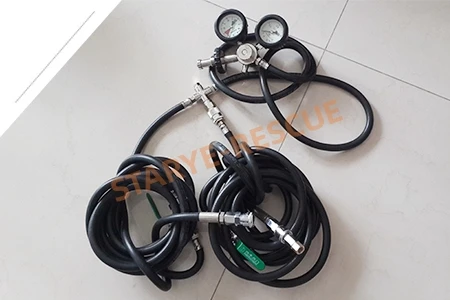

02 Controller
The controller consists of pressure gauge, pressure reducing valve, safety vent valve, quick connector and hose.
Double control allows two air bags to work simultaneously.
Single control can only operate one air bag.

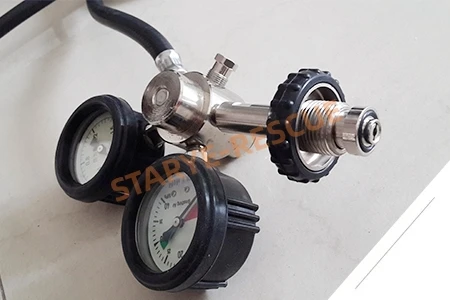

03 Pressure gage
The tool consists of pressure gauge, pressure relief valve and gas cylinder connector.

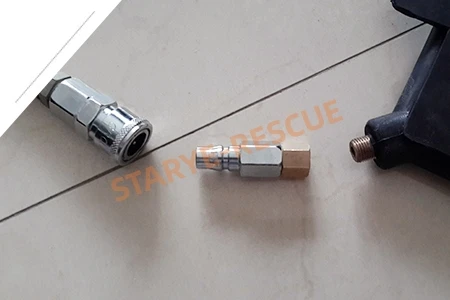

04 Connector
The hose adopts a quick connector connection method, which can be quickly connected to the air cushion or replaced as a whole.

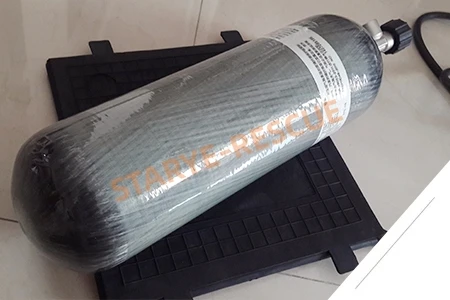

05 Air cylinder
As the power source of the air cushion, gas cylinders can use a capacity of 6L or 6.8L, and can also be replaced by air compressors or foot pumps.
