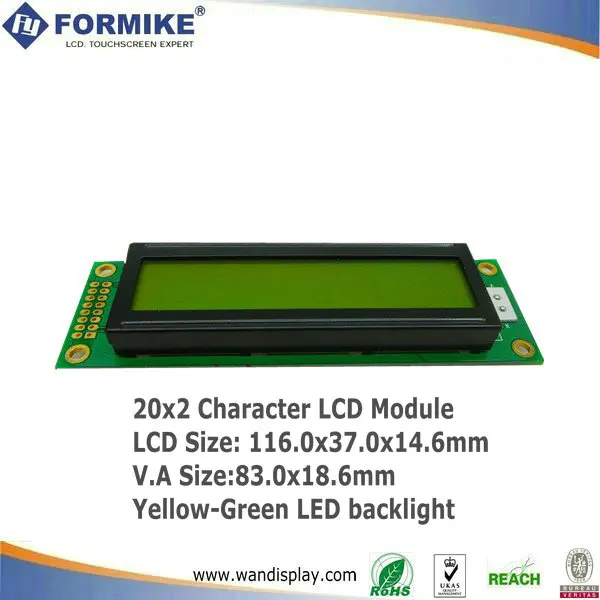

Formike желто зеленый 20x2 жидкокристаллический характерный модуль (WC2002A2SBX6B)
Formike желто-зеленый 20x2 жидкокристаллический характерный модуль (WC2002A2SBX6B)
Formike желто-зеленый 20x2 жидкокристаллический характерный модуль (WC2002A2SBX6B)

Formike желто зеленый 20x2 жидкокристаллический характерный модуль (WC2002A2SBX6B)

Share on (1922443950):


Price:5,00 $ - 10,00 $

Quantity:


Product Overview

Description


Banner

1) Main Parameters
Feature
Item  Formike yellow-green 20x2 lcd(WC2002A2SBX6B)
Number of Characters20Characters x 2 lines
Display ModeSTN,Yellow-Green, Positive, Transflective
Power Supply1/32 duty , 1/5 bias
Power Supply5V
BacklightYellow-Green LED backlight
Viewing Direction 6 o’clock
Built-in Controller SPL780D or Equivalent
Operation Temp -20°C~70°C
Storage Temp -30°C~80°C
Mechanical Specifications
Dimensional outline (W*H*T) 116.0 (W) x 37.0 (H) x 14.6 MAX
Viewing area (W*H) 83.0 (W) x 18.6 (H)
Active Display Area75.4 (W) x 11.5 (H)
Delivery Information
Lead time1-5days for sample;25-35 days for mass production
Shipping wayBy DHL,FEDEX,UPS or appointed forwarder
Loading Port Hong Kong port
2) Product Range
♦  Monochromic LCDs/LCD Modules
   ◊ VA,TN,HTN,STN,FSTN,DFSTN LCD Panels and its accessory
   ◊ Graphic,Character,Alphanumeric and In cell touch modules
   ◊ COB,COG,TAB Package
♦  Color TFT LCD Modules
   ◊ 1.45inch to 10.4inch color TFT LCD Display
♦  Touch Screen
   ◊ Capacitive touch screen
   ◊ Resistive touch screen
♦  OLED
  ◊ 0.66inch to 3.0inch
♦  Front Cover Lens
  ◊ Front cover lens including standard and customzied size for cell phone or Ipad
♦  Complete solutions
♦  Complete technical supports
3) Workshop View
 factory pic
4) Our Advantages
♦ A wide array of LCD products
◊ Including graphic,character and alphanumeric modules,  1.45"-10.4" inch standard color LCD modules,capacitive touch panel and various of cover lens and OLED displays.
♦ Competitive price
◊ Our own VA,TN,STN,FSTN,DFSN monochromic LCD panel and capacitive sensor factory to save your cost.
♦ Short leadtime
◊ Our Monthly capacity: 5.2 millions LCDs and 900,000 LCD modules& capacitive touch panels
♦ High Quality
◊ With Dust-free workshop,we have passed ISO9001-2008 and ISO14001:2004 certificates,all our products are REACH and RoHS compliant
♦ Stable Customers
◊ Long-term partner of 3M,Texas Instruments,Luminary Micro,Midea,Haier,Panasonic,C-Dots and Ingersoll Rand.,etc.
Medical Equipment : Ultrasound machine,therapeutic equipment blood pressure meter,etc .
5- Prodution Capacity
LCDSize: 406 x 356 mm65,000 SET
Thickness: 0.40, 0.55, 0.70 and 1.10mm
Dot air gap: 10 um
LCD Module & CTPDot air gap: 10 um900K



6- Formike Factory



Production lines including





1) TFT display



2) Mono LCD



3) Backlight



4) Cover glass & touch panel



5) Optional bonding





7- Certificates
ManagementISO 9001:2008; ISO14001:2004; Bureau Veritas, TUV Rheinland
Quality assurance    RoHS compliant & EU REACH Regulation;
Production environment  lean Room Standard: Class 100, 1000, 10000 (particle diameter < 0.5μm)applied to the production of different processes
Production equipment80% appied to autmation
Supply chain50% own production of key material, good key supplier management
Inspection100% inspection in visual and electronic applied to production
Quality guarantee       FREE 1 year maintenance service
