Reel feeding square bottom, top quality square bottom paper bag making machine
CY-180,290,330,460
FAQ
Dear client, this is Ms Vivi from zhejiang zhuxin machinery company ltd. Glad to meet you here. Here about the paper bag machine, please note as below.We have different types and models. Please choose which you need, thanks.
1.flat bottom (same as V bottom, sharp bottom) paper bag making machine , use glue (model CY 400,650,850), we also can make the flat bottom paper bag with window, use hot melt glue; ALSO we have mechanical paper bag machine SY-400,650,850 AND ALSO CAN BE INLINE ONE OR TWO COLOR PRINTER
2.flat bottom laminated paper bag making machine, use heat sealing (model CY450)
3.square bottom paper bag making machine, use glue,(model CY180,290,330,460)
4.flat bottom (same as V bottom, shap bottom) paper bag making machine with two color or four color printer on line (model CY400+YT2800,CY400+YT4800,CY-650+YT-21000,CY-650+YT-41000)
Product Description

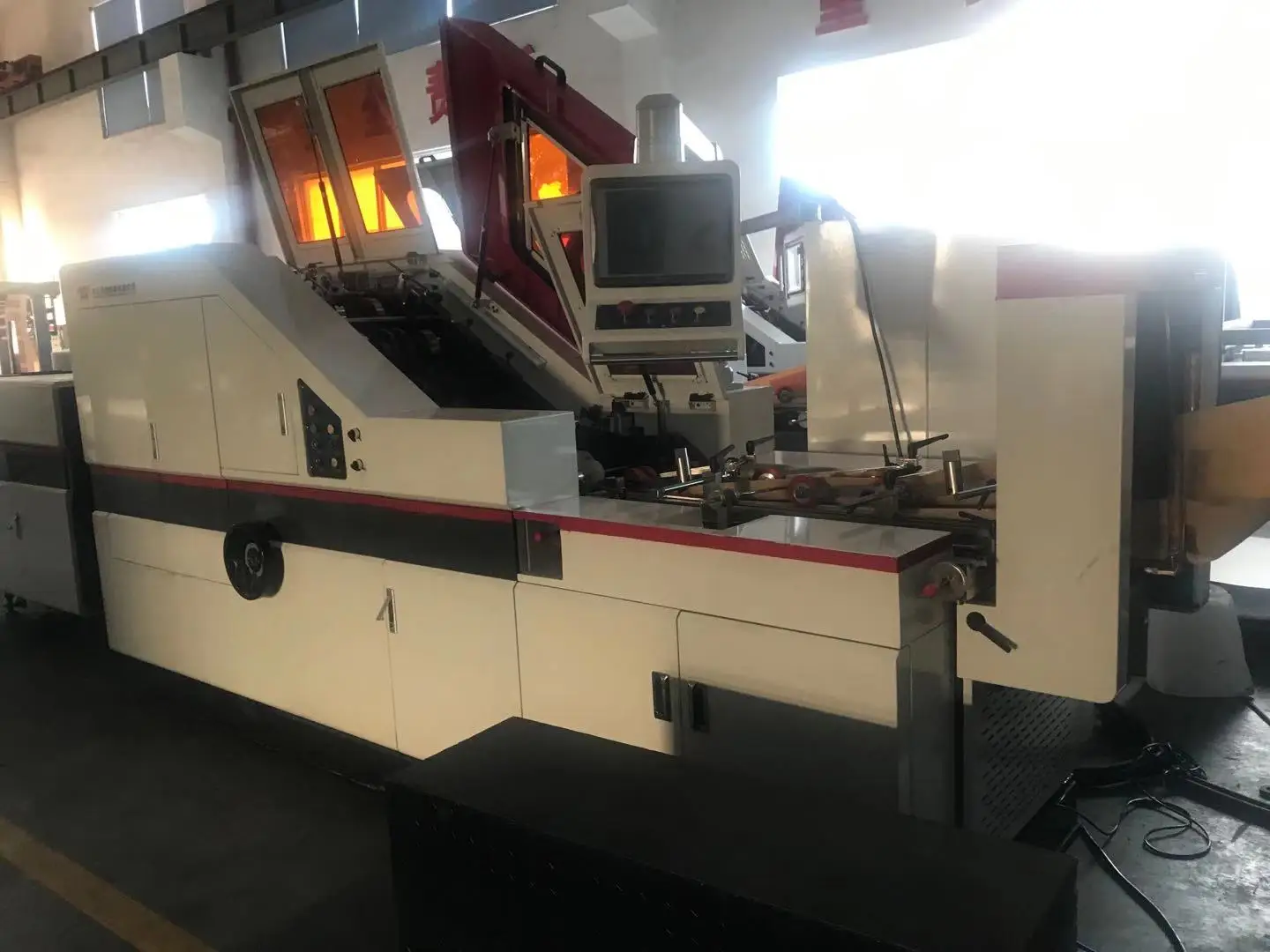

1.CY-180 Reel feeding square bottom paper bag making machine
Max bag size: L*W 370*190mm
Min bag size: L*W 190*80mm
Paper weight: 45-120 GSM
Features and characteristics

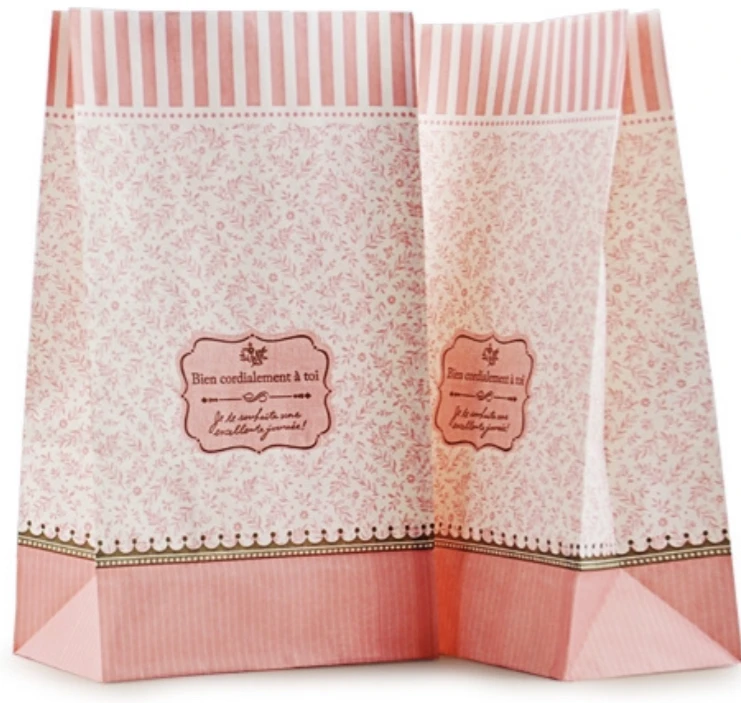

The machine is suitable for making square bottom bags, which is widely used in shopping, food industry and so on. Having absorbed the advanced technology both at home and abroad, we successfully developed the square bottom type of paper bag making machine with roll paper or printed roll paper . This machine features a continuous function of automatic paper suction, gluing, creasing, bottom sticking and bag formation at a stroke.The machine has automatic force controlling machine and the function of color marking tracking. All the operation procedures are controlled by PLC,saving labor force.

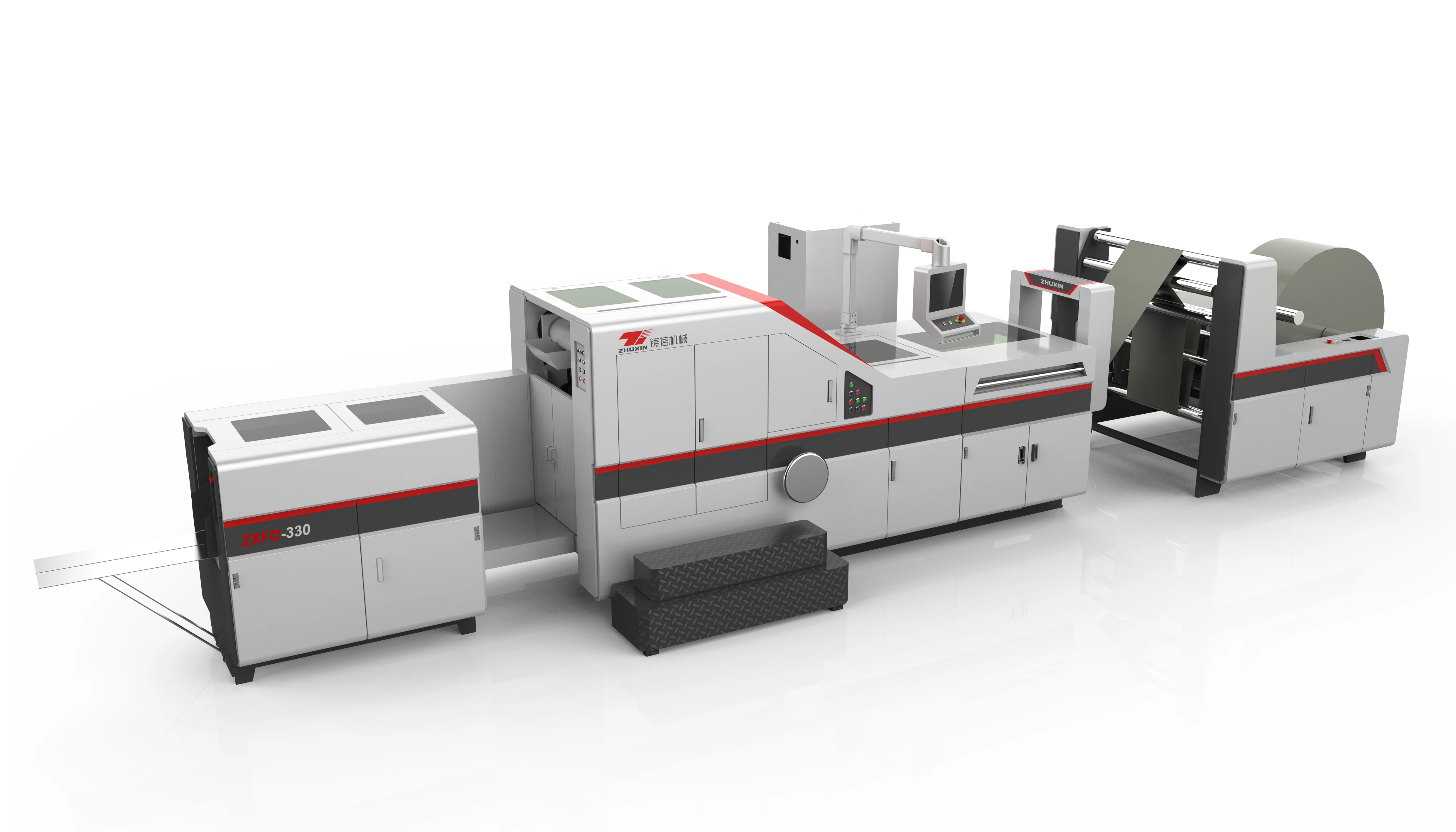

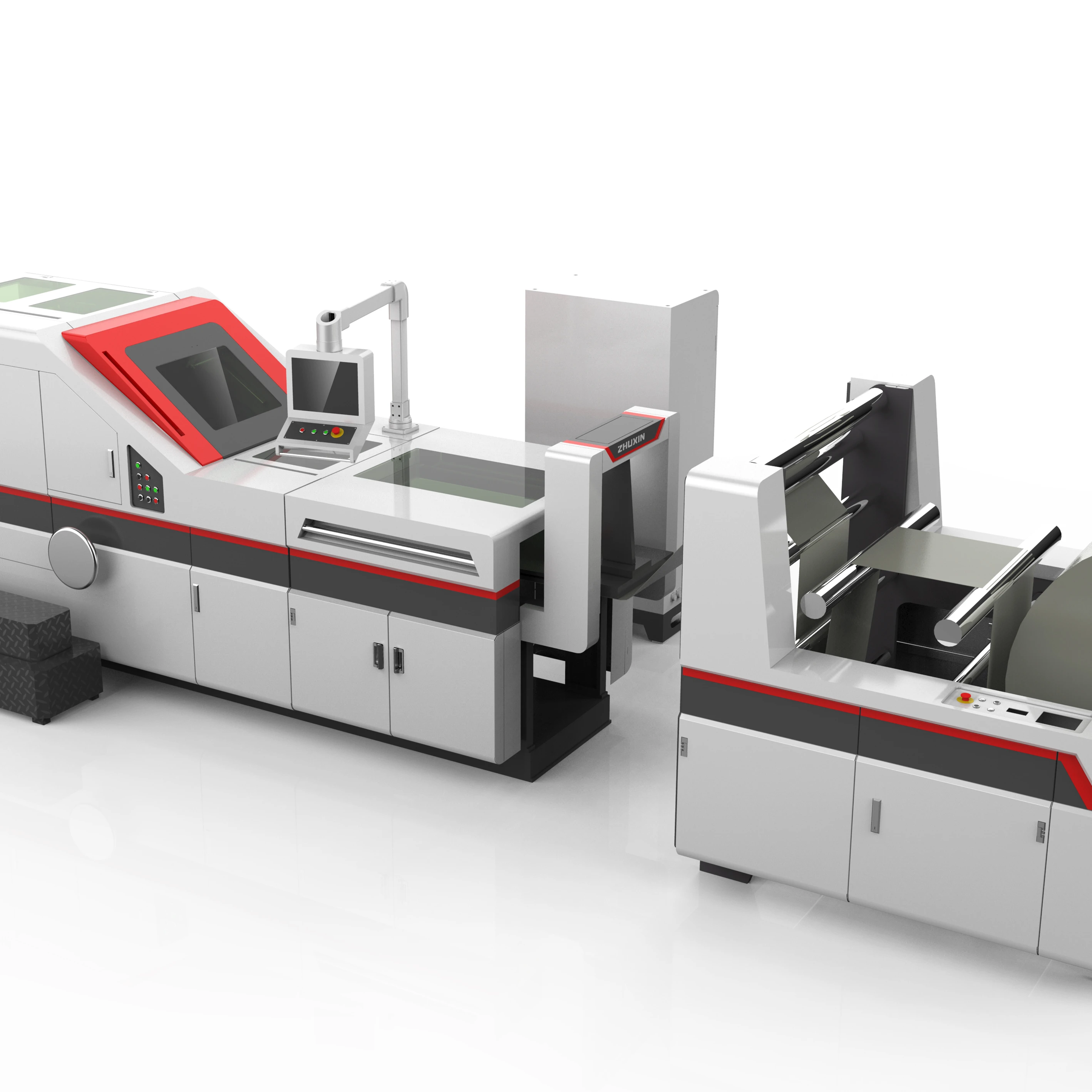

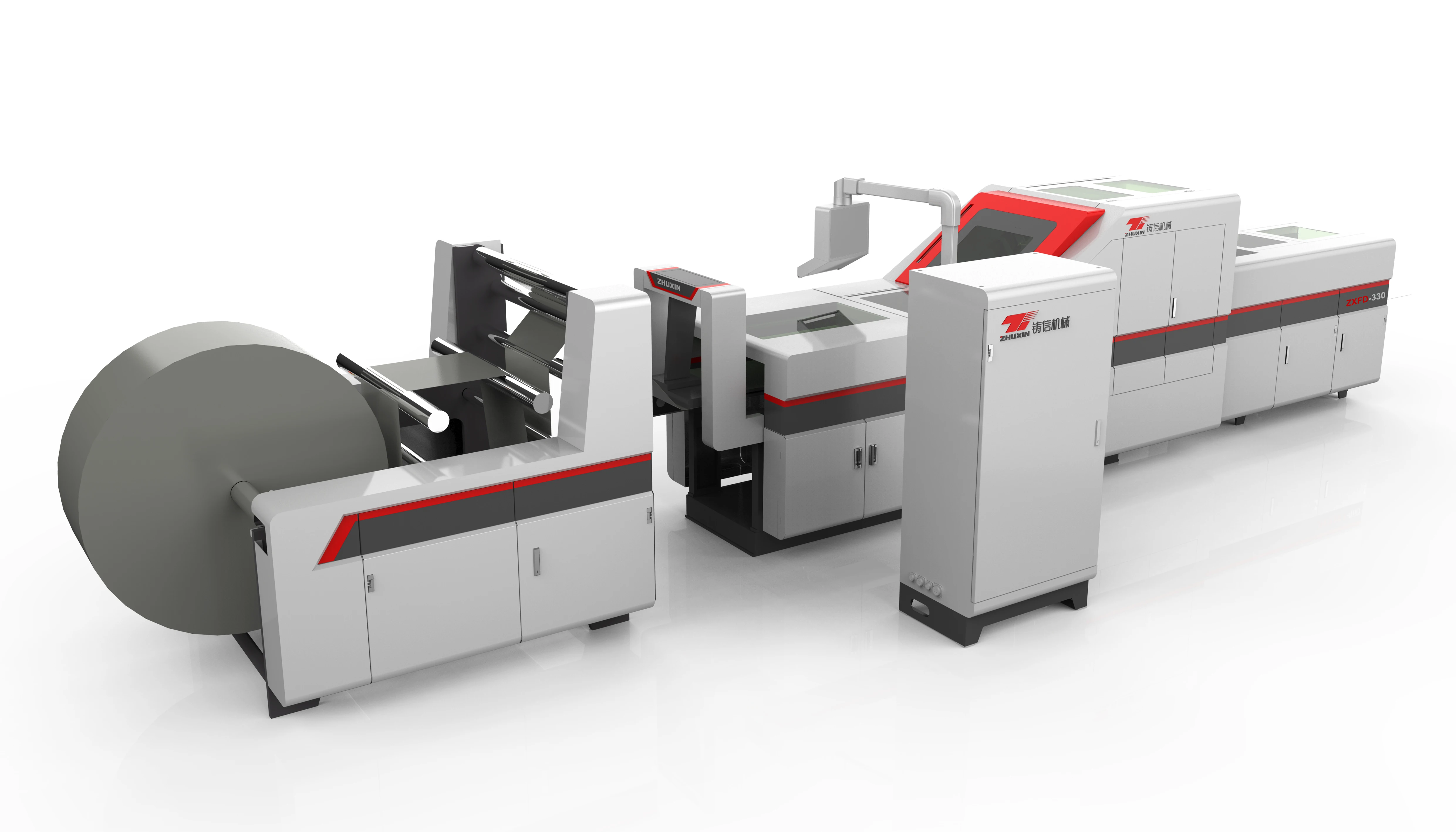

2.CY290 Adjustable roll square bottom paper bag machine
Structure features
1. Introduce PLC and In-touch screen human-machine interface centralized control system, with reliable performance, easy for operation and maintenance. English/Chinese language can be changed easily.
2. Shaft less hydraulic material loading system with chuck, hydraulic up/down system
3. Automatic constant tension control for unwinding, EPC web guider system, motor for material feeding with inverter
Wheel type gusset unit with motor driving.
4. Servo motors for main feeding and bag length control
Closed type automatic glue application and forming system
Paper impress, bottom folding, gluing and bag formation can be completed automatically.
5. Side lay working table, easy operation.
Technical parameter:
Width of Paper 320-930mm
Tube cutting length 230-580mm
Length of Bag 155-505mm
Width of Paper Bag 120-290mm
Width of Bag Bottom 60-160mm
Paper weight 60-180gsm
Max. Diameter of Paper Roll 1500mm
Internal Diameter of Roll Core 76mm
Max. Speed 220PCS/min
Total Power 15Kw
Weight of Machine 8500 kg
Overall Dimension L9000mm× W3300mm× H1900mm

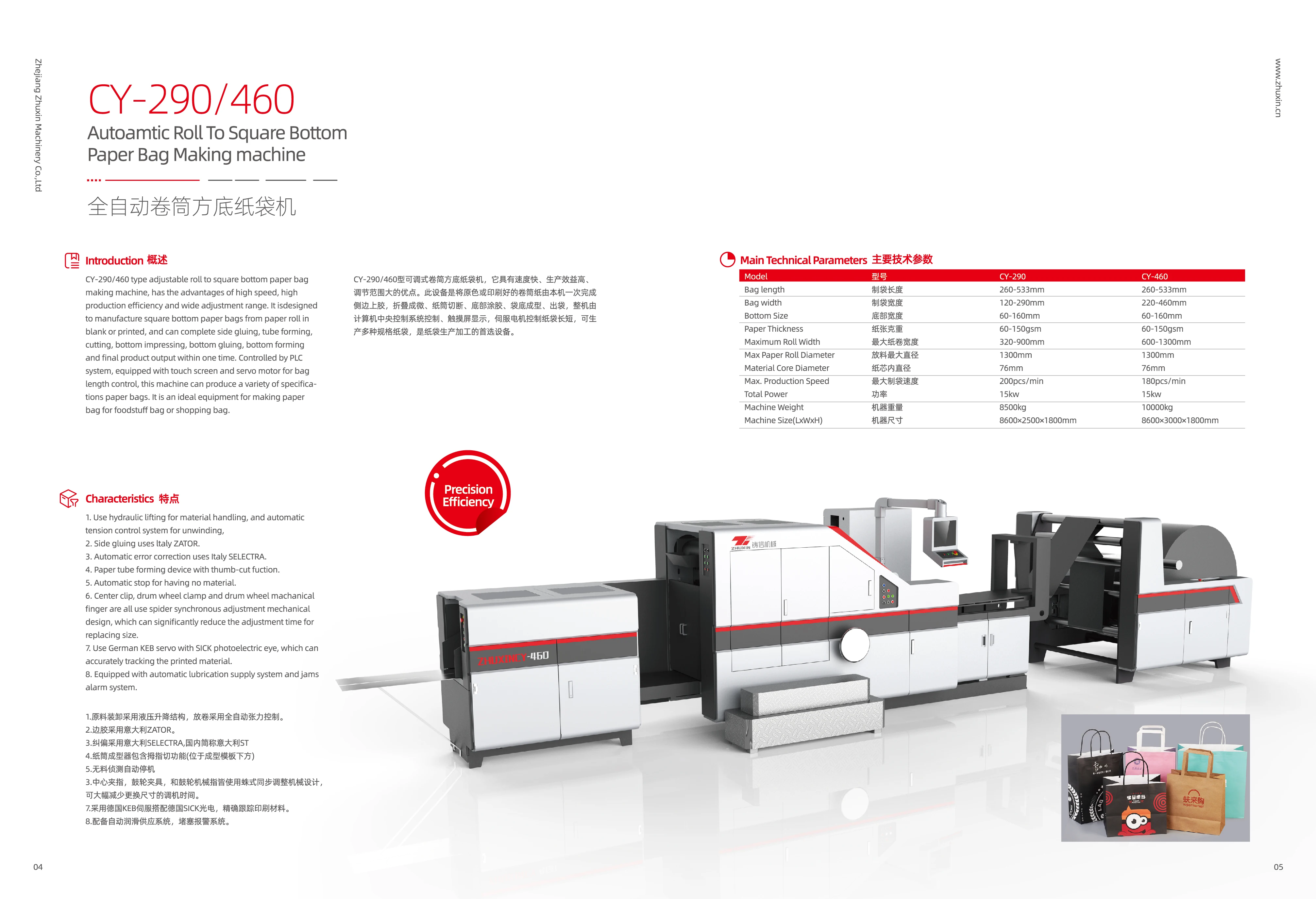

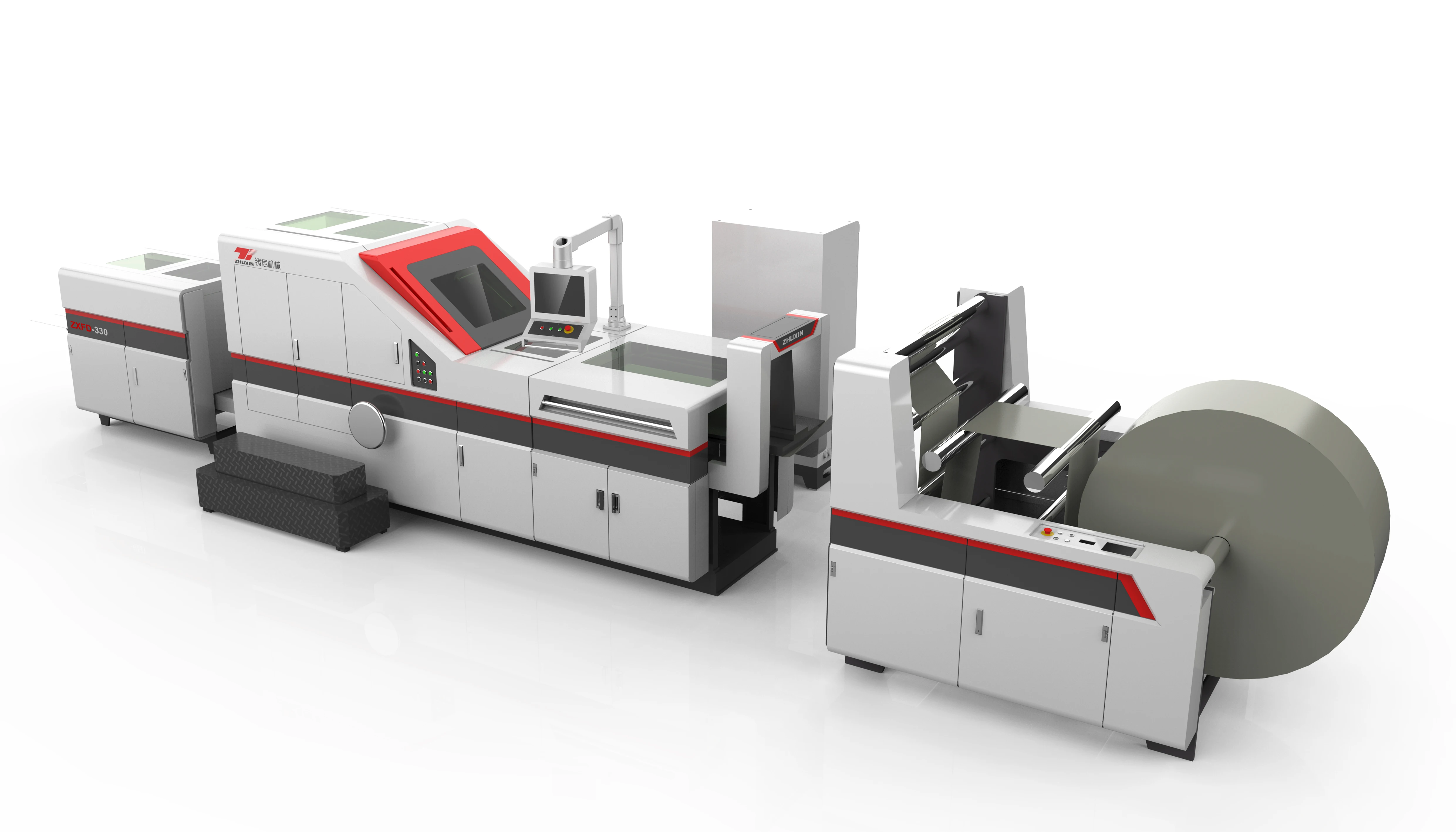

3.CY-460Adjustable roll square bottom paper bag machine
Structure features
1. Introduce PLC and In-touch screen human-machine interface centralized control system, with reliable performance, easy for operation and maintenance. English/Chinese language can be changed easily.
2. Shaft less hydraulic material loading system with chuck, hydraulic up/down system
3. Automatic constant tension control for unwinding, EPC web guider system, motor for material feeding with inverter
Wheel type gusset unit with motor driving.
4. Servo motors for main feeding and bag length control
Closed type automatic glue application and forming system
Paper impress, bottom folding, gluing and bag formation can be completed automatically.
