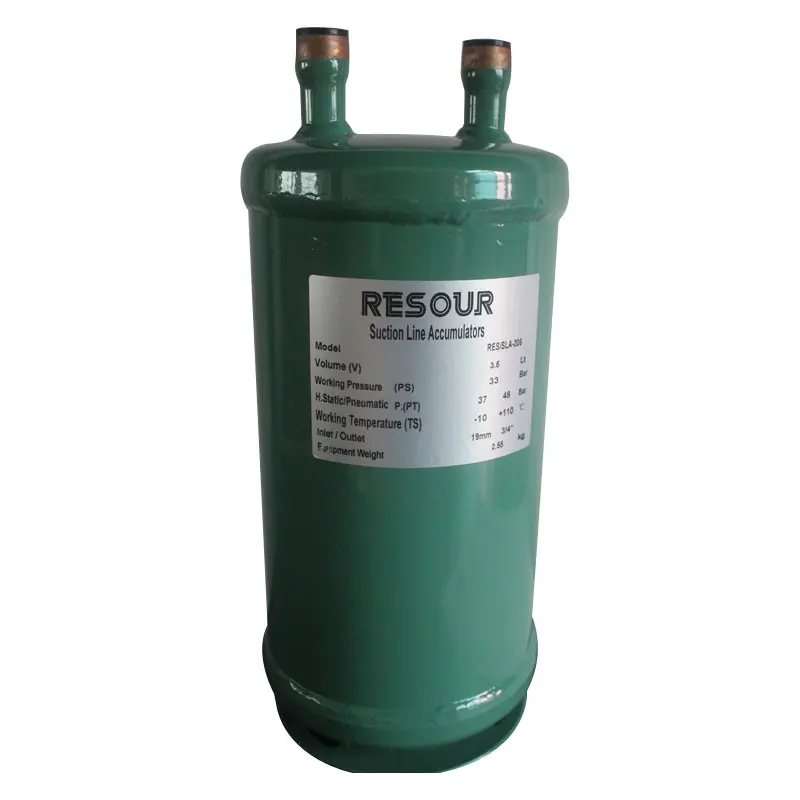

Refrigeration Suction Line Accumulators, Oil Gas Separator For Refrigeration & Heat Exchanger Equipment Parts

Product Overview

Description

Refrigeration Suction Line Accumulators, Oil Gas Separator For Refrigeration & Heat Exchanger Equipment Parts



Has stronger construction. It maximize prevents the refrigerant lost.

The liquid accumulator separator is designed with internal bend pipes to prevent from internal splashing and help the aggregation of the oil at the bottom of the separator. The separator shall be installed as nearer to the compressor as possible.

Features:

1. “U” tube design for maximum flow of refrigerant and minimum oil entrapment;

2. Saving refrigerant;

3. Metering Orifice matched to system capacity assures optimum liquid refrigerant and oil flow back to compressor.

4. Exterior corrosion resistant static electrical painting process protecting the shell from the rust.

5. Maximum working pressure: 3.0 Mpa.



Design Functions:

1. Liquid Line ODF(TP2Y2);

2. Suction Line ODF(TP2Y2);

3. Oriented pipe(Q235);

4. Steel shell(Q235);

5. Metering Orifice;



Specification:

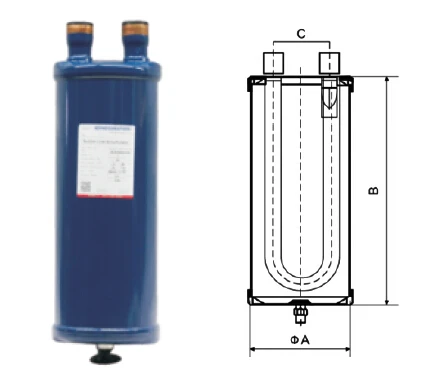

Model	Inlet & Outlet	Dimension (Inch)			Liquid Flow Capacity (KW)
	Inch	A	B	C	R22	R410A	R507
SA203	3/8	4.02	8.07	2.05	3.5	3.3	3.4
SA204	1/2	4.02	8.07	2.05	3.5	3.3	3.4
SA205	5/8	4.02	10.04	2.05	4.4	4.0	4.2
SA206	3/8	5.51	10.24	3.15	6.1	6.8	6.2

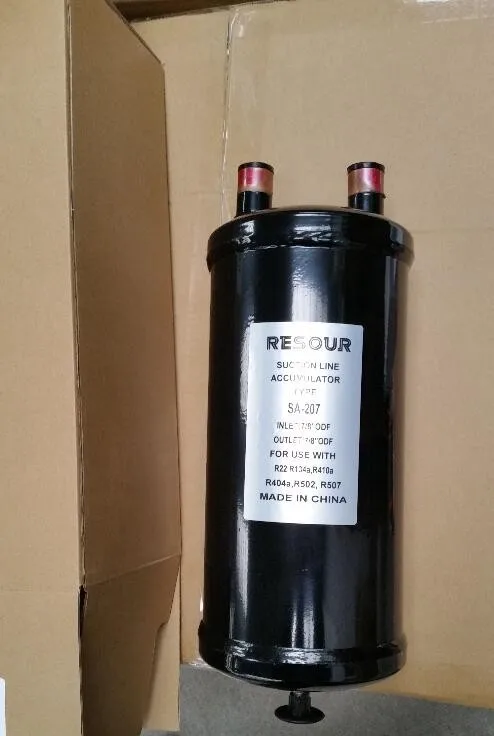

SA207	7/8	5.51	12.6	3.15	9.8	9.0	9.3
SA208	1-1/8	6.26	15.75	3.35	14.2	13.3	13.7
SA209	1-3/8	6.26	19.29	3.35	21.8	20.5	21.2
SA210	1-5/8	6.26	21.65	3.35	23.8	22.5	23.1
SA2117	2-1/8	8.62	13.58	4.41	15.2	14.5	15
SA4117	2-1/8	10.7	18.5	4.88	20.8	16.3	20.2
SA384	1/2	2.95	6.89	1.57	2.5	2.3	2.4
SA596	3/4	5	9.25	2.76	4.0	6.0	5.5
SA597	7/8	5	9.25	2.76	7.3	6.0	5.5
SA5126	3/4	5	11.61	2.76	4.0	8.0	7.5
SA5127	7/8	5	12	2.76	7.3	8.0	7.5
SA5137	7/8	5	13.98	2.76	7.3	8.5	8
SA5139	1-1/8	5	13.98	2.76	11.8	8.5	8
SA5179	1-1/8	5	17.13	2.76	11.8	12.0	10
SA51711	1-3/8	5	17.13	2.76	18.8	12.0	10
SA61411	1-3/8	6.26	14.57	3.35	18.8	15.0	12
SA62013	1-5/8	6.26	20.87	3.35	20.5	20.0	16
