Cutting Nozzle, G02 Acetylene Cutting Tips of Cutting Torch for CNC Cutting Machine

Product Overview

Description

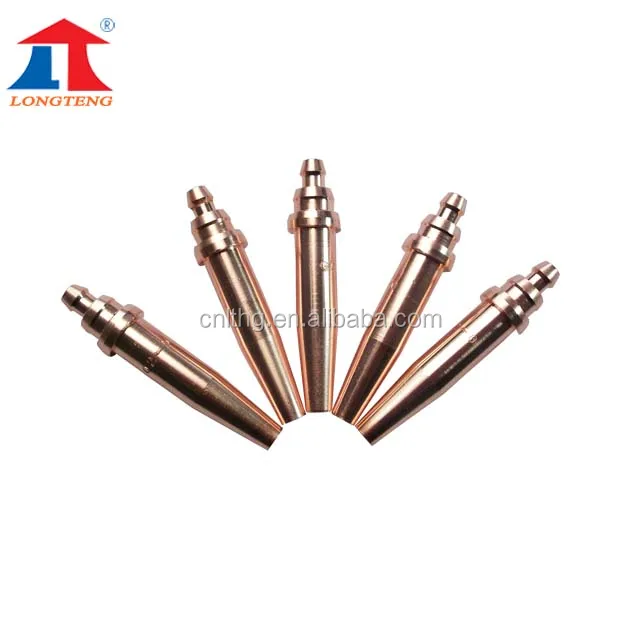

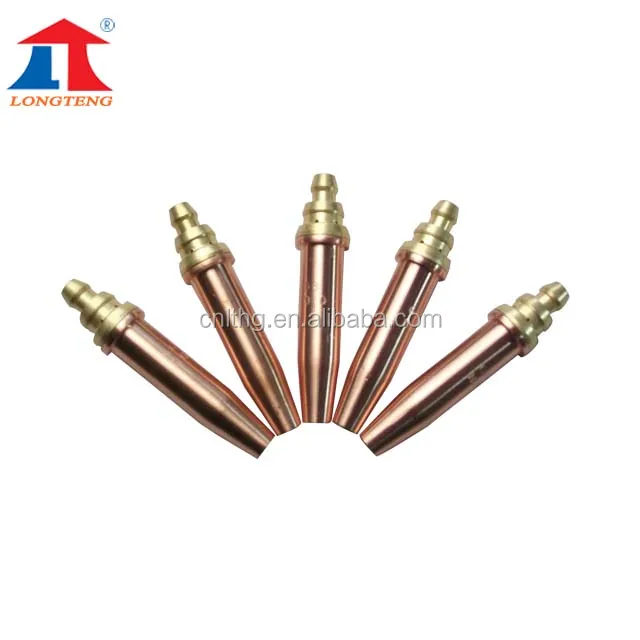

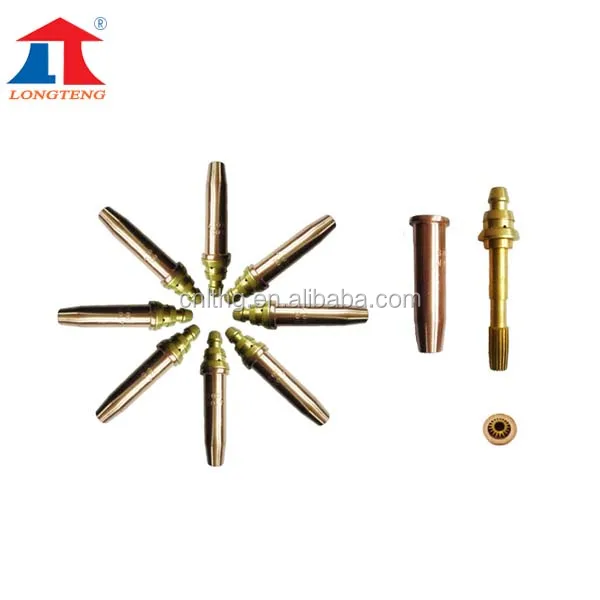

Anme Cutting Nozzle, G02 Acetylene Cutting Tips of Cutting Torch for CNC Cutting Machine

1)Quick Detail:
1.Balanced pressure cutting nozzle
2.Applicable to acetylene
3.Material:brass
4.Certification:CE,ISO

2)Description:
1.It is available when oxygen supply pressure is below 0.6Mpa.
2.With cone angle of 30 degrees, it is suitable for international use.

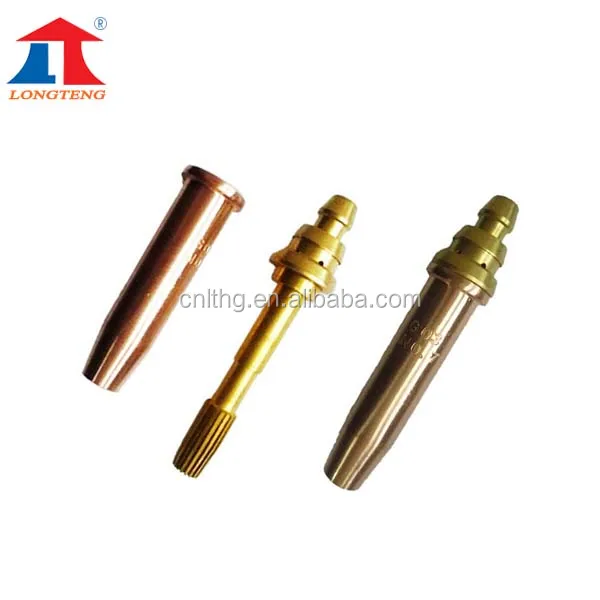

3.With integrative structure;Made of high quality tellurium copper, finish machining,with a long using life;
4.Applicable to acetylene;Made with advanced techniques, high quality guaranteed;
5.100% flame test.

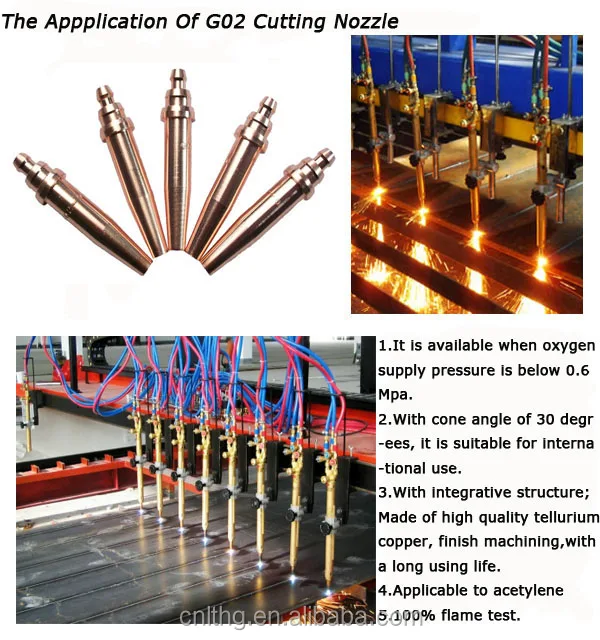

3)Applications:
GO2 acetylene cutting tip applicable to acetylene



4)Competitive Advantage:
1.Made of high quality tellurium copper,internal inlaid stainless steel tube
2.Long service life and the efficiency of cutting is high



Specifications:



Model No.	Diameter of cutting oxygen mm	Cutting thickness mm	Cutting speed mm/min	Gas Pressure Mpa		Gas consumption(m3/h)
				Oxygen	Acetylene	Oxygen (m3/h)	Acetylene(L/h)
00	0.8	5~10	600~450	0.2~0.3	>0.03	0.9~1.3	340
0	1	10~20	480~380	0.2~0.3	>0.03	1.3~1.8	340
1	1.2	20~30	400~320	0.25~0.35	>0.03	2.5~3	470
2	1.4	30~50	350~280	0.25~0.35	>0.03	3~4	470
3	1.6	50~70	300~240	0.3~0.4	>0.04	14.5~6	620
4	1.8	70~90	260~200	0.3~0.4	>0.04	5.5~7	620
5	2.0	90~120	210~170	0.4~0.6	>0.04	8.5~10.5	620
6	2.4	120~160	180~140	0.5~0.8	>0.05	12~15	780
7	2.8	160~200	150~110	0.6~0.9	>0.05	21~24.5	100
8	3.2	200~270	120~90	0.6~1.0	>0.05	26.5~32	1000
9	3.6	270~350	90~60	0.7~1.1	>0.05	40~46	1300
10	4.0	350~400	70~50	0.7~1.2	>0.05	49~58	1600
Note:Cutting conditions:
1.Oxygen purity is above 99.5%
2.Carbon rate of steel material≤0.45%
3.Cutting way:vertical cutting
4.Oxygen pressure refers to cutting pressure before arriving at the cutting torch.

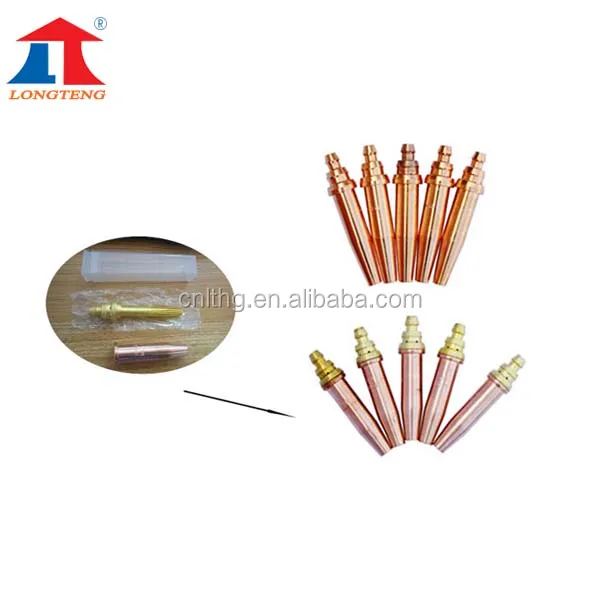

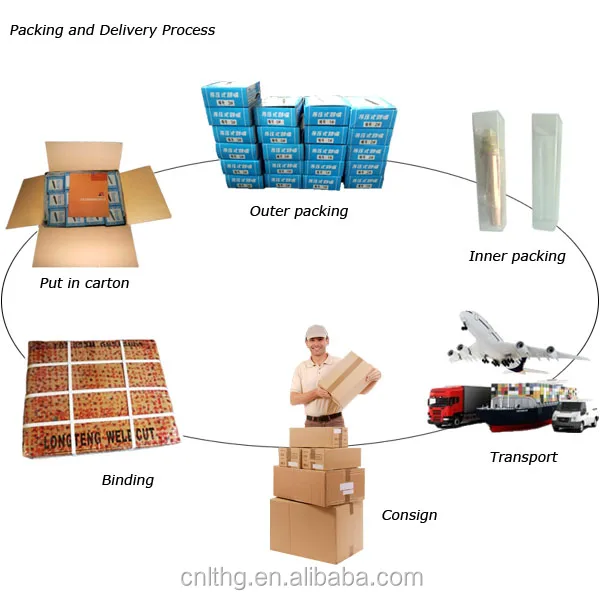

5)Packing Details:

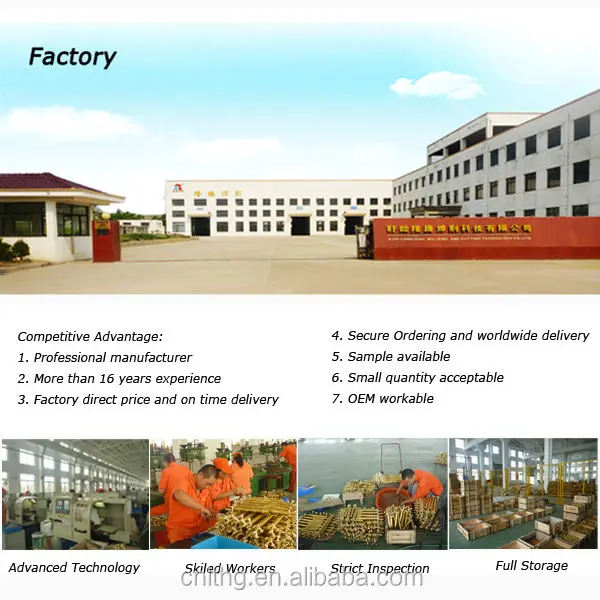

6)Factory Advantage:
1. Professional manufacturer for CNC Cutting Machine Accessories
2. More than 16 years experience
3. Factory direct price and on time delivery
4. Secure Ordering and worldwide delivery
5. Sample available
6. Small quantity acceptable
7. OEM workable
