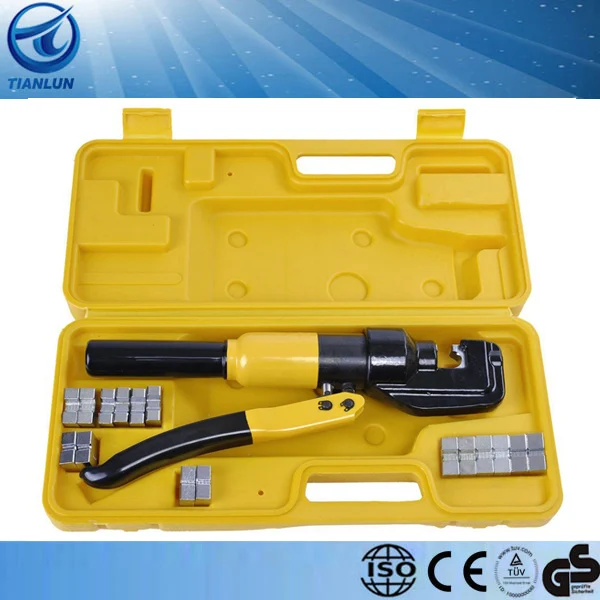

hydraulic crimper tool hydraulic cable crimper Hydraulic Crimper

Brand new in box. More convenient and secure crimping operations.

8 tons maximum crimping power. 9 sets of the largest hexagon crimping dies.

Dies are made of hardened steel with chrome finish. Comes with a durable plastic case.

Crimps AWG 12 to 2/0 size aluminum and copper wire. 7 1/2" Long comfortable grips.

Tool free for changing dies quickly. On/off knob for fast tool operation.

Product Description

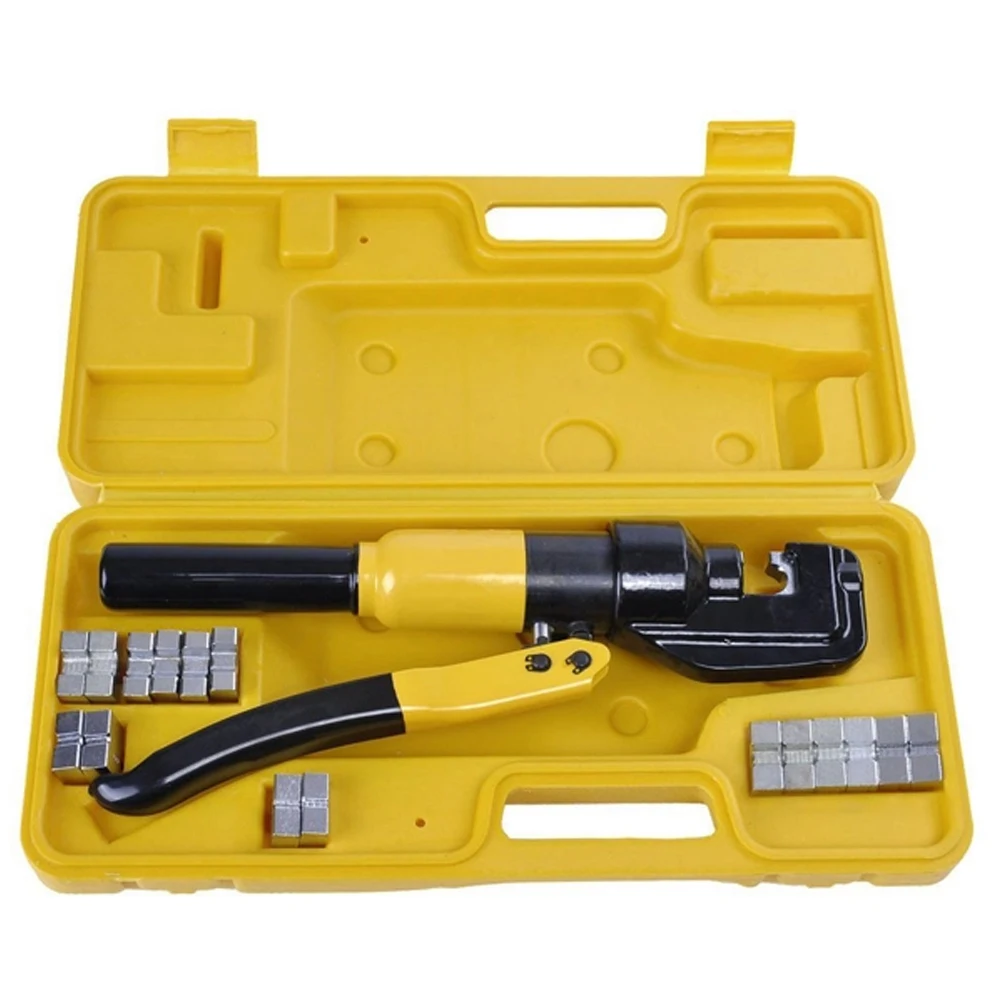

This 8-ton hydraulic crimper which has 9 dies! With the powerful crimper, you could crimp wires and butt connectors easily. The crimper tool crimps AWG 12 to 2/0 size copper and aluminum wires. Great for battery and welding cables, power wires and electrical cables etc. -Specification: Max pressure: 8 Ton. Stroke Capacity: 10mm. 9x dies: 4, 6, 8, 10, 16, 25, 35, 50, 70mm2. Case dimension: 13 1/2"L x 6 1/4"D x 3"H. Total weight: 6 lbs. Reference: AWG: 12, MM2: 4. AWG: 10, MM2: 6. AWG: 10-8, MM2: 8. AWG: 8, MM2: 10. AWG: 6, MM2: 16. AWG: 4, MM2: 25. AWG: 2, MM2: 35. AWG: 1/0, MM2: 50. AWG: 2/0, MM2:70. -Package Content: 1x 8-ton crimper. 9x dies. 1x plastic case. Notice: Do Not operate the pump after ram motion stops. Continuing to operate the pump lever after the ram stops will damage the ram.
