Snowkey Design Ice Tube Machine 3 Ton Philippines

Product Overview

Description

SNOWKEY show you how to choose ice - ice like diamond:

1,HARDNESS:The ice is hard and not easy to melt -enough cooling capacity;

2,Neatness 'VVS1':Pure and without impurities -special ice making process;

3,Color 'D':Shiny and transparent -special ice making process;

4,Cut:Perfect tube ice with hollow -best ice blade;

5,Performance price ratio: Assured quality and better prices;

6,Use:Full automatic control, with ultra low failure rate -Intelligent design;

7,After-sale service:all over the world;

Only SNOWKEY can bring you the incomparable experience of using ice. Please choose SNOWKEY tube ice machines, let our productions and teams take you to enjoy the diamond level ice quality and service





Comparison of tube ice between SNOWKEY and other manufacturers :



Reasons of high quality :please see the following detailed photos.

The following detailed photos are all taken in SNOWKEY factory. Pirates of those photos is not allowed!

The pursuit of the perfect appearance -from rigorous attitude ;



If you would like to enjoy the diamond grade edible tube ice, please choose the tube ice evaporator made by excellent material and best processing technology.

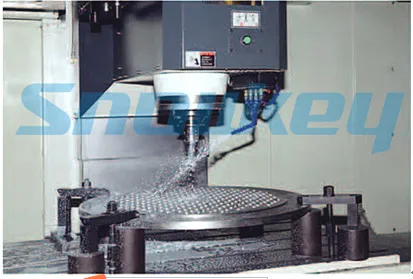

Best processing technology -from advanced processing equipments ;

(Pressure vessel:Pressure vessel with ASME authentication; professional security manufacturing processes)

Excellent material -from rigorous selection processes for decades;

(Material: SUS304; Clean, sanitary, comply with food grade security standard)

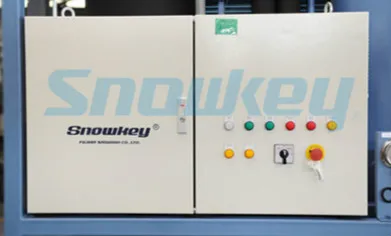

Intelligent control -from SNOWKEY full automatic electric box;

(Material: Electrical components imported from international famous brands, such as Schneider, Siemens.,etc)

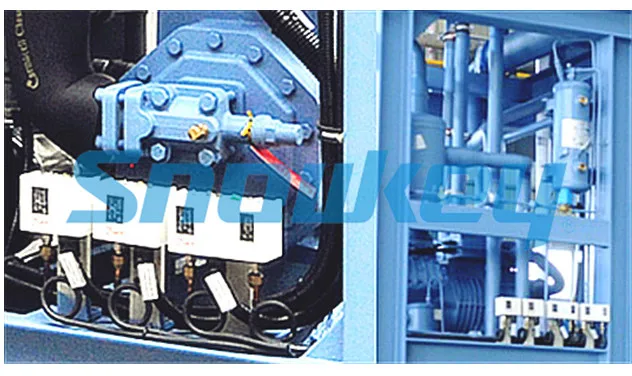

Reasonable pipeline design -from nearly hundreds of testing



Professional and efficient after sale service level -from Snowkey Strong and professional technical team all over the world. We are right here on your side!





Snowkey Technical Parameters:

Model	Nominal ice output		Necessary cooling capacity(kw)		Evaporator-compressor connection type	Condenser type	Dimension (mm)	Running weight(kg)
TIM30F	Ø22(t/d)	3.12	16.56		Completed type	Air cooling	1550 *1200 *2210	1200
	Ø29(t/d)	3
						Water cooling
	Ø38(t/d)	2.7
Model	Compressor		Power consumption		Water consumption (t/h)	Evaporator thickness	Refrigerant	Water supply limit
TIM30F	Brand	Bitzer/carrier	Install power(kw)	15	0.138	Ø25*1.5	R22	5°C ~30°C
						Ø32*1.5
	Horsepower(hp)	12	Running power(kw)	9			R507A
						Ø38*1.5



Notice:

1,SNOWKEY standard design conditions:

Ambient temperature is 33°C,water supply temperature is 20°C;

While if your local conditions is different from it,then you can choose the ambient temperature limit from 5~40°C and the water supply temperature limit from 5~30°C;,

2,SNOWKEY tube ice specification:

Ø22,29,35 and 41 standard tube ice outer diameter, inner diameter 3mm-15mm;

3,SNOWKEY power supply:

Full electric system complying with the general international standard;

4,SNOWKEY delivery for tube ice machine:

With wooden cases;In 20 foot container;

1-10 ton/day delivery:30~35 working days;

5,SNOWKEY tube ice machine application field :
1 Human consumption ice plant
2 Port ice plant
3 Coffee shop,bar,and hotel,etc
4 Supermarket,convenienience shop and restaurant,etc
5 Aquatic products and food fresh preservation
6 Logistic fresh preservation
7 Cgemical and concrete projects
