Factory price dc inverter welding machine mma mig tig 200
- Category: >>>
- Supplier: Hangzhou Delixi Group Co. Ltd.
Share on (1924352089):
Product Overview
Description
Factory price dc inverter welding machine mma mig tig 200
- Adopt DSP full digital control technology and has perfect dynamic characteristics and the power grid owns better fluctuating capability;
- The machine adopts single tube IGBT technology and has high power, therefore, the machine is more reliable;
- It has functions of DC constant current TIG welding, DC pulse TIG welding and MMA welding;
- Use a control panel with an option button and a touch screen and has function of 2T/4T transforming, all welding parameters can be set accurately, and the machine can be operated flexibly and conveniently;
- The machine can save the welding parameters automatically allows to be invoked;
- The shell is made of plastics and metals, beautiful, light and durable.
Parameters | WSM-160ID | WSM-200ID |
Power supply voltage (V) | Single phase AC220V±10%/50Hz | Single phase AC220V±10%/50Hz |
Rated input voltage (kVA) | 4.5 | 7 |
Rated input current (A) | 29.6 | 42 |
No-load voltage (V) | 60 | 60 |
Rated duty cycle (%) | 60 | 60 |
Gas pre-flow time (S) | 0.0 ~ 15 | 0.0 ~ 15 |
Arc-starting current (A) | 10 ~ 100 | 10 ~ 100 |
Ramp up time (S) | 0.01 ~ 10 | 0.01 ~ 10 |
Striking current (A) | 20 ~ 100 | 20 ~ 100 |
Constant current (A) | 10 ~ 160 | 10 ~ 200 |
Thrust current (A) | 0 ~ 100 | 0 ~ 100 |
Peak current (A) | 10 ~ 160 | 10 ~ 160 (10 ~ 200) |
Duty ratio (%) | 1 ~ 100 | 1 ~ 100 |
Pulse frequency (Hz) | 0.2 ~ 50 | 0.2 ~ 50 |
Base current (A) | 10 ~ 160 | 10 ~ 200 |
Ramp down time (S) | 0.01 ~ 15 | 0.01 ~ 15 |
Arc-ending current (A) | 10 ~ 160 | 10 ~ 200 |
Gas post-flow time (S) | 0.0 ~ 15 | 0.0 ~ 15 |
Efficiency (%) | 89 | 89 |
Power factor | 0.95 | 0.95 |
No-load loss (W) | 40 | 40 |
Striking method | HF striking | HF striking |
Insulation class | F | F |
Enclosure protection class | IP 21S | IP 21S |
Overall dimension (L×W×H) mm | 420×155×305 | 420×155×305 |
Weight (kg) | 9.5 | 10 |
Ordering guidance
Material | Welding method | Thickness of slab (mm) | Diameter of welding rod (mm) | Welding current (A) | Applicable model |
Carbon steel/low alloy steel/ stainless steel | DC MMA/ Pulse TIG | 0.3 ~ 3.0 | 10 ~ 160 (TIG) | WSM-160ID | |
Carbon steel/low alloy steel/ stainless steel | DC MMA/ Pulse TIG | 2.0 ~ 4.0 | 1.6 ~ 2.5 | 20 ~ 160 (MMA) | WSM-160ID |
Carbon steel/low alloy steel/ stainless steel | DC MMA/ Pulse TIG | 0.3 ~ 5.0 | 10 ~ 200 (TIG) | WSM-200ID | |
Carbon steel/low alloy steel/ stainless steel | DC MMA/ Pulse TIG | 2.0 ~ 6.0 | 1.6 ~ 3.2 | 20 ~ 200 (MMA) | WSM-200ID |

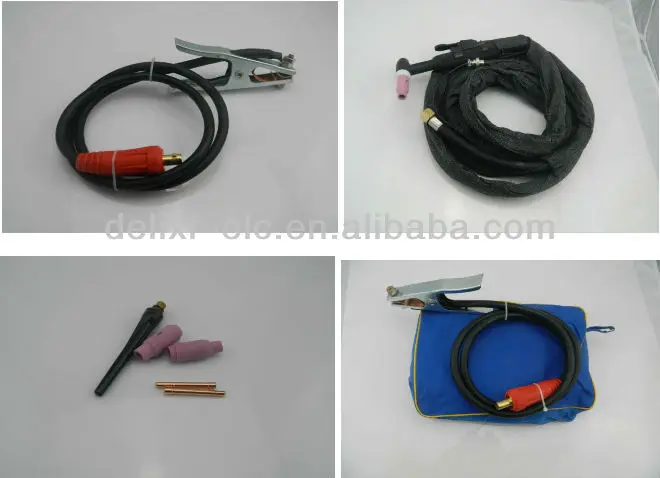

Accessories

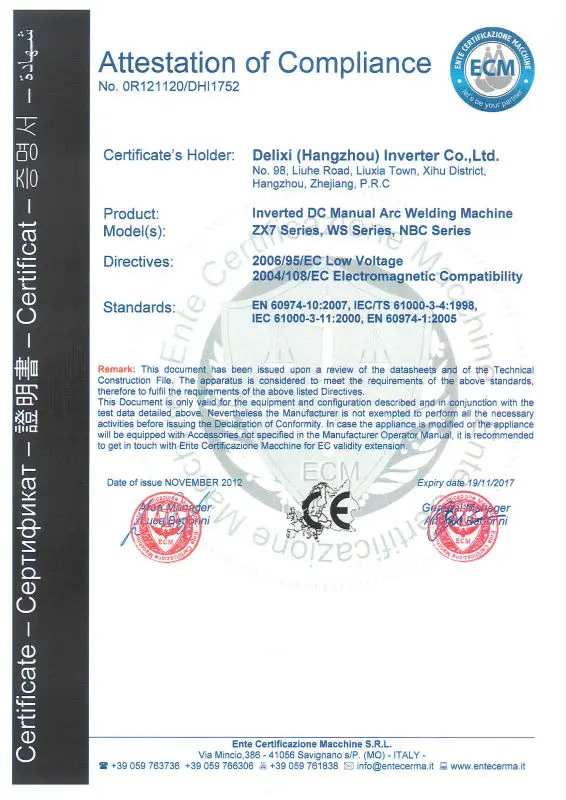

Certificate
2012 Essen Fair
2013 Essen Fair
