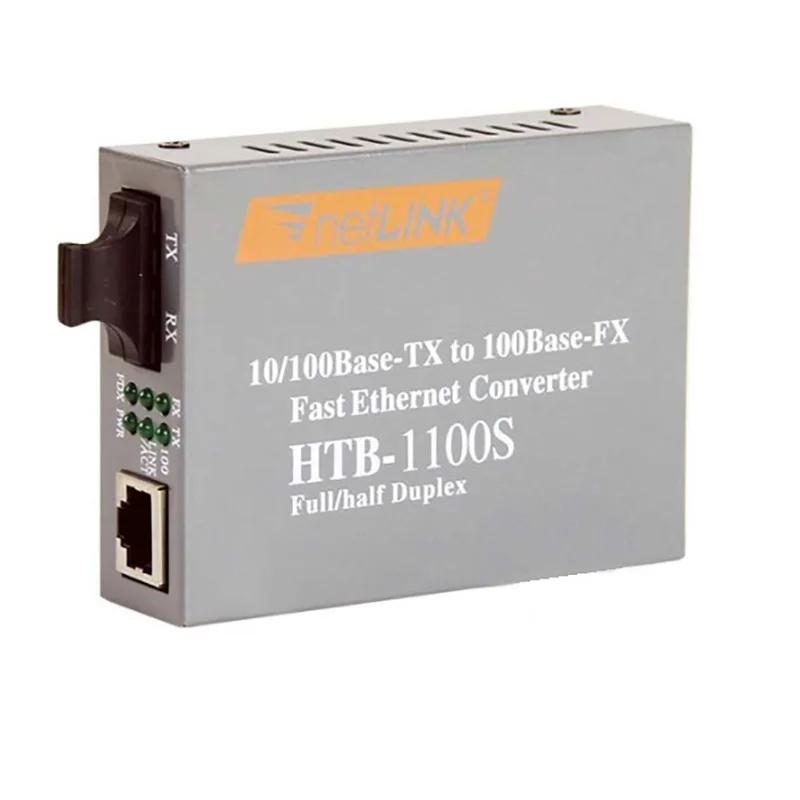

China Factory Single Mode Ethernet Fiber Media Converter Switch Gigabit Wire Transceiver
- Category: >>>
- Supplier: Guangdong Aucas Network Technology Co. Ltd.
Share on (1925436031):
Product Overview
Description

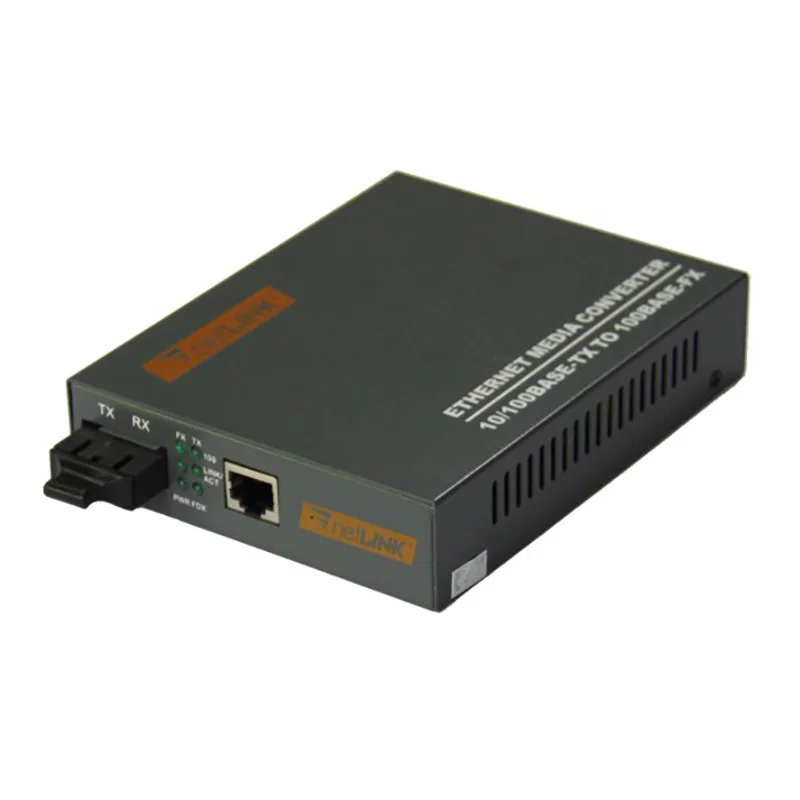

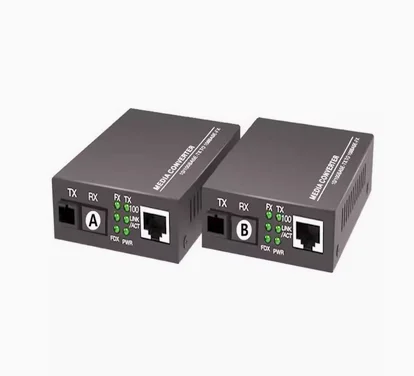

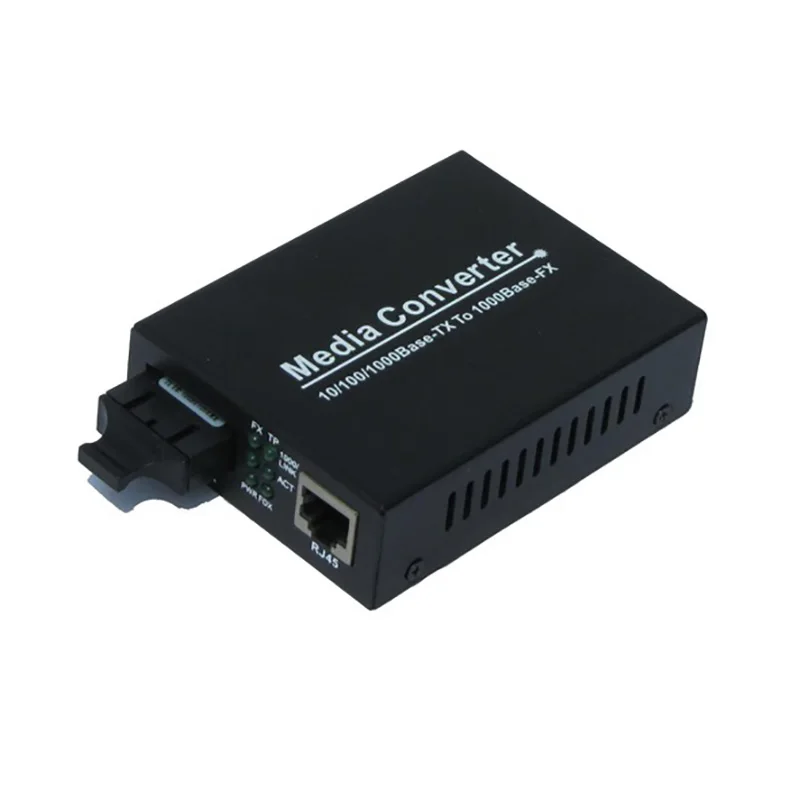

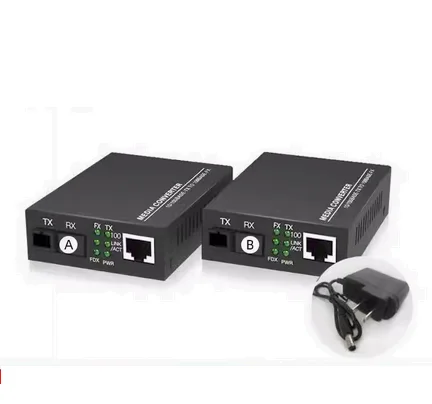

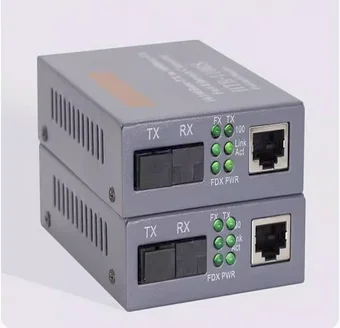

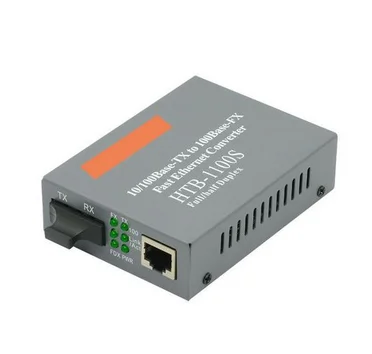

China Factory Single Mode Ethernet Fiber Media Converter Switch Gigabit Wire Transceiver

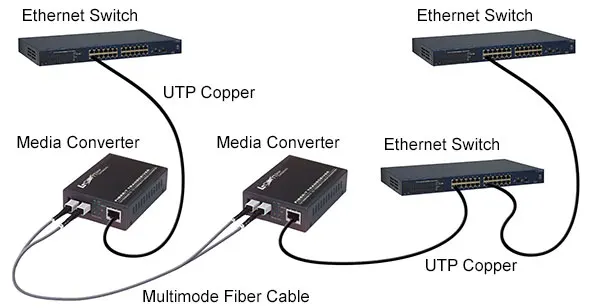

By using twisted pair/fiber media converter, the diameter of LAN can be expanded greatly, the problem of the matching of different interfaces in different LAN devices can be solved, and Ethernet signal transmitted in one transmission media can be transformed to signal in another transmission media.
By using twisted pair/fiber media converter, the diameter of LAN can be expanded greatly, the problem of the matching of different interfaces in different LAN devices can be solved, and Ethernet signal transmitted in one transmission media can be transformed to signal in another transmission media.
Features
Adaptive 10Mbps and 100Mbps Ethernet network, for the convenience of network upgrading;
Efficient built-in switching core, to implement flow control and reduce broadcast packets;
Providing four independent 10/100Mbps adaptive switching-type twisted pair ports, to implement electrical interface backup and multi-user access;
Providing four electrical interfaces based on VLAN switch setting, and supporting the connection of users from different units;
Supporting full-duplex and half duplex transmission modes and capable of automatic negotiation;
Supporting automatic crossing of twisted pair ports, for the convenience of system debugging and installation;
Supporting the transmission of extra-long packets (with the maximum length of 1552 bytes);
Supporting Quality of Service (QoS) and ensuring transmission of VoIP packets;
Supporting Spanning Tree Protocol (STP) to form a redundant network;
Low power consumption, low heat dissipation and capable of stable operation for a long period of time;
Supporting multiple types of fiber ports such as dual-fiber multi-modedual-fiber single-mode and single-fiber single-mode, expanding the requirements of users;
Application
10/100Mbps fast Ethernet long-haul transmission network
Technical Specifications
| Specifications |
Access mode | 10/100Mbps |
Standard | IEEE802.3 10Base-T Ethernet,IEEE802.3u,100Base-TX/FX Fast Ethernet, IEEE802.3x Flow control,IEEE802.1q VLAN,IEEE802.1p QoS,IEEE802.1d Spanning Tree |
Wavelength | 850nm/1310nm/1550nm |
Transmission distance | Dual-fiber multi-mode: 2Km; dual-fiber single-mode: 25/40/60/80/100/120Km; single-fiber single-mode: 25/40/60/80/100Km |
Port | One RJ45 connector, connected to STP/UTP category-5 twisted pair |
Conversion mode | Medium conversion, storing and forwarding |
MAC address table | I K |
Buffer space | 1Mbit |
Flow control | Full duplex state: flow control; half duplex state: back pressure mode |
Delay | 9.6us |
Bit error rate | <1/1000000000 |
MTBF | 100,000 hours |
LED | POWER (power), FX LINK/ACT (fiber connection/action) |
Power | DC5V/1A (external) |
Power consumption | 3.5W |
Operating temperature | -10~55oC |
Operating humidity | 5%~90% |
Storage temperature | -40~70oC |
Storage humidity | 5%~90% (non-condensing) |
Dimensions | 26mm(Height)*70mm(Width)*98mm(Depth) (external power) |
Ordering Information
| Rate | Mode | Working Wavelength | Transmission Distance | Fiber Interface | Power |
FC650AM-SC/ST | 10/100 | Dual-fiber multi-mode | 1310 | 2 | SC/ST | External DC5V/1A |
FC650AS20/40/60 -SC/FC | 10/100 | Dual-fiber single-mode | 1310 | 25/40/60 | SC/FC | External AC220V/DC-48V |
FC650AS80/100/120-SC/FC | 10/100 | Dual-fiber single-mode | 1310 | 2 | SC/FC | External DC5V/1A |
FC650ASS20/40/60-SC | 10/100 | Single-fiber single-mode | 1310/1550 | 25/40/60 | SC | External DC5V/1A |
FC650ASS80/100-SC | 10/100 | Single-fiber single-mode | 1310/1550 | 80/100 | SC | External DC5V/1A |
