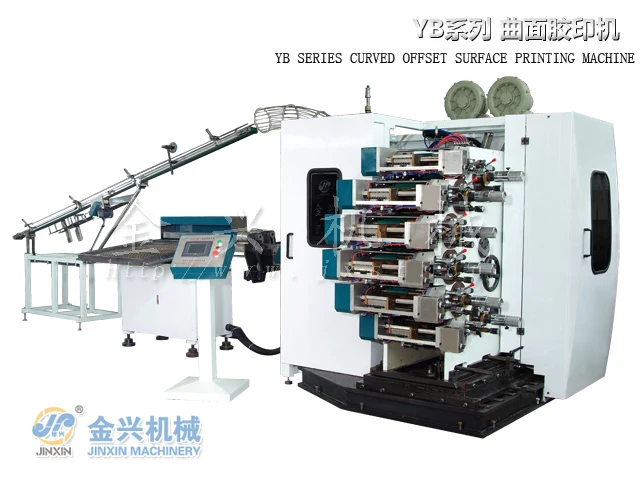

top selling JinXin brand 6 Color Plastic Cup Printing Machine

Product Overview

Description

top selling JinXin brand 6 Color Plastic Cup Printing Machine



Parameters

Parameter	YB-6
Printing Diameter(mm)	50-150
Printing Lenght(mm)	110
Printing Bevel	12°
Max.Printing Speed(P/h)	13800
Power of Main Motor(KW)	7.5
Power Consumption(KW)	18
Dimension(mm)	6000x2300x250





Function

1 Adopting the advanced international printingtechnology.

2 Designed by engine, electricity and gas.

3 Adopting PLC controller, high-speed printing, fast-speed changed mold, proofread board, automatic feeding cups, collecting cups, counting and collecting the depose cups

4 Easy to operation.

5 Adopt the offset printing technology realize to print the design, word, logo and etc. On the surface of plastic containers (columnar shape).

6 Widely used to print beverage cups, yogurt cup, ice cream cup, lunch box and etc.

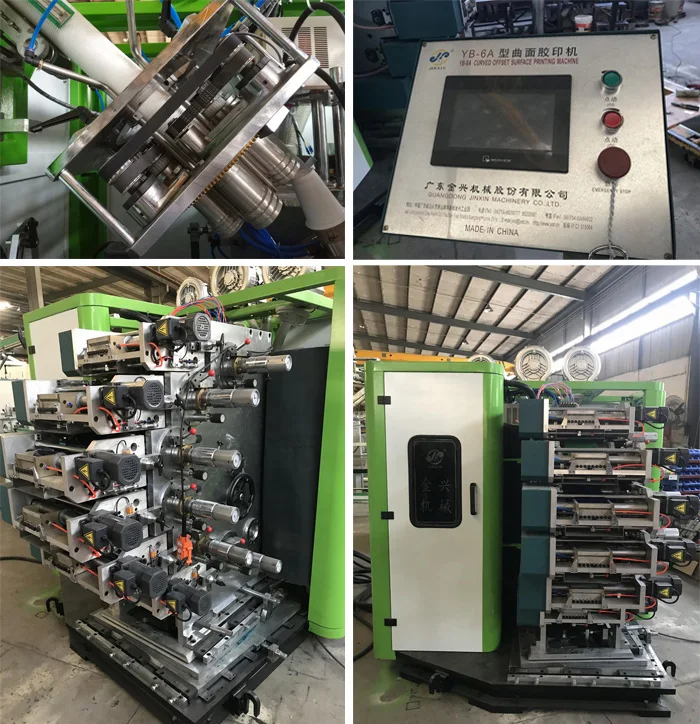

Machine Details

Main Fittings
1.Electric Fittings: Yatai PID Self-adjusting Automatic Temperature Control Meter, Schneider Pushbutton, Selector Switches, Pilot Lights, Contactor and Thermal Overload Relay, Korea LG Circuit-breaker;

2.Lubricating System: Taiwan Famous Automatic Oiling System;

3.Pneumatic System: Japan SMC;

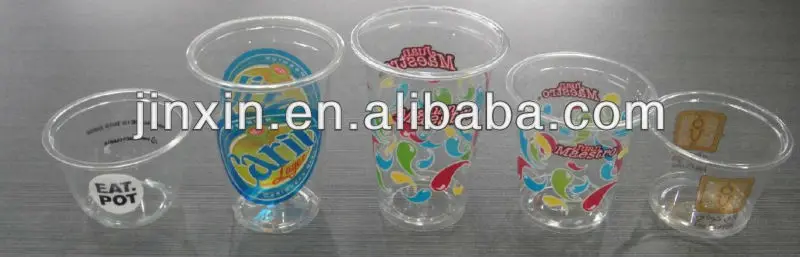

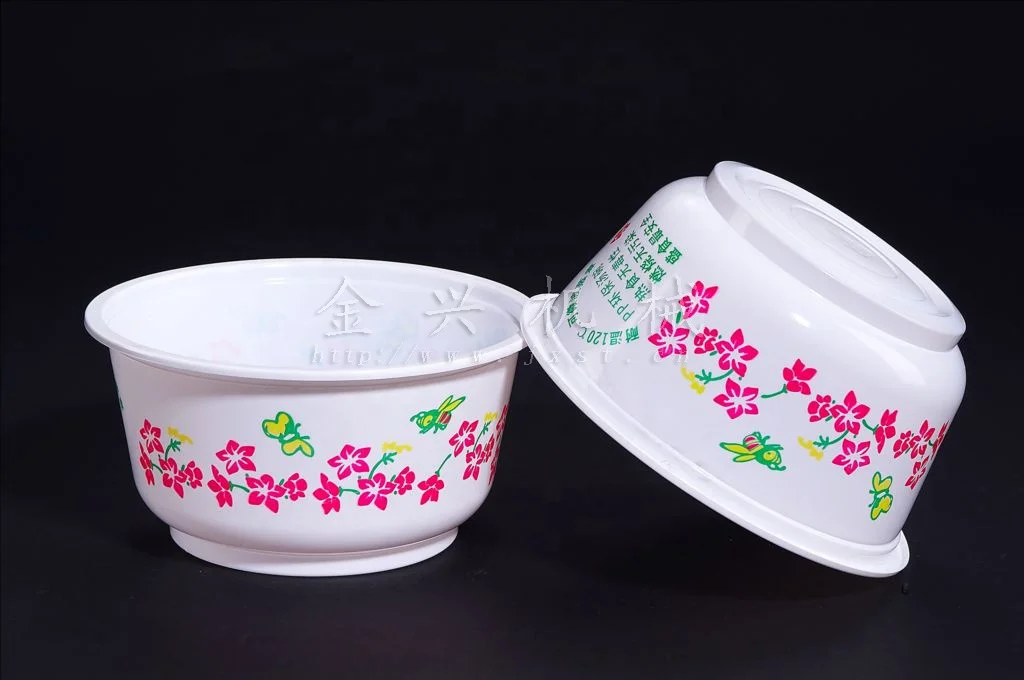

Some samples

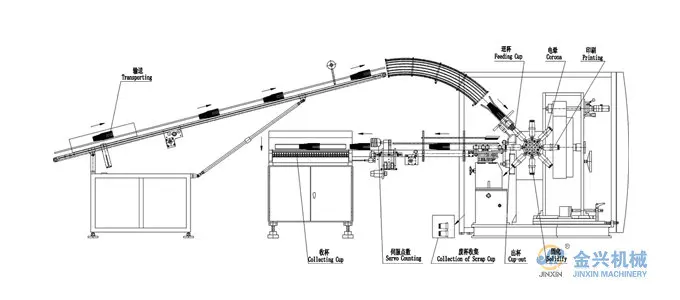

Production schemes



FAQ:

1. Q: Are you a factory or trading company?

A: We are a factory.



2. Q: What certificate do you have?

A: We have ISO and CE certificate.



3. Q: How does your factory do regarding quality control?

A: We have a special QC department in charge of products’ quality.



4. Q: How long is the warranty period?

A: All of our products have one year warranty.



5. Q: What’s the main market of your company?

A: We have customers all over the world.



6. Q: How much production capacity of your company one year?

A: This depends on your needs.



7. Q: Can we visit your machine operation in your factory?

A: We have own plastic making factory, you can see the machine operation.



8. Q: Where is your factory located? How can we visit there?

A: Our factory is located in Shantou City, Guangdong Province, China,

about 45 minutes from Guangzhou by air. We offer transportation service.
