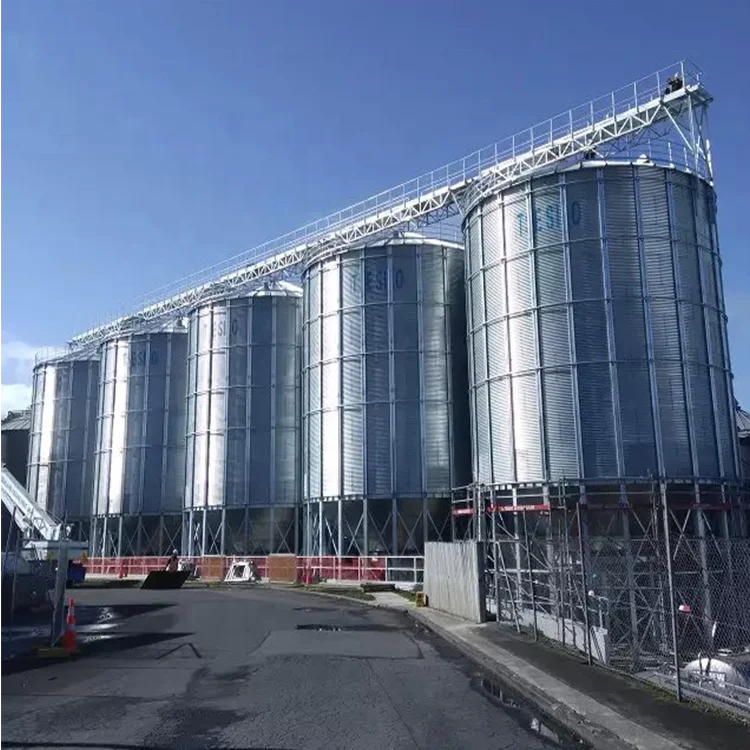

Vertical grain silo corrugated panels bolted silo 500m3 1000m3 5000m3

Product Overview

Description

Guangcai manufacture 15 - 10,000 tonne Grain Silos using premium steel and the latest technology in manufacturing and design.



The products offered by us are developed with utmost precision, using latest technology and high grade material. These are also specialized enclosed storage with regulated feeds as per custom designs could be made available to match specific requirement and environments. These stainless steel silos adhere to the industry code of conduct and are finished immaculately.





Complete grain storage solutions

• Full galvanised steel construction for premium steel silos
• Aeration and out-loading systems included
• Complete ladder systems, roof stairways and catwalks
• Walk in doors
• Optional heavy duty wall stiffeners

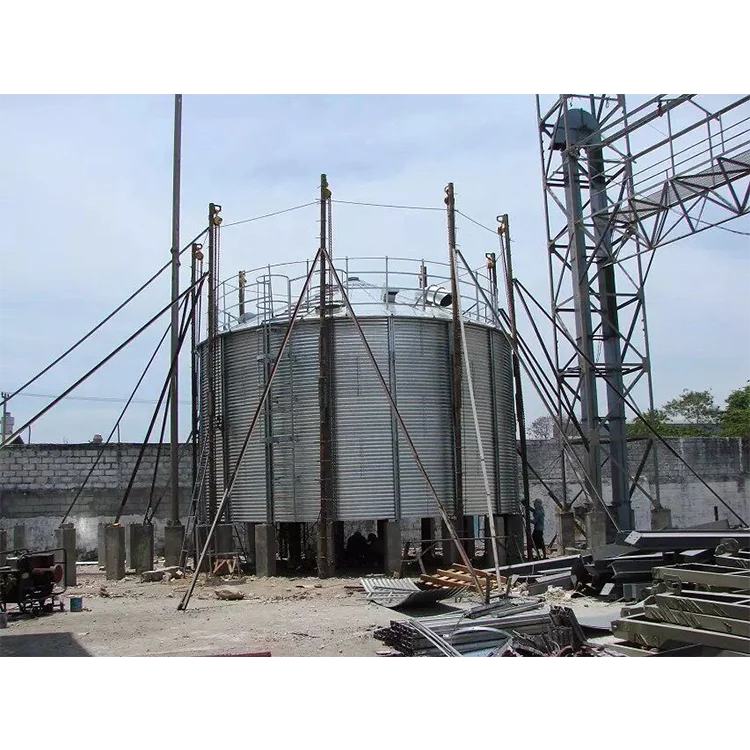

• Erected on-site

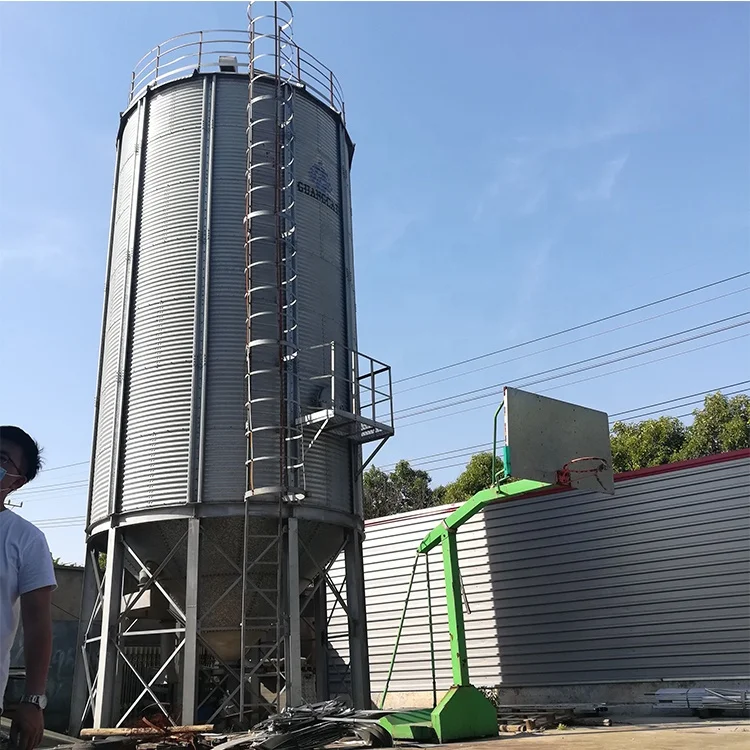

Grain storage steel silos can be used for multiple purposes. Conical bottom steel silos’ conical bottom angles are produced at 45-65 degrees according to the type and flow characteristics of grain to be stored.

Steel silos can especially be used in animal farms handling storage operations of various types of grains, and in facilities including feed and flour mills. They are also optimum for short-term and temporary grain storage.

Side wall sheets, suspension supports and access doors of all conical bottom silos are made up of zinc-plated steel sheet. Steel, due to its structural characteristics, is very resistant in conical bottoms.
Guangcai offers you conical bottom steel silo options in various sizes and capacities from 2,11 m to 10,83 m.



Steel Silo Features:





1. Large capacity



One single silo capacity is up to 18000 tons, with loading & unloading system, ventilation system, temperature control system can meet customers’ different requirements.



2. High accuracy

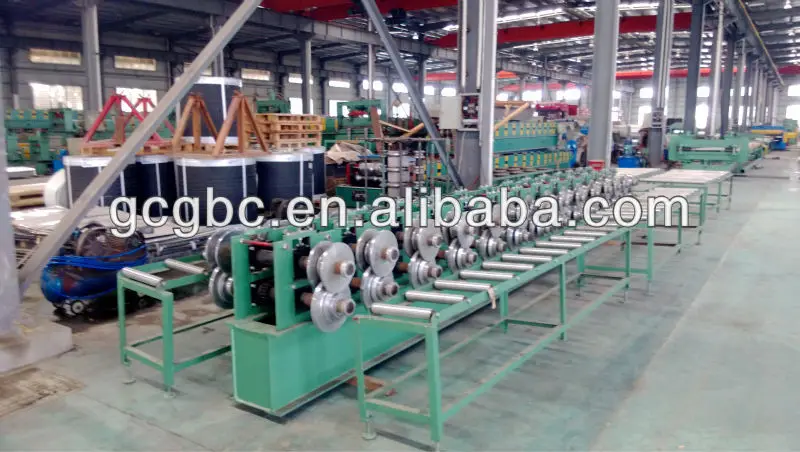

Completely computerized production equipment for automatic assembly line and technology to effectively ensure assembly accuracy, reduce damage to galvanized layer and extend the silo service life.



3. Less residues



External stiffeners contribute to less grain residues on silo walls; the automatic unloading equipment is available.



4. Detachable and movable



With standardized and modularized production, components and parts have a high standardization and good interchangeability, thus can be partially replaced or completely transferred.



5. Less investment



30%-50% less costs over steel bar concrete silos, greatly saving investments.



6. High automation



The steel silo can be highly mechanic and automatic and the control system adopts PLC or imitation screen, highly production efficiency, thus save labor and maintenance costs.



Guangcai Steel Silo Competitive strength



1.adoption of high standard double side galvanized steel plate, i.e. structural SGH340/44 high strength steel plate. Galvanizing degree is optional for 275g/m²,350g/m²,450g/m² hot galvanized rolled steel, which ensure the silo life ensurance >30 years.



2.Capital advantage: a good master of raw material market scenario,improvement on Management System of suppliers which benefits us to have more competitive pricing and quality of raw material and machinery.





3.Advanced process technology domestically: expertise of key technology on silo processing, possession of patents on processing and engineering, with high utilization efficiency of the steel plate.





4.the largest processing capability:3 processing manufacturing centers, with complete set of production line of silo steel plate forming and molding.





5.Professional technical sales team, first rate expert design team, and user friendly after-sales team.



Diameter 54 feet(φ16501mm)
Silo Type	Capacity(m ³)	sheets/ring	Height(m)		Bulk density (T)
			Eave height	Peak height	maize	paddy	wheat	soybean
					0.72	0.55	0.75	0.7
JSZP16511	2920.6	18	12.375	16.225	2102.832	1606.33	2190.45	2044.42
JSZP16512	3160.1		13.495	17.345	2275.272	1738.055	2370.075	2212.07
JSZP16513	3399.6		14.615	18.465	2447.712	1869.78	2549.7	2379.72
JSZP16514	3639.1		15.735	19.585	2620.152	2001.505	2729.325	2547.37
JSZP16515	3878.6		16.855	20.705	2792.592	2133.23	2908.95	2715.02
JSZP16516	4118.1		17.975	21.825	2965.032	2264.955	3088.575	2882.67
JSZP16517	4357.6		19.095	22.945	3137.472	2396.68	3268.2	3050.32
JSZP16518	4597.1		20.215	24.065	3309.912	2528.405	3447.825	3217.97
JSZP16519	4836.6		21.335	25.185	3482.352	2660.13	3627.45	3385.62
JSZP16520	5076.1		22.455	26.305	3654.792	2791.855	3807.075	3553.27
JSZP16521	5315.6		23.575	27.425	3827.232	2923.58	3986.7	3720.92
JSZP16522	5555.1		24.695	28.545	3999.672	3055.305	4166.325	3888.57
JSZP16523	5794.6		25.815	29.665	4172.112	3187.03	4345.95	4056.22
JSZP16524	6034.1		26.935	30.785	4344.552	3318.755	4525.575	4223.87
JSZP16525	6273.6		28.055	31.905	4516.992	3450.48	4705.2	4391.52
