GSM GPRS guard tour patrol and checkpoint monitoring system

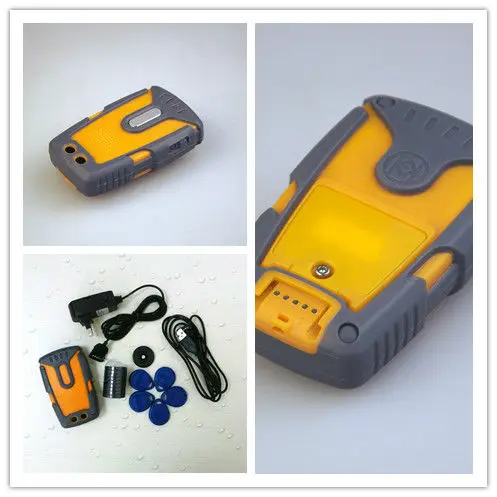

Lancer WM-5000L5

GSM GPRS guard tour patrol and checkpoint monitoring system

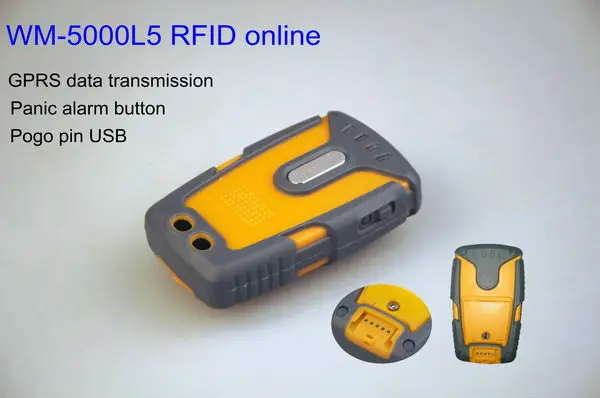

is a very popular real time guard tour control system  in the market.  working with 125khz tag and transmit date by GPRS, ensure the guard monitoring on line.  each unit equipped with panic alarm button make the system perfect.  with large records storage and rechargeable battery, this reader is designed to be durable a

Technical information

Physical  medal body with rubber shell

Dimensions  103mm x 63mm x 25mm

Weight 142g

Operating Temperature -25° to +85°C

Storage Capacity 15000 records

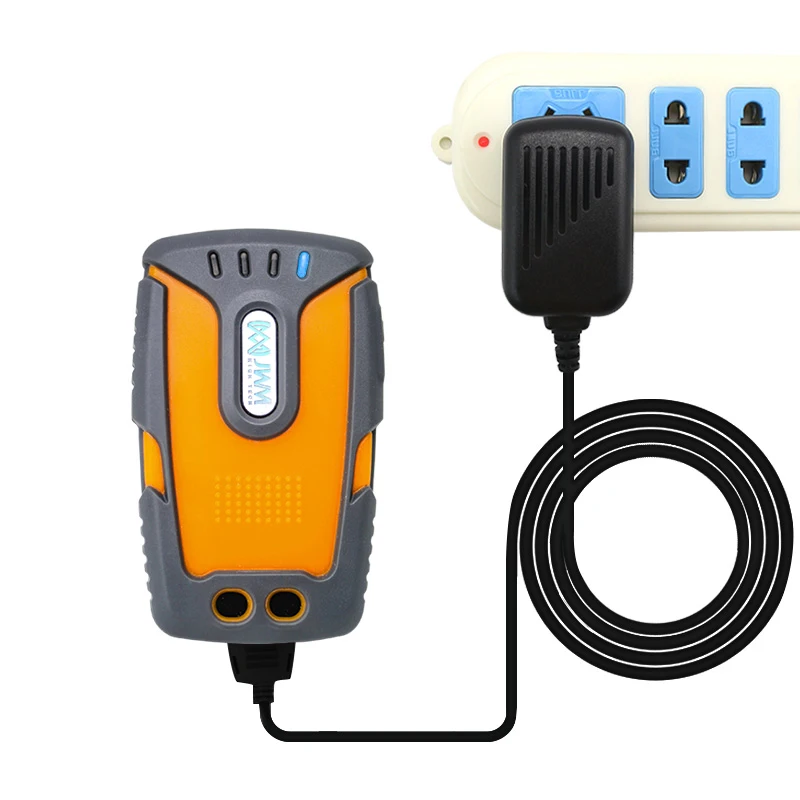

Battery  3.7 V rechargeable battery, 800m Ah

Battery life 350 000 continuous reads

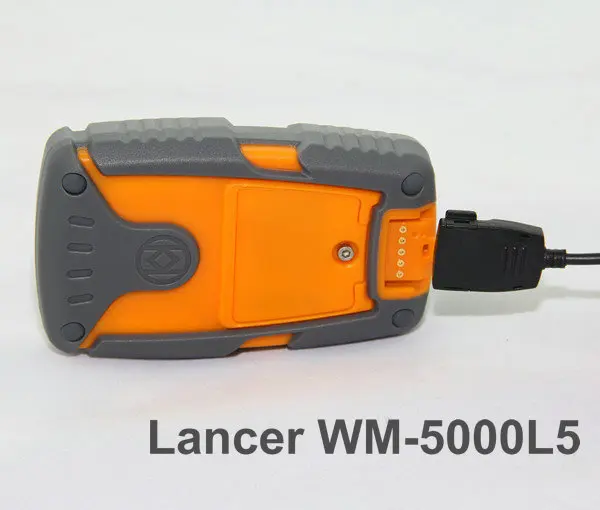

Communications  GPRS or  Pogo pin cable

Indication:  vibration and colorful led

Quad band: GSM850/EGSM900/DCS1800/PCS1900

What is guard tour system

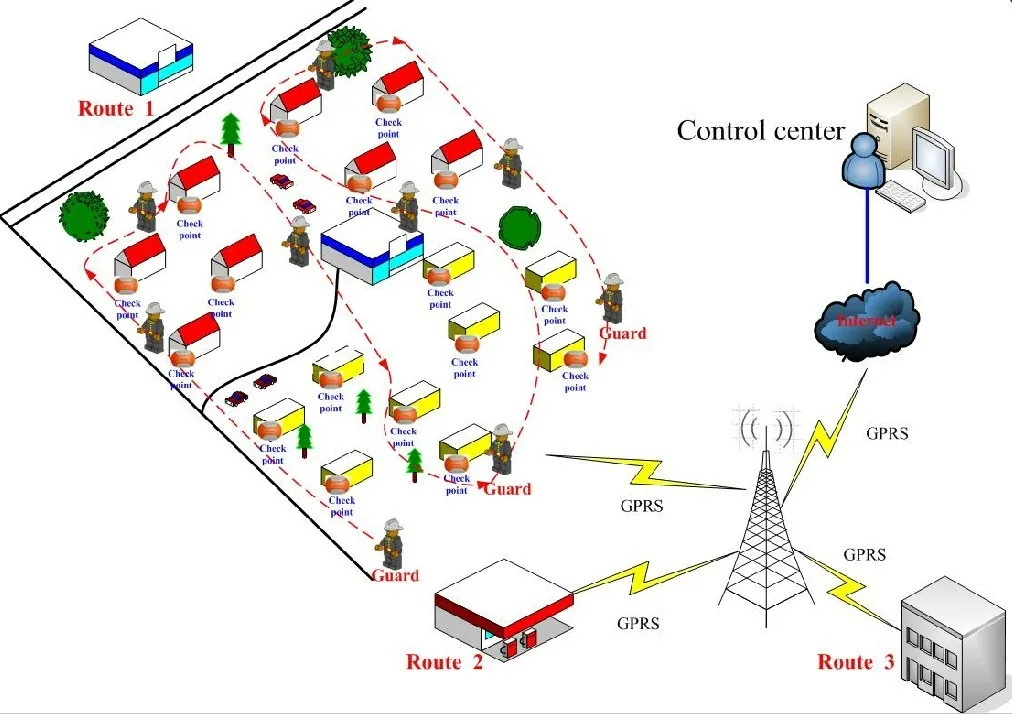

GPRS real time security system for guard tour control

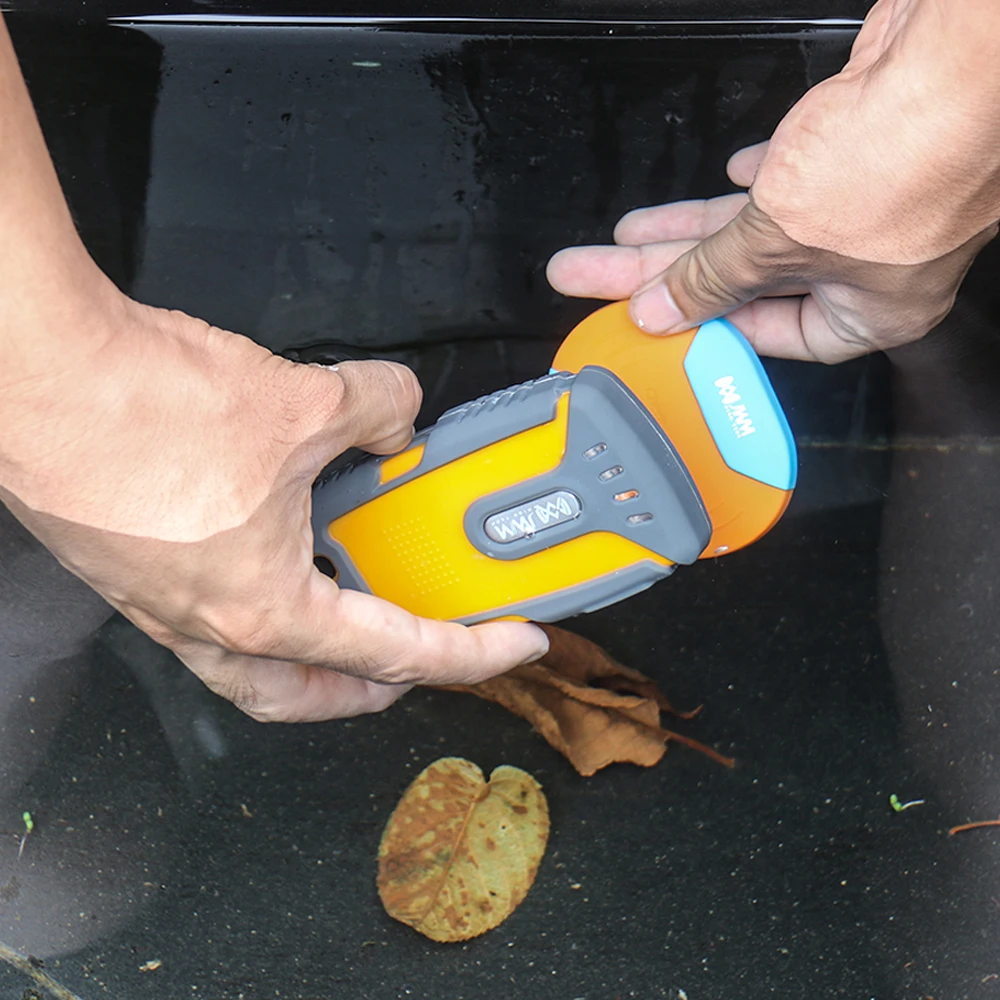

It works by installing a series of RFID Tags (each with its own unique global identification number) along patrol routes and having patrol personnel perform readings on the tags using a hand held reader. The recorded tag numbers along with each associated time stamps are later uploaded via communication adapters to computers for processing and verification. The results are displayed on the screen, printed or emailed so that managers can review at once job performance data of the patrolling personnel (attendance, locations patrolled, timeliness, incidents and etc).
