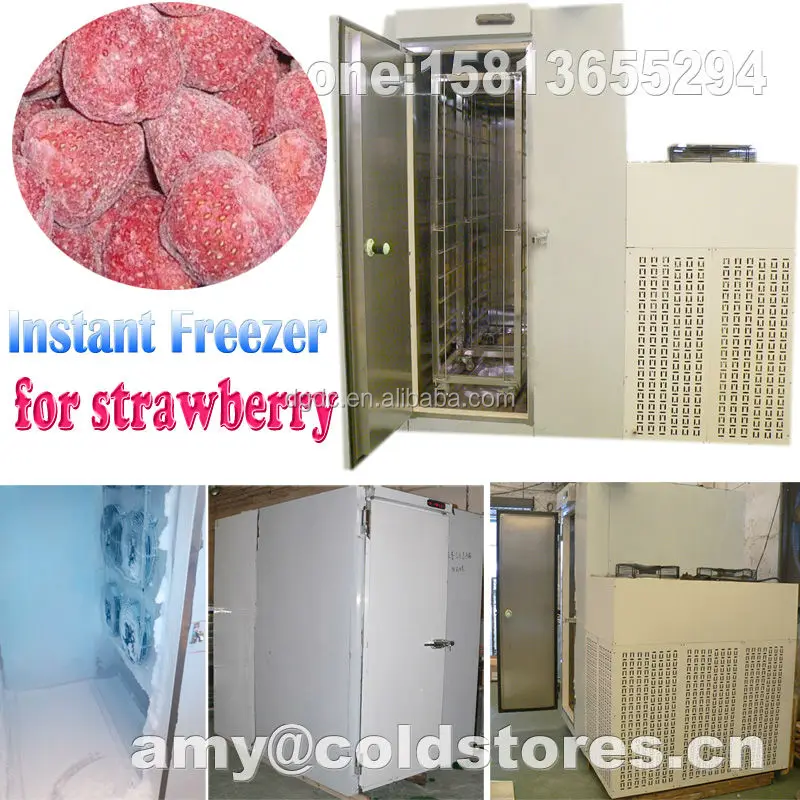

Instant Freezer for 300kg Strawberry Freezing

Product Overview

Description

instant freezer for 300kg strawberry freezing



instant freezer   PERFORMANCE:

instant freezer   lowers the food temperature from 28°C to -35°C or -45 degree C within 2~3 hours. Chilling and freezing times will vary somewhat, depending on the food quantity, initial temperature, density, moisture content, specific heat, and type of container. The airflow has a high velocity, indirect pattern designed to cool all levels at identical rates.





• instant freezer   Product Feature

1. All in stainless steel 304 in both sides , exterior 1.0 mm thick , interior 0.8 mm thick

 2. Imported compressor , famous brand Bitzer /Copeland /Tecumseh(air cooled)

3.  instant freezer   can freezer the food from 60kg ~400kg

 4. we can design the module instant freezer  or the finished assembled  instant freezer   room

5. Environment-protection Refrigerant :R404a

 6.hight quality with CE Rosh

7.OEM Order is welcome !



 Following is the information of the  instant freezer for 300kg strawberry freezing



	Model Number	BF-2	BF-2-S
	condensing unit	built-in (on the top)	split unit ( install outside)
1.	Unit Dimensions (MM):	1630*1200*2140	L1860*W1690*H2140 mm
2.	Inner Dimensions (MM):	1300*960*1420	L1860*W1690*H2140mm
3.	Packaging Dimensions (MM):	1690*1260*2240	l1920*W 1750*H 2240mm
4.	Capacity	can hold 120~180kg    strawberry	Can hold 200~300kg  strawberry
5.	freezing Time	It can brin strawberry from +25 °C to -35°C  in 2~3hrs	It can bring strawberry  from +25 °C to -35°C  in 2~3hrs
6.	with single  trolley	double trolleys of 18 tiers	double trolleys of 28 tiers
7.	trolley size (MM):	500X600X1400	500X600X1850
8.	compressor	Bitzer /Copeland /Tecumseh(air cooled)	Bitzer /Copeland /Tecumseh(air cooled)
9.	Refrigerant:	R404a	R404a
10.	material	PU material&stainless steel SS304	PU material&stainless steel SS304
12.	Voltage	380V/50HZ	380V/50HZ
13.	G.W./N.W.	400kg/320kg	400kg/320kg



we are the manufacturer to do the instant freezer   , So OEM order is welcome . In order to design the suitable instant freezer  for your , please answer us the following quesions:

1. What kind of food will be put into the  instant freezer      ?

2. what;s the food size (such as length ,width ,thick ) ?

3.what kind of the food package and the food packaging size ?

   Plastic bag or stainless steel tray

4.what;s the foods weight  for each bag or each tray?

5.how many food will be put into the   instant freezer  per batch ?

6.what;s the food input temperature and the output temperature ?

7.what's the food core temperature after frozen ?

8.what's the freezing time  ?

9.what;s the voltage for the  instant freezer   you required ?



you can fill in this form and feed back to us . Then we will send you the  instant freezer   design for your reference :



Product

product(meat or others) length (mm)

product(meat or others.) width (mm)

product(meat or others) Thick(mm)

product(meat or others) weight(kg)

product(meat or others) packing

Capacity/batch

Input temperature(°C)

Output temperature(°C)

Time to reach the output temperature

Product core temperature after freezing(°C)

Trolley

Votage & Frequency

Need any certificates?(CE,ETL,ROHS etc)



•  instant freezer  CONSTRUCTION:



The chilling/freezing cabinet is constructed of polished type 304 stainless steel, with 2" of CFC-free, high density polyurethane insulation 120mm. The door is equipped with a removable magnetic gasket. The door is hinged on operator’s right.

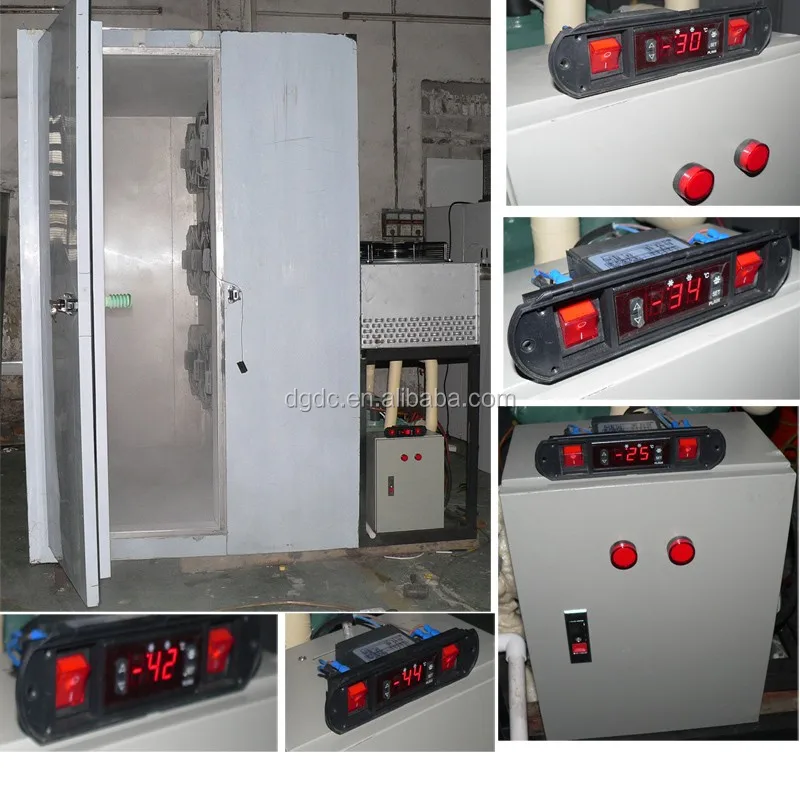

In order to know more about our   instant freezer   , please check the follwing detailed pictures

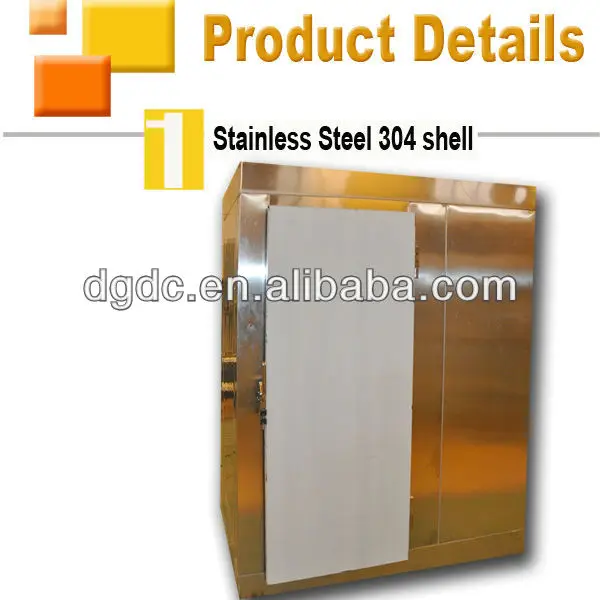

All in stainless steel 304 in both sides , exterior 1.0 mm thick , interior 0.8 mm thick

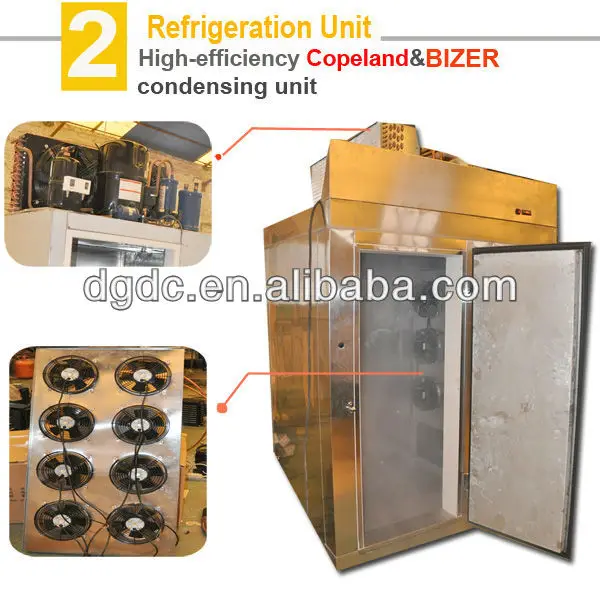

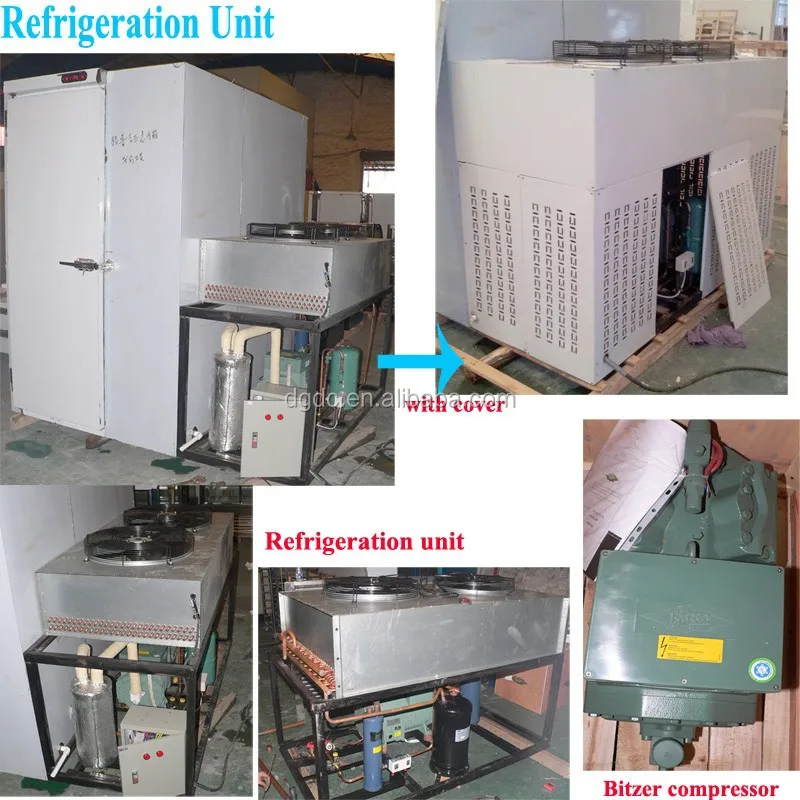

•  instant freezer  Refrigeration Unit :



The self-contained refrigeration system includes a condensing unit using R-404A refrigerant. The compressor is a semi- hermetic type with inherent overload protection.

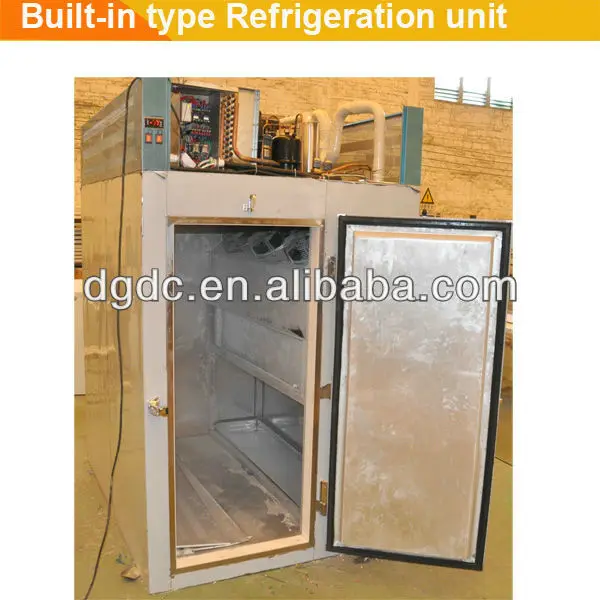

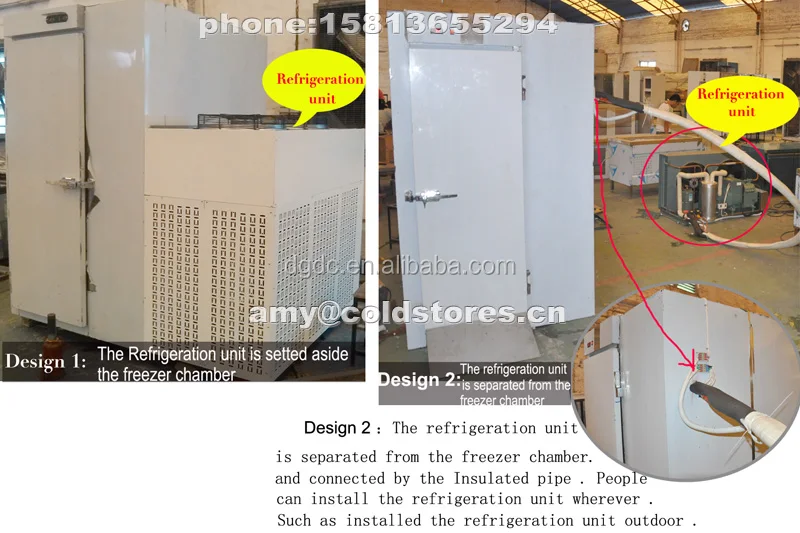

 instant freezer  Refrigeration Unit can be installed at the top on the

 instant freezer  (built-in type refrigeration uint)



or installed separate from the   instant freezer   ( split refrigeration unit , stand free )

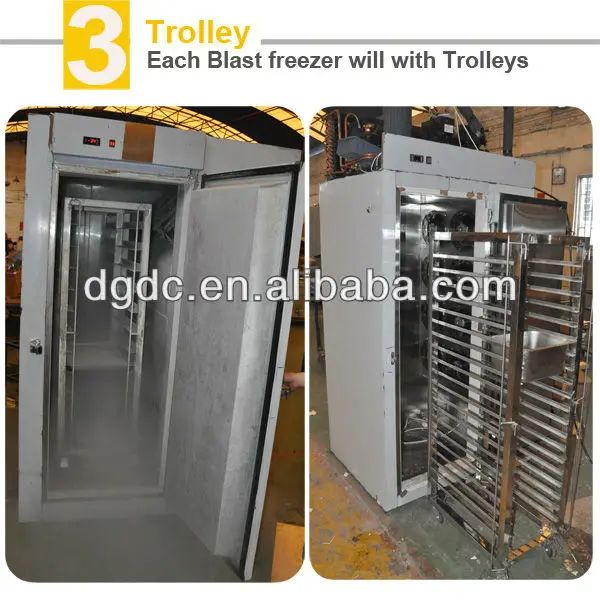

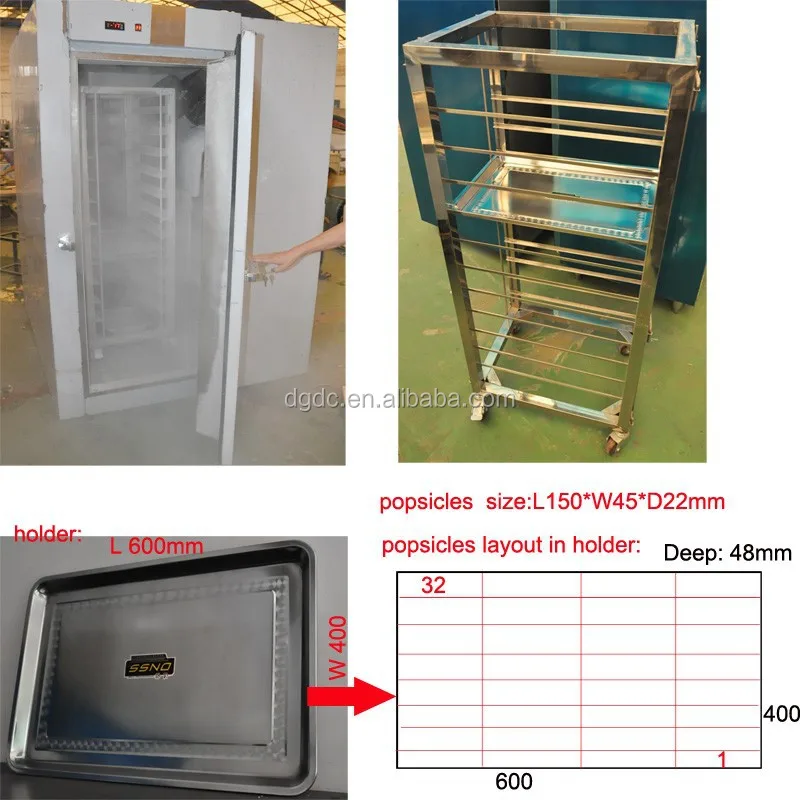

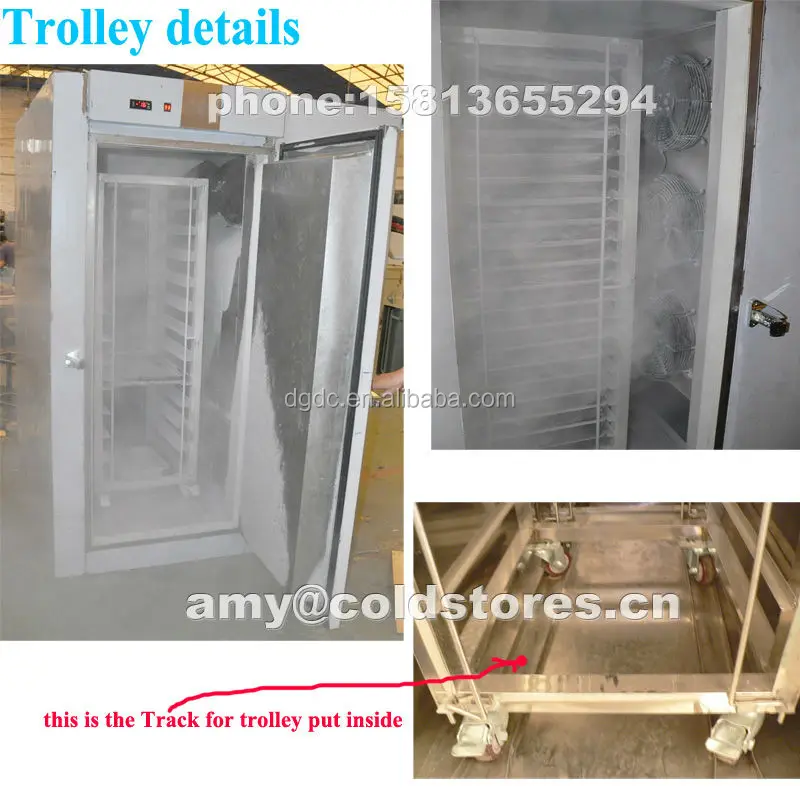

• Each    instant freezer  will with Trolley. Trollery size is 500X600X1400 mm ( 18 layers) or 500*600*1850 ( 28 layers)

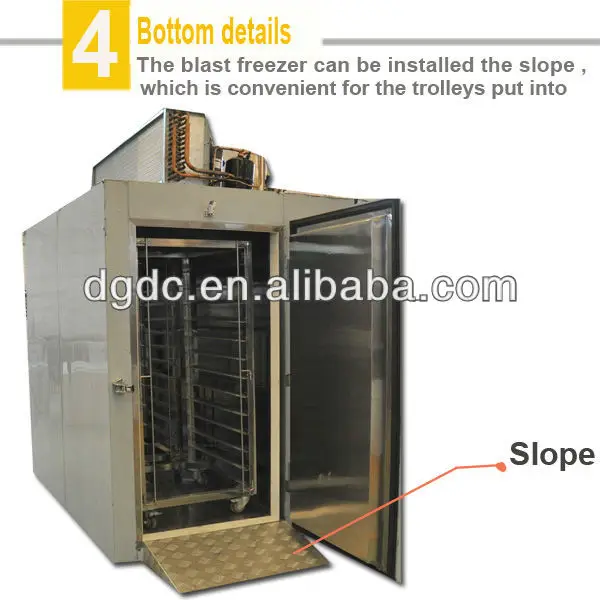

• The   instant freezer  is with the slope ,which conventient for the trolleys put into the instant freezer

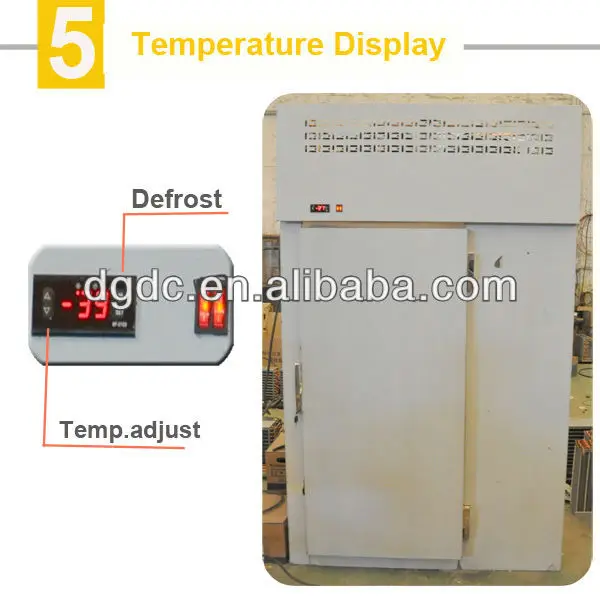

•  instant freezer  temperature can fall down to -35 degree C (just accprding to the food feature  and size) , it can be Auto-defrosting

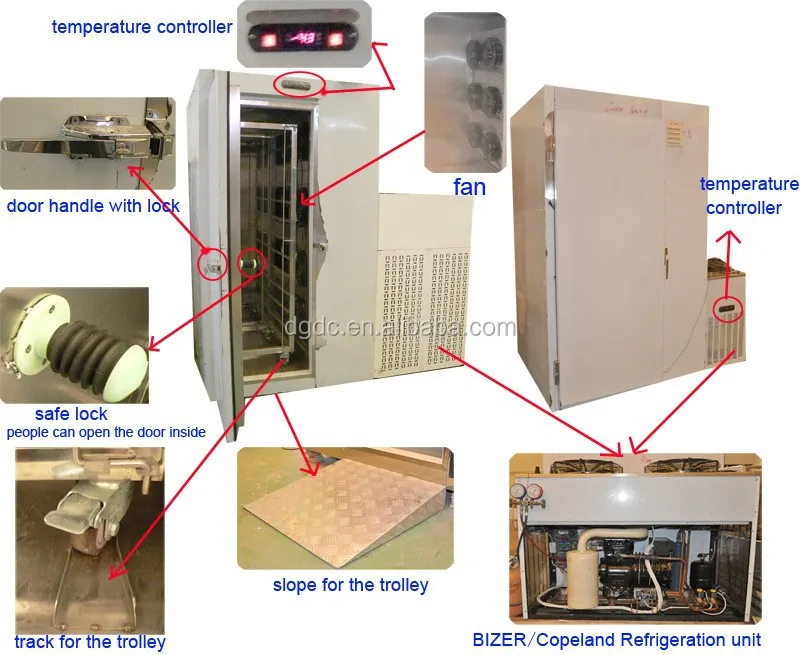

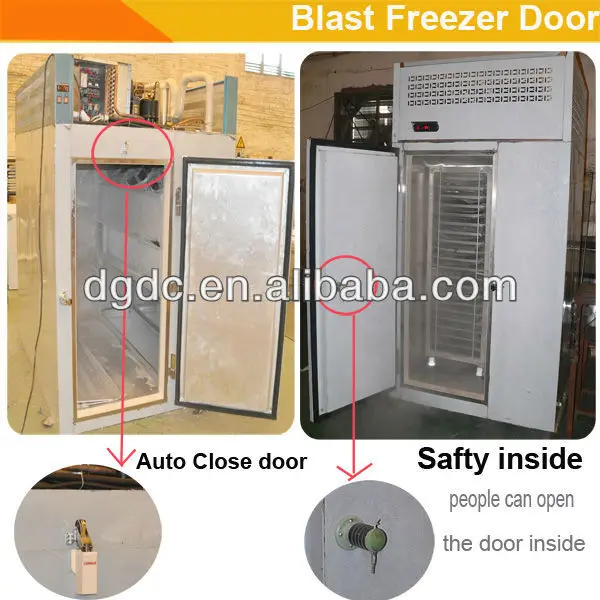

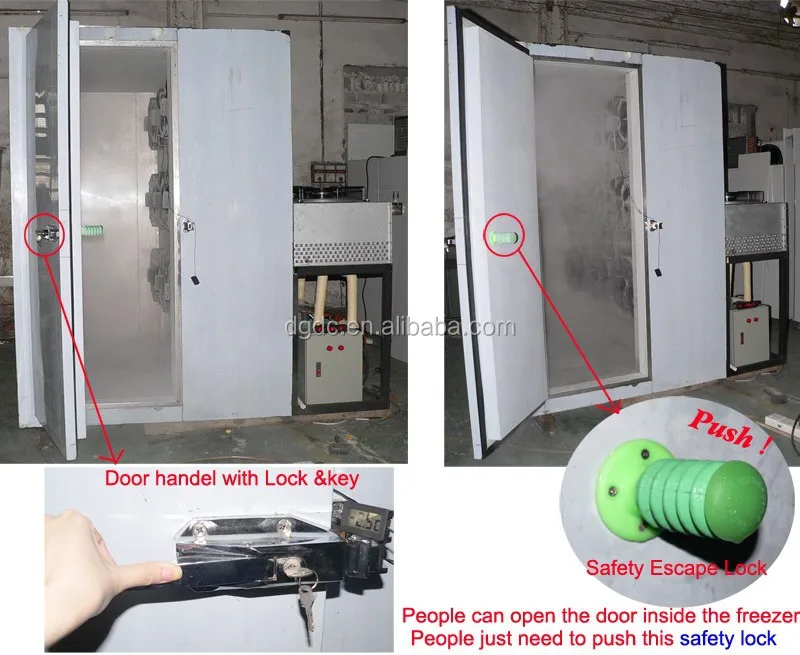

•  instant freezer  door . We can design the door can be auto close . Also , we design the door inner with safty lock .It can open the door in   instant freezer

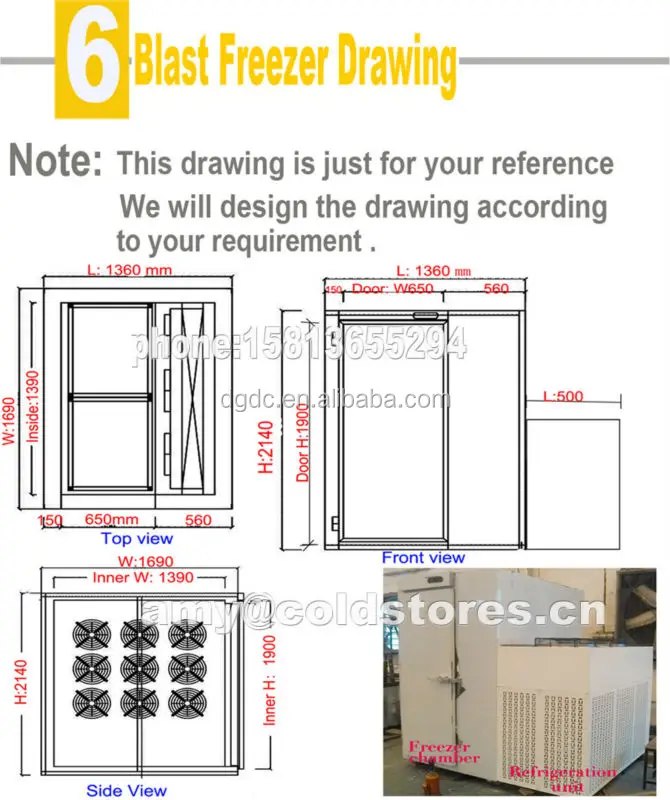

•  instant freezer   draiwing







• Packaging information for the    instant freezer

1. for  instant freezer  sample , we will package it by  plywood case

2. for full conatainer loading, we will package  instant freezer   by batten

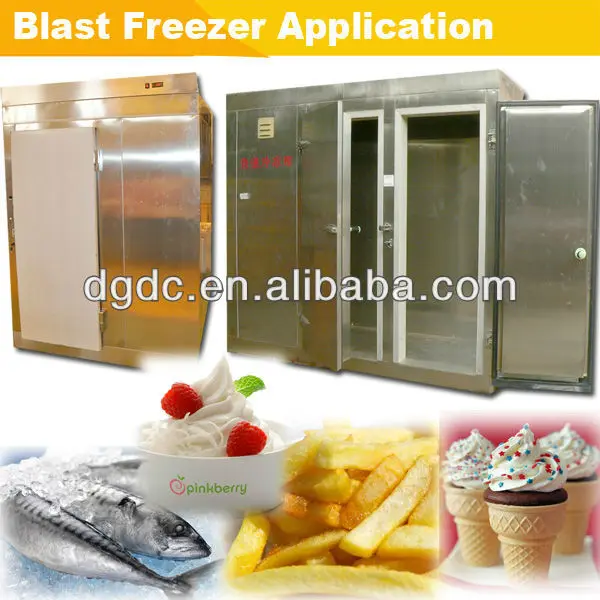

•  instant freezer    Application :



 instant freezer   mainly apply to the restaurant ,cafe, icecream store ,ect .It can freezer/chill the food to the low temperature in short time .

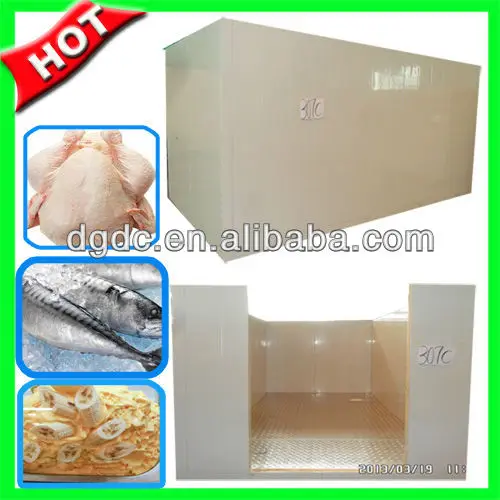

we can also do the  Prefabricated  instant freezer   room for the large capacity usage . It can freezer 1000kg ~5 tons food .
