sanitary milk centrifugal pump

Product Overview

Description

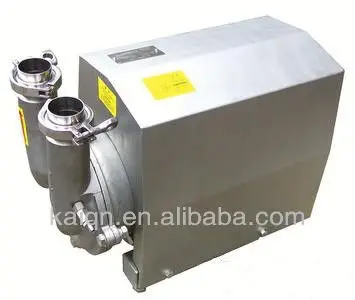

Sanitary stainless steel self-priming pump







Application

 Mainly used in industries such as pharmacy,aIcohol,foodstuff chemicaI and beverage to deliver Iiquid in smaII flow with high  pressure and high pressure filtering

Features

 CIP self-priming pump adopts acid-resisting stainless steel (AISI 316) in valve body, which has unique acid and alkali resistance, and comply with sanitary requirements for foods.
As a positive displacement pump, its features are superior to centrifugal pump since it suction liquid mixed with air or foams and even merely air. It is widely used to suction material with liquid level below the pump, For instance in the milking room,  it suctions milk from the milk barrel. It can also be used in automatic CIP cleaning system as  return flow pump in cleaning tank. The mechanical sealing is the build-in  influx type, and the temperature of suctioned  materiaI is no higher than 100°C

 Selection instructions:

  · Flow:Choose middle section of performance curve table for advisable

  ·Operating temperature:-20-100°C(Highest sterilization temperature133°C).

  ·Work environment and media:whether need explosion-proof

  · Operating conditions:High and low level level transportation,not Self-suction (Self-suction choose self-suction pump)

  · Pump body material:According to the medium for the 316 L and 304 options

  · Sealing material:Standard silicon rubber,According to the medium choice fluorine rubber, epdm, ptfe, butadiene acrylonitrile.





Product Name:	Sanitary stainless steel CIP self-priming wine,oil pump
Valve Body Material:	SS304/SS316L/1.4301/1.4404
Seal Material:	EPDM (Standard, approval) FPM(Viton) and PTFE
Max. Flow:	30m3/h / 132 GPM
Max. Speed:	1750rpms/min
Max. Suction height:	8m / 22 ft
Max. Head:	30 H(M)
Max. Working Pressure:	3Bar/ 43 PSI
Max. Working Temperature:	120°C/ 248.F
Mechanical seal:	SIC/SiC/EPDM(Standard), C/SIC/EPDM
Motor power:	1.1kw, 1.5kw, 2.2kw
Voltage:	110V, 220V, 380V
Motor:	ABB
Surface treatment	Inner polished and Sandblast outside
Availably connection:	Tri-Clamp, Thread, Flange
Availably standard:	DIN, SMS, 3A, RJT, ISO/IDF
Operated:	Electic
Certificate:	3A/54-02 (1580), PED/97/23/EC, 177.2600, ISO9001/2008
Application scope:	Dairy,food, beverage, pharmacy, cosmetic, etc
Packaging Details:	Plywood case or customerized. Or as per the request of customers.
Delivery details:	Usually within 20 days after receiving T/T down payment.
