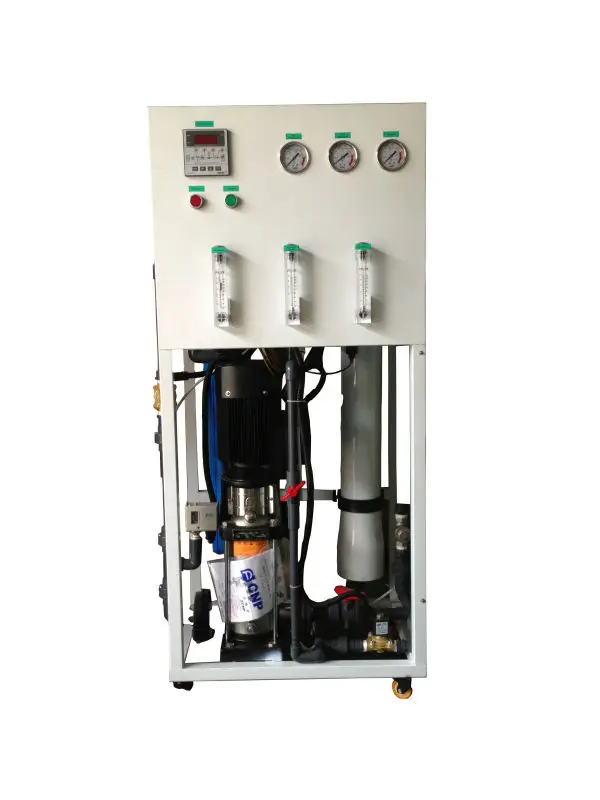

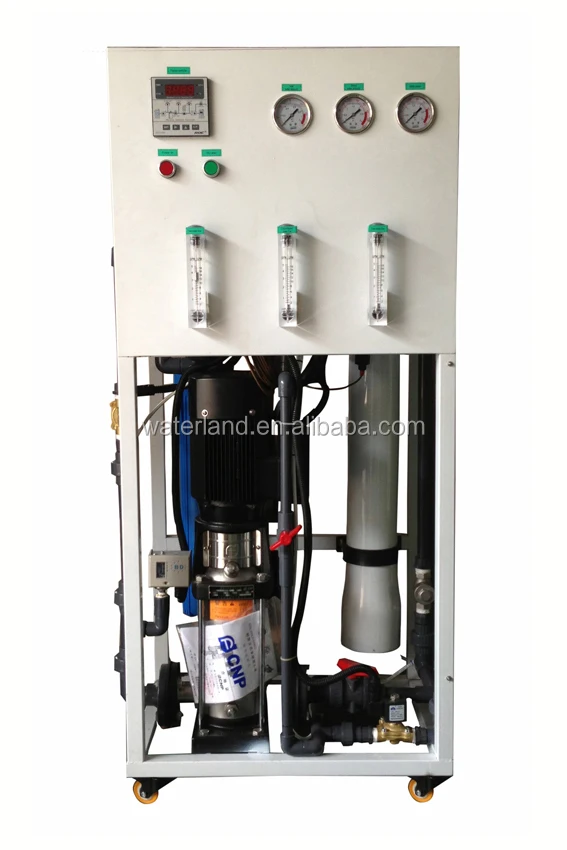

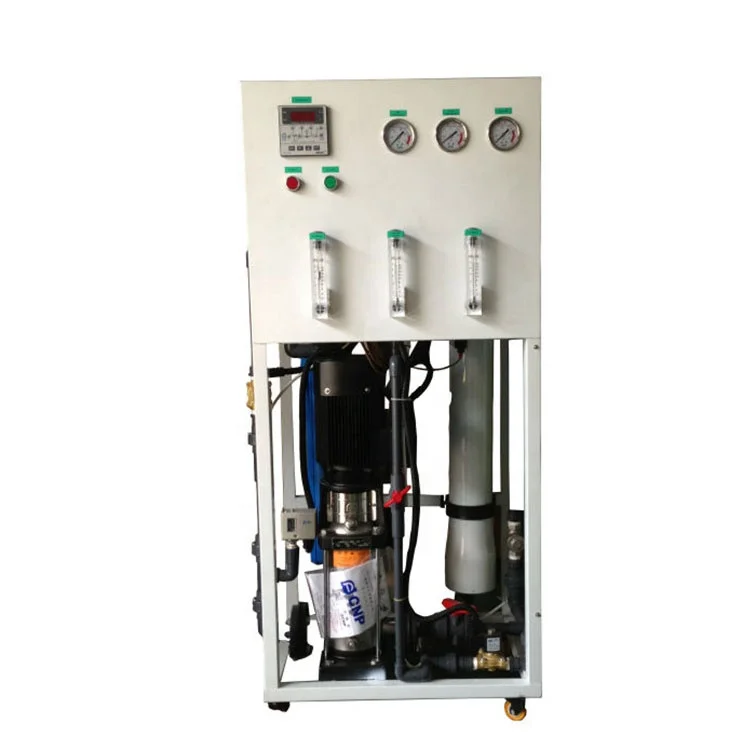

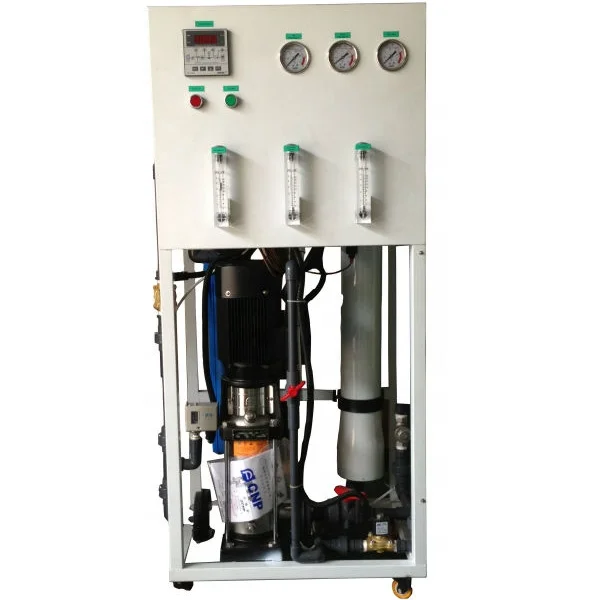

Mineral/drinking Water Plant Water Treatment System
- Category: >>>
- Supplier: Hangzhou Waterland Environmental Technologies Co. Ltd.
Share on (1928257641):
Product Overview
Description
Water Treatment
product display
Model:RO4040-LE1 (2200GPD)
RO4040-LE2 (4400GPD)
RO4040-LE3 (6600GPD)
RO4040-LE4 (8800GPD)
Features
Movable Plant.
CNP SS304 pump.
20’ Jumbo PP melt blown cartridge.
FRP/SS pressure vessel.
Dow/Hydronautics/Toray/Vontron/Puran RO Membrane.
Ozone generator or UV sterilizer is available.
Powder coated steel rack or Stainless Steel rack
Feed water/ Permeate water/ Brine water flow meters.
Feed water/Permeate water/ Brine water pressure gauges.
Product water TDS meter.
Low pressure switch to protect high pressure pump.
Solenoid valve to protect RO membranes.
Applications
House / Office / Hotel / School etc.( Commercial Use)
Food, pharmaceutical, electronic factories water use. ( Industrial Use)
Tap water/well water/ground water/river water/spring water/surface water purification.
Specification
Membrane size | D. 4’ x L. 40’ | Feed water TDS | Max. 2000ppm |
Average salt rejection | 98% | SDI | Max. 5 |
Working pressure | 8-10Mpa | Free chlorine | Max.0.1ppm |
Power consumption | 1.2kw.h/m3 | Turbidity | Max.1NTU |
Feed water inlet | 1inch (DN25) |
|
|
Product water outlet | 4/5inch (DN20) |
|
|
Brine water outlet | 4/5inch (DN20) |
|
|
| RO4040-LE1 | RO4040-LE2 | RO4040-LE3 | RO4040-LE4 |
Max. product water capacity | 2200GPD (250LPH) | 4400GPD (500LPH) | 6600GPD (750LPH) | 8800GPD (1000LPH) |
Recovery rate | 15%-50% | 25%-75% | 32%-75% | 40%-75% |
Quantity of RO membranes | 1PCS | 2PCS | 3PCS | 4PCS |
Power consumption | 1.2kw.h/m3 | 1.25kw.h/m3 | 1.1kw.h/m3 | 0.8kw.h/m3 |
Power supply | 380V/220V | 380V/220V | 380V/220V | 380V/220V |
Dimensions W x D x H | 0.7x0.5x1.3m | 0.9x0.5x1.3m | 0.9x0.7x1.3m | 0.9x0.7x1.3m |
Gross Weight | 60KGS | 70KGS | 80KGS | 90KGS |
more product
company,certificate
Packaging and shippi
FAQ
WHAT IS THE EXPECTED LIFE OF THE MEMBRANES?
Generally, the life of the membranes depends on the water quality but in normal cases or under standard parameters,
you can expect 1.5 to 2 years for domestic and approximately, 3 years for commercial and industrial elements.
HOW TO PROCURE YOUR MEMBRANE?
We have different channel partners and worldwide set up of our dealer network but we suggest you to contact our
direct representatives to guide you to the proper channel, to have you find your value procurement.
WHAT ARE THE DIFFERENT SIZES MANUFACTURED BY HI-TECH?
We manufacture every range of wet and dry membrane elements flow rate from 50-600 GPD for residential.
HOW IS RTL MEMBRANE DIFFERENT FROM OTHERS?
We offer value against your money, prices which are comparatively lower, performance equivalent to best
membranes available and with higher longevity.
