Vertical Industrial Dry Mixers for Compound Fertilizer

Product Overview

Description

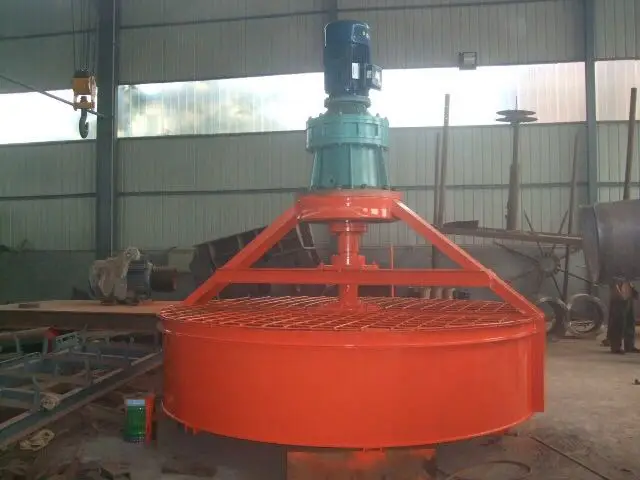

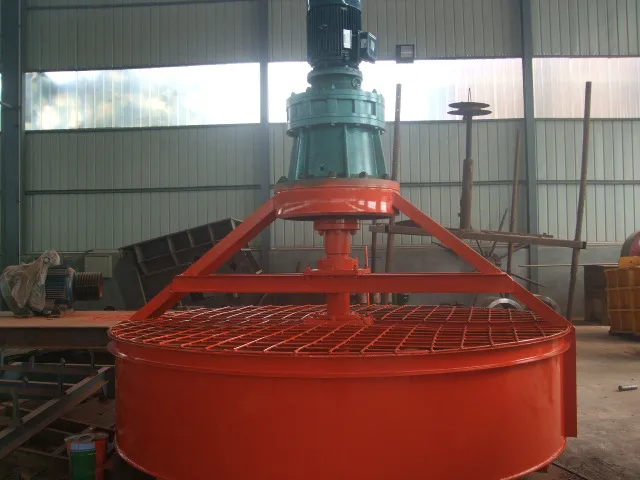

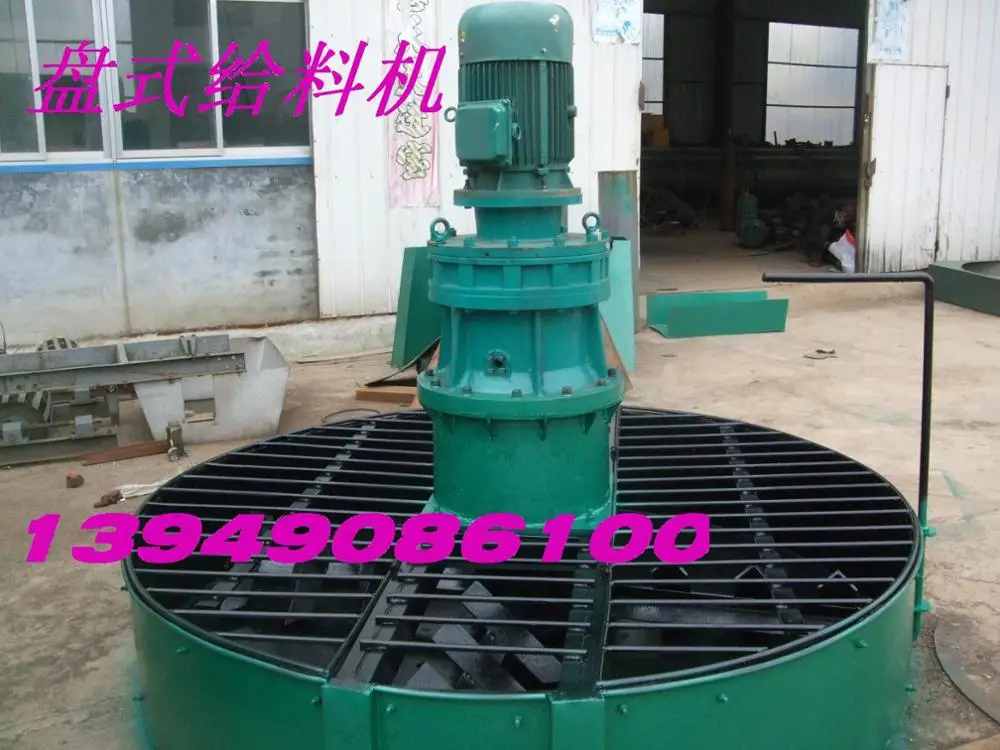

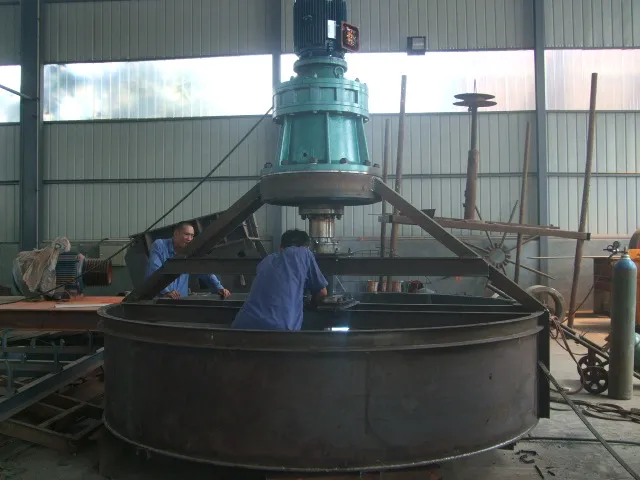

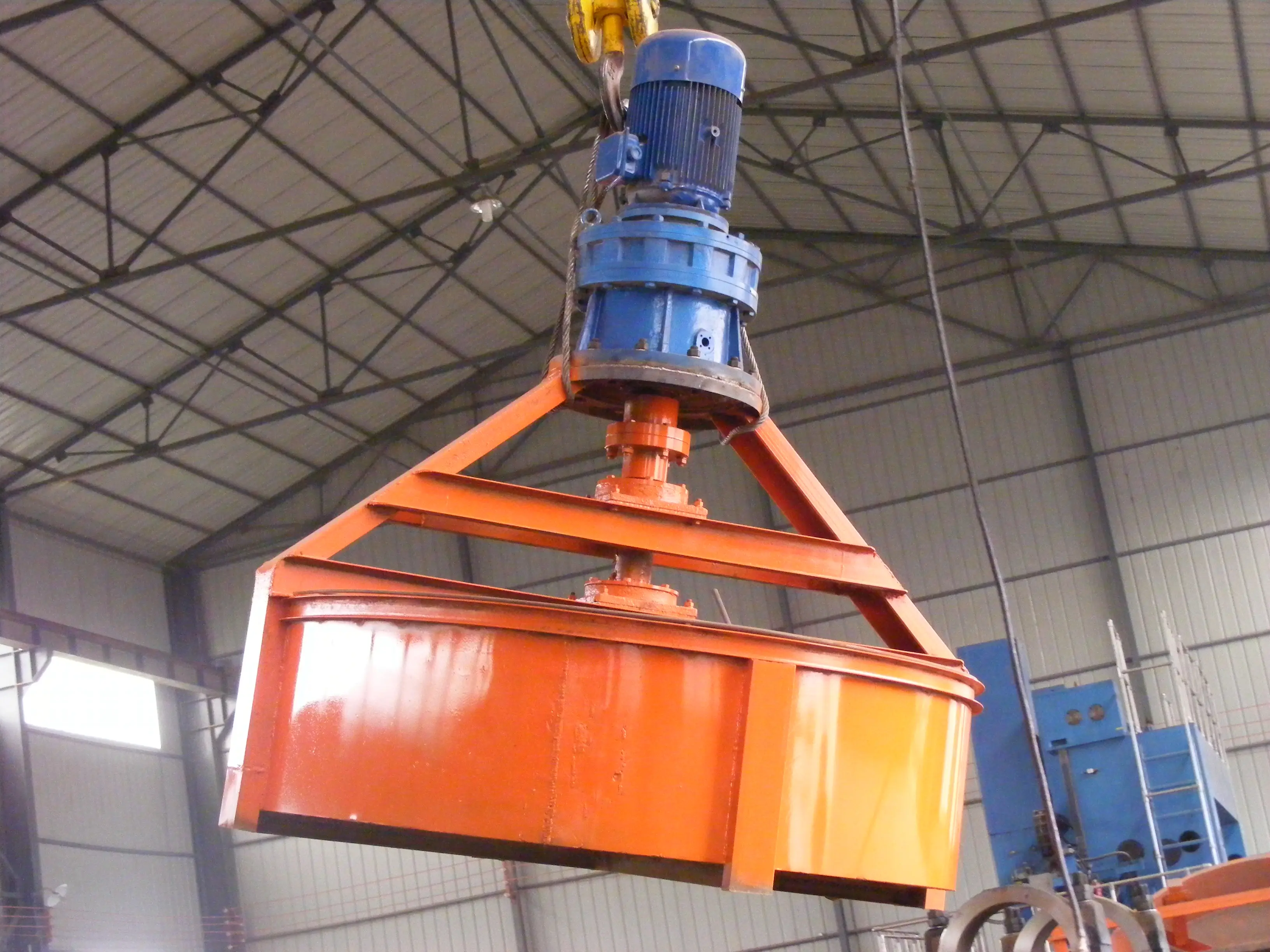

  Vertical Industrial Dry Mixers for Compound Fertilizer



Introduction of  Vertical Industrial Dry Mixers for Compound Fertilizer



The mixer is mainly used for raw material mixing.  It can stand with wear and tear





Application of Vertical Industrial Dry Mixers for Compound Fertilizer

1,The mixer is mainly used for raw material mixing.

 2. It can stand with wear and tear.

 3,It is line with polypropylene plate or stainless steel plate in the mixing tank, which dvoids material sticking and make the machine wear-resistant,corrosion-resistant in use.

 4,The mixer is adopt the cycloidal pinwheel reducer, it have the advantages of compact structure, easy operation,unloading transportation is convenient.



Main technical specification of Vertical Industrial Dry Mixers for Compound Fertilizer Sale

specification	mixer		rotary speed	power	capacity	size( L*W*H )	weight
	diameter	wall height
	mm	mm	r/min	Kw	t/h	mm	Kg
PJ1600	1600	400	12	5.5	3--5	1612*1612*1368	1200
PJ1800	1800	400	10.5	7.5	4--5	1900*1812*1368	1400
PJ2200	2200	500	10.5	11	6--10	2300*2216*1503	1668
PJ2500	2500	550	9	15	10--16	2600*2516*1853	2050
PJ3000	3000	700	11.5	22	18--20	3200*3200*2800	3500



 Structure of  Vertical Industrial Dry Mixers for Compound Fertilizer

 The machine can be devided into 4 parts:

 1.motor → 2.reducer  → 3.v-frame → 4.swith









 Advantages of Vertical Industrial Dry Mixers for Compound Fertilizer

 Parts of the machine we all use National Standard which ensure long service life of organic fertilizer disc mixer.

 1.  Lining of the disc mixer use stainless steel plate or polypropylene plate ( it should according to different raw material nature), therefore it is not easy sticky materials.

 2. High abrasion resistance.

 3.  Working stable with fast feeding speed performance.

 4. Short mixing time with high production efficiency.

 5. High material mixing degree.

 6. Low investment with taking effect quickly.

 7. Small footprint, simple operation which only need 2-3 person.









Our honoured customers









Installation and technical service :

 To ensure the machine good working in customer site,it is suggested that customer send workers to accept the training about how to work with machine,how to solve frequently asked problems,how to replace spares ect.In this way can we ensure the good working and give warranty of 1 year for the machine.or we can send you our technician to customer side to help customer set up the machine and train your workers.





Pre-Sales Service

*  Device model choice.
*  Design and manufacture products according to the special requirements of customers.
*  Train technicians for customers.
*  Send engineers and technicians to the customers to plan the site and design the best process and plan free of charge.

After-Sales Service

*  Training how to instal the machine, training how to use the machine.
*  Engineers available to service machinery overseas.
*  Create a customer profile and track it
