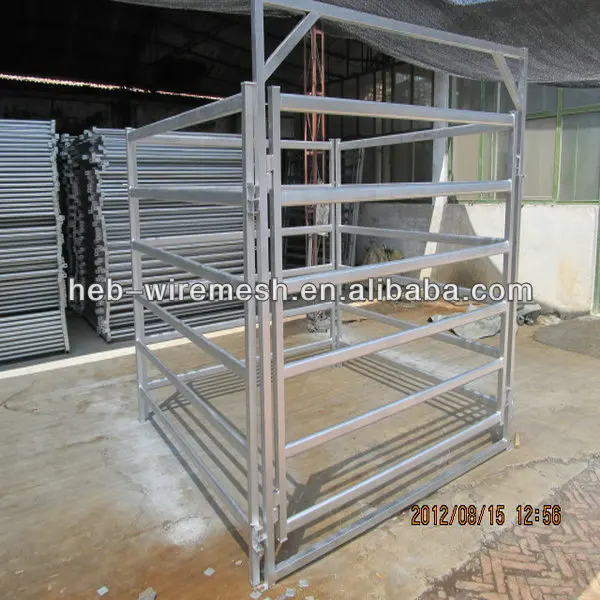

Cattle Yard Panel With Gate For Sale(5 rails 6 rails)

Product Overview

Description

Cattle panel introduction



Specifications:



Material : Low carbon steel pipes



Processed : firstly,we prepared the pipe (square pipe or the round pipe,the elliptic),then put the   pipe on the welded shaping machine,the pipe are galvanized ,welded the pipe together.then make the spot smoothing,then silver painted .



Features: It can quickly and easily be installed, without the need to disturb the surface area by

digging holes or laying foundations.



Main markets: Australia, European countries, Canada, America and Asia countries.

Specification :

-1.8m high with 6 bars/rails or 1.6m high with 5 bars/rails.



-Complete with Caps & Foot plates.



-Holes for ground pin on one leg of each panel.



-Elongated lug holes in brackets, for ease when connecting



Size:	1.8*2.1m 1.6*2.1m			Gate
Pipe  style:	Round pipe:32mm 42mm	Square pipe 40*40mm 50*50mm	Elliptic pipe 40*80mm 30*60mm	On your need
Thickness of the pipe	Generally 1.6mm
others	Pin connection	One set With  caps
Rails number	1.8*2.1m 6 rails	1.6*2.1m 5rails	Zinc amount,70-80g





Cattle panel styles

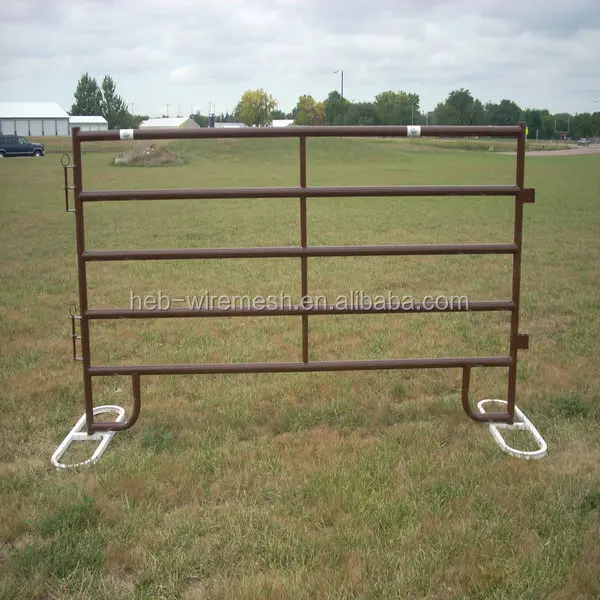

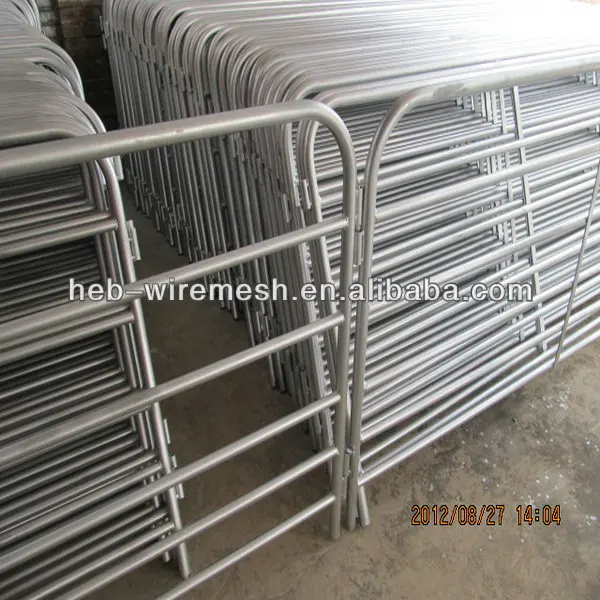

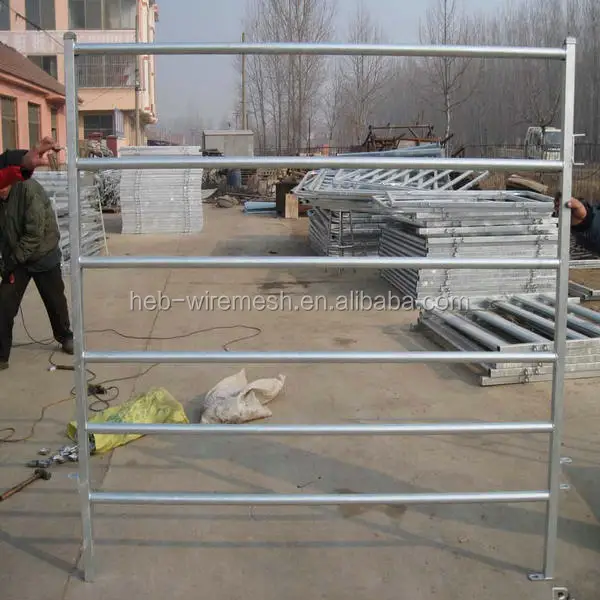

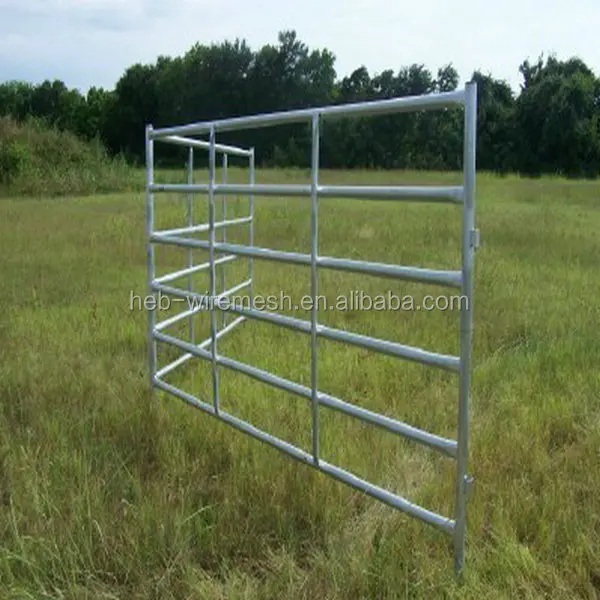

1. Round style cattle panels



Hot-dipped galvanized cattle panels

Height x Length :1.8x2.1m

Round pipe:40mm OD x 1.6mm thickness



2. Oval tube style cattle panel



 Hot-dipped galvanized cattle panels

 Height x Length :1.8x2.1m

Vertical pipe:40x40mm RHS x 1.6mm thickness

Horizontal pipe:30x60mm oval rail x 1.6mm thickness



You can refer to the specifications above,we can also change it as your requirements.



If possible,welcome to Chiha to visit our factory!













Hebei Ocean Wire Mesh Co., Ltd.
//www.heb-wiremesh.en.alibaba.com
Add:No.1,Qingshui Street,Qiaoxi District,Shijiazhuang,Hebei,China
