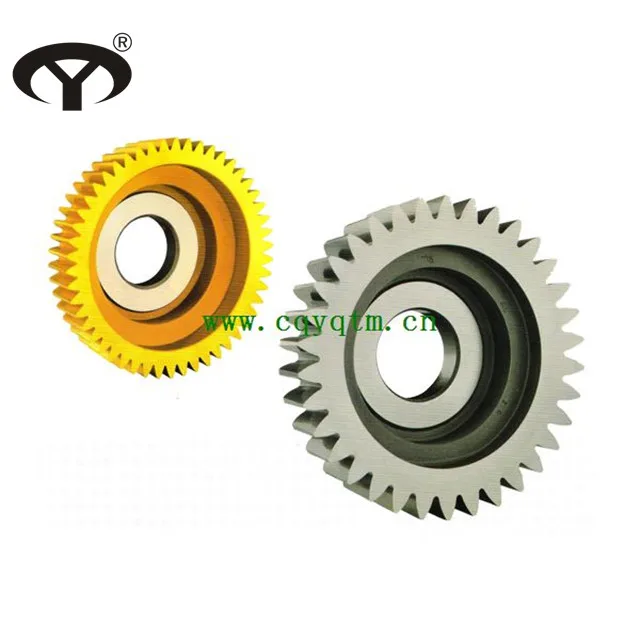

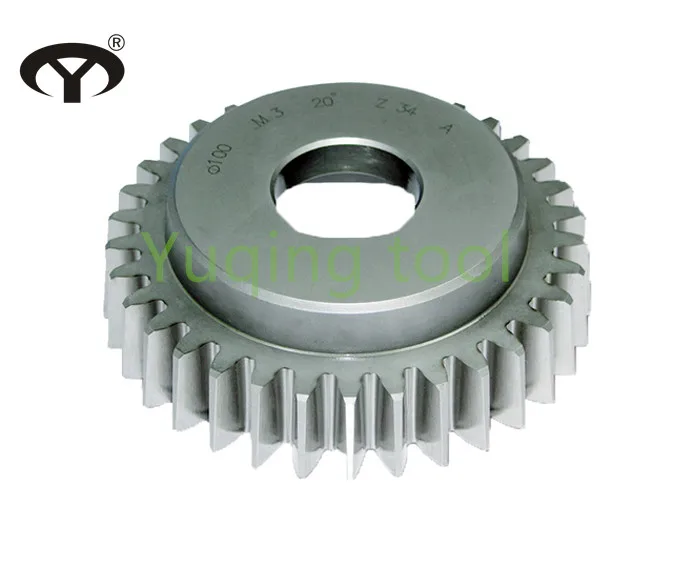

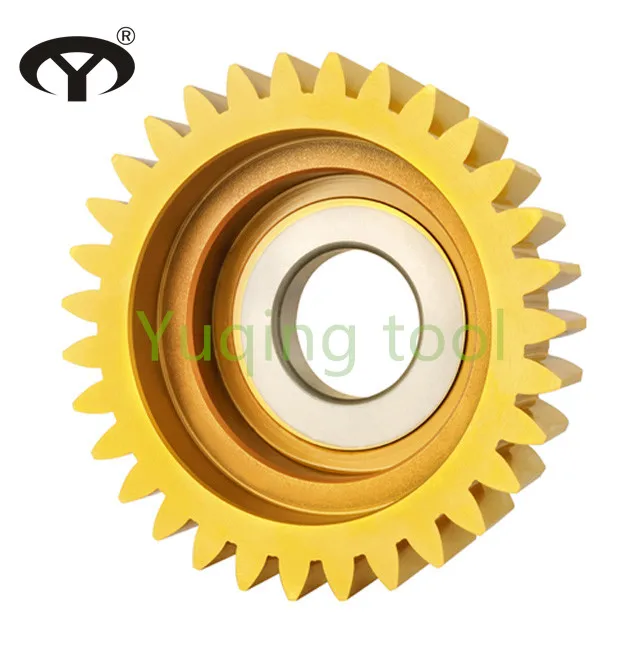

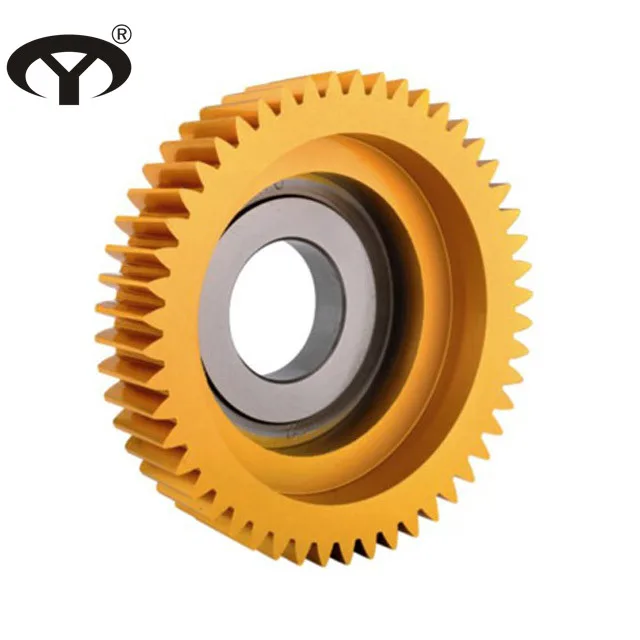

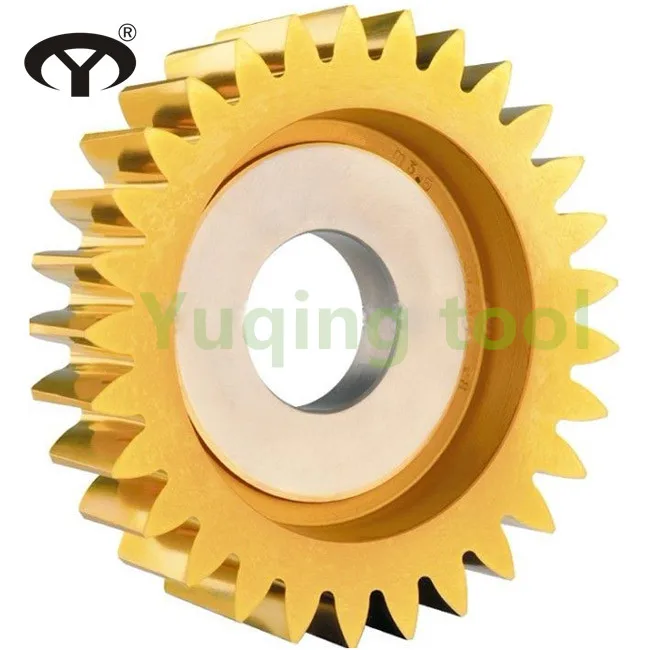

HSS df75/df100mm M2 Bowl Type Gear Shaper Cutter with AP coating

Product Overview

Description

HSS df75/100mm Bowl Type Gear Shaper Cutter with AP coating



1. Nominal pitch circle dia.:75mm ClassAA,ClassA ,ClassB

Module	No. of teeth	Outside dia.	Dia.
1	76	78.72	31.743
1.25	60	78.38
1.5	50	79.04
1.75	43	79.99
2	38	81.40
2.25	34	82.56
2.5	30	81.76
2.75	28	84.42
3	25	83.10
3.25	24	86.78
3.5	22	86.44
3.75	20	85.14
4	19	86.80



2. Nominal pitch circle dia.:50mm ClassA , ClassB

Module	No. of teeth	Outside dia.	Hole dia.
1	50	52.72	20
1.25	40	53.38
1.5	34	55.04
1.75	29	55.49
2	25	55.40
2.25	22	55.56
2.5	20	56.76
2.75	18	56.92
3	17	59.10
3.25	15	57.53
3.5	14	58.44



3.Nominal pitch circle dia.:100mm ClassAA , ClassA ,ClassB

Module	No. of teeth	Outside dia.	Dia.
1	100	102.62	31.743(or 44.443)
1.25	80	103.94
1.5	68	107.14
1.75	58	107.62
2	50	107.00
2.25	45	109.09
2.5	40	108.36
2.75	36	107.86
3	34	111.54
3.25	31	110.71
3.5	29	112.08
3.75	27	112.35
4	25	111.46
4.5	22	111.78
5	20	113.90
5.5	19	119.68
6	18	124.56



4. Nominal pitch circle dia.:125mm ClassAA, ClassA, ClassB

Module	No. of teeth	Outside dia.	Hole dia.
4	31	136.80	31.743(or 44.443)
4.5	28	140.14
5	25	140.20
5.5	23	143.00
6	21	143.52
6.5	19	141.96
7	18	145.74
8	16	149.92

















Gear shaving cutter/Gear shaper cutter series :  Disk type gear shaving cutter, radial gear shaving cutter, fine pitch gear shaving cutter, disk type gear shaper cutter, bowl type gear shaper cutter, fine pitch bowl type gear shaper cutter, taper shank gear shaper cutter and helical teeth gear shaper cutter.





Material introduction :



A. W6Mo5Cr4V2 (GB), M2( ASTM), S6-5-2(DIN), SKH51(JIS)
   chemical composition: C 0.85, Si 0.38, Mn 0.35, P≤0.030, S≤0.030,  Cr 4.10, W 6.00, Mo 4.80 V 1.85
   main application: It is widely used for making all kinds of cutters and durability cold-work die



B. W6Mo5Cr4V2Co5 (GB), M35( ASTM), S6-5-2-5(DIN), SKH55(JIS)
   chemical composition: C 0.93, Si 0.38, Mn 0.35, P≤0.030, S≤0.030, Cr 4.10, W 6.30, Mo 4.80 V 1.85, Co 5.00
   main application: It is often used for making blades with high-speed and great cutting difficulty as it’s good abrasive resistance



W6Mo5Cr4V2(M2),W9Mo3Cr4V(W9),W18Cr4V(W18),W6Mo5Cr4V2Al(M2Al),W6Mo5Cr4V2Co5(M35),W2Mo9Cr4VCo8(M42),W4Mo3Cr4VSi(4341),W4Mo2Cr4VSi(4241)
