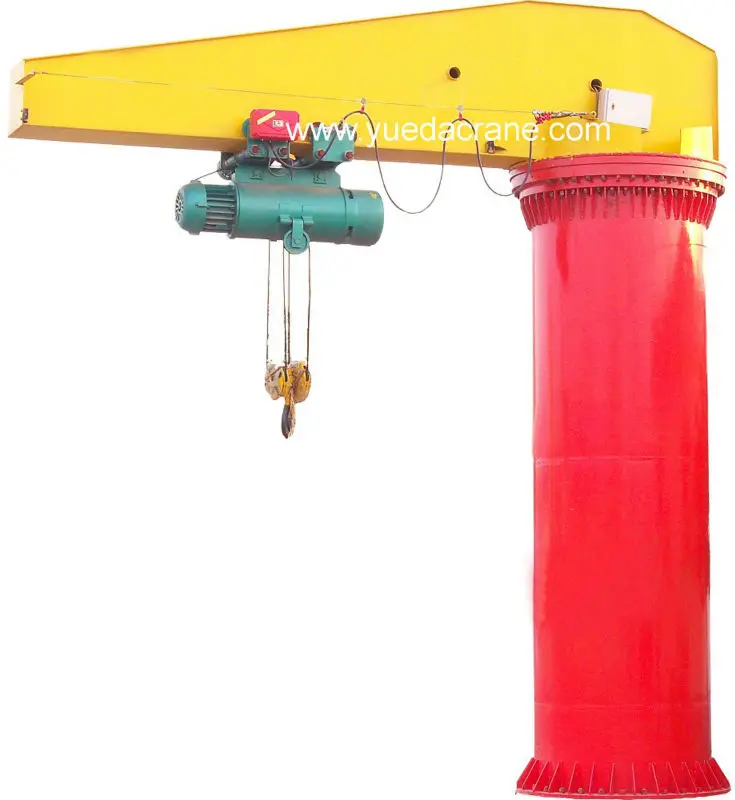

Column Mounted Heavy Duty Pillar Crane 6t 8t 10t 15t jib crane

Product Overview

Description

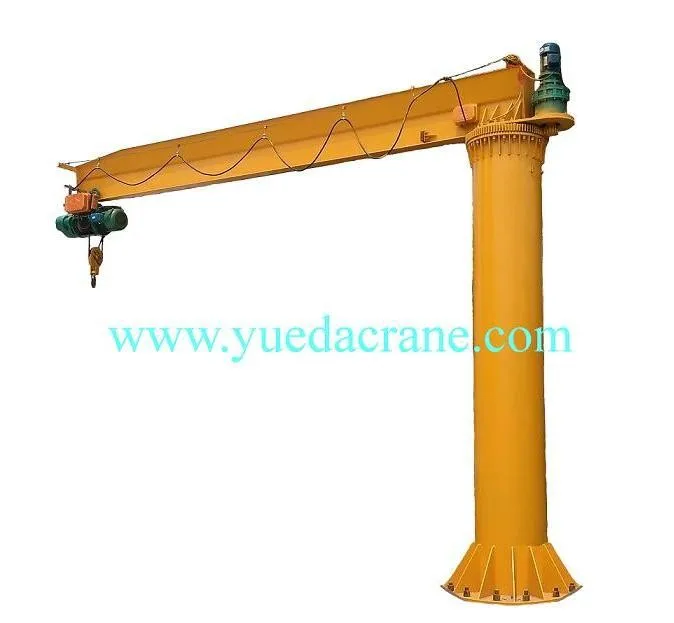

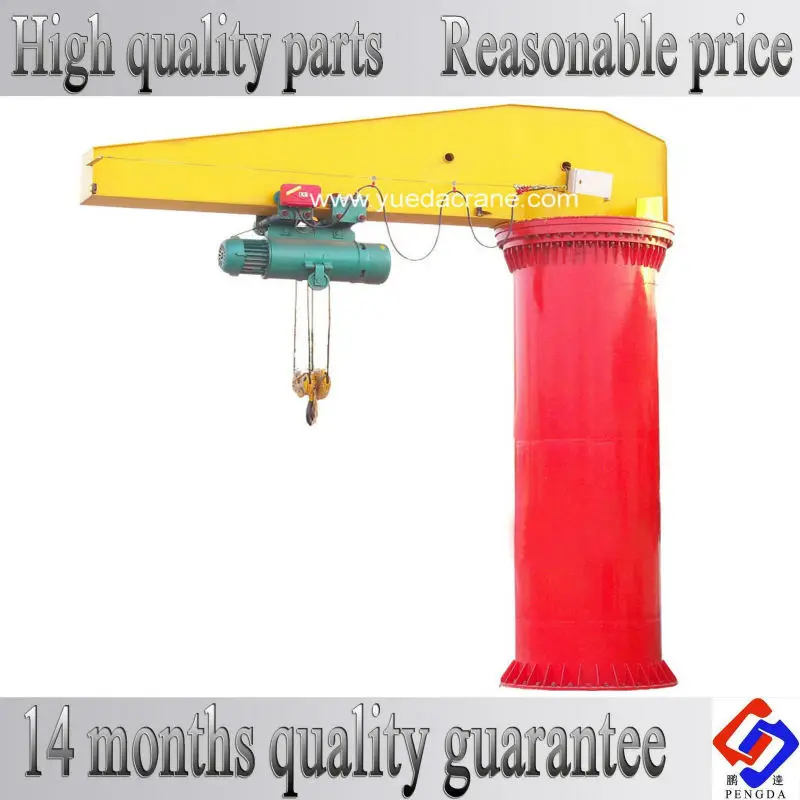

Floor Mounted Jib Crane Heavy Duty Pillar Crane:



BZD model heavy duty pillar crane is recently developed mid-light lifting equipment, its unique mechanism, reliable safety is featured high performance, energy and time saving, flexible characters. It could be operated in 3-D space, esp short distance, densely lifting situations to show its advantages compared with common lifting equipment, widely used in workshop, warehouse, yard and other fixed situations.



Environment conditions:
1.power source of crane is 3-phase, 50HZ, 380v or other standards.
2.installation site height above sea level of crane is less than 1000m
3.No explosive and corrosive gas in working environment
4.crane is prohibited to lift smelting metal, poisonous material and flammable explosive materials.

Order notice:
Before place the order ,customer must give the detailed parameters (rated capacity, lifting height, valid radius), for our reference to provide you products best suited to your working conditions.



The capacity: 1t, 2t, 3t, 5t, 8t, 10t.

Max. Turning range: 2m ~ 12m.

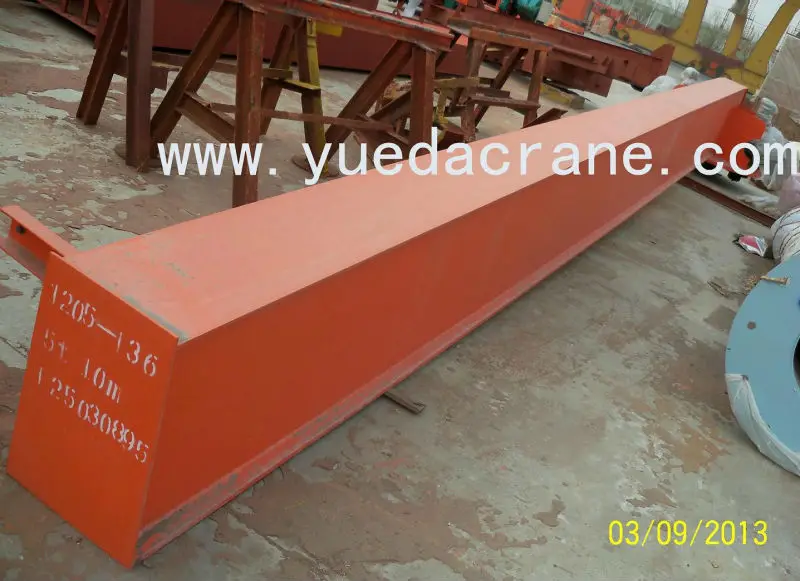

The suport arm of jib crane, it is made by Q235 steel:

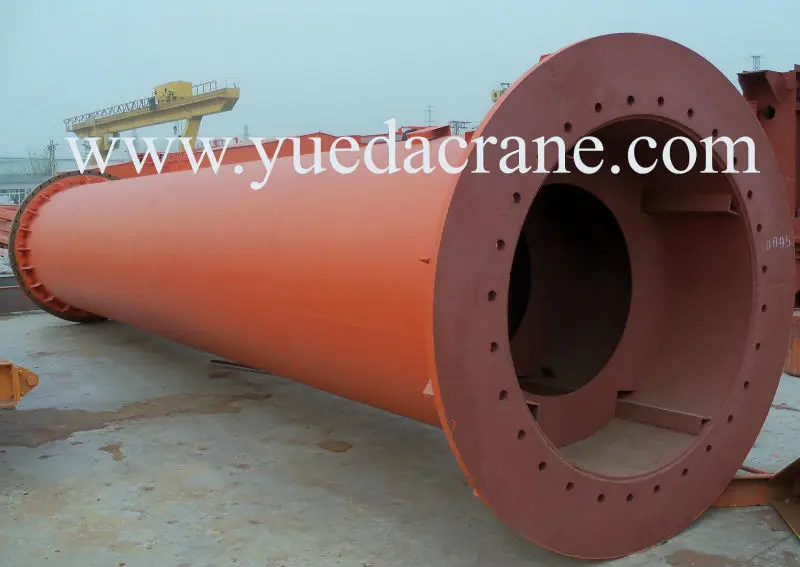

The support pillar of jib crane:

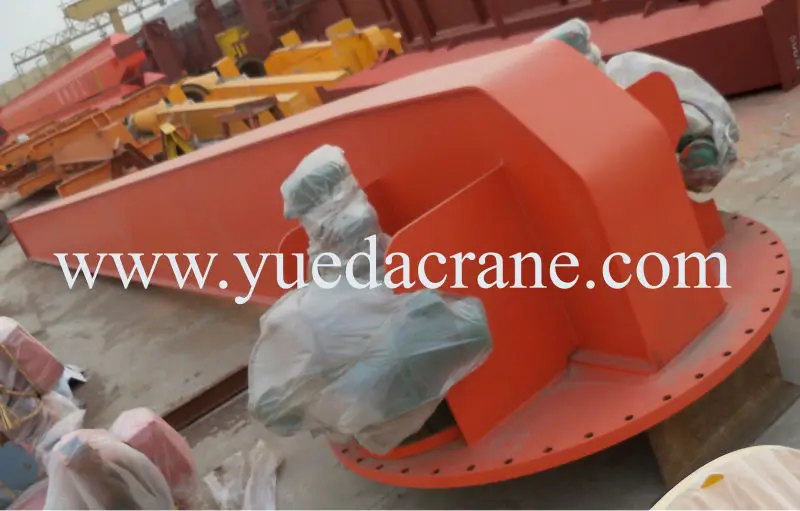

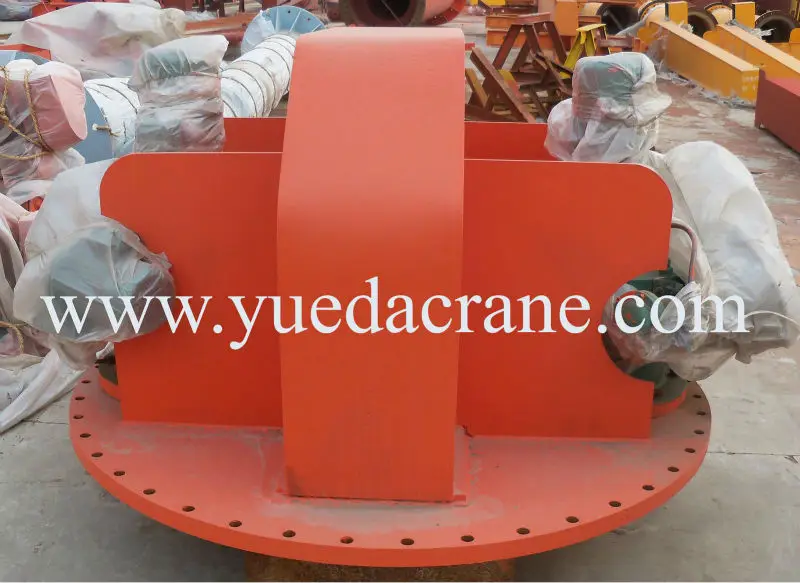

The turning unit of jib crane:

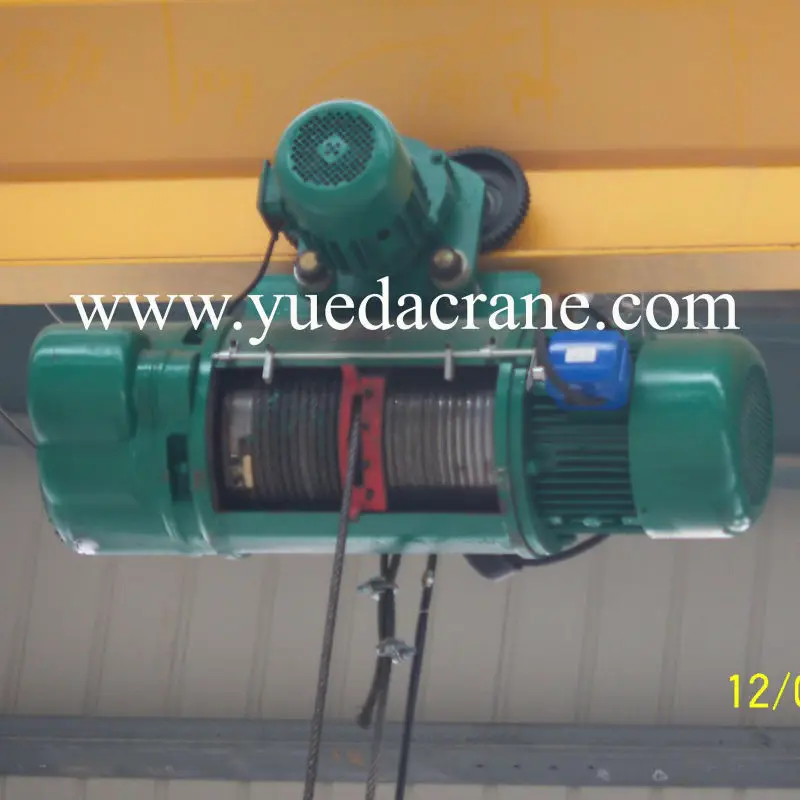

The lifting unit of jib crane(Wire rope electric hoist):

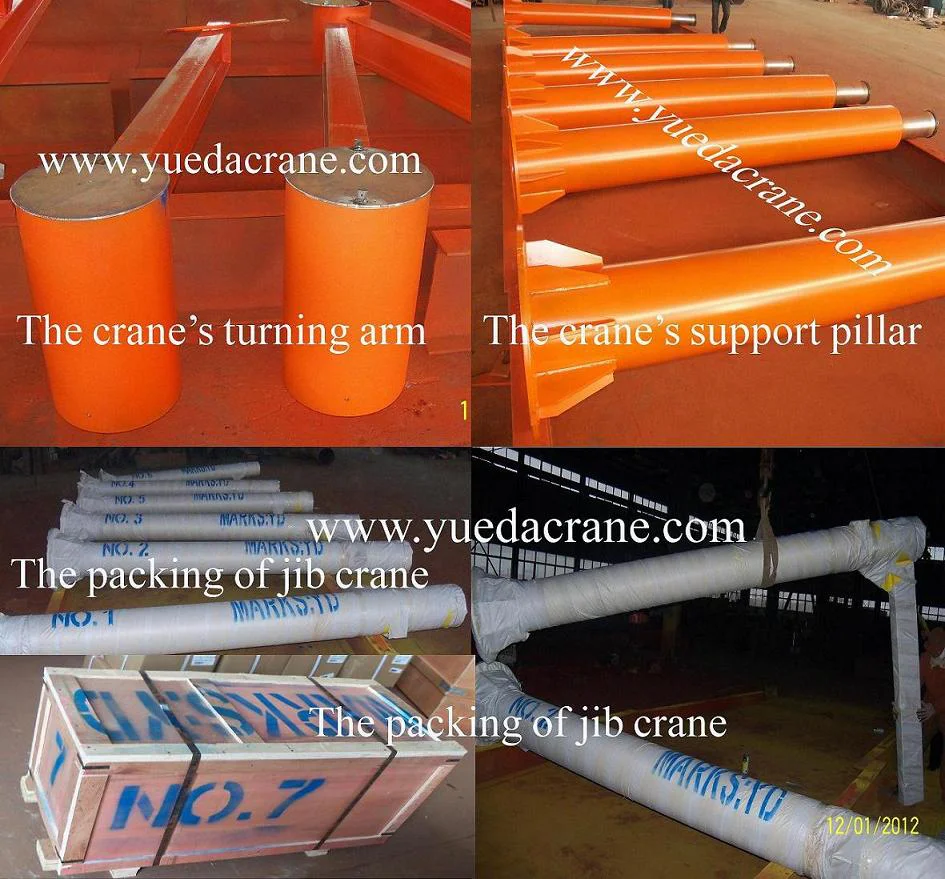

 The packing, loading and shipment of jib crane:
