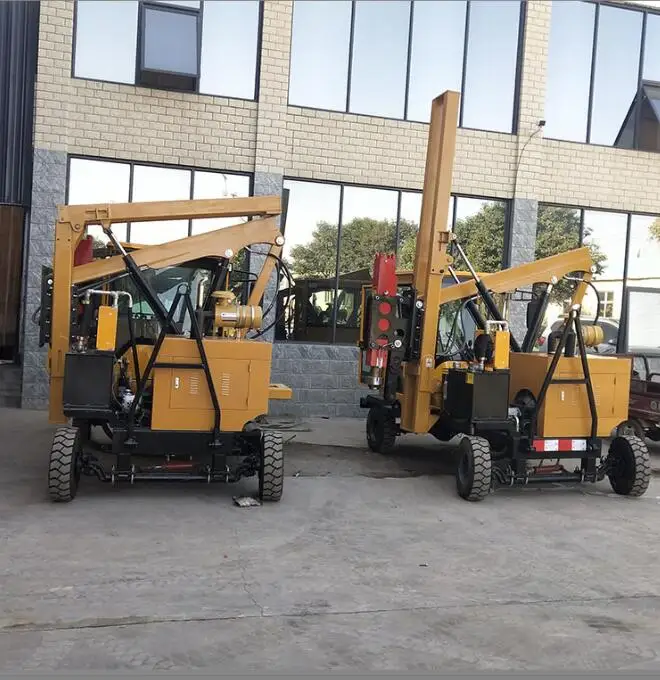

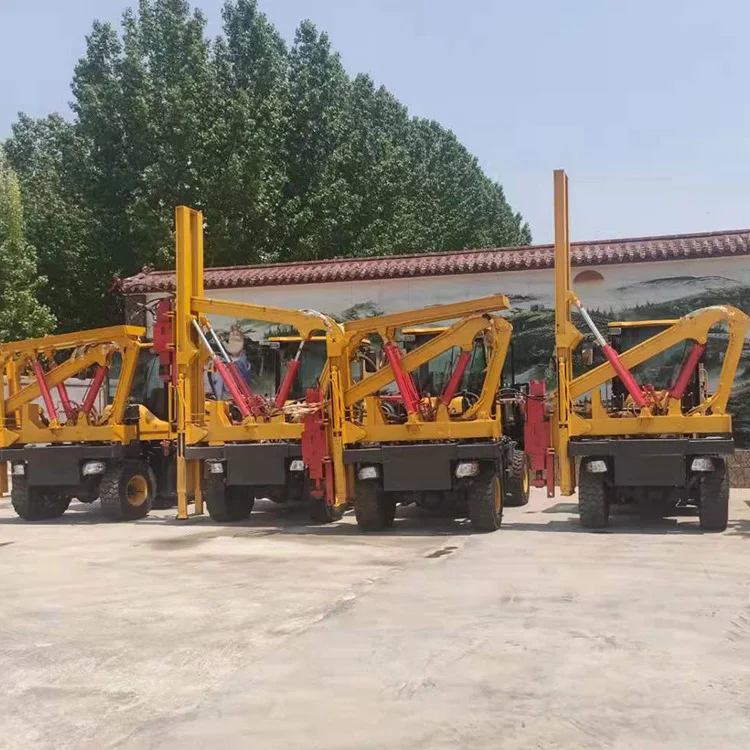

XDEM YD230 Highway Guardrail Post Hammer Diesel Hydraulic Road Fence Post Pile Driver for Sale

Product Overview

Description

XDEM YD230 Highway Guardrail Post Hammer Diesel Hydraulic Road Fence Post Pile Driver for Sale

1. Features



1 Pile Driver is composed of the chassis, guide rail, hydraulic system, hydraulic hammer, diesel engine, electrical, cooling and control system, pile extracting equipment and pile drilling equipment. Its characteristics include quick and exact positioning, compact size, lightweight, self-propelled, agile, ergonomic design, easy operation, high efficiency and a low price.

2 The tow bar is connected with the chassis. In using a tow truck or trailer to tow the machine to the work site, first it is needed to lay down the tow bar and disengage the clutch. The up and down, longitudinal and transverse shift, horizontal slide of the guide rail are controlled through hydraulic system.

3 It has a very famous Changchai brand diesel engine with electric starting equipped, has stable performance, simple operation and maintenance and a very long service life.

4 The control system is equipped with multidirectional control valves and centralized hydraulic control rods which make the operation simple and convenient.

5 It can install piles up to 3m (9.84’) in length, but on request the machine can be supplied with extension guide rail which can install piles up to 3.5m (11.48’) or even 4m (13.12’) long.

6 The pile drilling motor is hydraulically operated and the drill is pneumatically operated with an air compressor. The drilling equipment comprises of a hydraulic motor, connecting device, connecting rod, pneumatic percussion hammer and a drill bit.

7 The pile driving equipment operates hydraulically under variable horsepower engines and drills which can be accessorized for job specific functions in boring multi-diameter holes into earth, sand, gravel or other soft media as can be found in agricultural or rural environments. This equipment can be used for photovoltaic (PV), solar cell and panel installations. Deep tread patterned tires allow for maximum traction in all terrains.

8 As the pile driving, extracting and drilling equipment all share one chassis, it is the most economical investment for getting all three functions. You can install any accessory onto the chassis according to your working need.



2. Advantages:



1  Systems are simple; while individual units are robust, repairs to nearly any component can be made by any mechanic.

2  Parts for repairs are readily available.

3  Interchangeablity of parts is supported by all models.

4  Similarities to other machines currently in use by customers ensure that further training in the usage of these tools is unnecessary.

 5 Supplying power and fuel to these system is very feasible at construction sites.



3. Main Parameter:



Model	YD230
Engine power	17.2(24HP,Changchai)
Dimensions LXWXH	2600×2150×3800
Total Weight	2500kg
Working Pressure	16Mpa
Work Flow	45-65ml/r
Number of impact	350-780 time/min
Tread	1600mm
Wheelbase	1750mm
Pile hammer working height	700-2900MM
