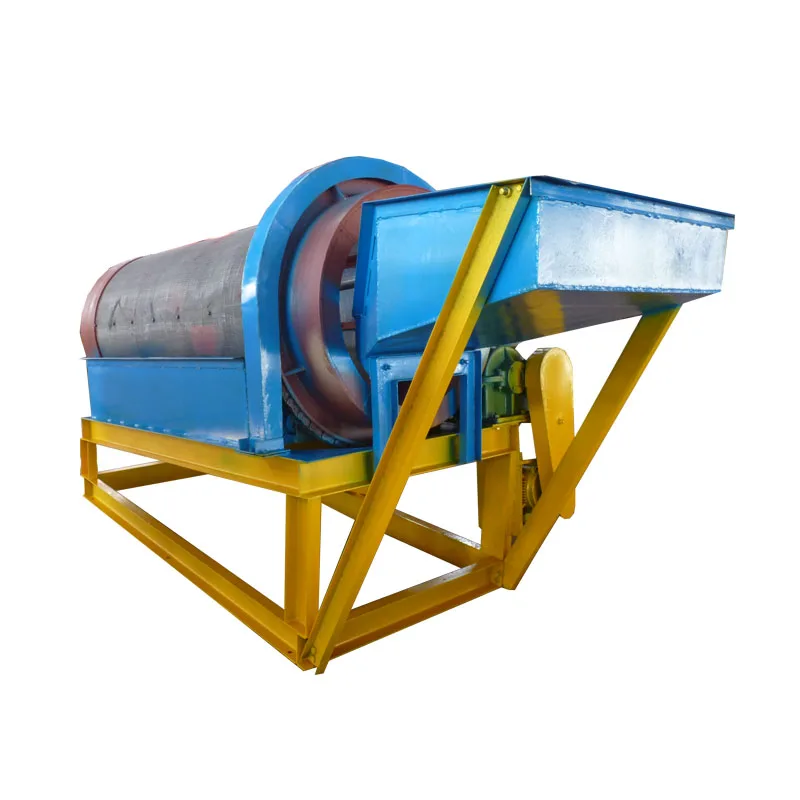

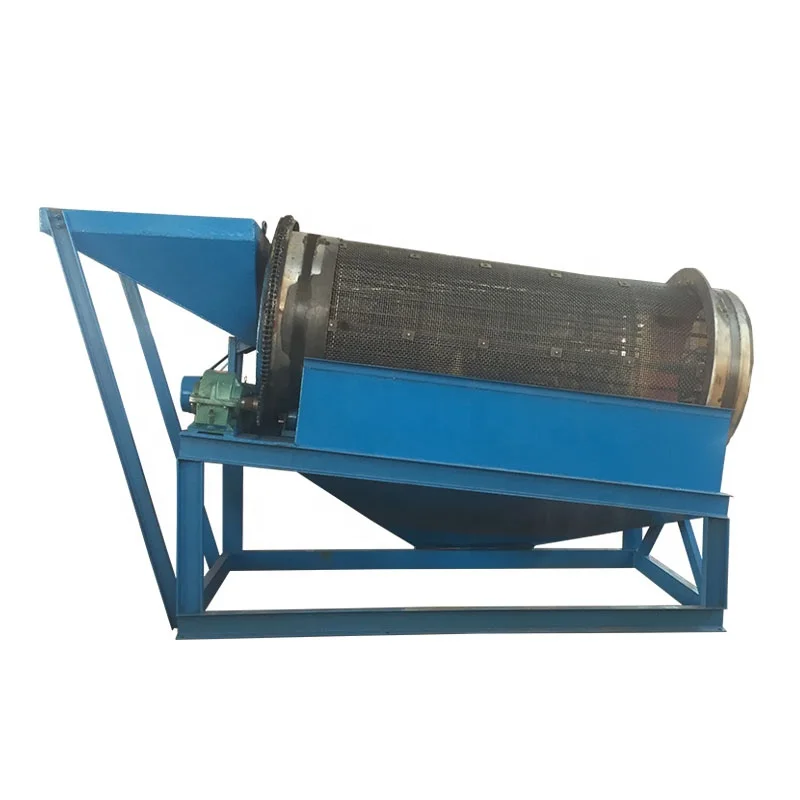

Gold Washing Machine Soil Trommel Plans, Gold Trommel Plans

Product Overview

Description



1.Description of Soil trommel plans

The method of screening helps to reduce operating and investment cost and to increase product quality, while allowing rapid and large volume processing.

Gravel trommel screen  is constructed of high quality material, designed for high performance, high production rates, lower operating costs and lower maintenance

This material out from gravel trommel screen  is then passed on to the downstream process equipment which can be in various forms such as centrifugal Concentrator, spirals, jigs etc.

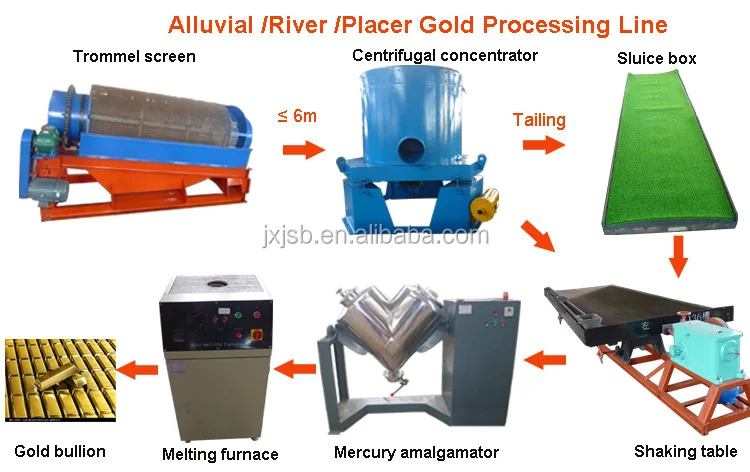

2.Processing line

The trommel screen is usually used at the primary separation period of placer gold mining so as to washing and screening the gold ore.

The upper sizes are always reckoned as barren materials. The bottom sizes including gold are usually processed by centrifugal concentrator or gold sluice box to upgrade the gold ore.

The concentrates of centrifugal concentrator could be processed by shaking table which is used to separate the gold from other minerals.

3. Features of Soil trommel plans

• Configured for economical & efficient classification, Screening and grading
• Heavy duty trommel drum with lifters at the front to facilitate material break up
• Screen replaceable for different mesh sizes
• Multiple screen size
• Easily changed screen plates
• Largest processing capacity in the industry
• Unique screen design, result in higher capacities, longer screen life and no material clogging
• Heavy duty feed hopper and extension
• Discharge chute
• Gear drive mechanism
• Variable speed drive mechanism



4. Structure of Soil trommel plans

Trommel screen is consist of round trommel, rack, discharging, speed reducer, motor, water flusher etc 6 parts.

Crushed ore feed into trommel, with the help of rotating centrifuge power and jigging to classify materials. And classify from different screen mesh.

Different size materials will convey to finished materials after funnel. big size materials will flow front along the trommel inclination, then screen out from different mesh.

Small size will be discharged its own hopper and carry out by hand.

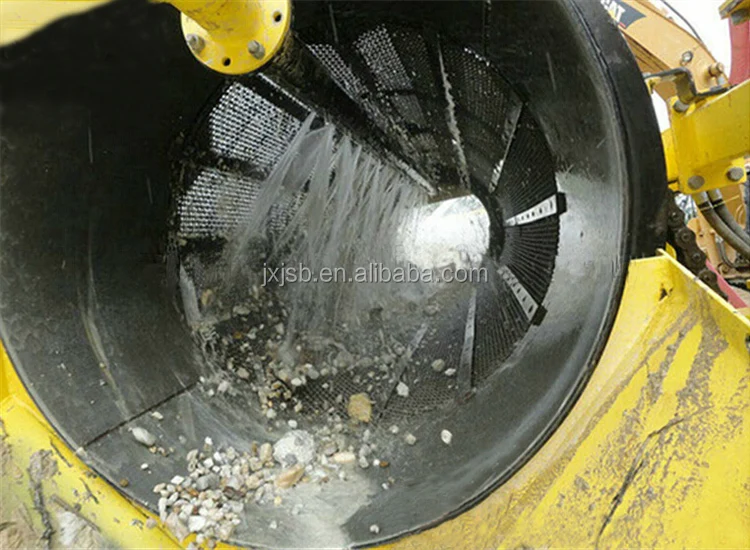

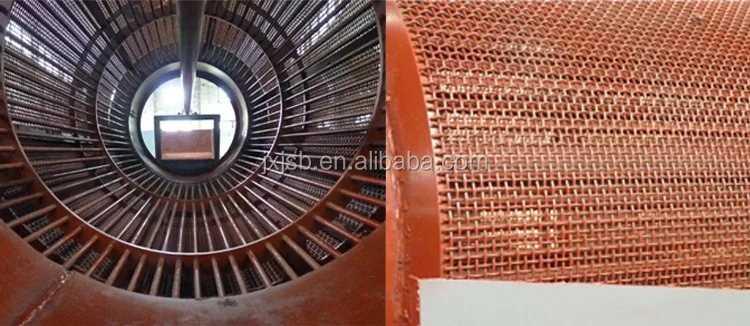

5.Sieve of Soil trommel plans





6. Working principle of Soil trommel plans

GT Series of gravel trommel screen utilize Mechanical method, compose a screen surface by sieve bar form into pore.

Classify by its weight 3 joint shaft inside trommel is higher than surface, to push up big size material so as to increase classify rate.

And the inclination will help it advance, enter crusher finally. Size smaller pore will down through the pore and acquire the final product.







7. Specification of Soil trommel plans



Model	Capacity  (t/h)	Power  (kw)	Drum dia.  (mm)	Drum Length  (mm)	Screen size  (mm)	Dimension  (mm)	Weight  (kg)
GT1015	50	4	1000	1500	<3-10	3000*1400*2145	2200
GT1020	100	5.5	1000	2000		3460*1400*2145	2800
GT1225	160	7.5	1200	2500		4146*1600*2680	4200
GT1530	250	11	1500	3000		4460*1900*2820	5100
GT1545	350	15	1500	4500		5960*1900*3080	6000
GT1848	450	22	1800	4800		6500*2300*4000	7500
GT2055	600	30	2000	5500		7500*2500*4000	8600





8.Types of Soil trommel plans

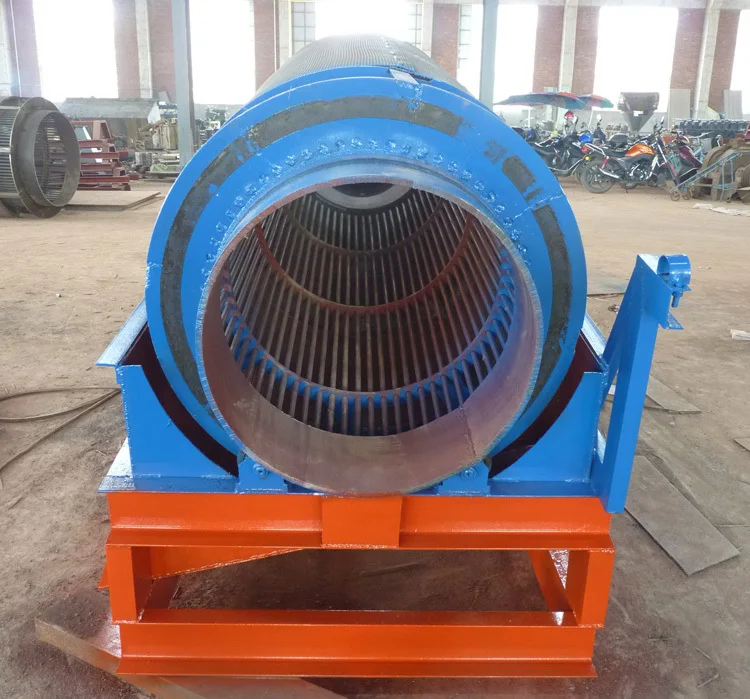

1) Stationary gravel trommel screen:

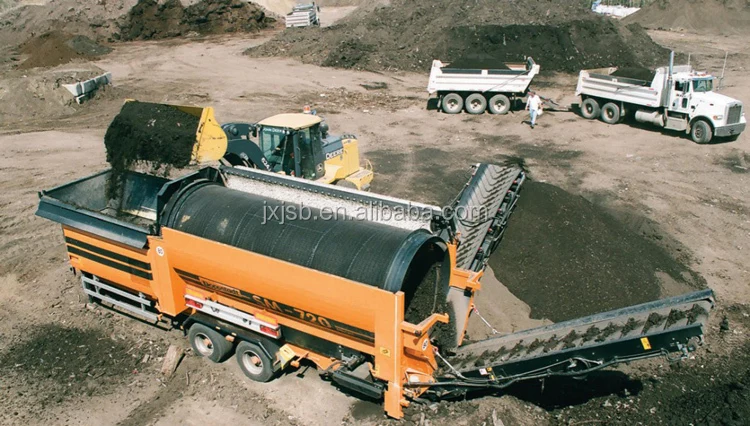

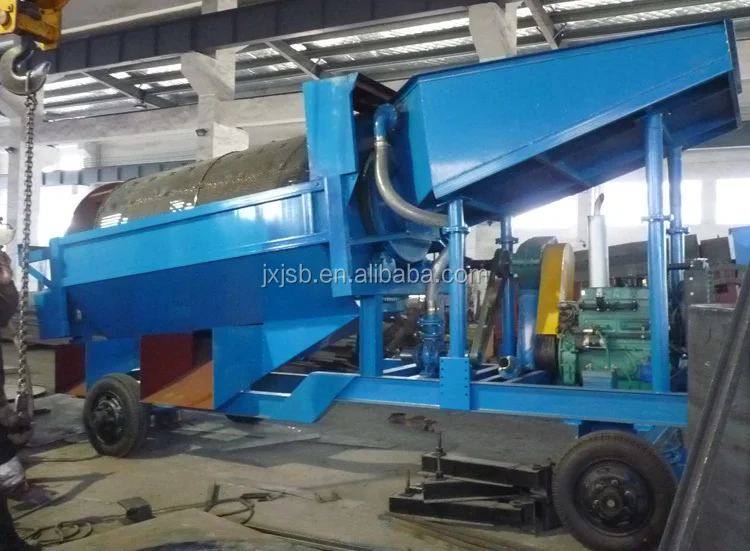

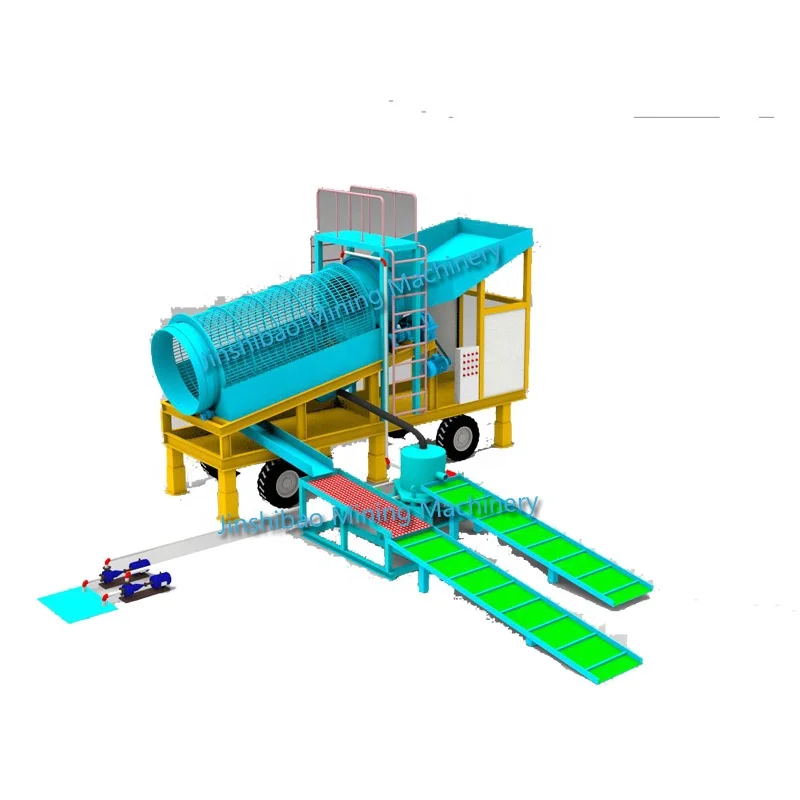

2) Mobile trommel screen:





9.Application of Soil trommel plans
