China Manufacturer circulation tank and Frac Tank for sale
US $5000-$50000
shale shaker oilfield equipment in Machinery
- Category: Oilfield Shale Shaker >>>
- Supplier: Anping Shengjia Hardware Mesh Co. Ltd. [Hebei China]Anping
Share on (1931398243):
Product Overview
Description

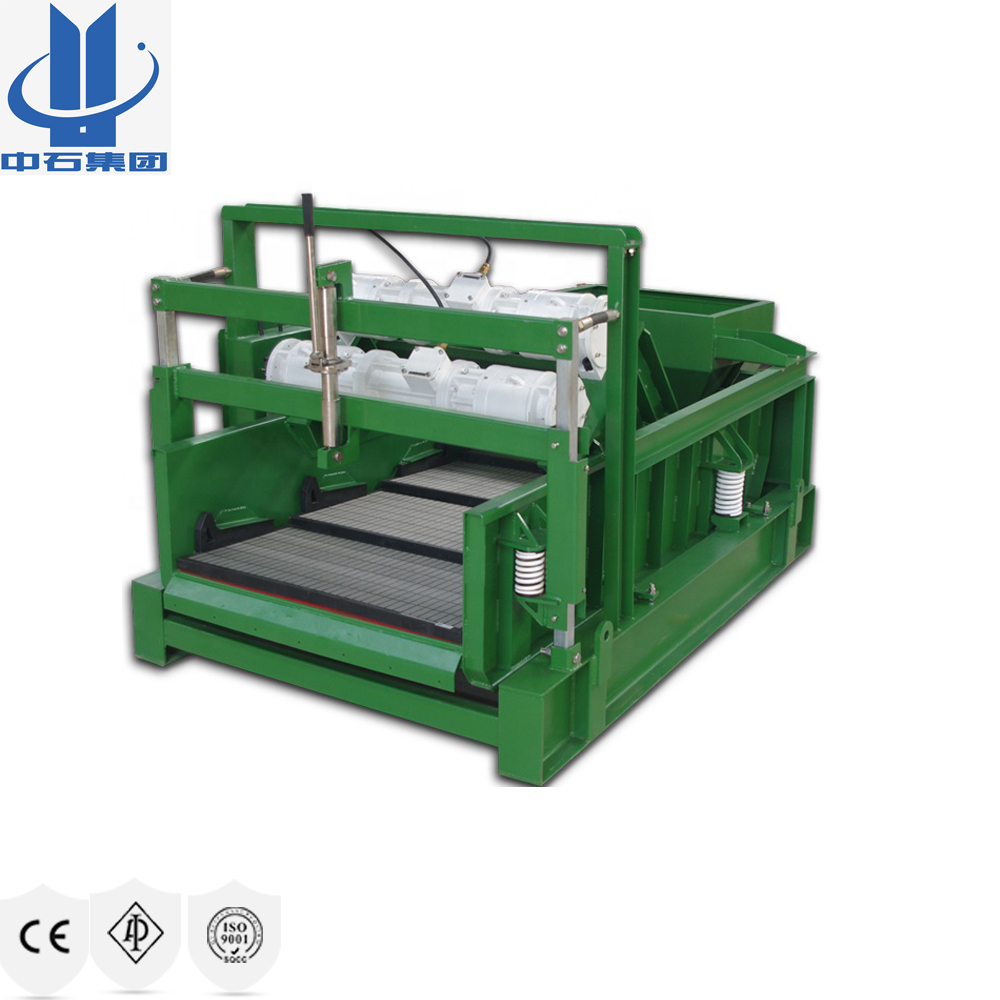

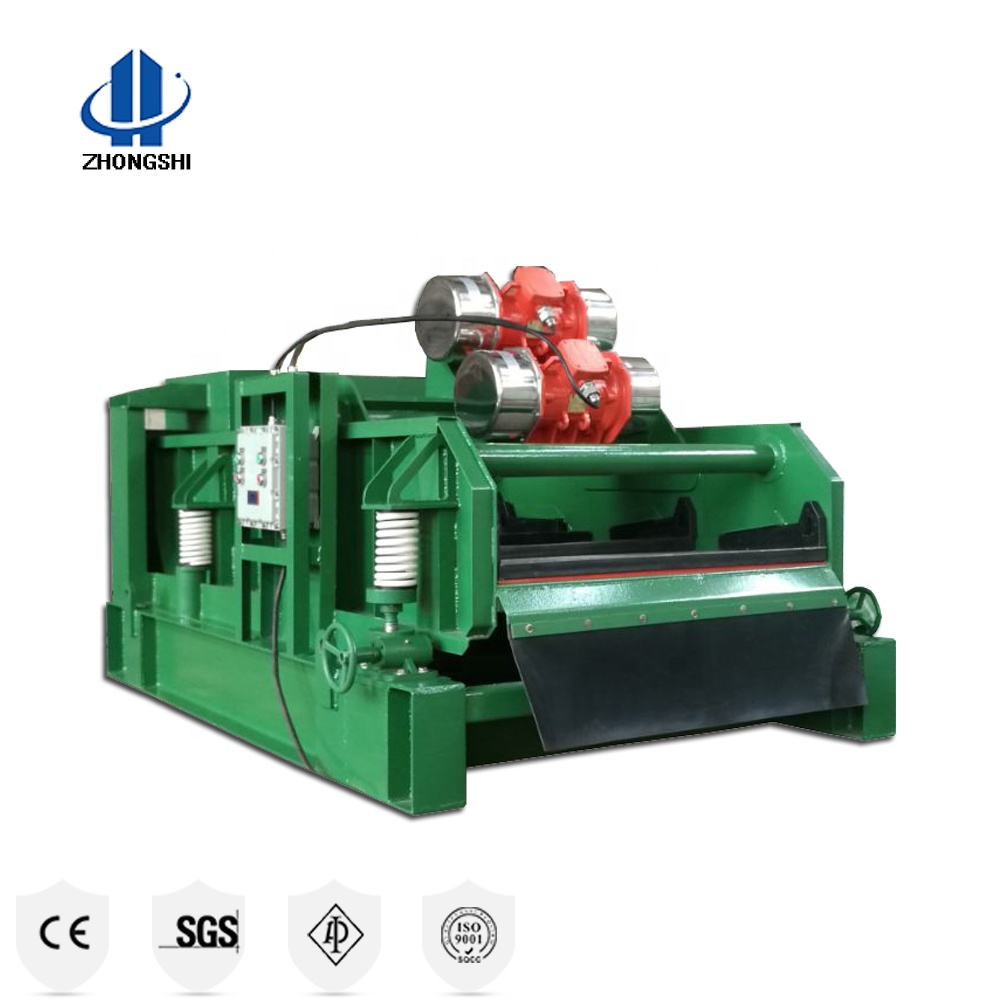

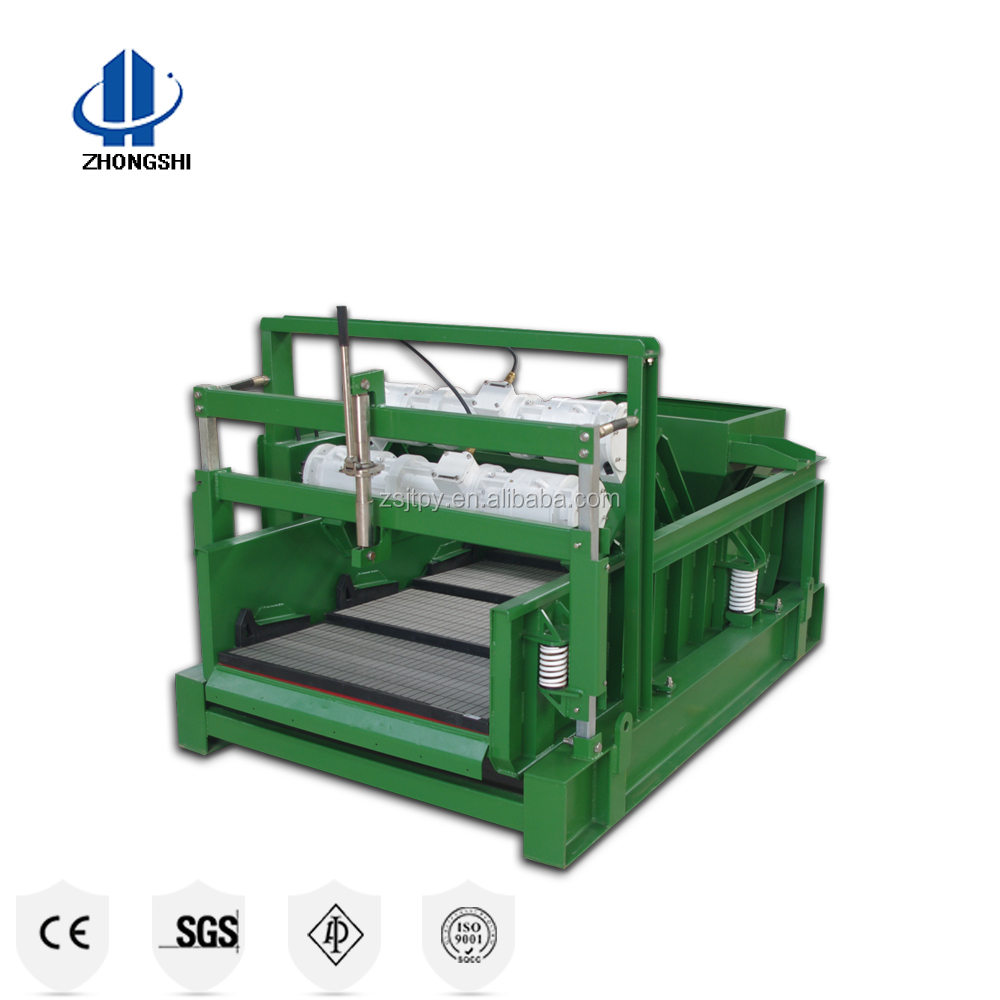

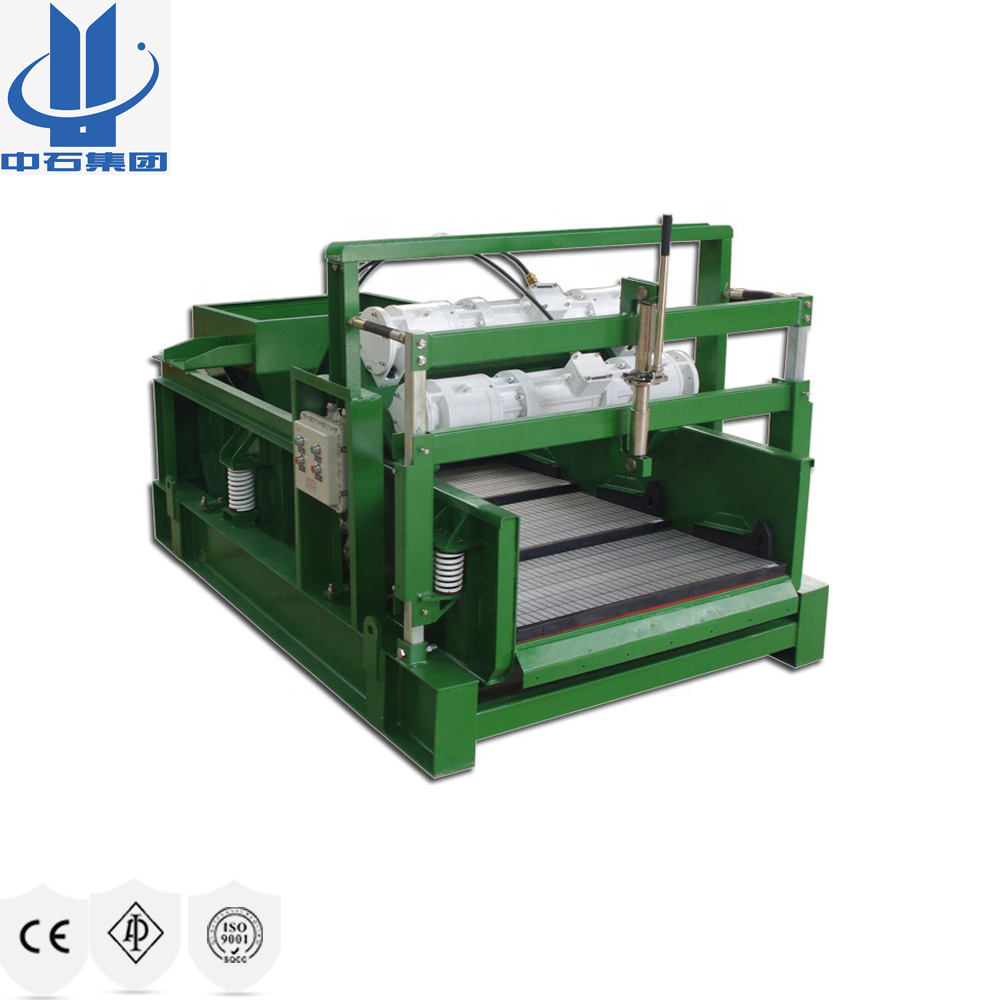

shale shaker
1. All material is high quality national standard carbon steel . Initially assured products quality
2. Stress reliving on shaker basket and other main parts. Getting longer service life
3. Sand blasting before painting the high anti-corrosive marine paint. Better appearance and better quality
4. Adopted famous vibration motors(Martin, Oli, or Ita-Vibras).High vibrating strength better filtration effect
5. Compact structure small foot print. Easy to handle and installation. Convenient to operate
6. A few spare parts. Easy to maintain and lower running cost
7. Competitive price with high cost-efficient
Shale shaker Parameter
Model | Hunter-D3 | Hunter-D4 | Hunter-D3B |
Vibration Track | Linear | Linear | BEM |
Motor Power | 1.72KWx2 | 1.94KWx2 | |
Vibrating Strength | >6 G | >6.5 G | |
Double Amplitude | 5~6mm | ||
Treating Capacity | 120m3/h 528GPM | 140m³/h 615GPM | 140m³/h 615GPM |
Deck Angle | -1~5° | ||
Power System | 380V/50HZ, 460V/60HZ | ||
Shaker Screen | 720×1050×3 | 720×1050×4 | 720×1050×3 |
Decibels | <85db | ||
Weight | 1600KG | 1800KG | 1950KG |
Dimension | 2800X1600X1500 | 3500X1600X1500 | 2800X1600X1500 |
Remark | Dual tandem or triple tandem shakers available | ||
