Product Overview
Description
Crawler excavator XN75-9
1. Machine photos
![4(]CLFO((V[}562DNT0FQ0M.jpg](http://g04.s.alicdn.com/kf/HT1MbnTFHBXXXagOFbX8/201561213/HT1MbnTFHBXXXagOFbX8.jpg)
2. Specification:
Engine |
| |||
Model | YANMAR | |||
No. of cylinders / type | Vertical,Water-cooled,4 Stroke, In line,direct injection | |||
Bore and stroke | 94x110 mm | |||
Displacement | 3.054L | |||
Rated power | 60KW | |||
Max. torque | 218N.m/r/min | |||
Fuel consumption | <235g/kwh / 173g/Ps-h | |||
Travel system |
| |||
Travel motor | Type | Variable axial piston motor,South Korea--JEIL(JMV44/22) | ||
| Low speed | 2.9 km/h | ||
| High Speed | 3.2km/h | ||
No. of track shoes | 2x43 | |||
Travel speed | 2.9/4.2(Km/h) | |||
Grade ability | 30° | |||
Ground clearance | 260mm | |||
Hydraulic system |
| |||
Hydraulic pump | South Korea--Doosan(T5VP2D28) | |||
Type | South Korea--Doosan piston Pump | |||
Max. pressure | 24.5Mpa (250kgf/cm2) | |||
Max. input torque | 137.3Nm (14kgf m) | |||
Main valves | South Korea--JEIL (6MCV651134) | |||
Work pressure | 25Mpa | |||
Swing system |
| |||
Swing motor type | Swash plate-piston motor,South Korea--JEIL(JMF29-02) | |||
Refilling capacity & lubrications |
| |||
Fuel tank | 115L | |||
Cooling system | 10L | |||
Engine oil | 9L | |||
Travel reduction gear box | 2x5.4L | |||
Swing reduction gear box | 4L | |||
Volume of Hydraulic tank/ system | 120L/420L | |||
Bucket |
| |||
Mode | backhoe bucket | |||
Capacity | 0.25-0.3 m³ | |||
No. of teeth | 6 | |||
Width of bucket | 651mm | |||
Arm length | 3250 mm | |||
Boom Length | 2000mm | |||
Bucket digging force | 42KN | |||
Arm digging force | 33KN | |||
Operating weight ,ground pressure |
| |||
Shoe width | 420mm | |||
Tensioning control type | Grease | |||
Ground pressure | 0.37Kgf/cm2 | |||
Operating weight | 7500Kg | |||
Dimension and working range |
| |||
Overall Dimension | 6400x2090x2690 mm | |||
Dozer Blade | Length&width | 2030x390 mm | ||
Working Range | Boom Length | 3330 mm | ||
| Bucket Arm Length | 2000 mm | ||
| Max.digging range | 6270 mm | ||
| Max.digging depth | 3880 mm | ||
| Max.digging height | 6400 mm | ||
| Max.loading height | 4450 mm | ||

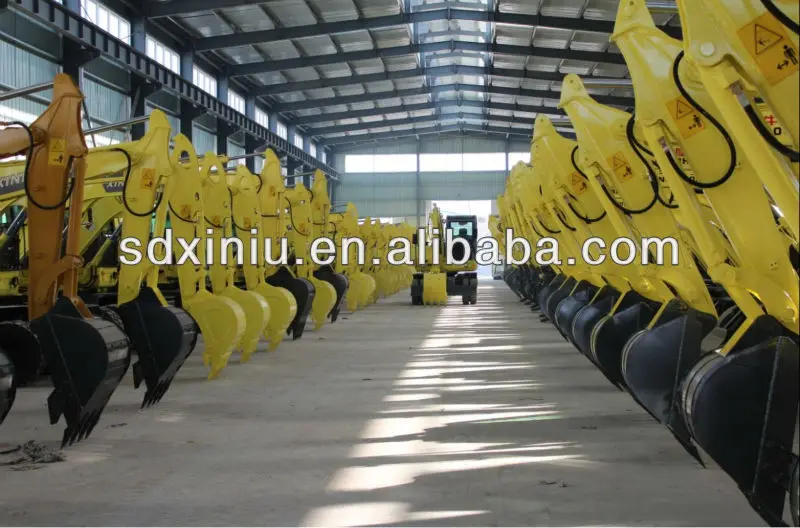

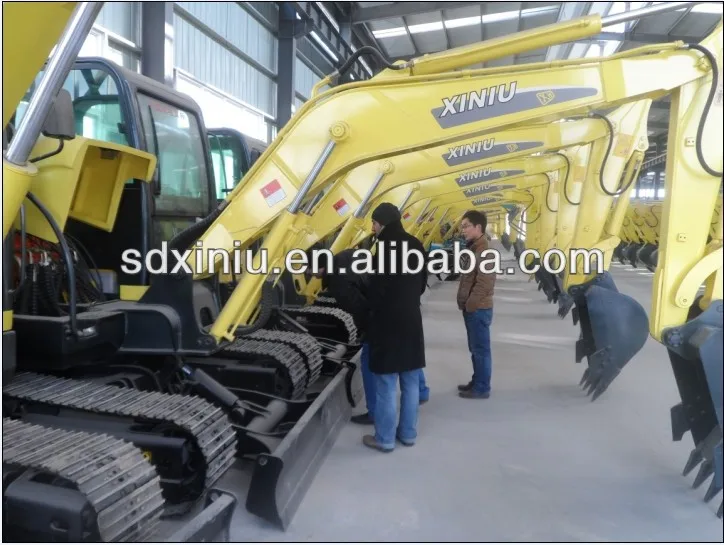

3. Stocks:
4. Certificate:
5. Products range:
We are manufacture, we produce the products are below:
Backhoe loader: 6t 7t 7.6t
Wheel excavator: 5t 6t 7.1t 10t 12t 15t 21t
Crawler excavator: 1.8t 4.5t 6t 7.5t 9t 13t 15t 21t 24t 27t 30t 33t
Wheel-Crawler excavator: 8t
Concrete pump: tower type, truck type
Concrete pump truck: 22m 25m 28m 37m
Produce the excavator spare parts: track shoe, track chain, bushing, pin, bucket, 4-1 bucket, narrow bucket, tilt buket, quick hitch, Axle, cabin, boom, arm
Andy lau
SHANDONG RHINOCEROS ENGINEERING MACHINERY CO.,LTD
