self bonding polyurethane heat bond 155 class enameled copper litz wire
- Category: >>>
- Supplier: Dongguan Huaye Cables Technology Co. Ltd.
Share on (1931666287):
Product Overview
Description
UL RoHS solderable self bonding polyurethane heat bond 155 class copper litz wire and price,enameled copper wire price
Product Description
What is details of Self bonding enameled copper wire price?
Brand name | HUAYE | Specification Met | MW 131 C |
Material type | copper wire | Finish | enamel |
Bare copper dia. | 0.10mm | Insulation | Solderable polyurethane |
Thermal class | 155 Degrees celsius | Shape | Round |
Bond method | hot air,resistance | Color | natural or according to requirements |
Spool | PT-15,PT-10.PT-4,PL-2,PC-1 | Certification | UL,SGS,REACH,ROHS |
What is the engineering data of copper enamelled wire?
| Test Certificate for Enamelled Wire | ||||||
| Product Name:P155 Self-bonding hot melting wire | ||||||
| Product Type:2LOCKCS0.10(N) | Bare Copper Diameter Nom.Φ: 0.10mm | |||||
| Enamel Type:mod.Polyurethane/P155 | Thermal class :F(155°C) | |||||
| Item | Tolerance | Test Values | ||||
| Unit | Min | Max | Min | x | Max | |
| Bare Dia. | mm | 0.098 | 0.102 | 0.099 | 0.1 | 0.101 |
| Thickness of Insulation | mm | 0.005 | 0.012 | 0.006 | 0.007 | 0.007 |
| Overall diameter | mm | 0.117 | 0.123 | 0.119 | 0.12 | 0.121 |
| Surface apperance | ok | ok | ||||
| Elongation | % | 19 | 23 | 24.5 | 26 | |
| Tens. Strength | N/mm² | 25 | 59 | 62 | 65 | |
| 1% yield | N/mm² | 20 | 53 | 57 | 60 | |
| Adh.& flex. | OK | OK | ||||
| Spooling | OK | OK | ||||
| D.C. Resistance(20°C) | Ω/m | 2.111 | 2.241 | 2.14 | 2.2 | 2.25 |
| BDV cyl. | V | 1300 | 1600 | 1725 | 1850 | |
| BDV cyl. V/μm | V/μm | 200 | 270 | 280 | 300 | |
| Pinholes 3%,12V | Faults/6m | 0 | 8 | 0 | 0 | 0 |
What is properties?
Imported high quality copper and environmental protection enamel are adopted in the series of the products to improve tensile strength and uniformity of the film.
It has good solderability and can be soldered at low temperature.
Wonderful effect of bonding and range, bright and clean surface are guaranteed.

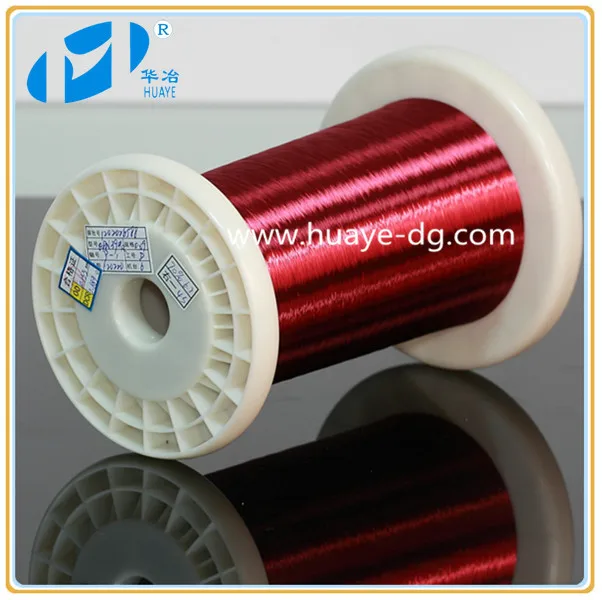

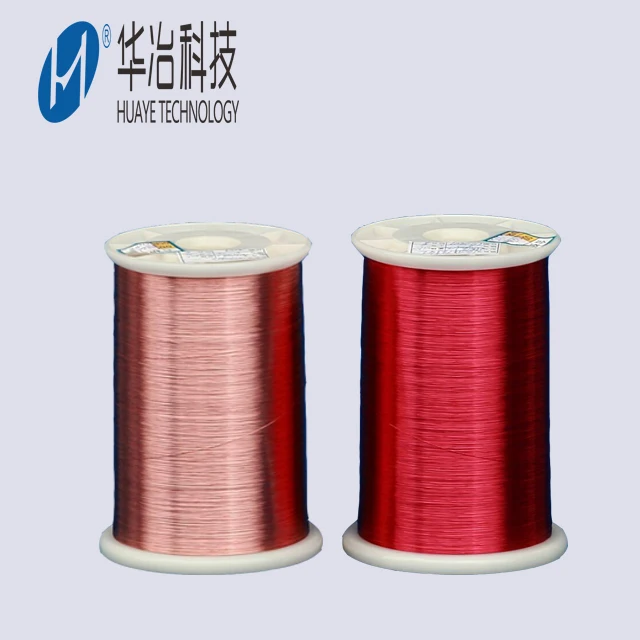

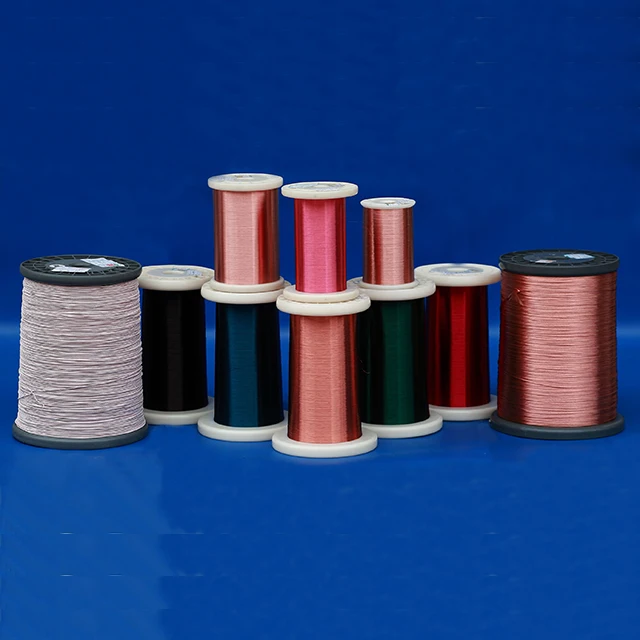

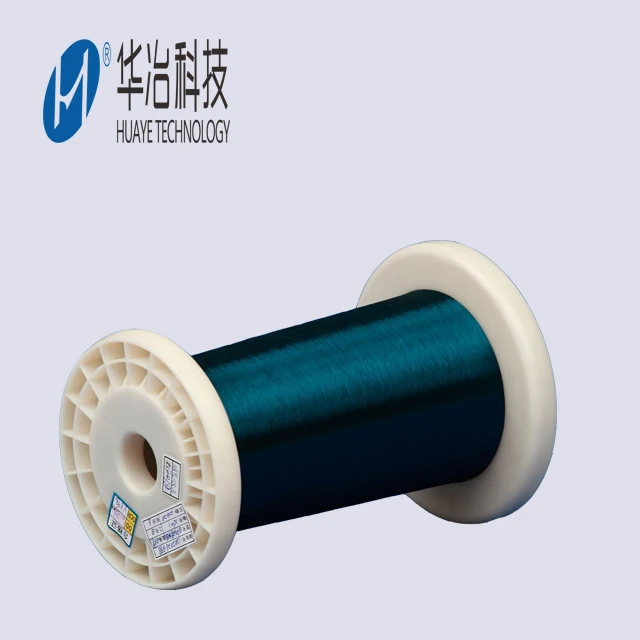

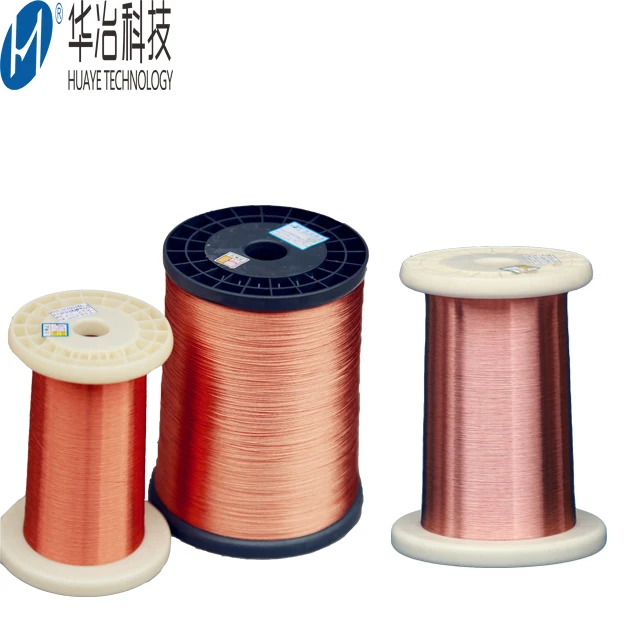

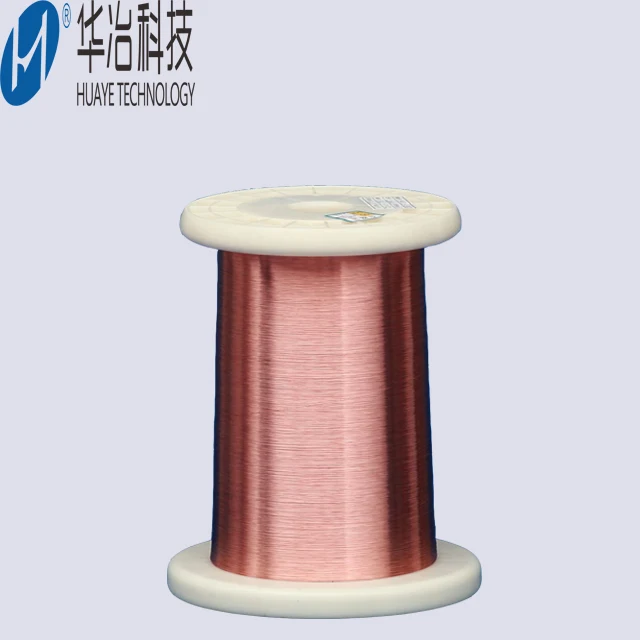

Product Photo:

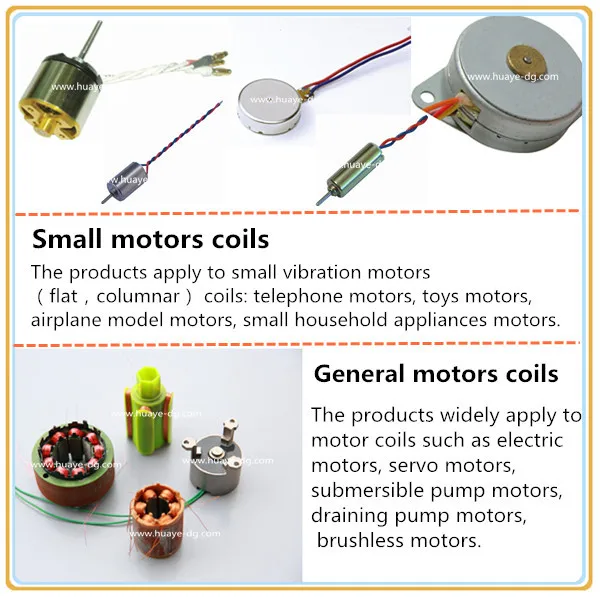

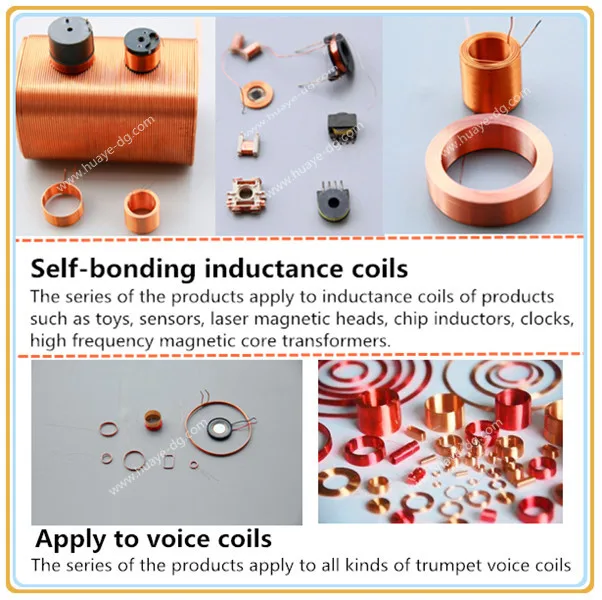

What is the application?

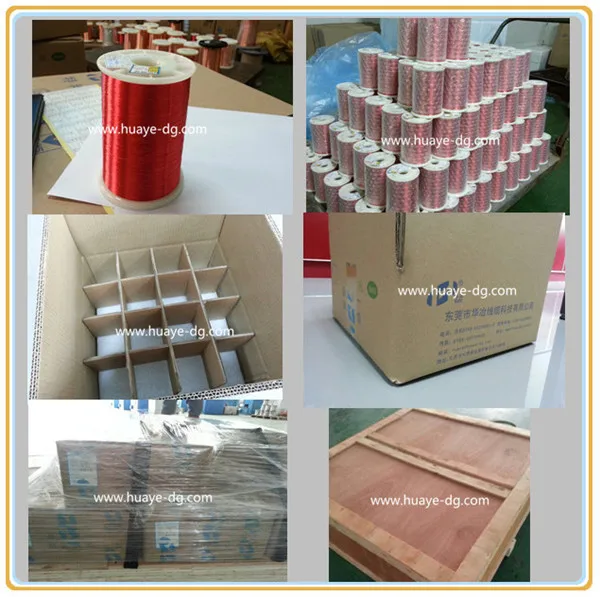

Packaging & Shipping
Packing: Inner packing: Plastic Spool of PT-15,PT-10.PT-4,PL-2,PC-1 according to wire size
Outer packing: Carton box and styrofoam or as customer required
Shipping: Sample time: Nearby 3-5days, distance 5-7days. Production time: 7-30days
Our Services
Why choose us?
1.We are a factory manufacturing enamel magnet copper wire best production capacity,best quality
control,best service.

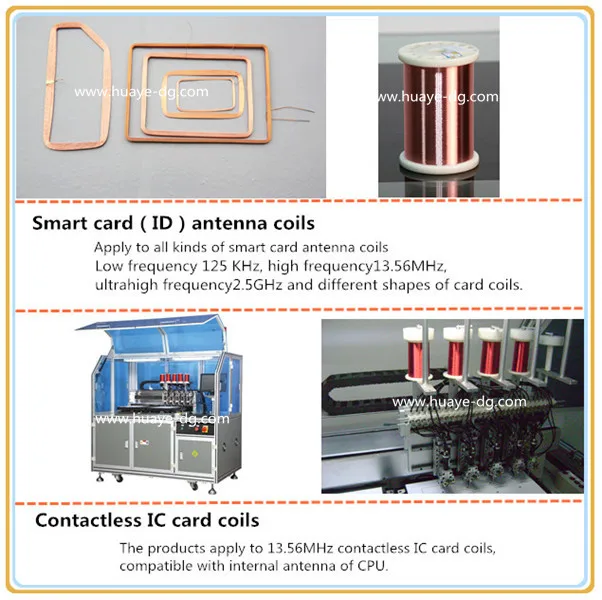

2.We supply 70% of the smart card(ID)antenna and contactless IC card coils manufactures of China,
strong research and development ability allows us to produce varios kinds of copper wire to meetdifferent requirements of the RFID technology.
3.Quality assured,refund guarantee due to quality issue.
4.Shipping on time,competitive factory direct price,free sample for customers to test the quality.
Company Information
Certifications
REACH,ROHS,UL,SGS
FAQ
Q1:What is the welding temperature of the magnet copper wire?
Our Italian customer's answer: When we try to use your Red Copper wire, we realise that the temperature
of our welding decrease significantly, and we done good weld at 300° C; this for us is perfect !
In your Red Copper wire,the Enamel is take-out completely.
Q2:All wire you produce has enamel layer + self bonding layer?
There are two types of our product, one has both enamel layer and self bonding layer, the other just has enamel layer without self bonding layer. Customers should choose the wire according
to their product.
Q3:Before buying the wire, I need to receive a sample to test it ,is possible to get any sample that
you have?
Of course you can!
Q4:What is self bonding wire?
Selfbonding wire ,also called self adhesive/bondable wire,is an enamelled wire over coated with
a bonding layer, which can make the wires bond together by heat or solvent after winding.
This feature can make the coil as fixed,compact and self-suport one.
