Granulator Machine to crush tires / Tire crushing machine

Product Overview

Description

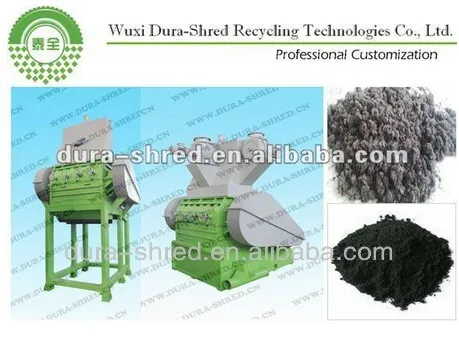

Machine to crush tires
1.dimension2150 x 2250 x 2950
2.weight 5600Kg
3.certificate CE&ISO



Granules Making Machine For Tire Recycling



are designed to grind the rubber mulch from the Grater into small granules as fine as 10 mesh. The granules are screened and re-circulated until the desired size is reached. Due to the design of the Granulator and precise alignment of the blades,99% of the fiber is removed, leaving a contaminant free crumb rubber granulate ready to be further processed or sold.





Equipment specification:



	TSQ2147X	TSQ1740X	TSQ1732X
Motor Specifications	Electric	Electric	Electric
Number of Motors	1	1	1
HP/KW Range	90Kw	45Kw	37Kw
Voltage	as per customer request	as per customer request	as per customer request
Cutting Chamber Dimension	742 x 1200	580 x 1000	580 x 800
Equipment Dimensions L x W x H	2150 x 2250 x 2950	1765 x 1900 x 2435	1765 x 1660 x2435
Equipment Weight	5600KG	3300KG	2950KG
Hopper Opening L x W x H	895 x 1434 x 1160	602 x 994 x 916	602 x 794 x 916
Capacity	800-1500Kg/hr	500-800Kg/hr	300-500Kg/hr
Product Size Range	6mm-1mm	6mm-1mm	6mm-1mm



Pictures

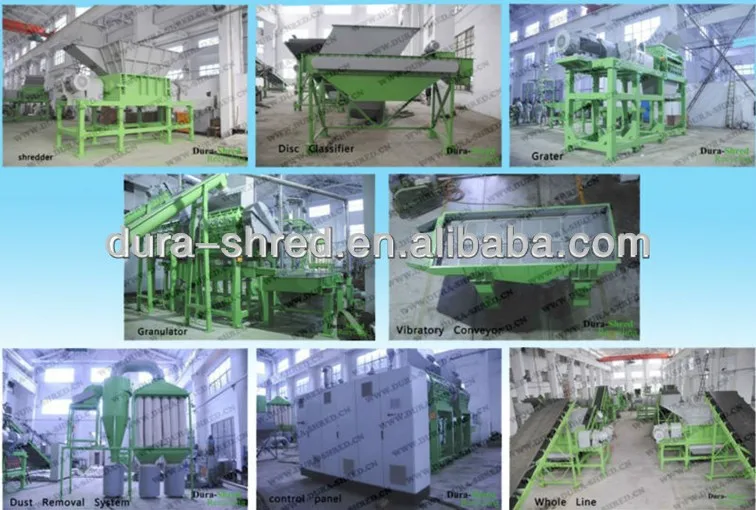

Tire recycling process



1. Double Shaft Shredder: shred the whole tires into rubber chips(50-100mm).

2. Disc Classifier: Seperate the over sized rubber chips back to she shredder.

3. Grater: Cut the rubber chips into rubber mulch(10-30mm) and seperate the steel wire from rubber mulch.

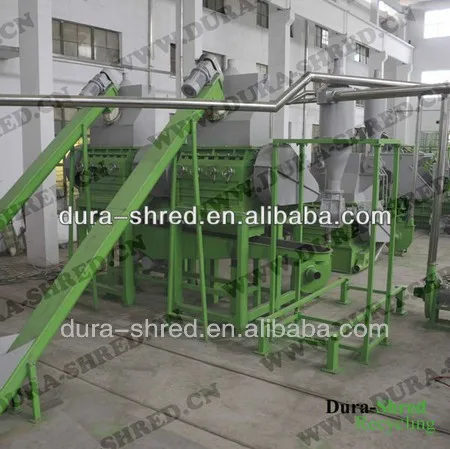

4. Granulator: Grind the rubber mulch from the grater into small granules(1-6mm).

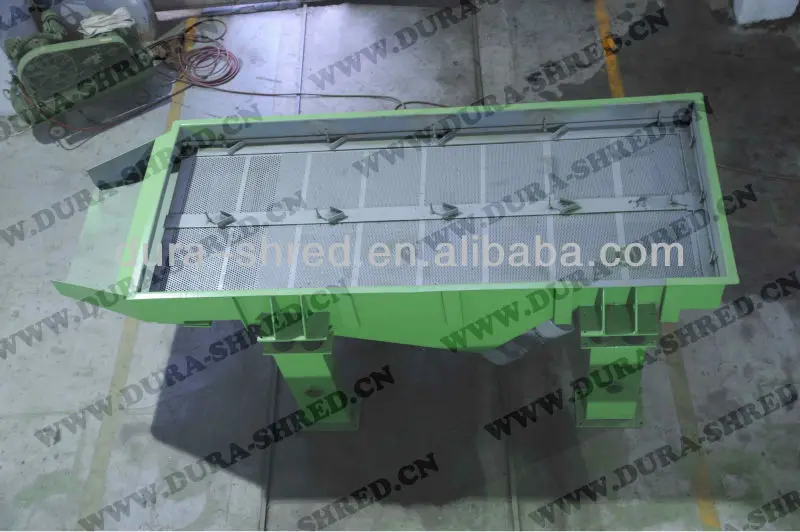

5. Taper Slot Conveyor: Pick out the big size of rubber granules back to the granulator and required size of rubber granules to next step. Meanwhile remove tire fiber from rubber granules.

6. Fiber Removal System: Collect the tiny fiber from the rubber granules.

7. Rubber miller: Mill the rubber graunles into rubber powder(<30mesh).

8. Dust Removal System: Collect all the dust by blower.





Dura-shred's advantage

• Exclusive Control System --- Controls and operates the entire plant from its centrally lacated position and provides instant visibility to what each machine is doing in real time.
• Uniq Stop/ Auto reversal Feature --- Protects against overfeeding and damage by non-processable items.
• Advanced Bearing Housing --- Isolates bearings from cutting chamber contamination and protects agaist bearing failure.
• Premier Full Turnkey Systems --- Plant is manufactured, shipped, installed and ready to start recycling.
• Warranty --- One of the best warrantees in the industry.

Proven Design and Technology.

A quality system with at an affordable price!

Fully Automated via 1 centrally located touch screen control panel.

Backed with one of the best Warrantees in the industry



Pleas contact me for any questions or detailed information !!!
