2 Slat Solid Door Ice Storage Commercial

Product Overview

Description

Outdoor Ice Refrigerator of slant design

DACHANG Brand Ice Refrigerator  are  produced  under the highest quality control standards.

we are the leading  manufacturer to do the Ice Refrigerator in China . All of our  Ice Refrigerator    is fashion design & excellent quality .



 Freezed outdoor  Ice Refrigerator   with CE and RoHs certificate !!!

It is designed to storgae dry ice or bagged ice .



•  Ice Refrigerator   Feature

1. Material: Painted galvanized steel /  stainless steel  foamed in polyurethane insultation
2. Temperature: -5 degree C  or -12 degree C adjustable
3. Compressor: Embraco
4. Refrigerant: R404a CFC free.
5. Embossed stucco aluminum / galvanized steel / Stainless steel 304  solid door

Self-closing door with heavy duty hinge can open up to 180 degree, Solid door or glass door option, with firm lock.

6. The door is with gasket sealing & heater ( Hidden in door frame)
7. Static cooling with copper pipe (cold wall refrigeration system) or

    Fan cooling optional(Automatic defrost system )
8. Voltage and frequency can be changed as customer's requirement.
9.Steel sheet:painted galvanized steel / stainless steel.

10. Logo sticker:  Just according to clients' requirement .



• Slant design outdoor  Ice Refrigerator  Specification (model DC-600)



Model	DC-VT400
Certificate	CE&Rohs
Temperature range	-5°C or -12 °C
Capacity(liters)	400
Bag(8 Lbs)	125 pcs bagged ice
Steel finish	Painted galvanized steel
Insulation	Polyurethane 80mm thick
Dimension(W*D*H)inch	72*35*72
Dimension(W*D*H)mm	1830*890*1830
Door type	embossing aluminum steel solid door
Door size(W*H)inch/mm	685*685mm
Door quantity	2
Refrigerant	R404a   CFC-free
Cooling system	Fan cooling (Automatic defrost)
Refrigeration unit install	Top mount refrigeration
Compressor brand	Embraco
40ft container loading QTY	24 pcs

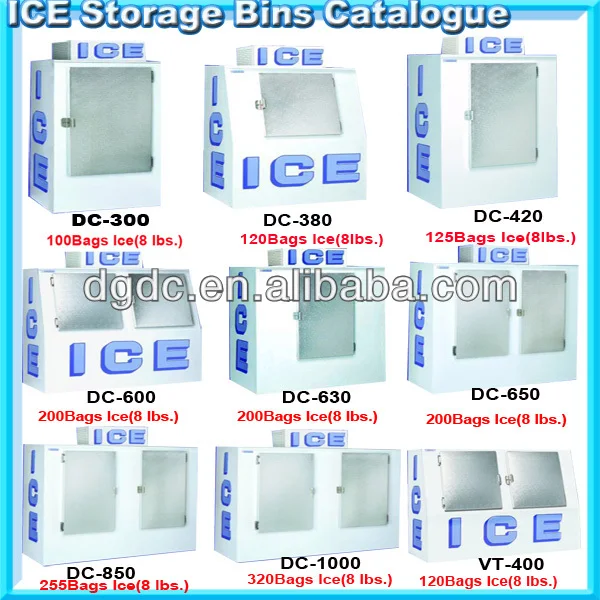

• more series outdoor  Ice Refrigerator  for your choice



Model No.:	DC-750	DC-650	DC-1000	DC-300
Temperature range:	-5  to  0 ° C	-5  to  0 ° C	-5  to  0 ° C	-5  to  0 ° C
Capacity (8lbs/bag):	230 bags bagged ice	200 bags bagged ice	320 bags bagged ice	100 bags bagged ice
Material:	Galvanized Paint Steel	Galvanized Paint Steel	Galvanized Paint Steel	Galvanized Paint Steel
Dimension (W*D*H) Inch	72 x 35 x 78	72 x 30 x 80	90 x 35 x 78	36 x 30 x 78
Dimension (W*D*H) MM	1830*890*2030	1830*760*2030	2380*890*2030	910*760*2030
Cooling system:	auto defrost/ cold wall refrigeration system	auto defrost/ cold wall refrigeration system	auto defrost/ cold wall refrigeration system	auto defrost/ cold wall refrigeration system
40ft loading	13 pcs	19pcs	13pcs	36pcs
Compressor brand name:	ASPERA	ASPERA	ASPERA	ASPERA

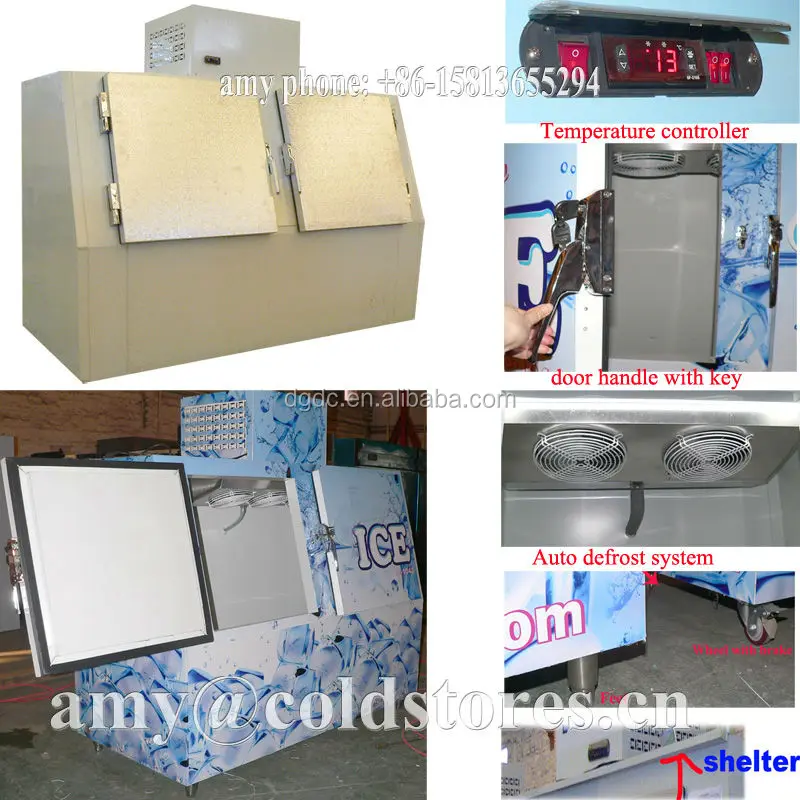

•  Ice Refrigerator  cooling system :

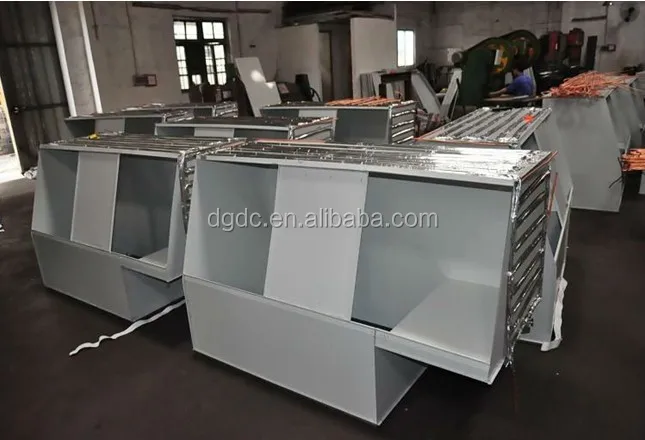

• Cold wall refrigeration unit system  (copper pipes are around the  Ice Refrigerator  wall )

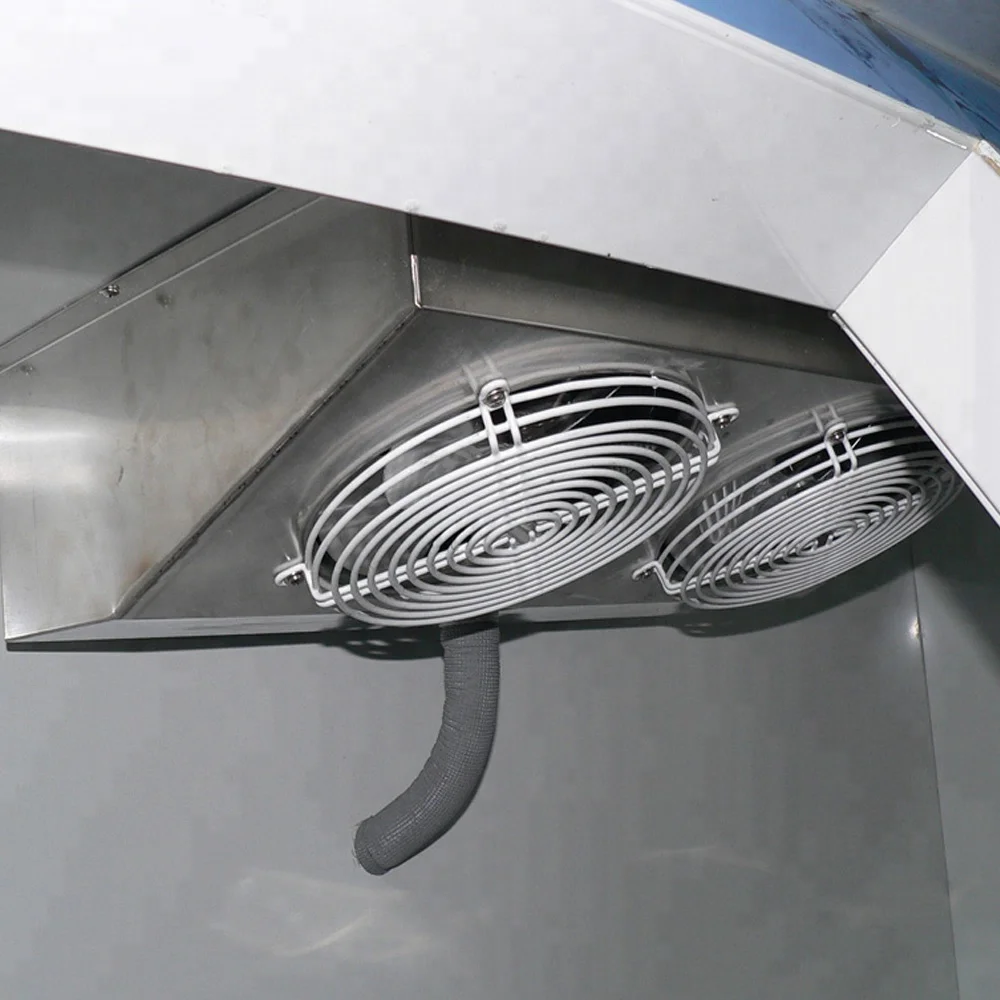

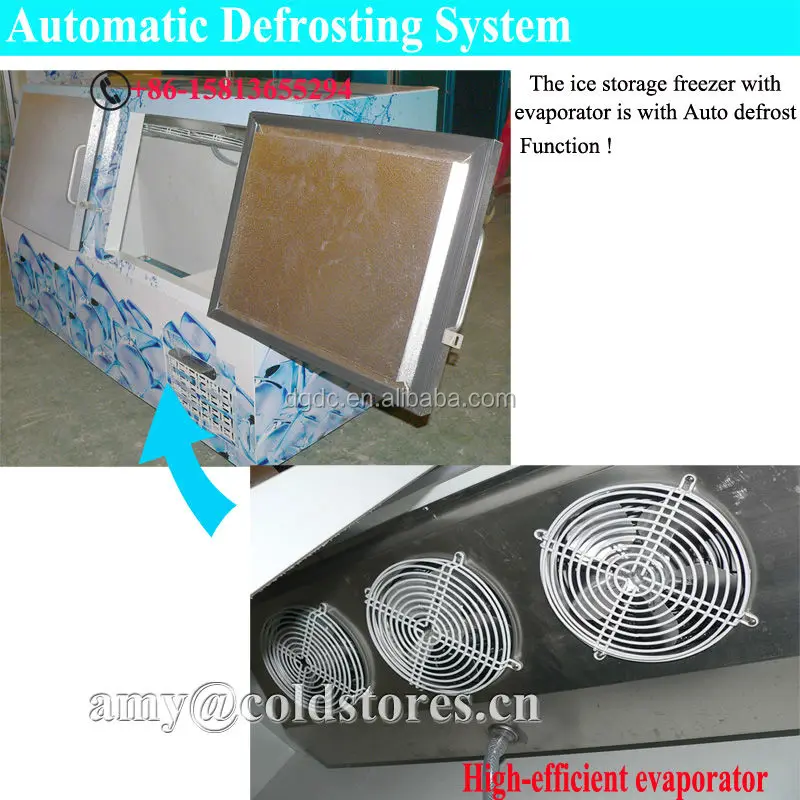

 Fan cooling system (Automatic defrost refrigeration system ) for the   Ice Refrigerator







•  Ice Refrigerator door : embossed stucco aluminum solid door

1. unit size : W685*H685 mm

2. Door handle :  aluminium alloy door handle with lock

3. door with heater  (hide under the door frame) ,which  avoid the door frozen

4. Self-closing door with heavy duty hinge can open up to 180 degree

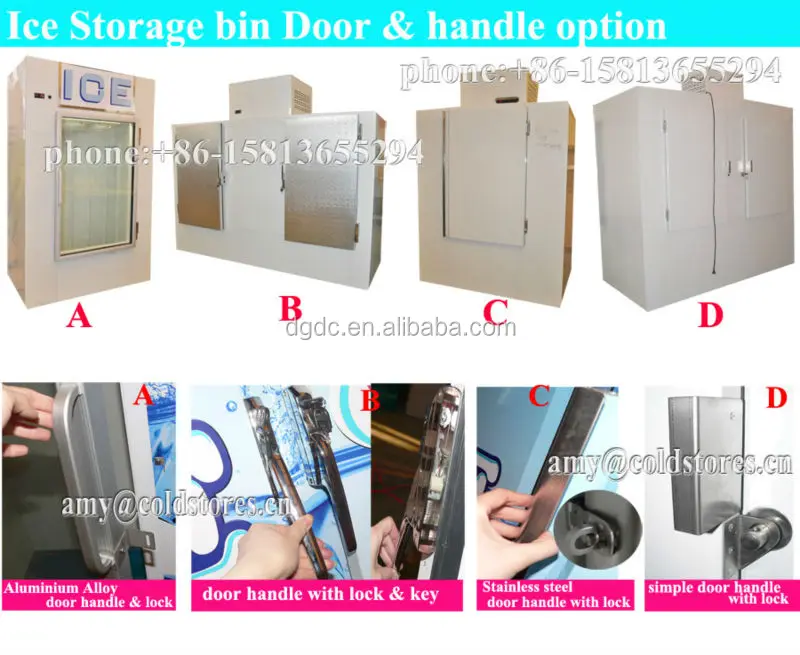

•  More kind of  Ice Refrigerator door for your choice : Glass door (  hollow glass),  Embossed stucco aluminum / galvanized steel / Stainless steel 304  solid door



• Following is the  Ice Refrigerator  door handle & lock for your reference

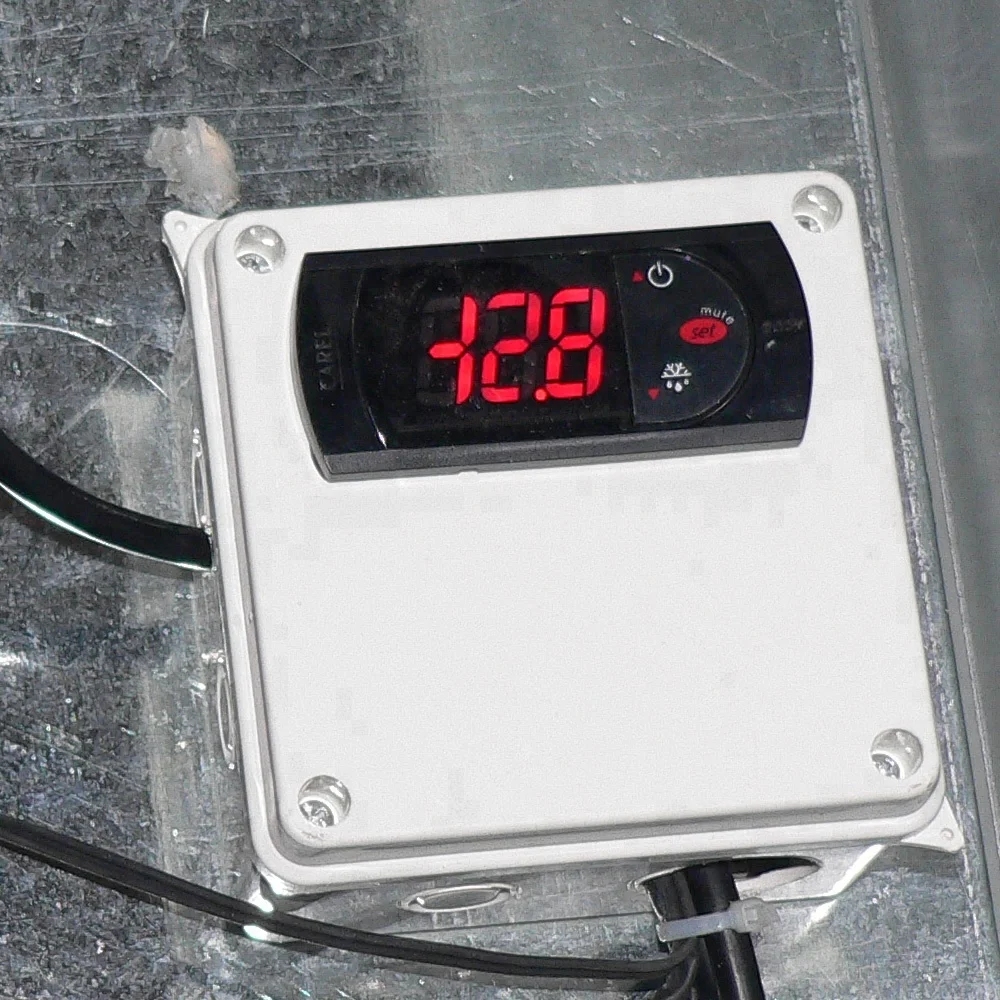

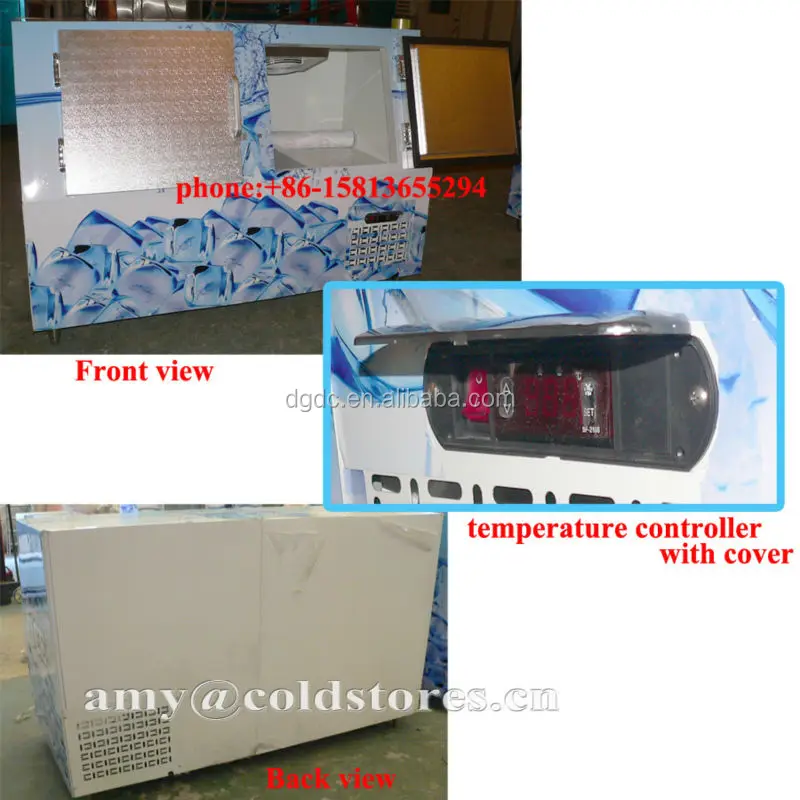

•  Ice Refrigerator are designed suitable for  outdoor use,  the temperature control is  weatherproof ,with cover

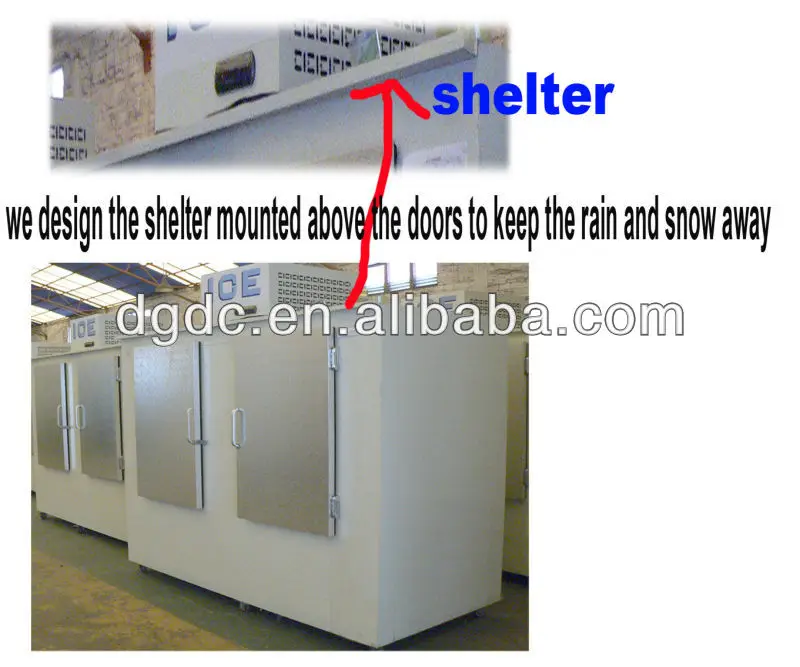

•  we install the rain /smow shelter mounted above the  Ice Refrigerator doors to keep the rain and snow away!

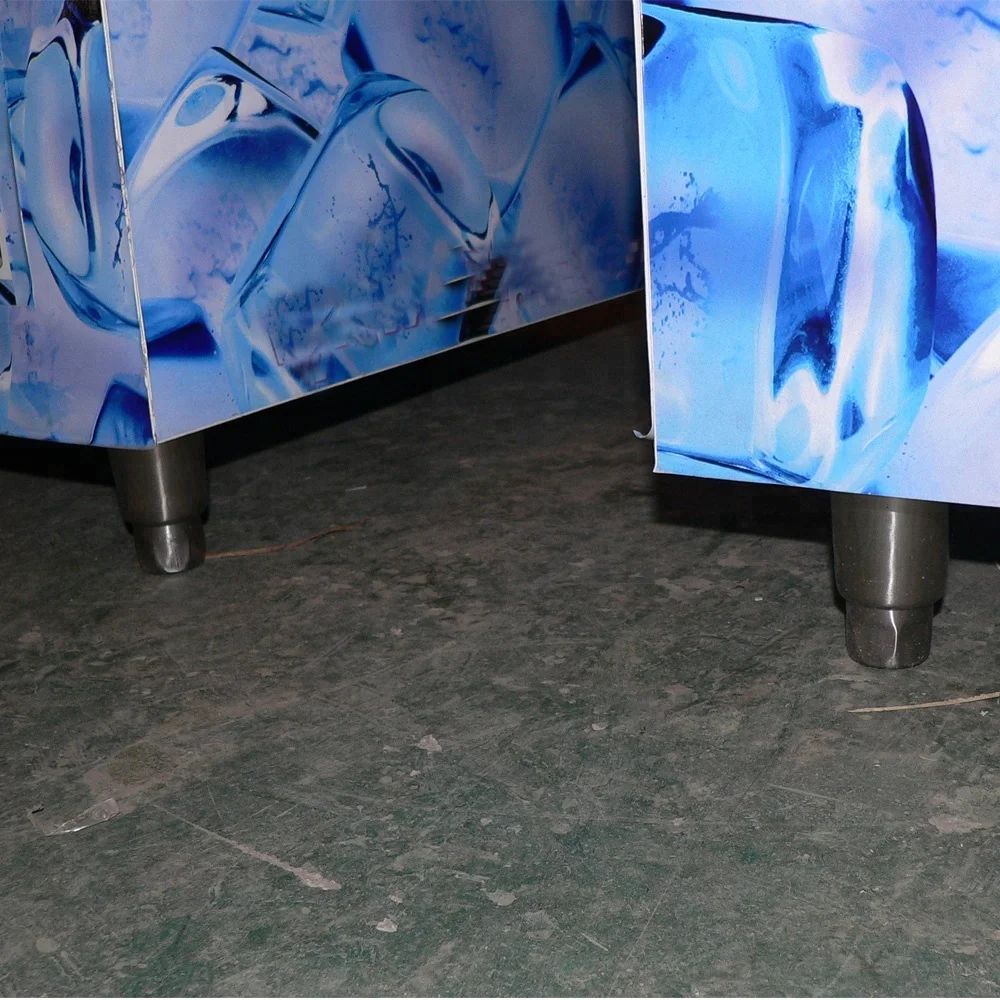

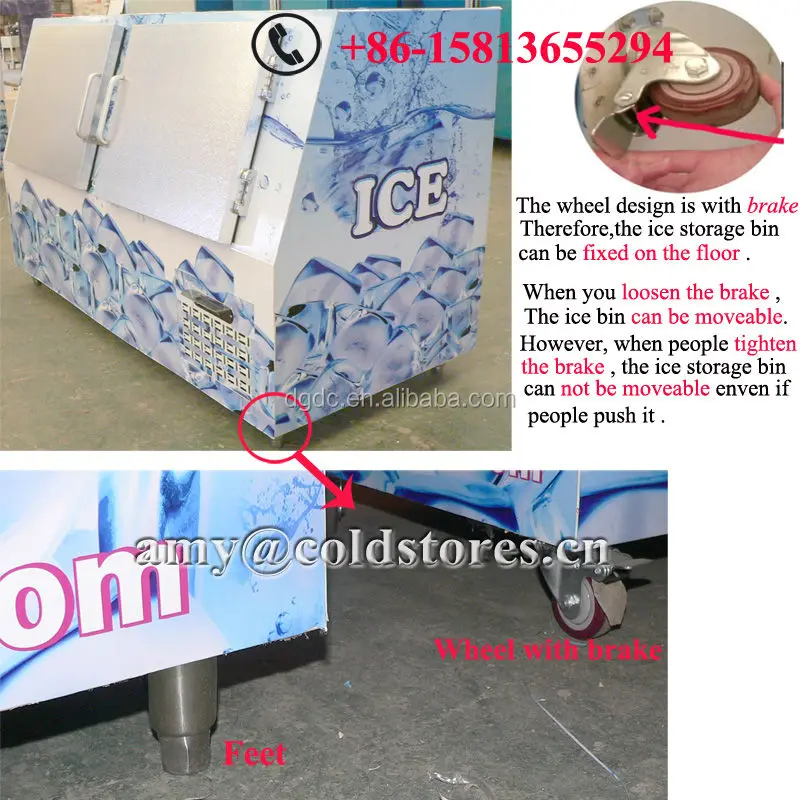

•  Ice Refrigerator  bottom is installed the wheel or feet

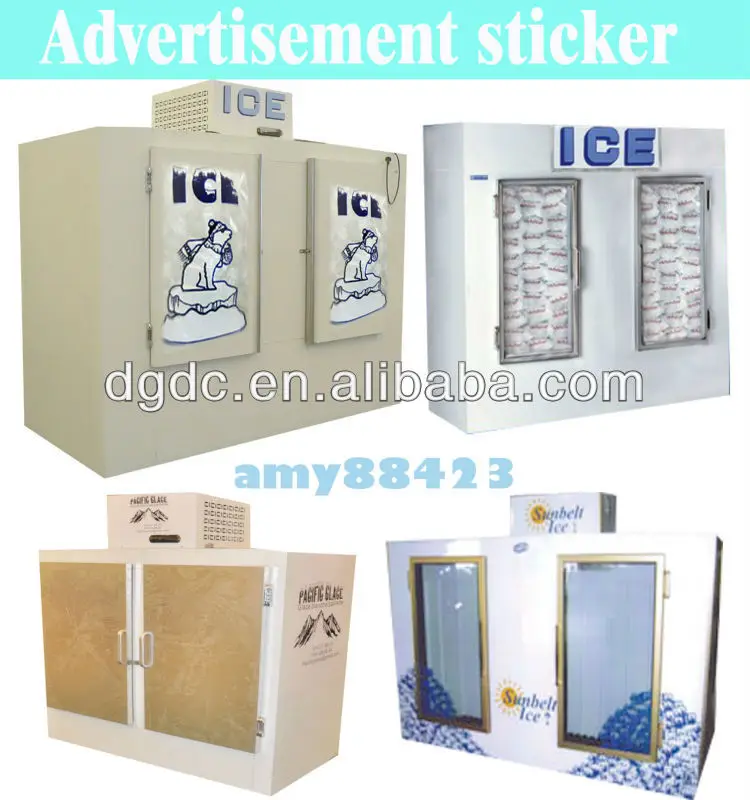

• Can paste the business logo on the   Ice Refrigerator  surface

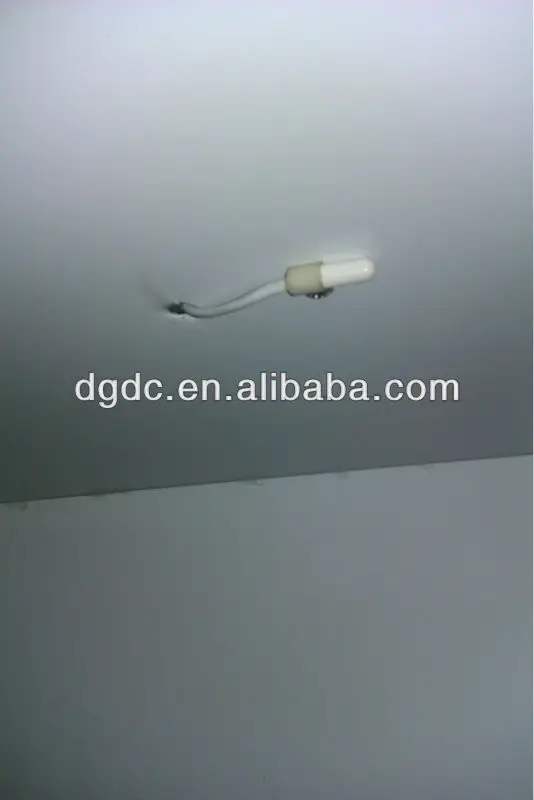

•  Ice Refrigerator is with Temperature test probe inside

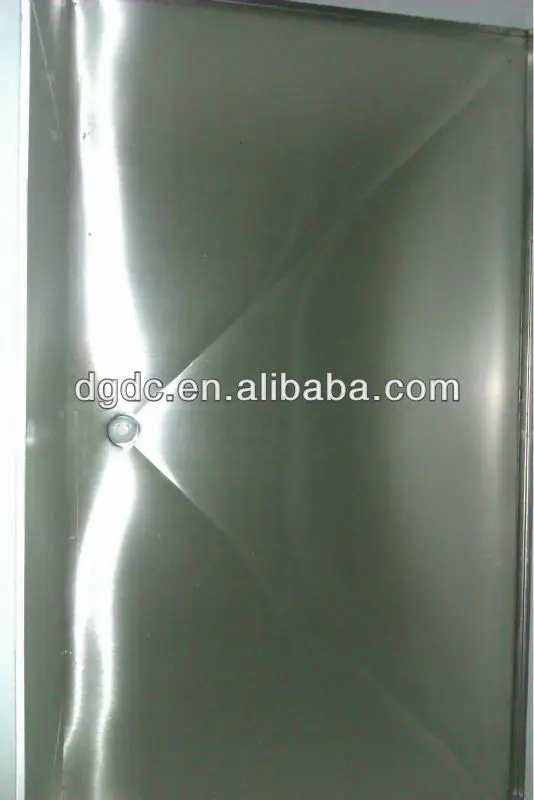

•  Ice Refrigerator  is with drainage exit inside

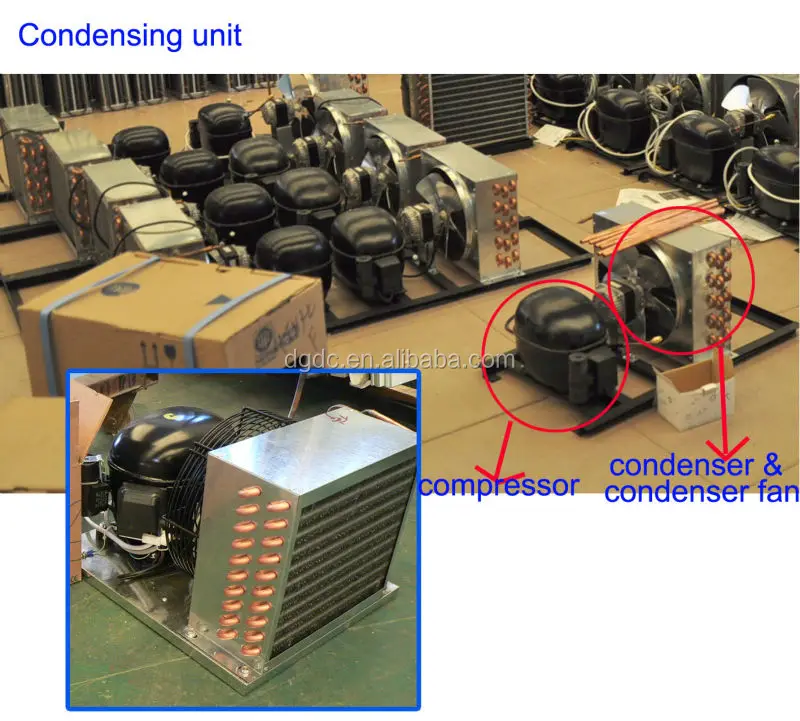

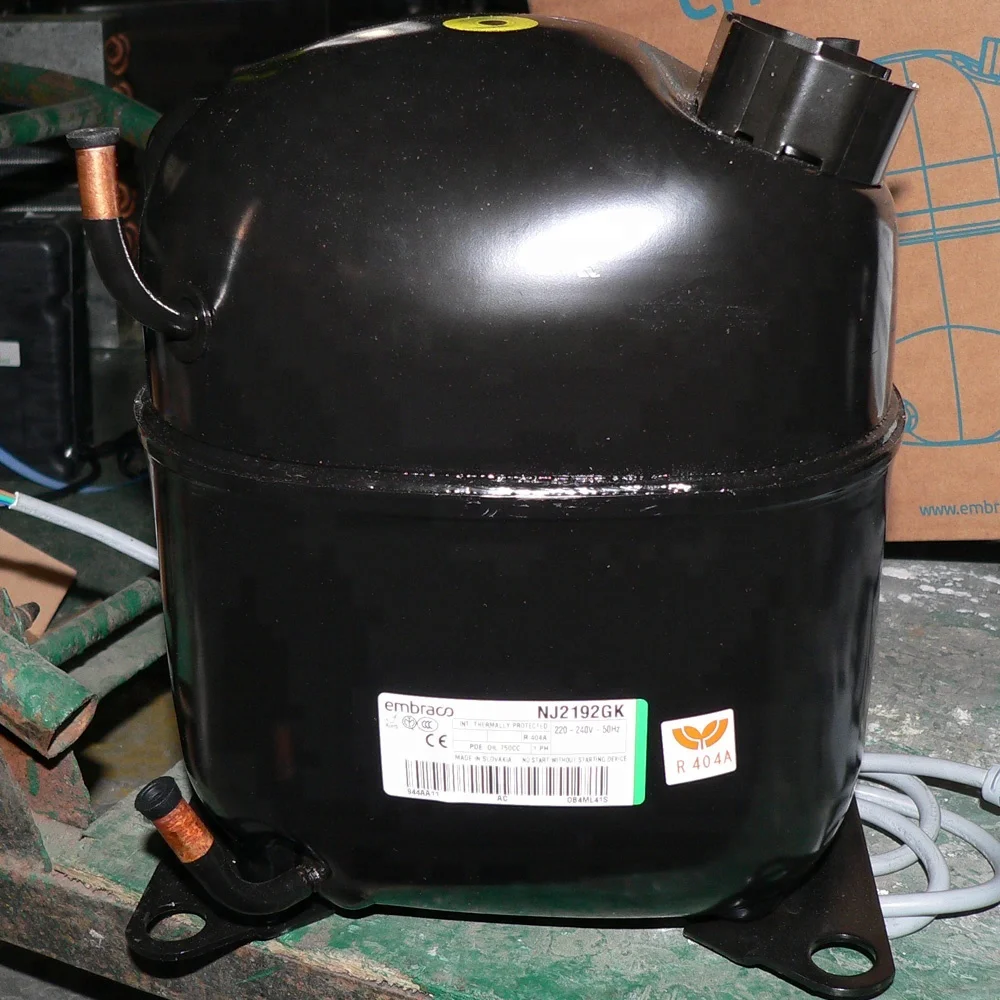

•  High quality refrigerating unit for our   Ice Refrigerator



 Ice Refrigerator  packaging information :

 For the sample order , we will package the  Ice Refrigerator by  plywood case,

 For the full container , we will package the    Ice Refrigerator   by  timber frame
