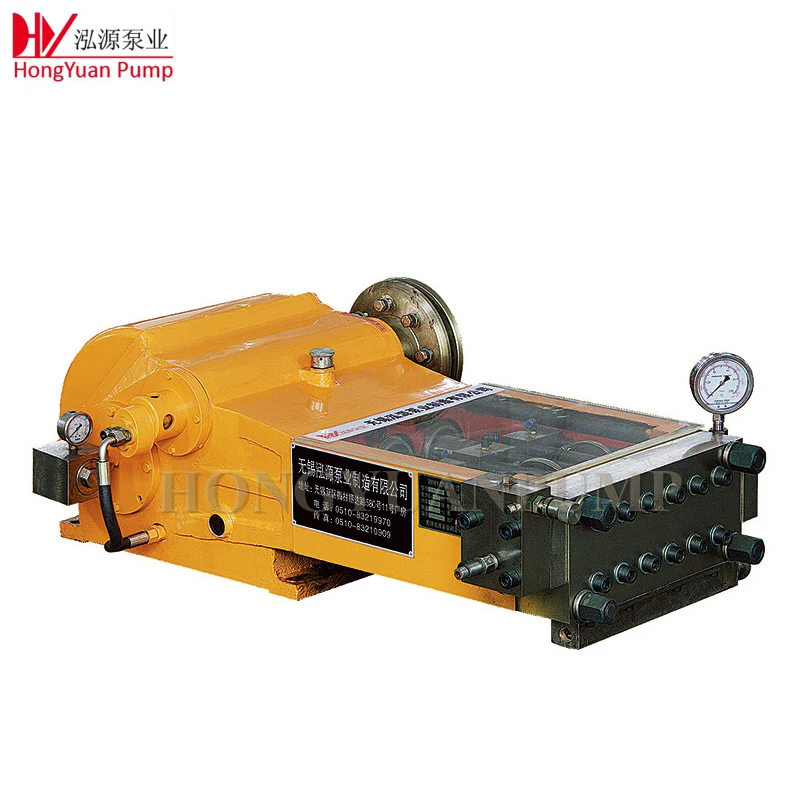

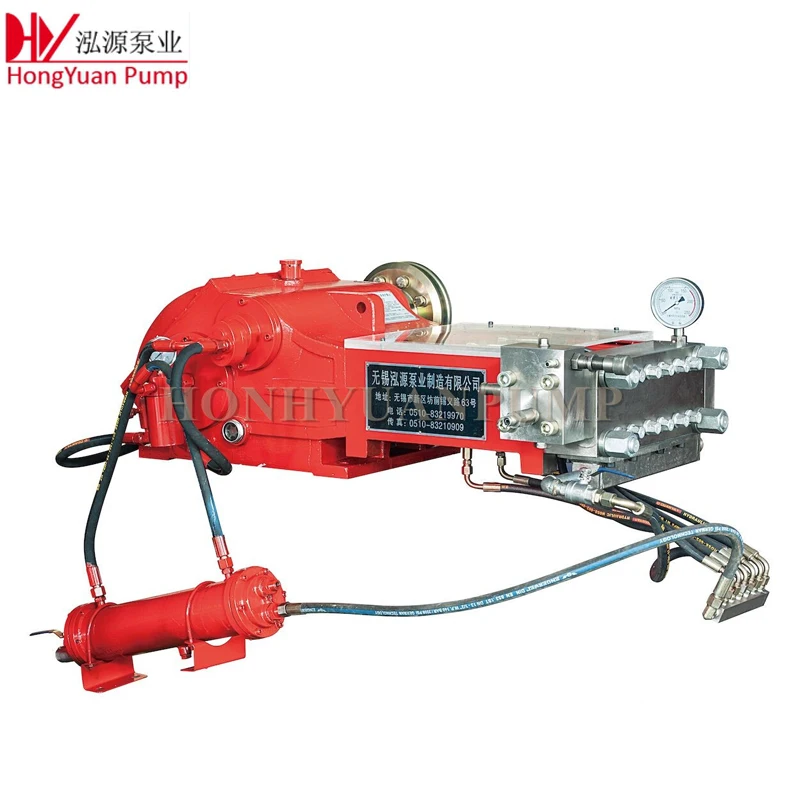

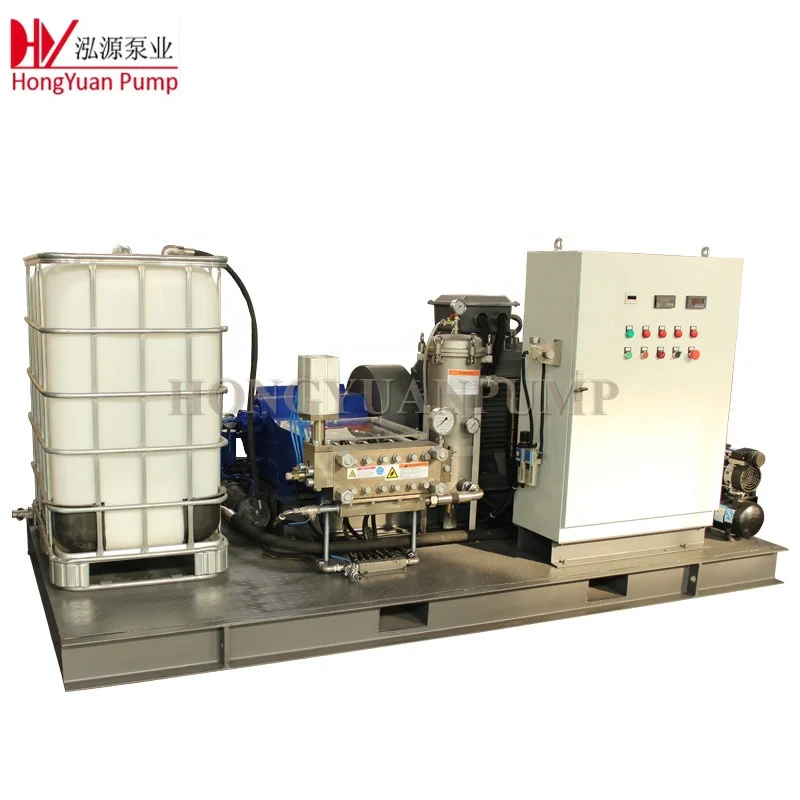

0-40000Psi high quality triplex plunger water jet high pressure pump
-Max work pressure:0 - 40000psi/2760bar
-Flow rate: Depend on customer requirements / application requirements
(Flow rate is based on 100% volumetric efficiency and 20°C ambient temperature)

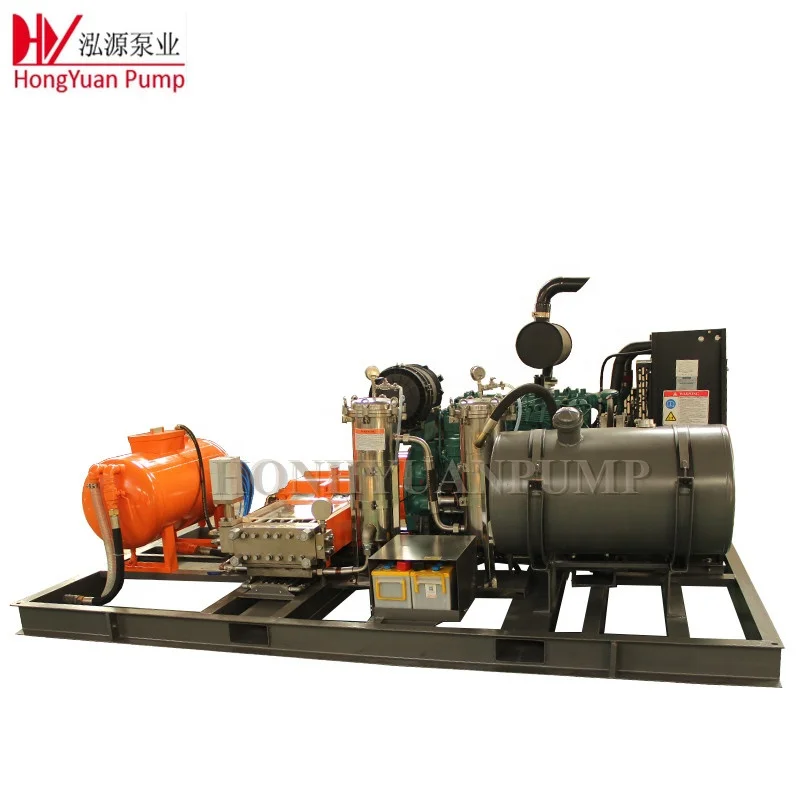

-Driven type: Diesel Engine or Electric Motor
-Plunger material: Solid ceramic
-Fluid end material: High quality stainless steel
-Usage: Fresh water, sea water etc
-Certifications: CE , ISO9001-2008 , WJTA
-Warranty: 3 years spare parts not included
Quality and reliability
-Stainless steel pump head free of alternating stress
-Spring preloaded high pressure sealing make it longer life
-Solid solid ceramic plunger to ensure high strength and stable operation
-An integrated lubricating oil and piston cooling system to improve the service life.

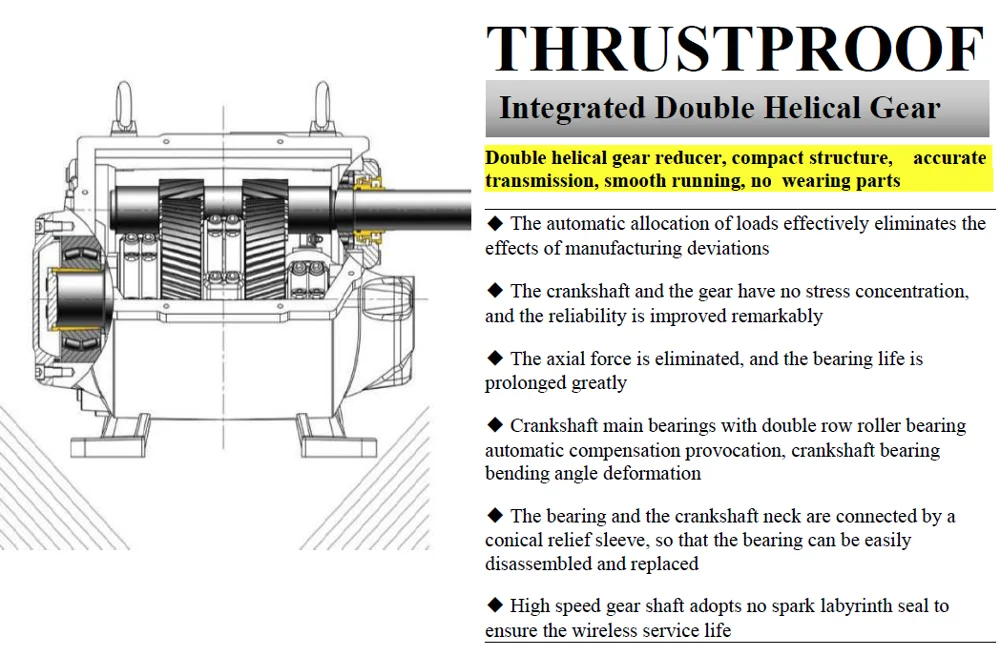

-Built-in double gear reducer to make transmission balance higher efficiency
-Special design of the crankcase magnetic filter

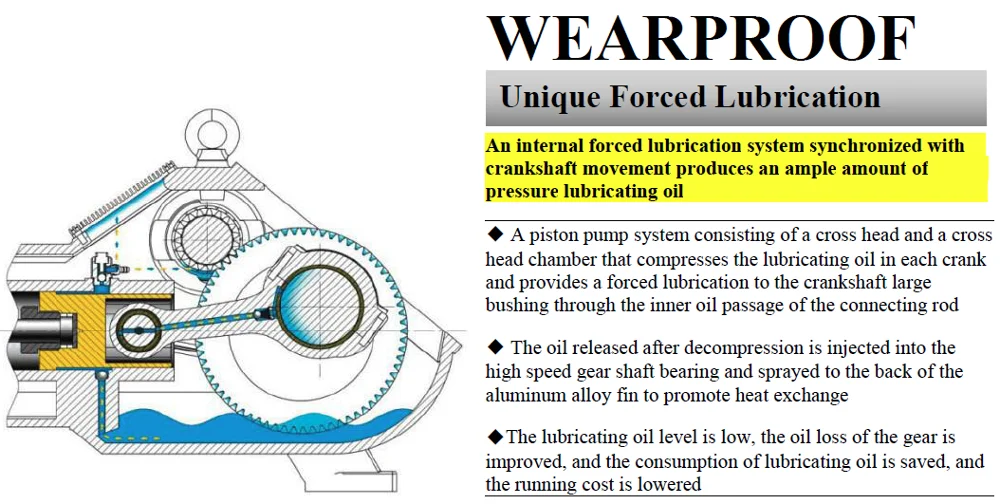

-Crankcase forced lubrication system
-An integrated ball type liquid inlet valve design, greatly improving the efficiency of fluid mechanics.
-Computational fluid mechanics design in dynamic load to ensure the highest reliability under max duty working conditions.
-The crankshaft is made of a high strength forging process and is specially treated
More products
Product Certificates
≡≡ Product Certificates

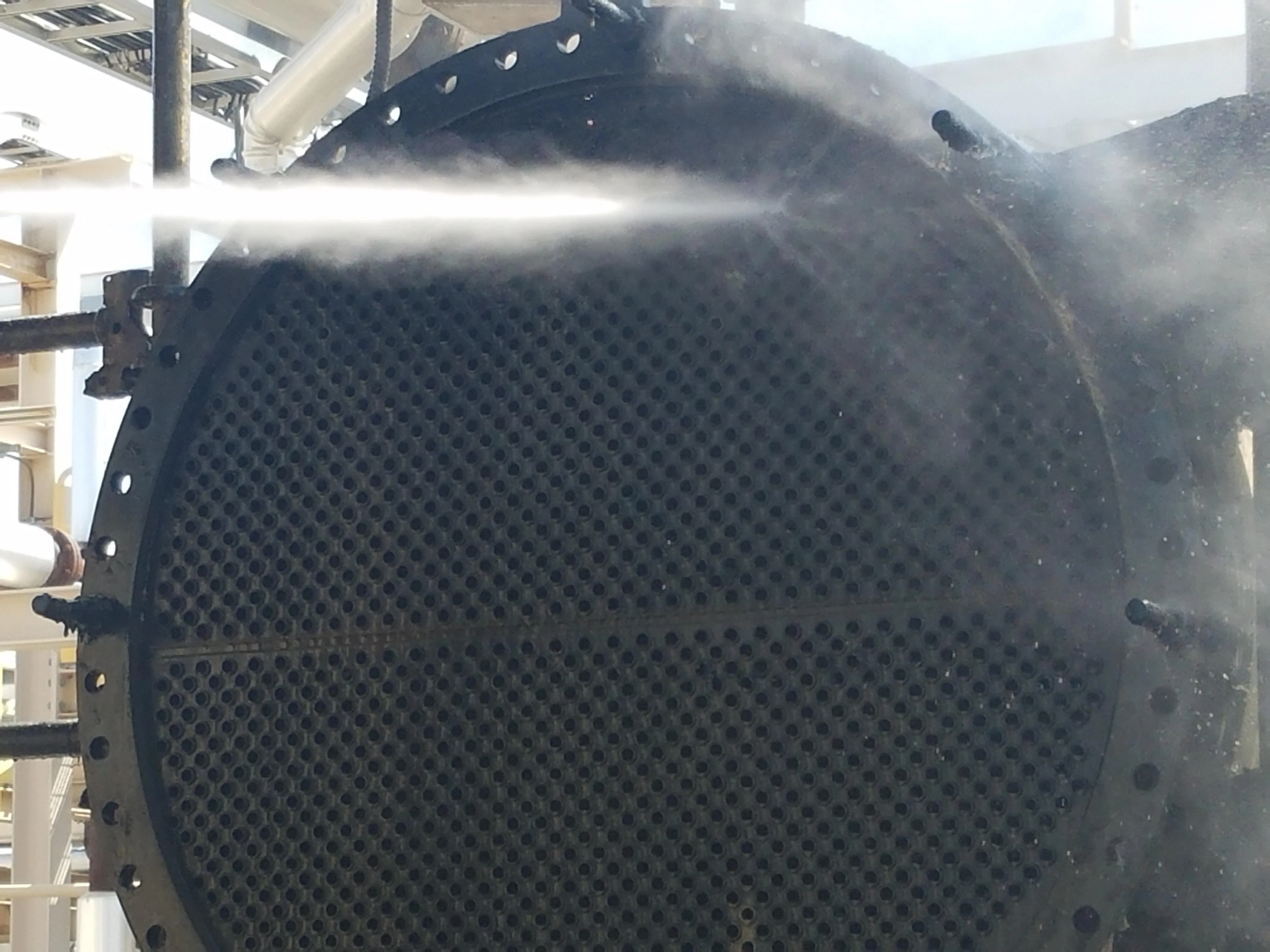

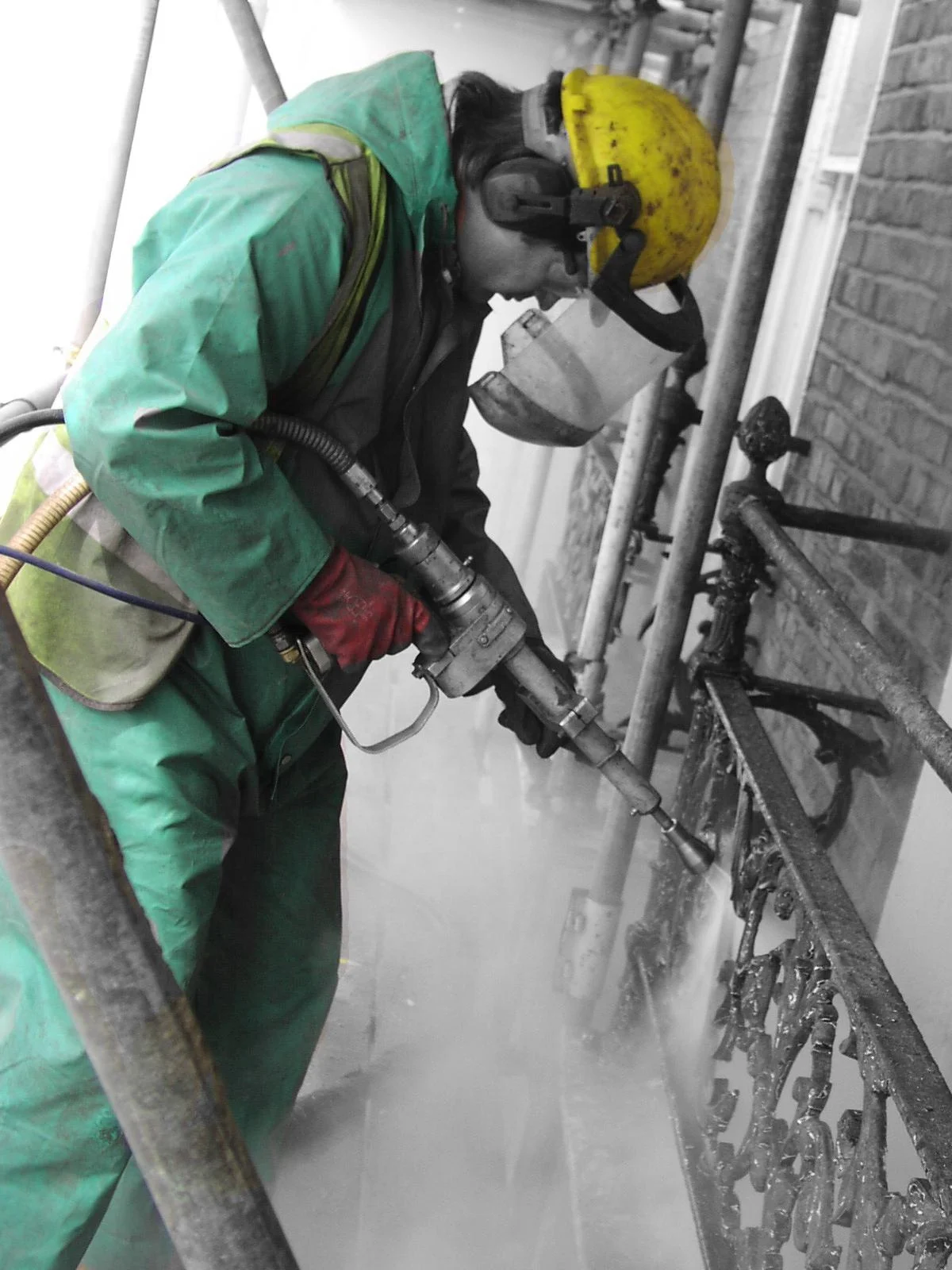

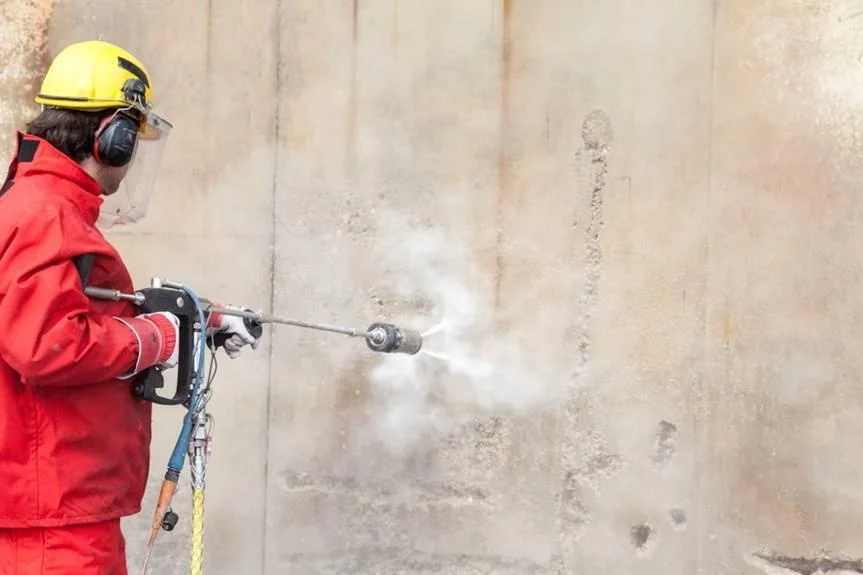

Machine working site
≡≡ Machine Working Site
Clients visit
≡≡ Clients visit
Company Information
≡≡ About Hongyuan Pump
Wuxi Hongyuan Pump Manufacturing Co., Ltd. was established in 1993 and has 20 years of history. We are dedicated to the research and development, production, sale and service of high pressure cleaners and high pressure piston pump machines. We are a high-tech enterprise in the field. Our company is located beside the beautiful Taihu Lake - Wuxi New District Industrial Park, with a strategic location and convenient transportation. Wuxi Hongyuan Pump Manufacturing Co., Ltd. is engaged in the production of super high pressure cleaners, pressure washers and high pressure cleaning machine pumps! We are engaged in the research and development and introduction of new technology. Our products are in accordance with JB/T8093-1999 standard. We passed ISO9001 quality system management certification, focusing on the introduction of German KAMAT technology and constantly improving our excellent products and allowing users to reduce the cost of production and improve efficiency. Products can be customized according to customers' requirements. As to after-sales service, Hongyuan's objective is "life-long free maintenance, solve users' problems"! Hong Yuan's idea: the latest technology, quality products and services
Packaging & Shipping
≡≡ Packing & Shipping
FAQ
≡≡ FAQ
Guidance for choosing high pressure cleaning machine
2.Surface preparation,pipe inside cleaning,concrete demolition or machinery cleaning
3.Cleaning pressure
4.Operating flow
5.Driven type,e.g.Diesel engine or electrical motor

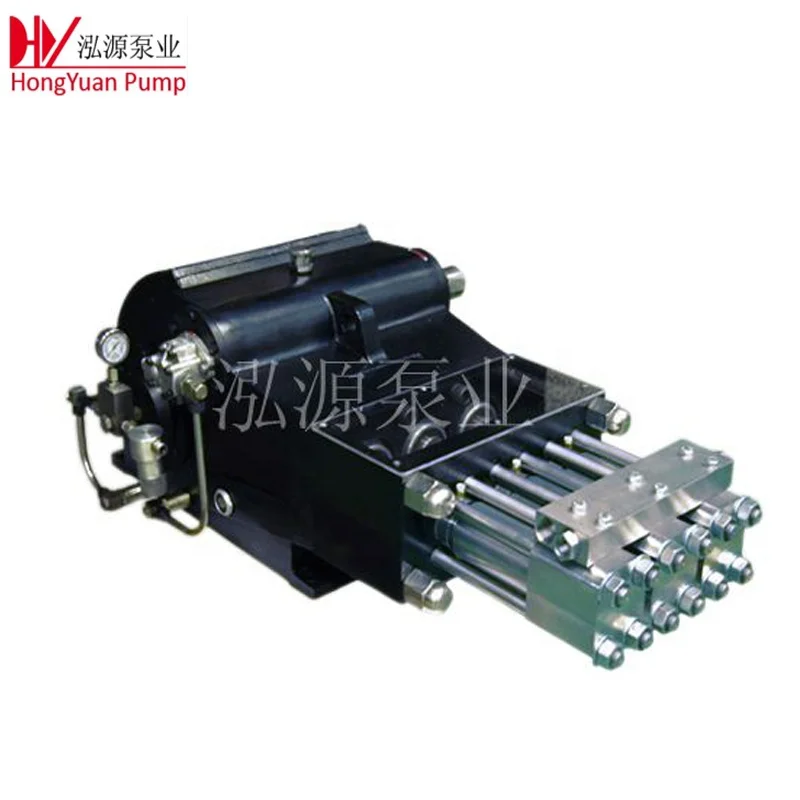

Triplex plunger high pressure pump feature and effect
High pressure cleaning machine mostly adopt piston pump,generally,due to piston pump high operation efficiency and long service life.
The core component of high pressure water jetting equipment is high pressure pump.Its main function is to make fixed amount water into high pressure water flow,which has a powerful cleaning impact.
