Upward Continuous Casting Machine for Oxygen Free Copper Rod

Product Overview

Description

Upward Continuous Casting Machine for Oxygen Free Copper Rod



It is known as "upcast" technology for the production of oxygen free copper rod. With over years experience design and operation, the production line could be easily installed and operated. High quality of copper rod could be produced from the machine. It could have flexible production depend on the orders.



Main Technical Data:



Type	Upward Continuous Casting Machine for Oxygen Free Copper Rod
Furnace	Electricity induction heating
Annual Capacity	3000/4000, 5000/6000, 8000/10000 and 12000 tons
Rod Diameter	8,12,17,20,25mm
Line Speed	2500mm/min for 8mm
Power Comsuption	315 to 350 kwh/ton production
Pulling	Servo motor and inverter
Loading	Manual or automatic type
Control	PLC

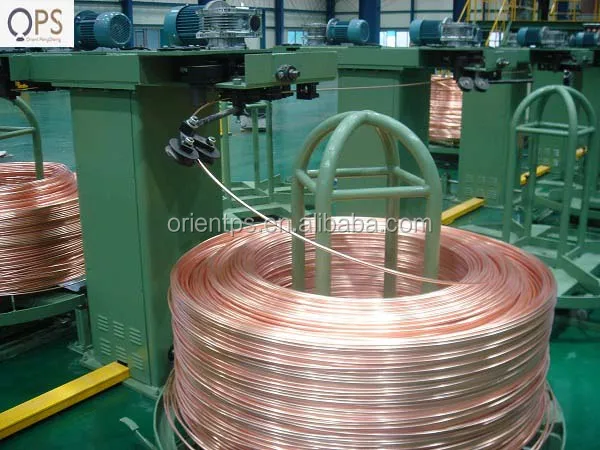

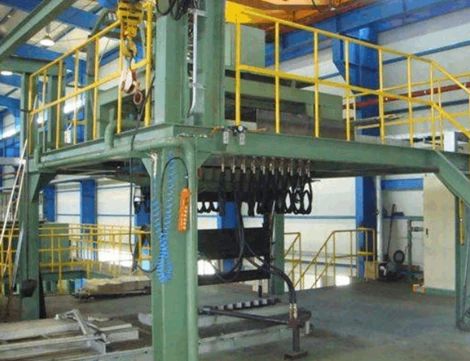

Main Pictures of Upward Continuous Casting Machine:

Upward Continuous Casting Machine for Oxygen Free Copper Rod



Upcast Machine





We are looking forward to have opportunity to cooperate with you!
