Copper Rod Upcast Machine

Product Overview

Description

Copper Rod Upcast Machine





The Up Casting system is mainly used to produce high quality oxygen free copper rod for wire and cable industries. With some special design, it is capable to make some copper alloys for various applications or some profiles like tubes and bus bar. The system is with characters of high quality product, low investment, easy operation, low running cost, flexible in changing production size and no pollution to environment.



Raw material

Good quality copper cathode is suggested to be the raw material for the production to ensure the high mechanical and electrical quality product. Some percentage of recycled copper could be used too. The de-oxygen time in the furnace will be longer and that may shorter the working life of the furnace. A separte melting furnace for the copper scrap could be installed before the melting furnace to use full recycled copper.



Furnace

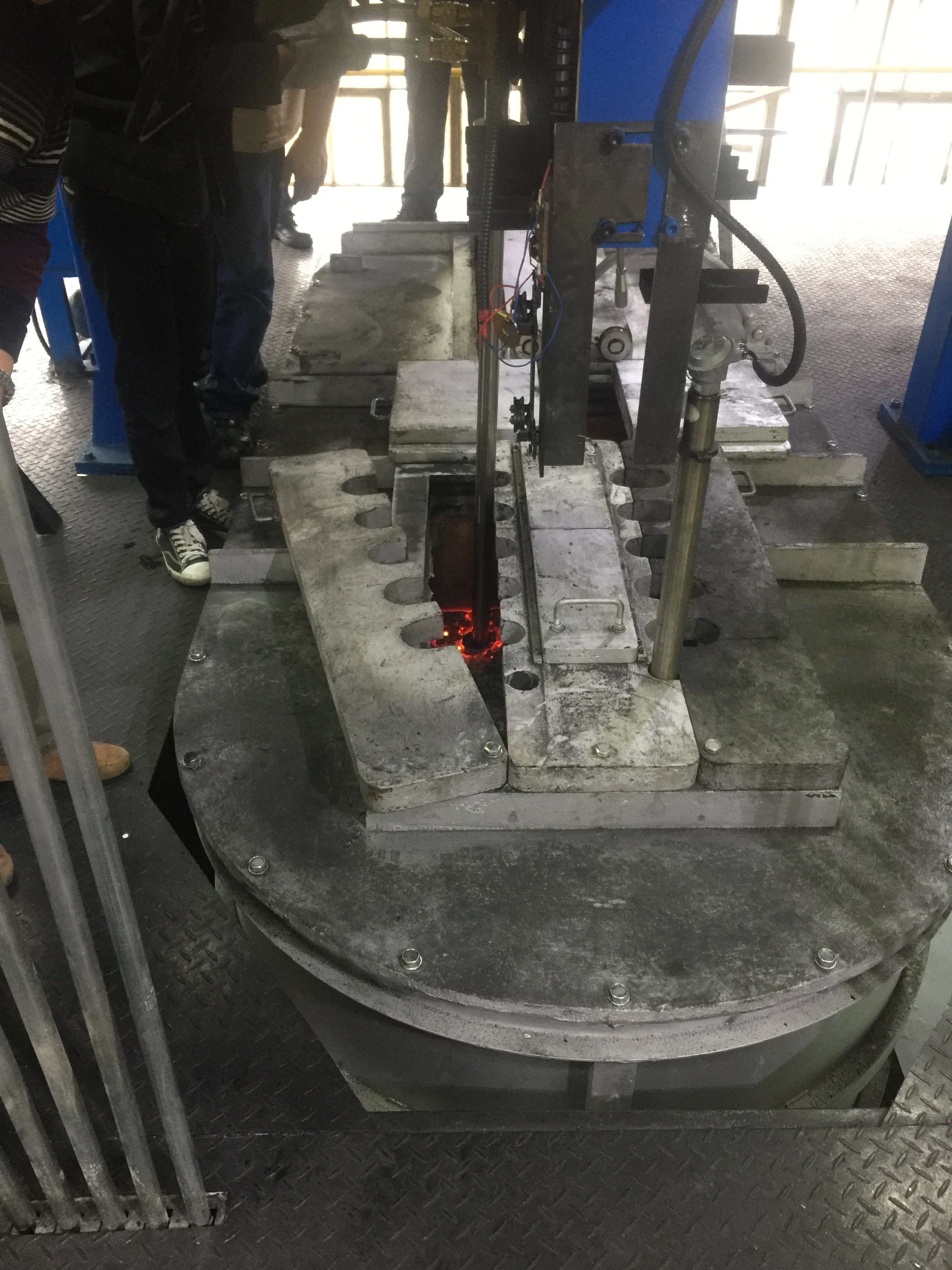

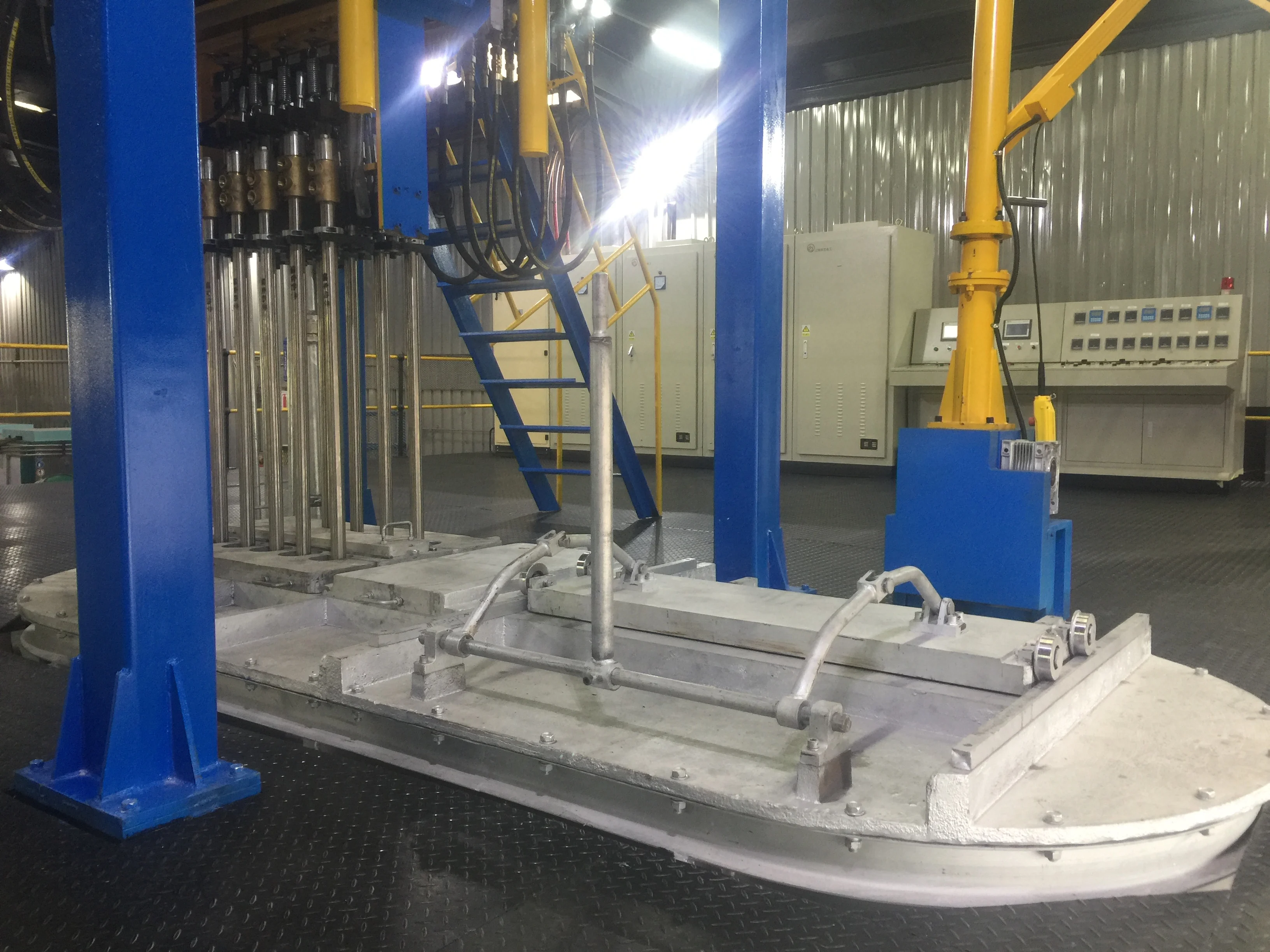

Bricks and sand built with melting channels, the furnace is electrically induction heated with various melting capacities. Heating power could be adjusted manually or automaticly to keep the molten copper in the controlled temperature range. The heating principle itself and optimized furnace structure design allow the max. power using and the highest efficiency.



Casting machine

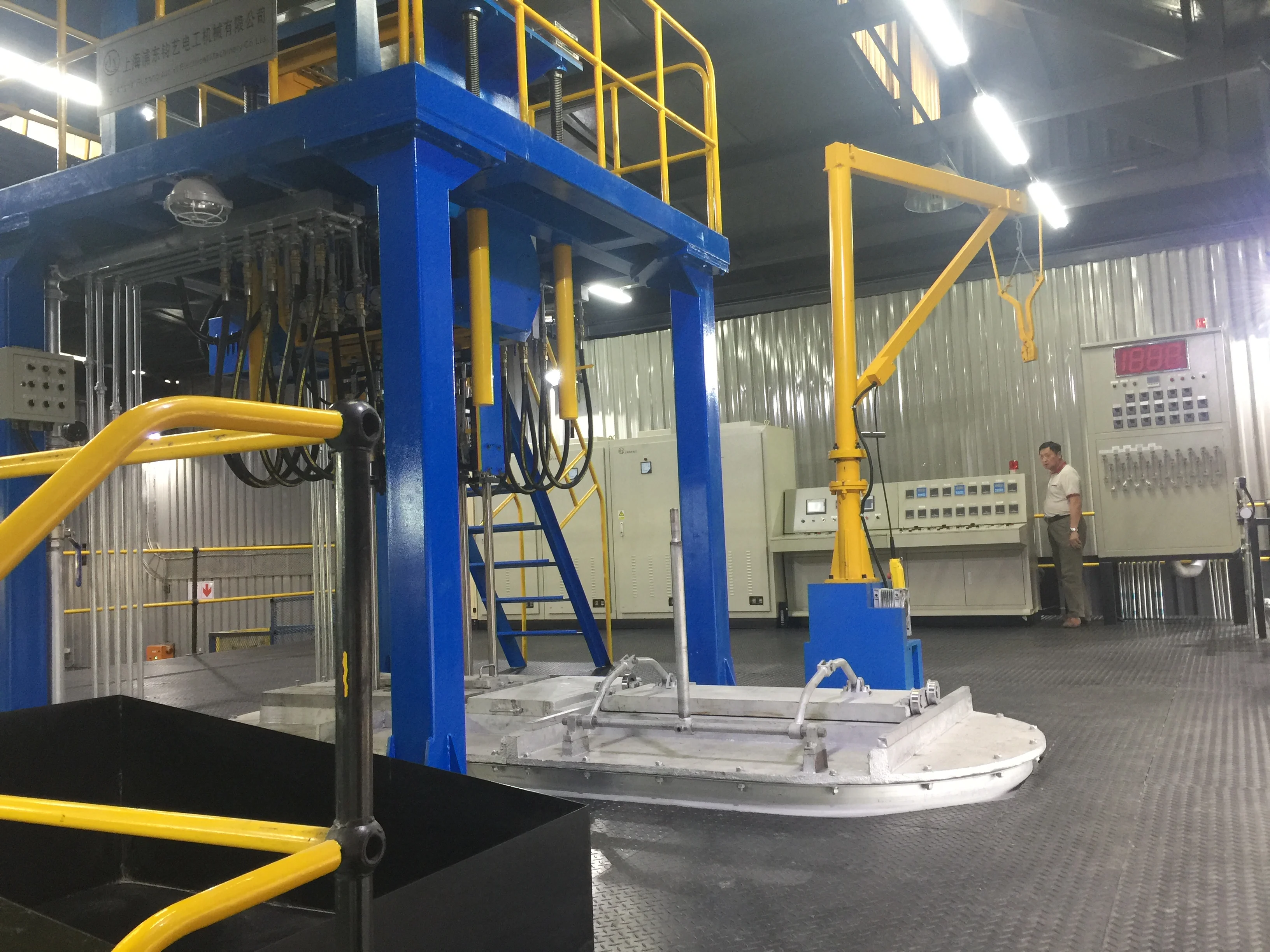

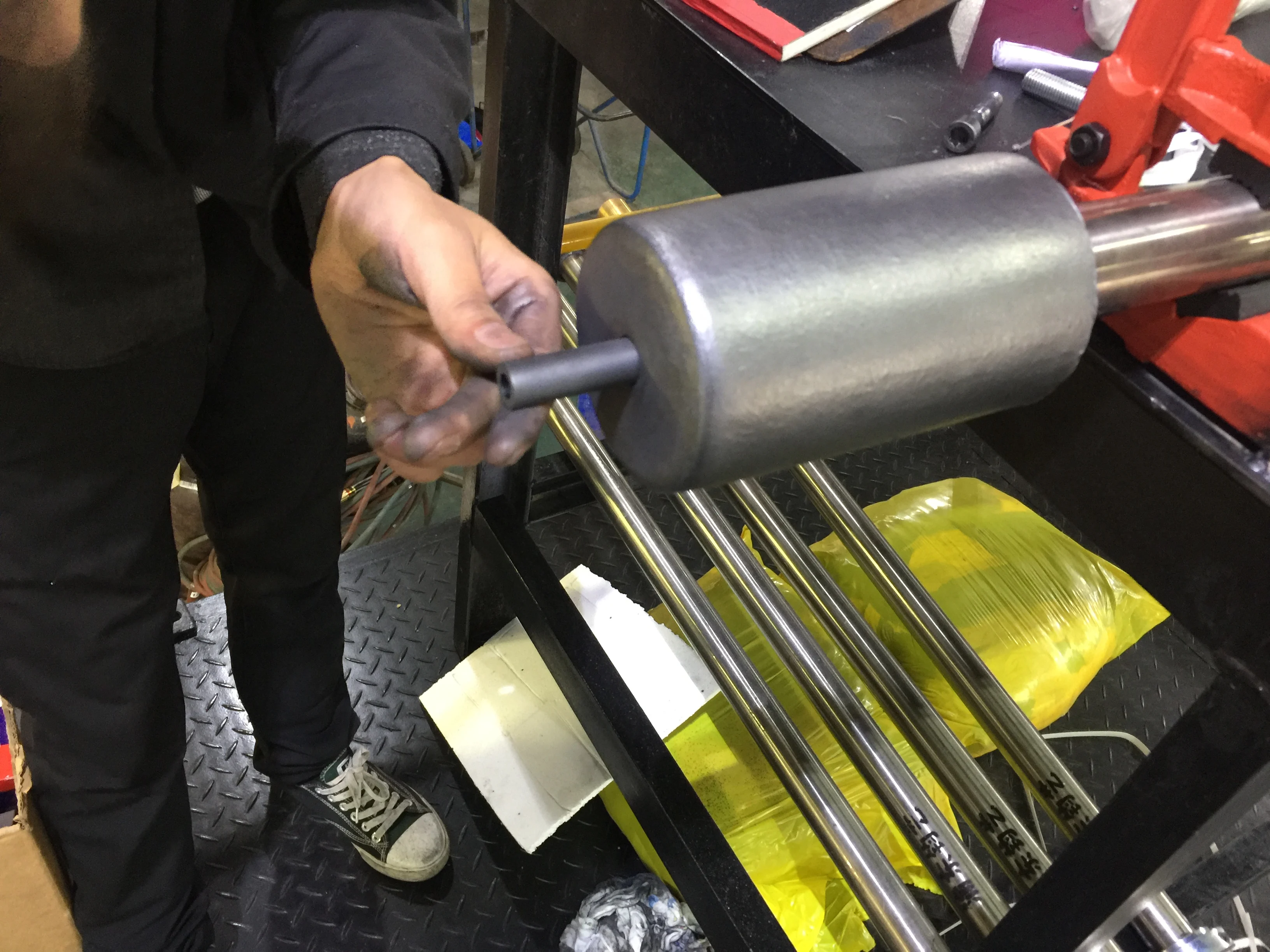

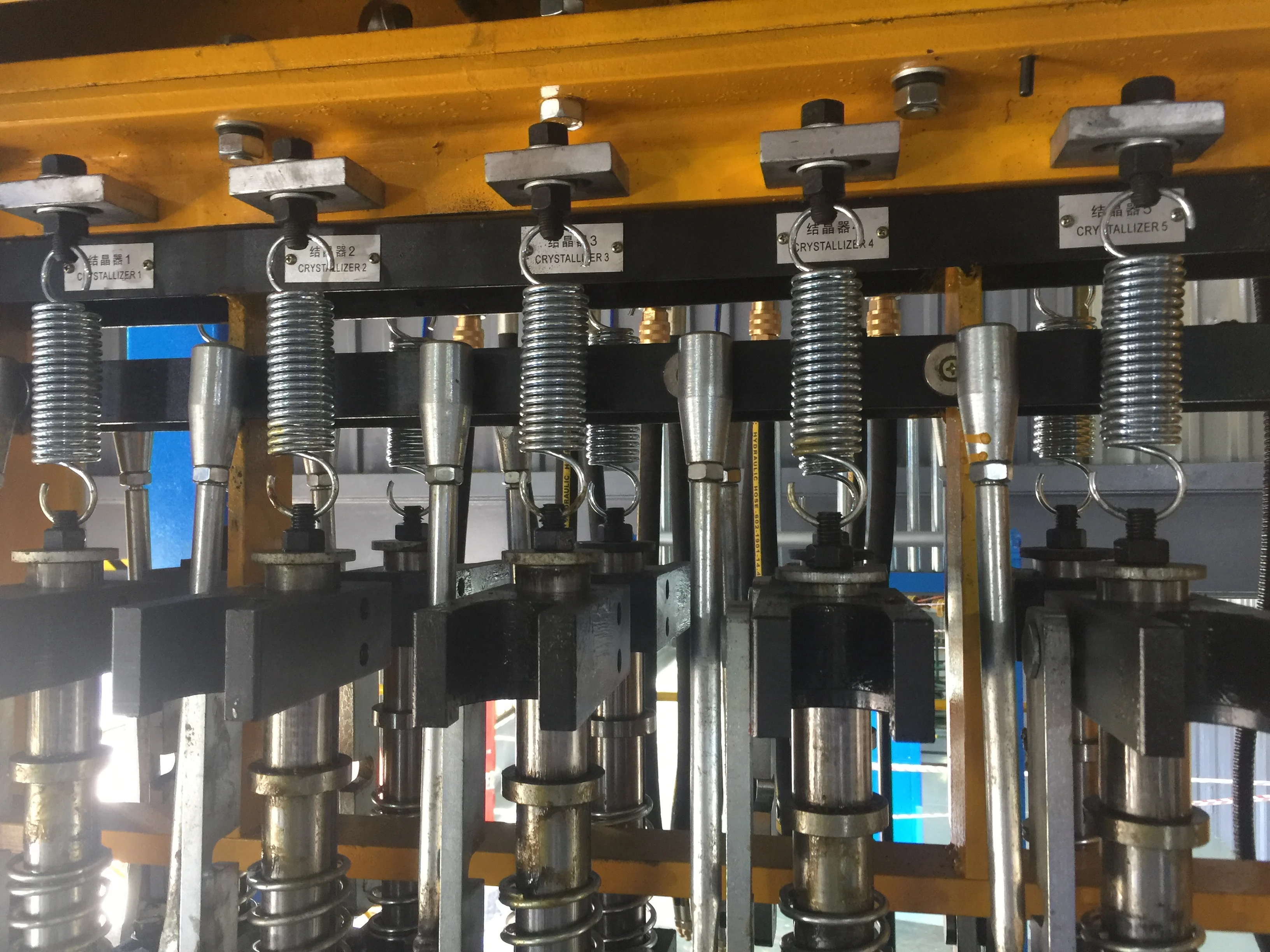

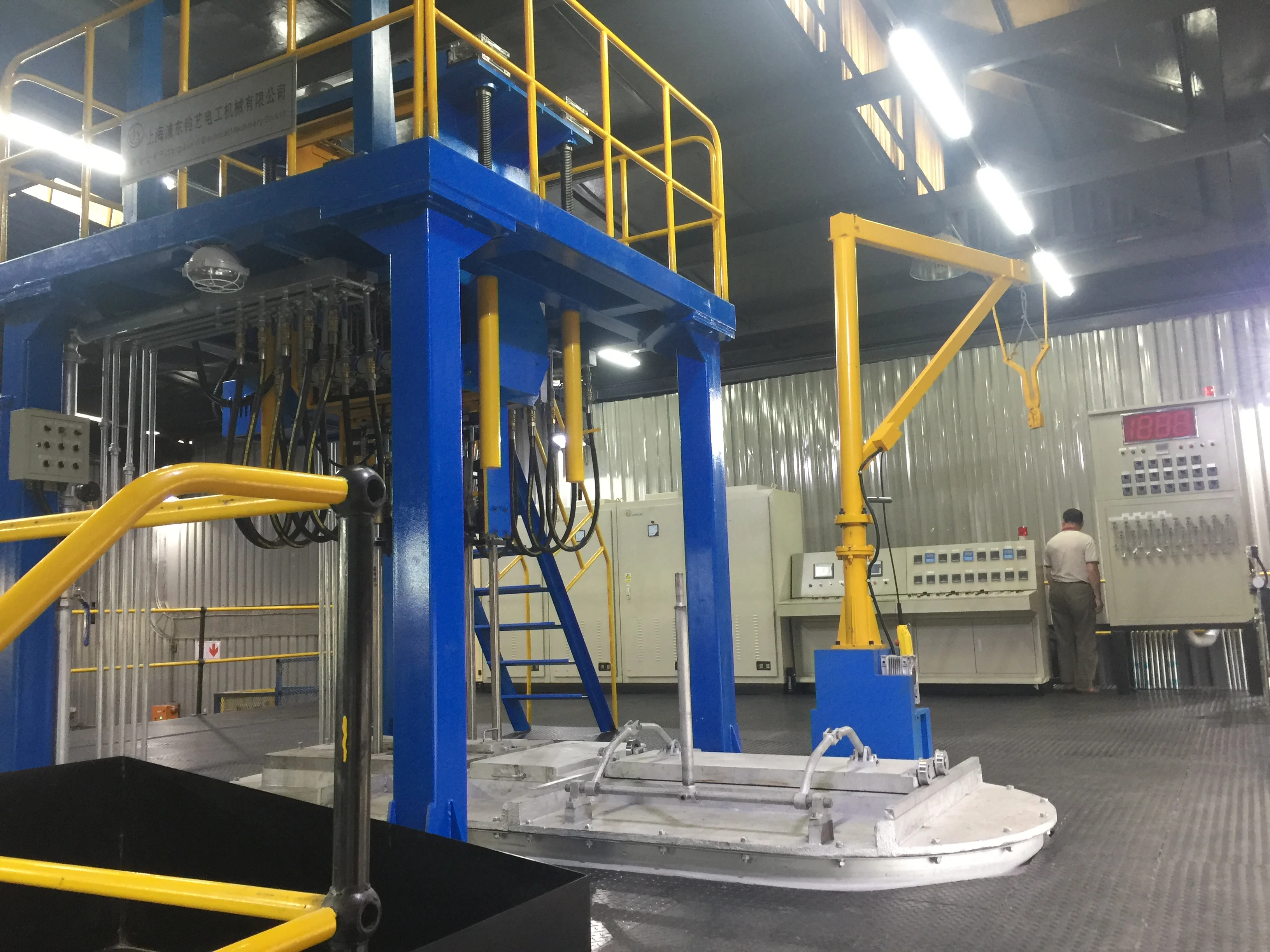

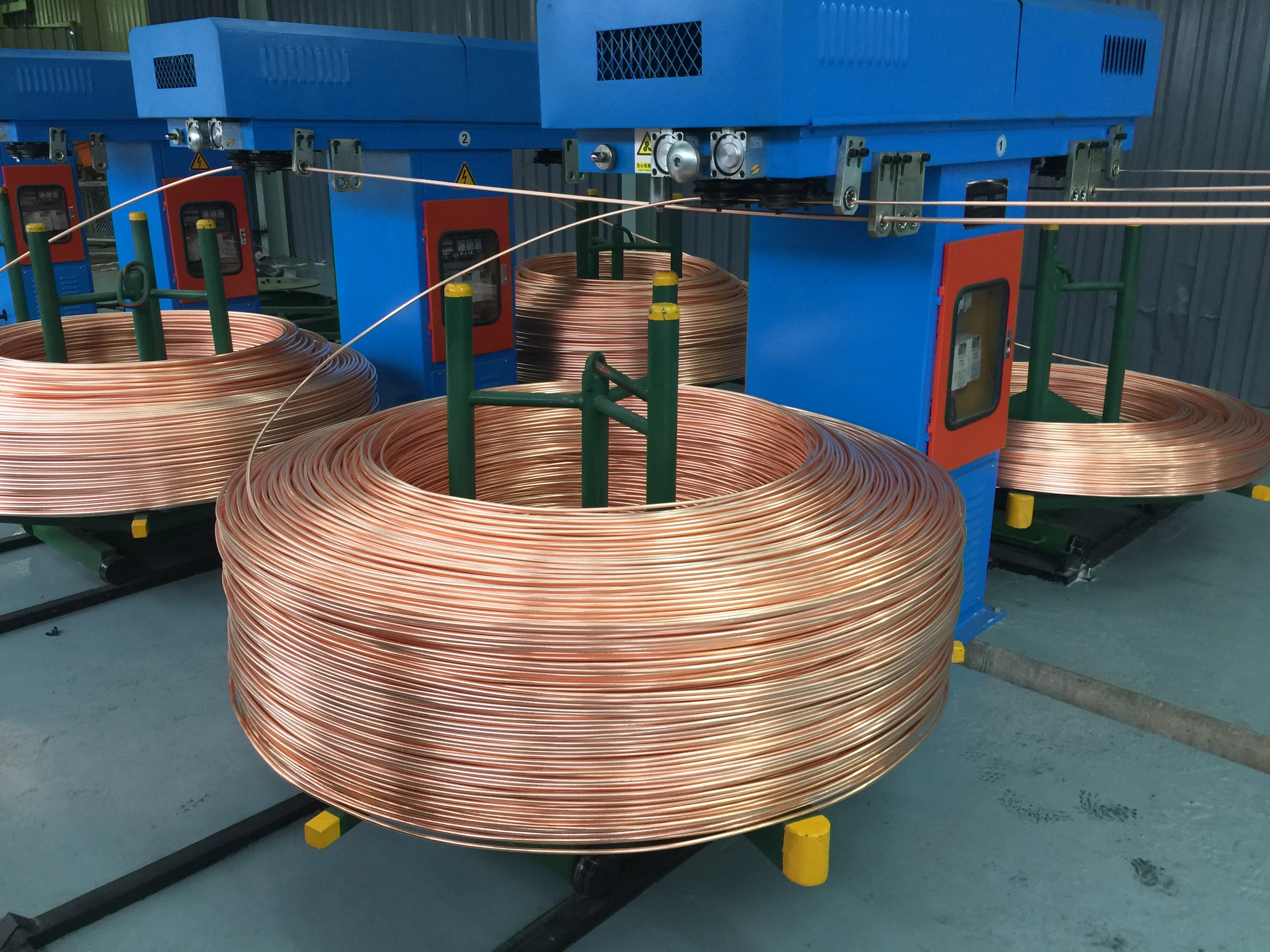

The copper rod or tube is cooled and casted by the cooler. The coolers are fixed on the casting machine frame above the holding furnace. With the servomotor driving system, the casted products are pull upward through the coolers. The solid product after cooling is guided to double coilers or cut-to length machine where to have the final coils or length product.

The machine could work with two different sizes simultaneously when equip with two sets of servo driving system. It is easy to produce different sizes by changing related coolers and dies.



Main Technical Data:



Type	Copper Rod Upcast Machine
Furnace	Electricity induction heating
Annual Capacity	3000/4000, 5000/6000, 8000/10000 and 12000 tons
Rod Diameter	8,12,17,20,25mm
Line Speed	2500mm/min for 8mm
Power Comsuption	315 to 350 kwh/ton production
Pulling	Servo motor and inverter
Loading	Manual or automatic type
Control	PLC

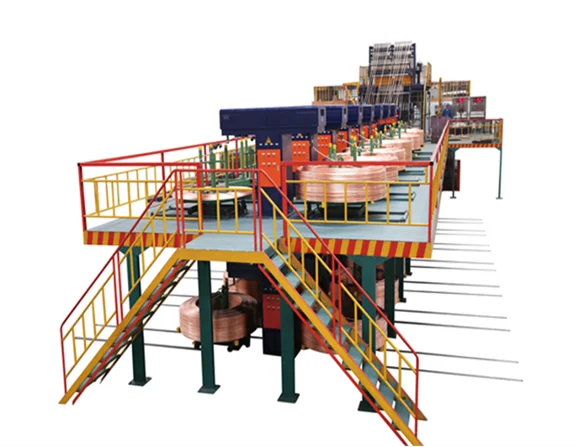

Main Pictures of Copper Rod Upcast Machine:













We are looking forward to have opportunity to cooperate with you!
