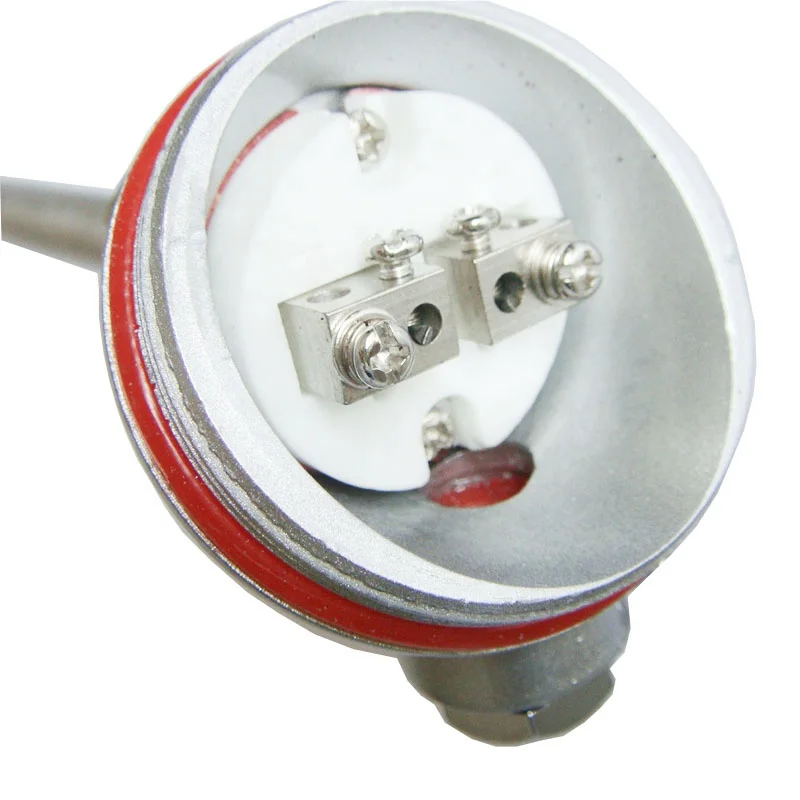

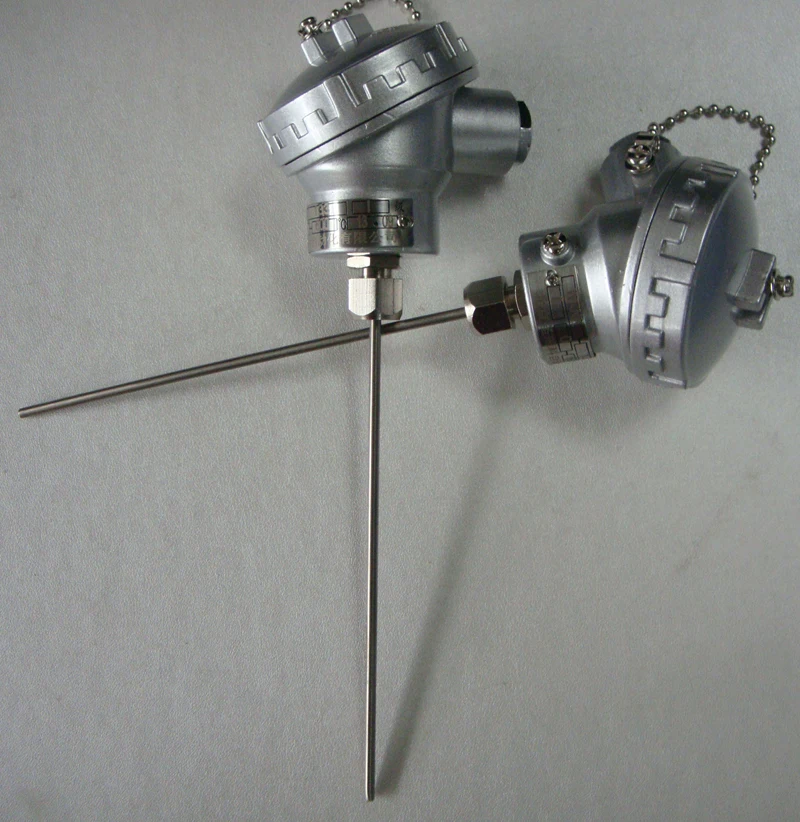

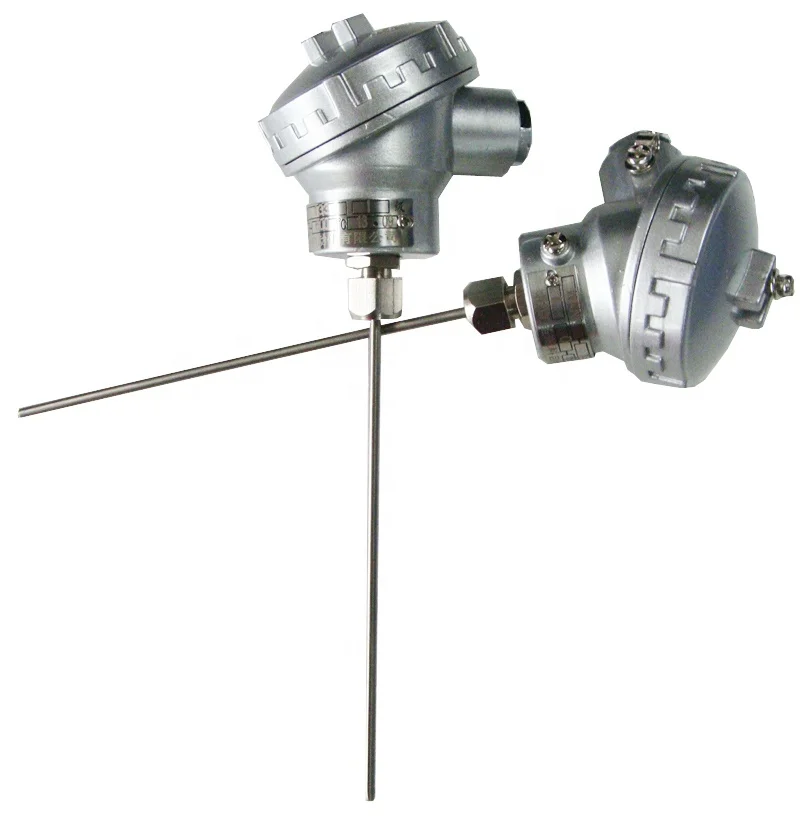

high accurate Industrial waterproof j type thermocouple

Product Overview

Description

I. Name:  high accurate Industrial waterproof j type thermocouple



II. j type thermocouple  General Introduction



WRNK-231 k type thermocouple temperature sensor   is usually connected with display meter, recording meter and computer, etc. to directly measure temperature of liquid, vapor, gas and solid surface ranging from 0°C to 1300°C during various production



III. j type thermocouple Detail Specification:



1. Industrial K Type Thermocouple
2.Diameter:6/8/10/12/16/20mm
3.Temperature:0-1000C
4.Length:100/200/300/500/600/800/1000mm
5.Connection: Thread or Flange
6.Material:SS304 Or SS316 Or SS321 Or 2020 Or GH3039
7.We can also make according to client’s requirements.





Type	Graduation	Tolerance class
		I		II
		Tolerance value	Measuring range°C	Tolerance value	Measuring range°C
WRNK	K	±1.5°C	-40~+375	±2.5°C	-40~+333
		±0.004|t|	375~1000	±0.0075|t|	333~1200
WRMK	N	±1.5°C	-40~+375	±2.5°C	-40~+333
		±0.004|t|	375~1000	±0.0075|t|	333~1200
WREK	E	±1.5°C	-40~+375	±1.5°C	-40~+333
		±0.004|t|	375~800	±0.004|t|	333~900
WRFK	J	±1.5°C	-40~+375	±1.5°C	-40~+333
		±0.004|t|	375~750	±0.004|t|	333~750
WRCK	T	±1.5°C	-40~+125	±1°C	-40~+133
		±0.004|t|	125~350	±0.0075|t|	133~1000
WRPK	S	±1°C	0~+1100	±2.5°C	0~600
		±[0.003(t-1100)]	1100~1600	±0.0025|t|	600~1600





Model Selection:

1. Length


2. Diameter


3. Thread or Flange connection


4. If with thread or flange, what is the size?


5. Junction box or compensating Cable or Connector or Handle ?



Beijing ShengRuiKe adopts advanced technology and manufacturing process. Our products have been export to more than 20 countries.
