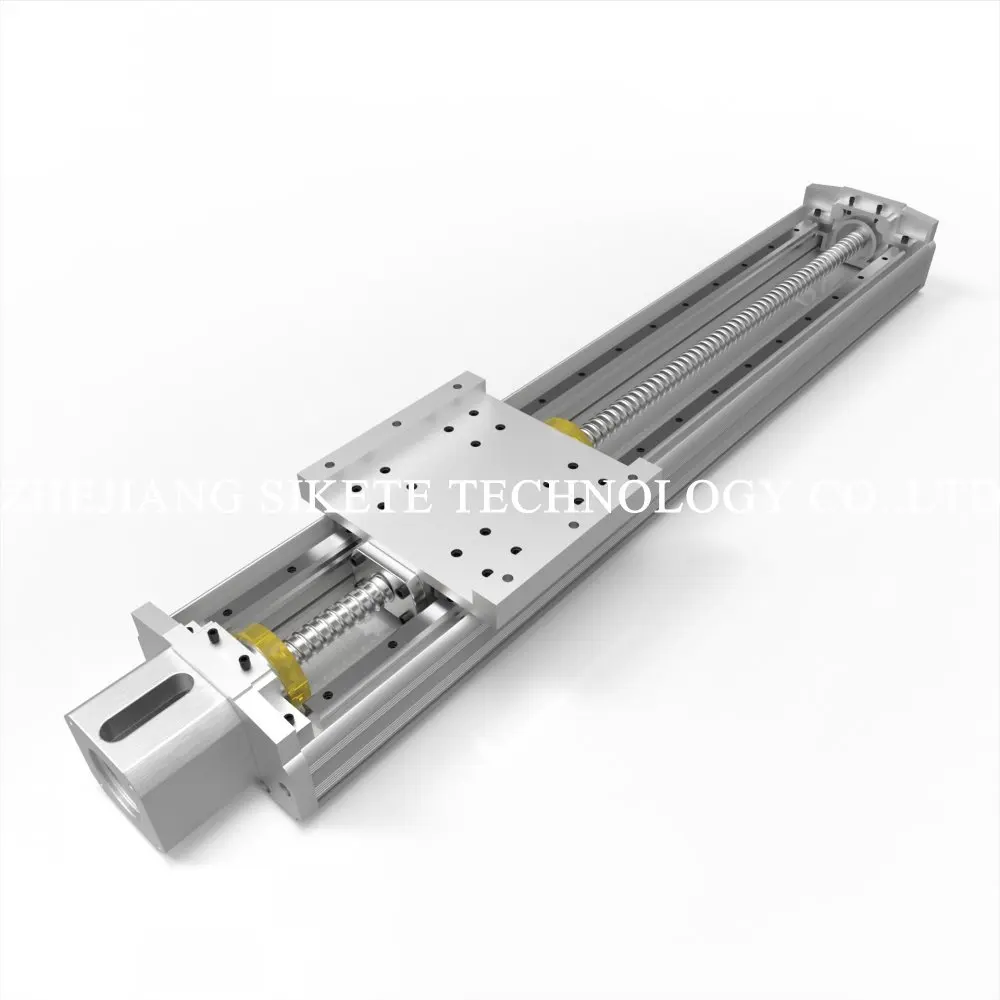

Single-axis robots, also known as linear modules, slide tables, industrial robots and more, utilize a combination of a motor driven ball screw or belt and linear guide system.
These compact and lightweight units are customizable and can be easily transformed into a multi-axis system, making them suitable for a wide range of industrial applications, such as transplanting, positioning, coating, inspection, cutting, welding, dispensing, spraying, assembling and so on.
Feature
1) Small volume, lightweight, easy installation and maintenance, long service life.
2) Wide applications in many areas.
3) High stiffness, high precision, high speed, large load capicity.
4) Ball screw type serie with half dust preotection & the synchronous belt serie with half dust protection.
5) Customized designs avaliable for different applications.
6) Easy transformation into a multi-axis robot.
7) Various ball screw leads are provided, enabling customers to select a unit ideally suited to their needs.
Dimension (mm) & Weight (KG)
Effective Stroke
300
400
500
600
*1: Weight above without motor. *2: If your stroke is longer than 1200mm, please contact our salesperson.
A
560
660
760
860
B
641
741
841
941
C
300
400
500
600
D
50
100
50
100
E
2
2
3
3
F
6
6
8
8
Weight
9.4KG
10.6KG
11.8KG
13KG
Technical Infos
Model Configuration
General Specifications
Notes:
1. 1G=9800mm/sec, the length of the sliding table is 140mm.
2. Please figure out the actual parameter for any unlisted motor rated rpm.
3. Dynamic allowable torque is base on 10, 000km operation.
Packaging & Shipping
Package: Carton box or well packed in strong wooden casaes suitable for long distance shipments.
Shipping: International express (DHL, FEDEX, UPS, TNT, EMS) or by sea. It's our pleasure to help you to choose shiping carrier based on following criteria: Price and the weight / volume of goods.
Company Information
ZHEJIANG SIKETE TECHNOLOGY CO., LTDis an intergrated enterprise intergrating the research and development, manufacturing and trade in the line of industrial robots, including all the accessories like ball screws, linear guides,couplings. At the same time, we are able to provide customers linear bearings, joint bearings, linear slide units and other related machinery products.
Inquiry Detailed
Axis
X
Y
Z
…
Width
Length
Speed
Carrying Weigh

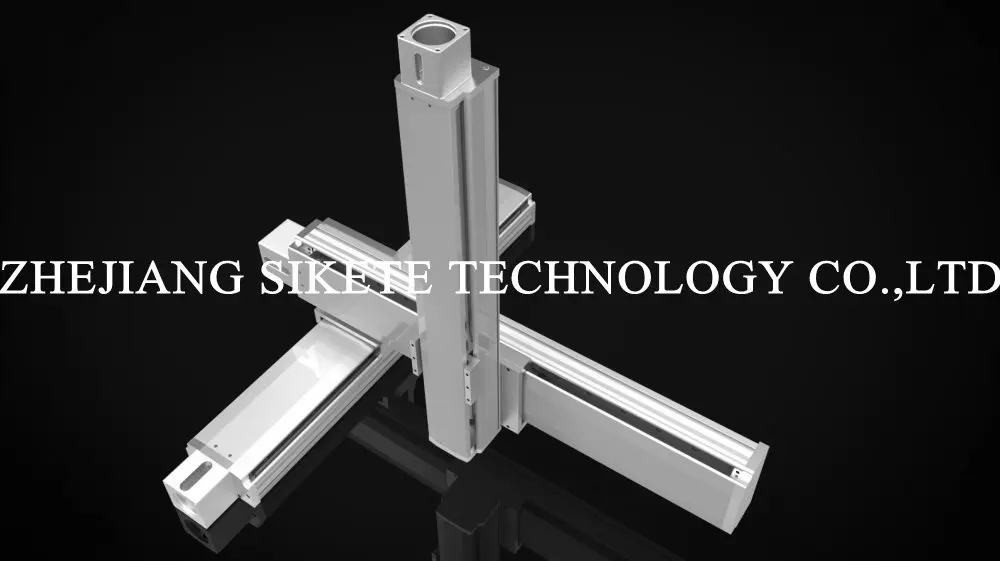

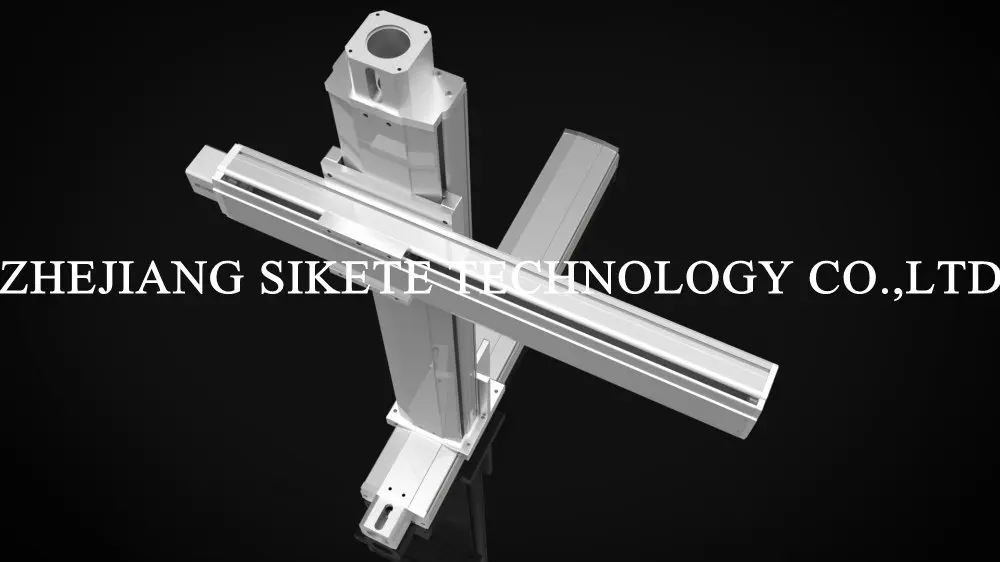

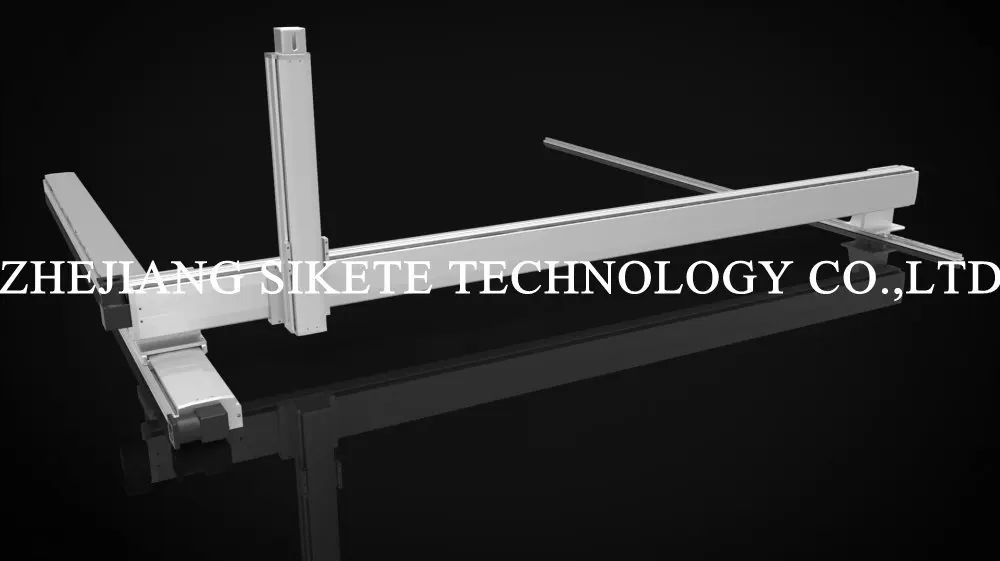

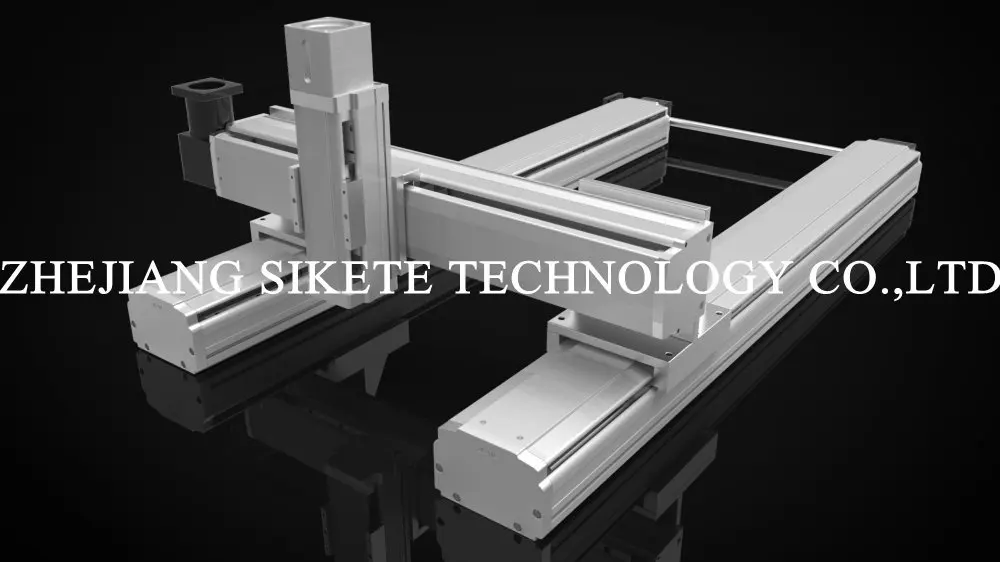

Combination Styles of Robot
Motor Installation Way of The Ball Screw Robot
Motor Installation Way of The Synchronous Belt Robot
If you are interested in our products, please no hesitate to send us an inquiry or chat with usonline. We'll try our best to serve every customer!!!
