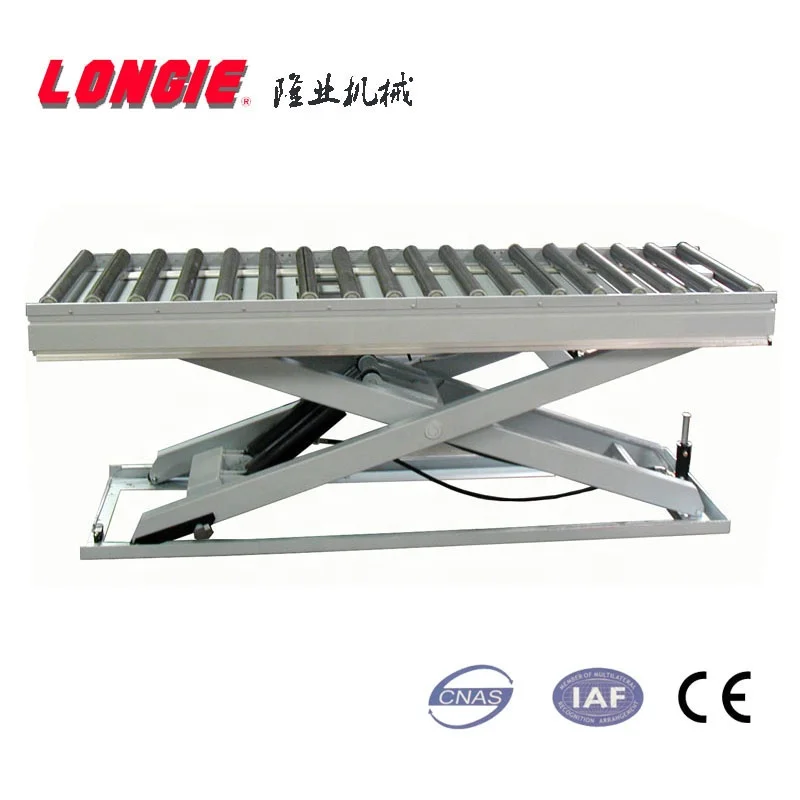

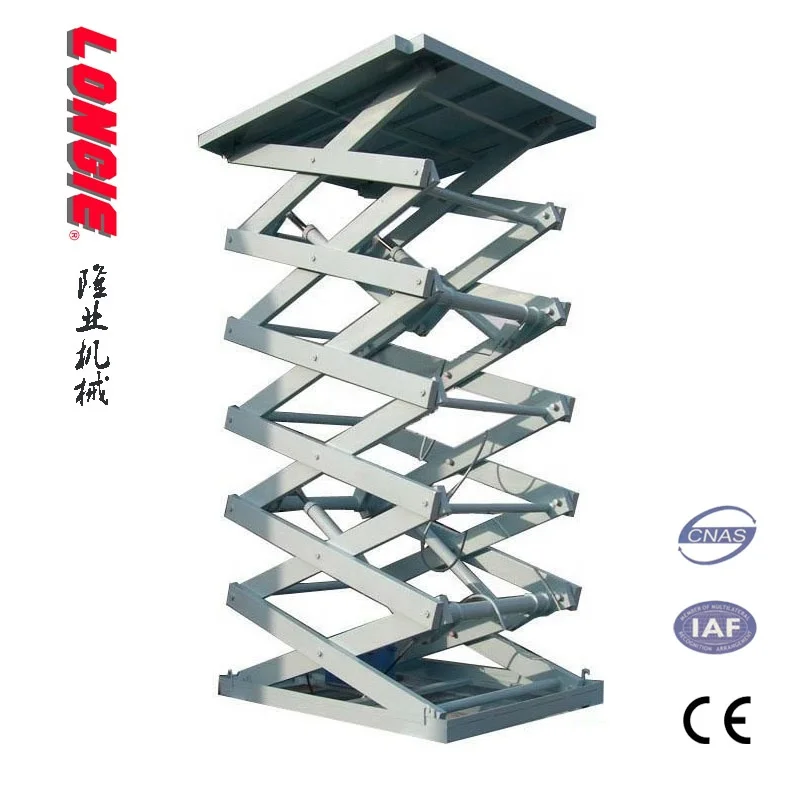

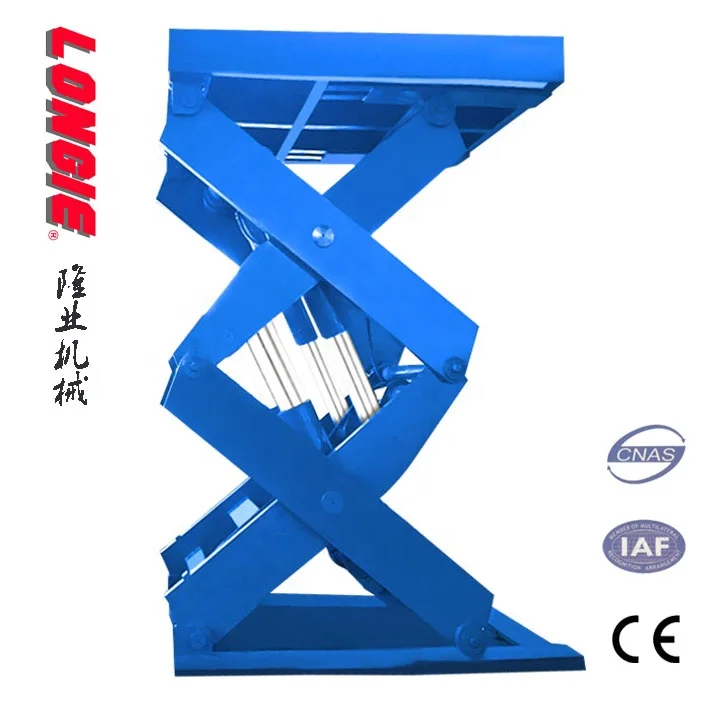

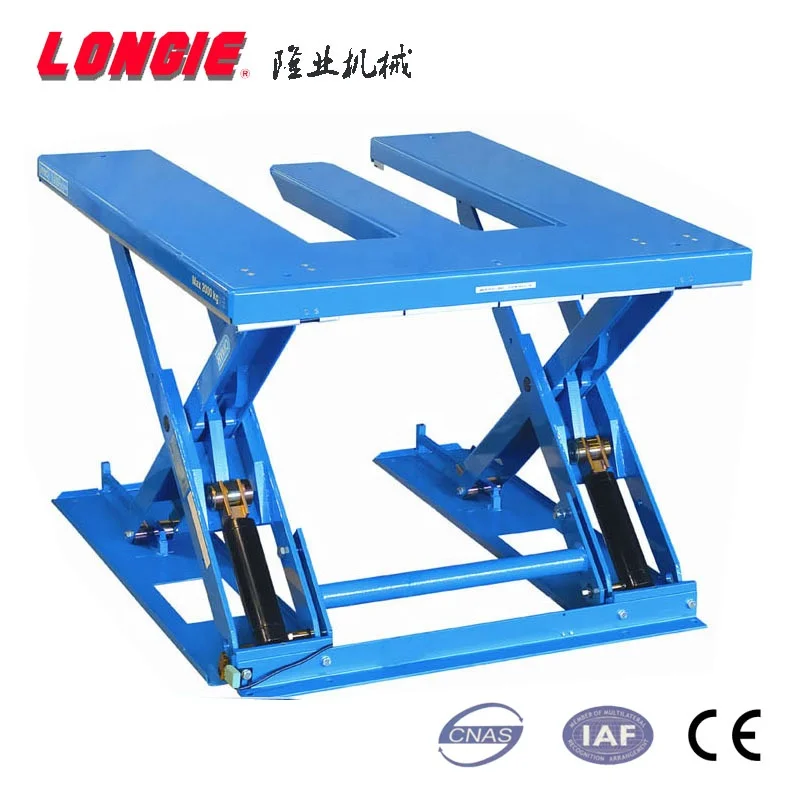

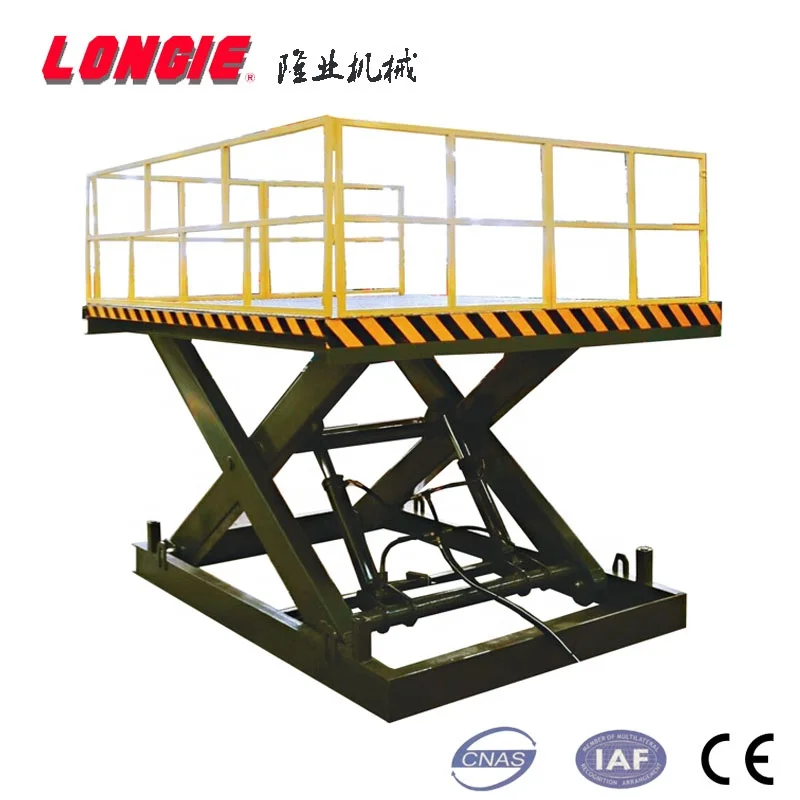

LISJG2.0 1.6 Fixed Hydraulic scissor lift CE

Product Overview

Description

Fixed Hydraulic Scissor Lift Table

.



Application

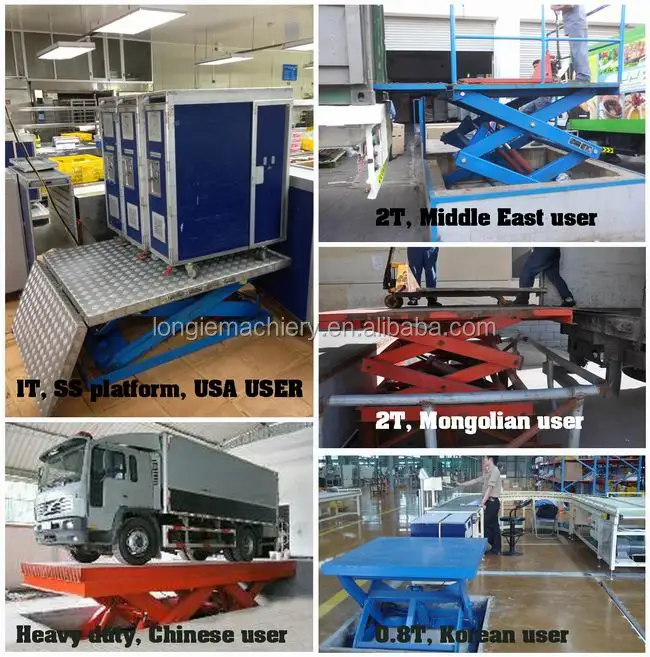

It is used to lift up and down large cargo to different levels, normally in the assembly line and other cargo transferring.

Apply occasion: Production line where there need heavy cargo transferring

.



Product virtues:

1.Special order: Normal anti-skidding, ball, roller, tilting and rotatable platform.

2. Guard rails are available

3. Emergency drop valve in case of power failure.

4. High intensity manganese steel scissors, not easy to be deformed

5. Pins are made of 45# carbon fine round steel, wearable.

6. Overload hydraulic protection system (optional)

7. Limit switches and relay is Schneider, French.

8. High quality seal O-ring, NOK, Japan.

9. Provide customized mobile model and explosive-proof electrics (optional)

10. Manual hydraulic system is available.

11. Longie products are insured by Chinese People’s Insurance Co., Ltd.

.



Parameters

Model	Travel  (mm)	Stowed height (mm)	Capacity (Kg)	Platform size (mm)	Power (Kw)
LISJG1.0-1.6	1600	200	1000	2500x1500	1.5
LISJG1.5-1.6	1600	200	1500	2500x1500	2.2
LISJG2.0-1.6	1600	250	2000	2500x1500	2.2
LISJG3.0-1.6	1600	250	3000	2600x1800	3.0
LISJG5.0-1.6	1600	300	5000	2600x1800	4.0
LISJG6.0-1.7	1700	300	6000	2800x1800	5.5
LISJG9.0-1.8	1800	450	9000	3000x1800	5.5

 .

.

.

.
