esd floor ceramic mat tile anti-static ceramic tile
US $7.00-$10.00
PVC Coated Chipboard Raised Access Floor FS440~FS800 usd in data center and office block
- Category: Anti-Static Flooring >>>
- Supplier: Xiangli Anti-Static Decorative Material Co. Ltd. (jiangsu)
Share on (1934465721):
Product Overview
Description

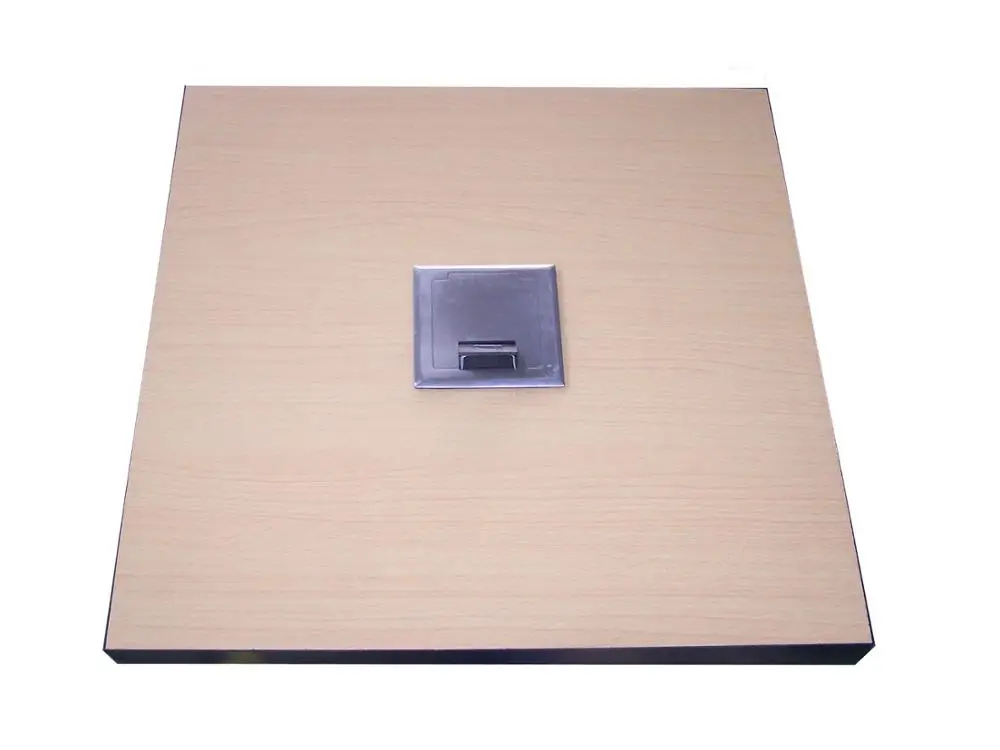

PVC Coated wood core Raised Access Floor FS440~FS800 usd in data center and office block
Product Description
Description
1. High density particle board,PVC/ABS edge trim, sound proof
2. High dimensional precision, strong loading ability and shockproof.
3. Adjustable height for pedestal , assembly agility, large wire, good exchangeability.
4. Outlet mating . Elegant appearance for paving wildly brand top tiles.
5. light weight ,high loading capacity ,excellent raised flooring in 21th
6. light weight ,convenient removing, saving

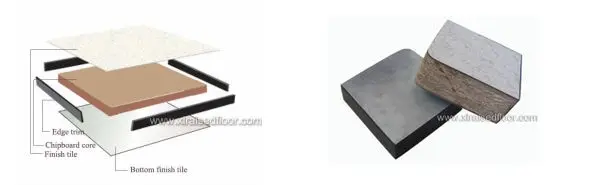

structure
1. panel- 30/38mm thickness particle board ,PVC/ABS corvered four edges,steel/aluminium on the bottom plate ,wildly brand top tiles could be carpet ,HPL PVC ,steel plate,aluminium foil or other tiles as you like

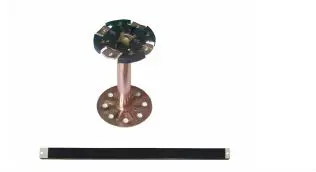

2. Accessories -die casting steel structure pedestal plastic gasket on top ,height could be 70mm ---1500mm , with or without square tube stringer steady connect the system
Application
Wide range of the application , all kinds of computerroom, network service engine room, control room, montoring cabin, top grade office
Type& Technology parameter
Type | International | Size(mm) | Fire Performance | Concentrated load | Impact load (N) | Ultimated load (N) | Uniform Load (N/m2) | Rolling load(N) | |||
LB | N | KG | 10 times | 100000 times | |||||||
XL-2001 | FS440 | 600x600x32 | A | ≥440 | ≥1960 | ≥200 | ≥295 | ≥5880 | ≥9272 | 1958 | 1566 |
XL-2002 | FS662 | 600x600x40 | A | ≥662 | ≥2950 | ≥301 | ≥445 | ≥8850 | ≥1250 | 2946 | 2356 |
XL-2003 | FS800 | 600x600x40 | A | ≥800 | ≥3350 | ≥363 | ≥536 | ≥11250 | ≥16100 | 3560 | 2670 |
Standard Pedestal SPEC
FFH(mm) | tube diameter(mm) | adjustment +(mm) | adjustment – (mm) |
under600 | 25 | 25 | 25 |
700~900 | 32 | 25 | 25 |
1000~1500 | 42 | 25 | 25 |
Other height could be customized.
Standard Stringer SPEC: 535x21x30mm
