PCB Preheater, BGA Rework Station Preheating machine

Product Overview

Description

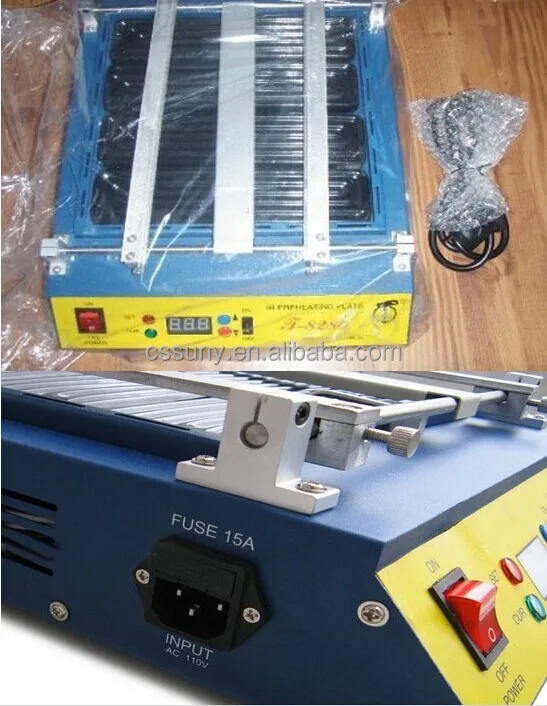

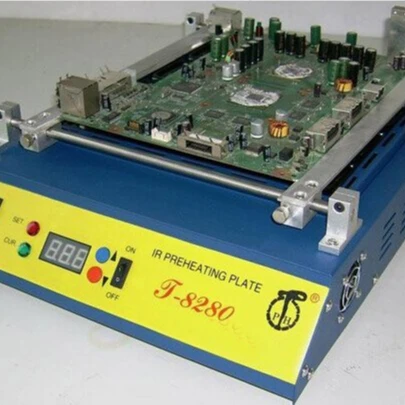

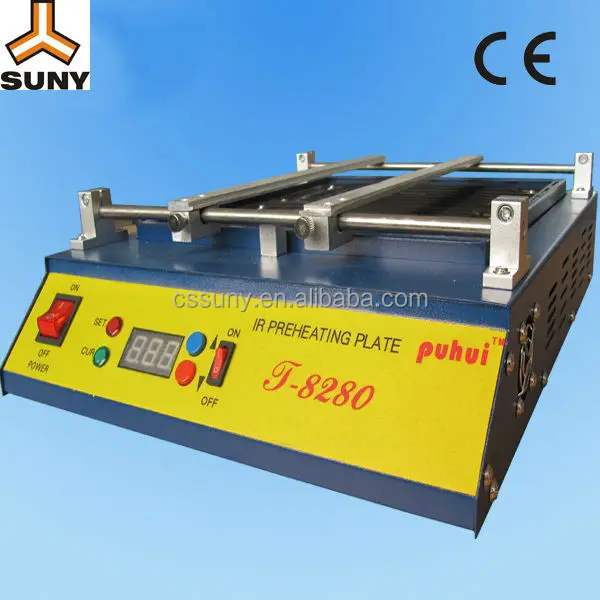

Product:   IR-preheating plate T-8280 , repair station, preheating machine



Model: T-8280



Features

1. Machines use self-developed high efficiency infrared heating devices, using advanced PID intelligent temperature control heating, precise temperature control.
2. Can be realized on a lead, lead-free PCB board components for heating, especially for including BGA, SMD components, PCB board.
3. Special infrared heat penetration, the device even heat, no hot air flow will not let the small PCB board components shift to ensure the welding quality.
4. The machine is equipped with 1500W preheat (sol) system, preheat the scope of 280x270mm, with hand-held infrared welding machine supporting the use of T-835.
5. Easy to operate, after a simple training can fully operate the machine.





Technical parameters



1. Machines use self-developed high efficiency infrared heating devices, using advanced PID intelligent temperature control heating, precise temperature control.
2. Can be realized on a lead, lead-free PCB board components for heating, especially for including BGA, SMD components, PCB board.
3. Special infrared heat penetration, the device even heat, no hot air flow will not let the small PCB board components shift to ensure the welding quality.
4. The machine is equipped with 1500W preheat (sol) system, preheat the scope of 280x270mm, with hand-held infrared welding machine supporting the use of T-835.
5. Easy to operate, after a simple training can fully operate the machine.





Main components:



Preheat oven main body      1
Temperature Sensor            1
PCB board bracket               1
GB Power Line                      1
User manual (CD)                 1
