Hot Drink Cup JBZ_A12 PE Coated Paper Cup Machine
- Category: >>>
- Supplier: Ruian Zhengda Machinery Co. Ltd.
Share on (1935778377):
Product Overview
Description
Product Description
JBZ-A12 Paper Cup Forming Machine is an automatic machine with multi-working station.
It produces one-side film coated paper cup through the procedure of automatic paper feeding,
ultrasonic welding, oil silicon lubrication, bottom punching, heating, knurling, curling and cup
discharge. The sealing system is copper heater , so this model is suitable for making one side
PE coated paper with full printing design cups. This cup can for hot drink cup ,such as soft drinking, water and coffee etc.
It produces one-side film coated paper cup through the procedure of automatic paper feeding,
ultrasonic welding, oil silicon lubrication, bottom punching, heating, knurling, curling and cup
discharge. The sealing system is copper heater , so this model is suitable for making one side
PE coated paper with full printing design cups. This cup can for hot drink cup ,such as soft drinking, water and coffee etc.
Manufacturing Technique
JBZ-A12 Copper heater paper cup machine
1- Model : JBZ-A12 Automatic Paper cup machine
2- Speed : 45-55cups/minute
2- Speed : 45-55cups/minute
3- Cup size : 90ml(3oz) to 350ml(12oz) with 52mm( also cup size can decide by customer)
4- Paper material : 150-260gsm one-side pe coated paper
4- Bottom Diameter Heaters & controllers : Microprocessor controlled 5Nos
5- Gear box: #125 – Big size – Heavy duty – 13”Length x11”Width
6- Bottom sets : 5Nos
7- Bottom Bearings : 16Nos x LM 25
8- Linear Bearings, Both sides balanced by 8 8
9- Machine weight : 1500kg Power : 3phase/380volt/50hz/5kw
10- Machine dimension : 2800L*1300W*1600H(mm)
4- Bottom Diameter Heaters & controllers : Microprocessor controlled 5Nos
5- Gear box: #125 – Big size – Heavy duty – 13”Length x11”Width
6- Bottom sets : 5Nos
7- Bottom Bearings : 16Nos x LM 25
8- Linear Bearings, Both sides balanced by 8 8
9- Machine weight : 1500kg Power : 3phase/380volt/50hz/5kw
10- Machine dimension : 2800L*1300W*1600H(mm)

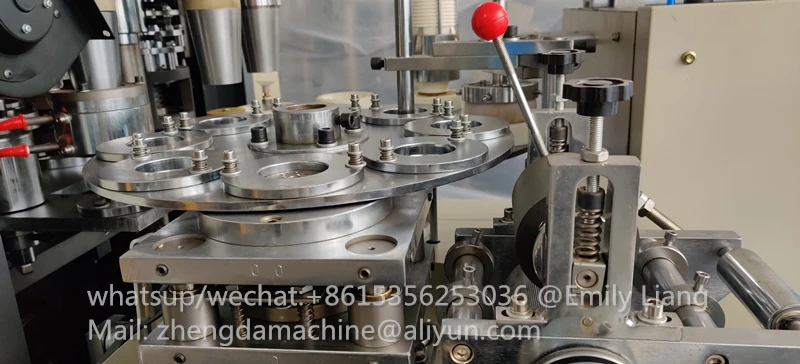

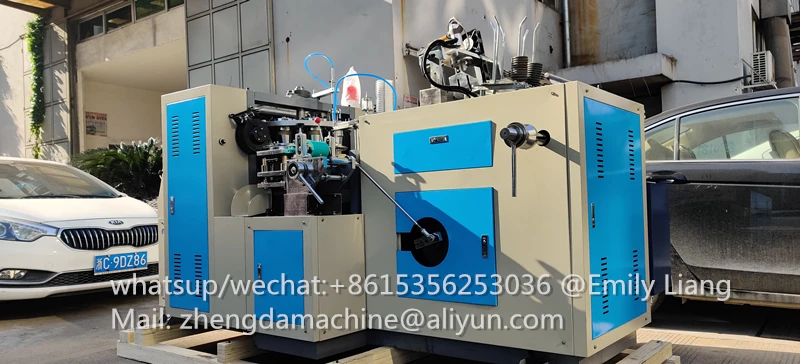

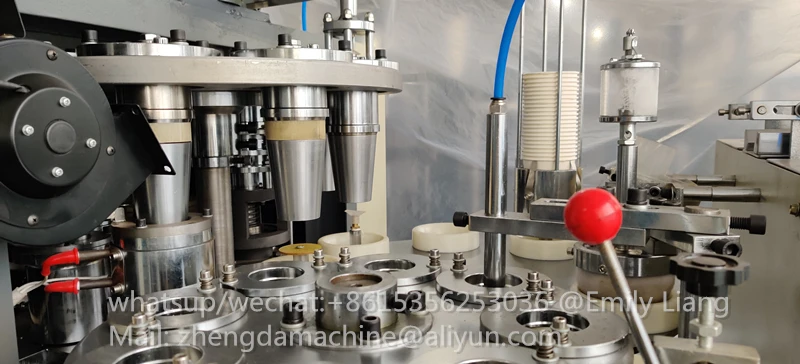

Machine pircture

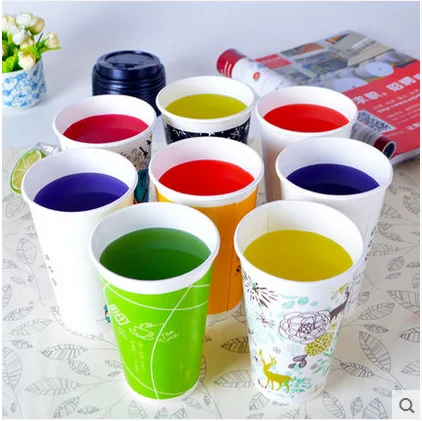

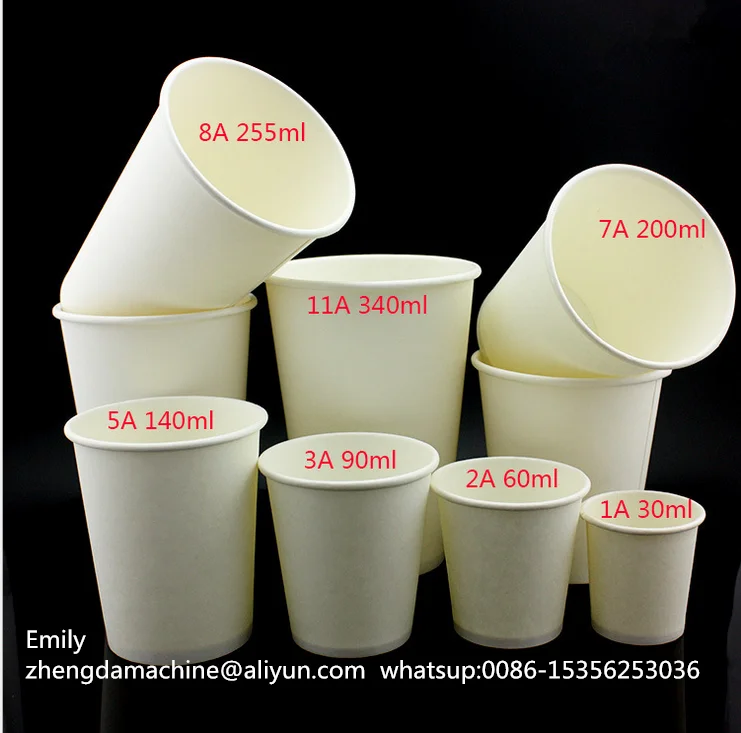

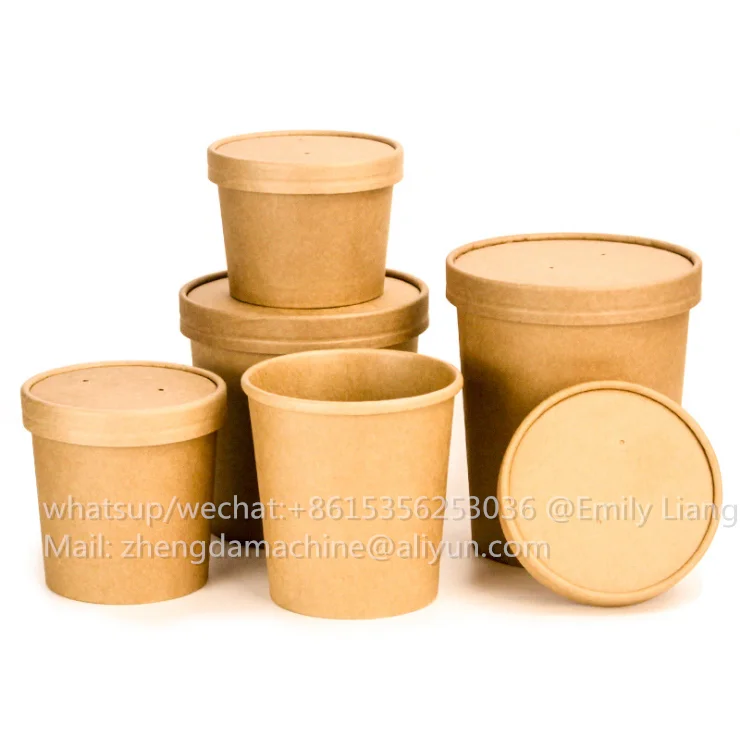

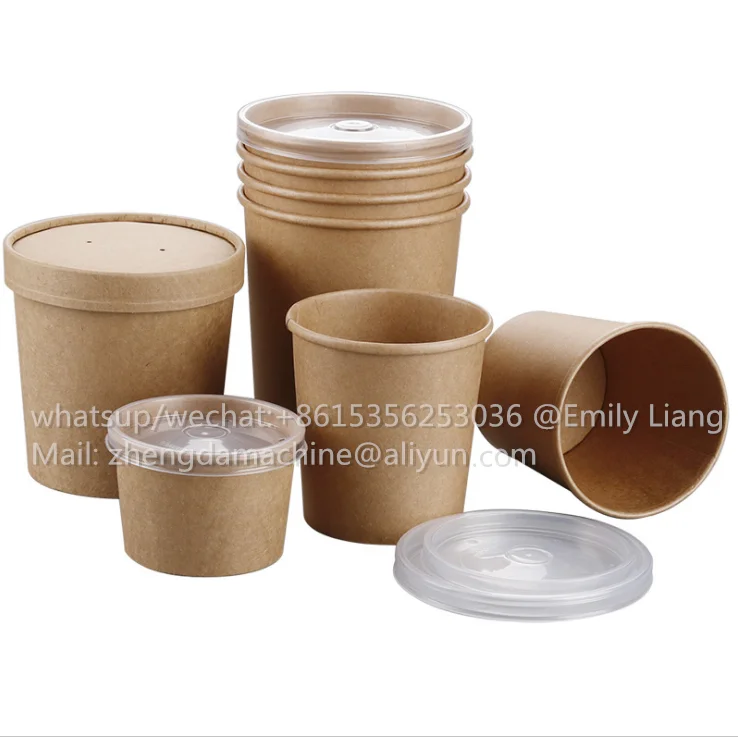

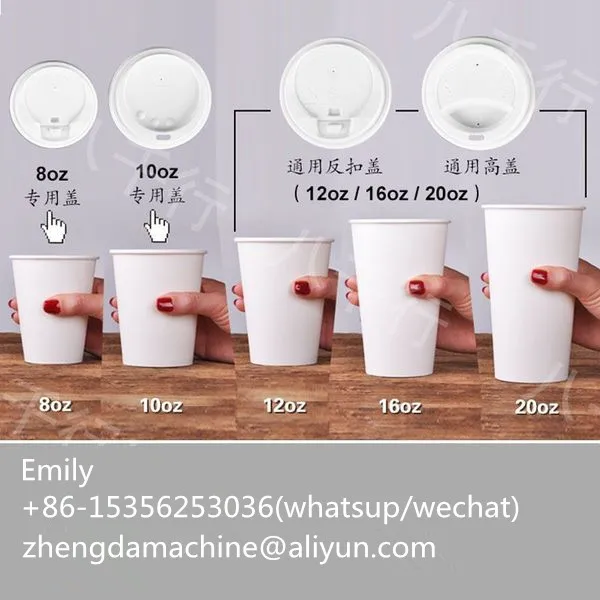

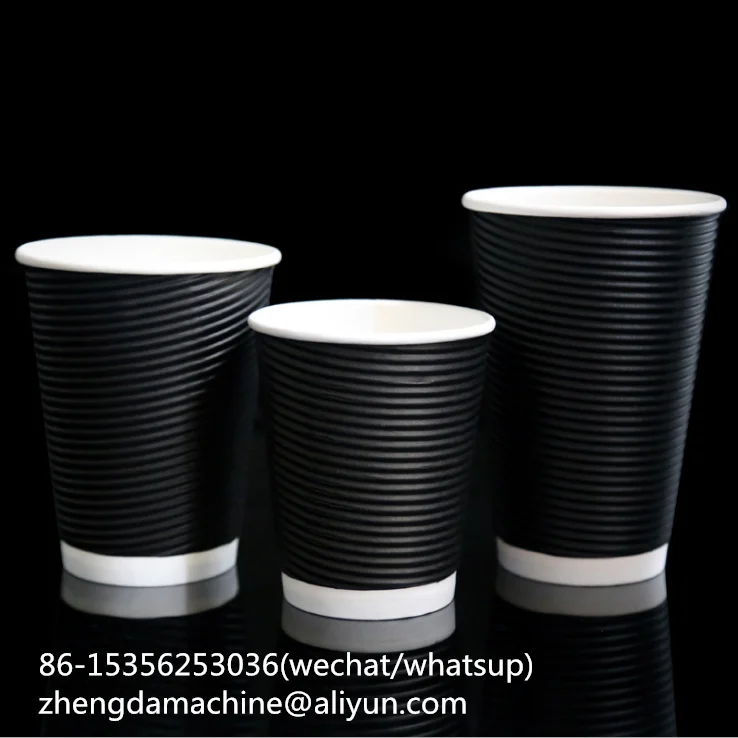

finished samples
Recommend Products
Company Profile
Ruian Zhengda machinery CO.Ltd is professional manufacturer and exporter for paper production machinery ,such paper cup machine paper plate machine ,paper lunch box machine ,muffin cup machine and so on .
Our products have been exported to Europe,the east-south Asia, Africa and the middle-east also widely used by the leading
manafacturers in china.
We assure you of our best attention to any inquiries from you ,and anticipate your further clarification in this respect.
Welcome to visit our industry .Our address is 3# Yunjiang Standard Plant Nanbin Street ,Ruian City .Zhejiang Province,China.
Our products have been exported to Europe,the east-south Asia, Africa and the middle-east also widely used by the leading
manafacturers in china.
We assure you of our best attention to any inquiries from you ,and anticipate your further clarification in this respect.
Welcome to visit our industry .Our address is 3# Yunjiang Standard Plant Nanbin Street ,Ruian City .Zhejiang Province,China.
