APLUS GWR B808LS REVERSIBLE PNEUMATIC RATCHET WRENCH
APLUS GWR-B808LS REVERSIBLE PNEUMATIC RATCHET WRENCH
APLUS GWR-B808LS REVERSIBLE PNEUMATIC RATCHET WRENCH
APLUS GWR-B808LS REVERSIBLE PNEUMATIC RATCHET WRENCH
APLUS GWR-B808LS REVERSIBLE PNEUMATIC RATCHET WRENCH
APLUS GWR-B808LS REVERSIBLE PNEUMATIC RATCHET WRENCH

APLUS GWR B808LS REVERSIBLE PNEUMATIC RATCHET WRENCH

Share on (1935854299):


Price:RUB 18,581.78

Quantity:


Product Overview

Description

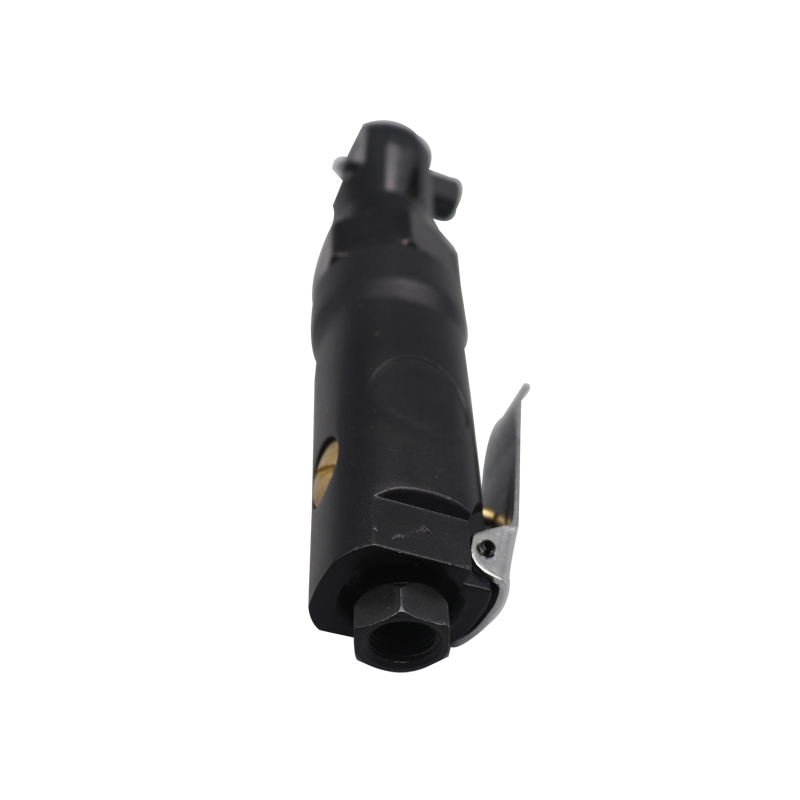

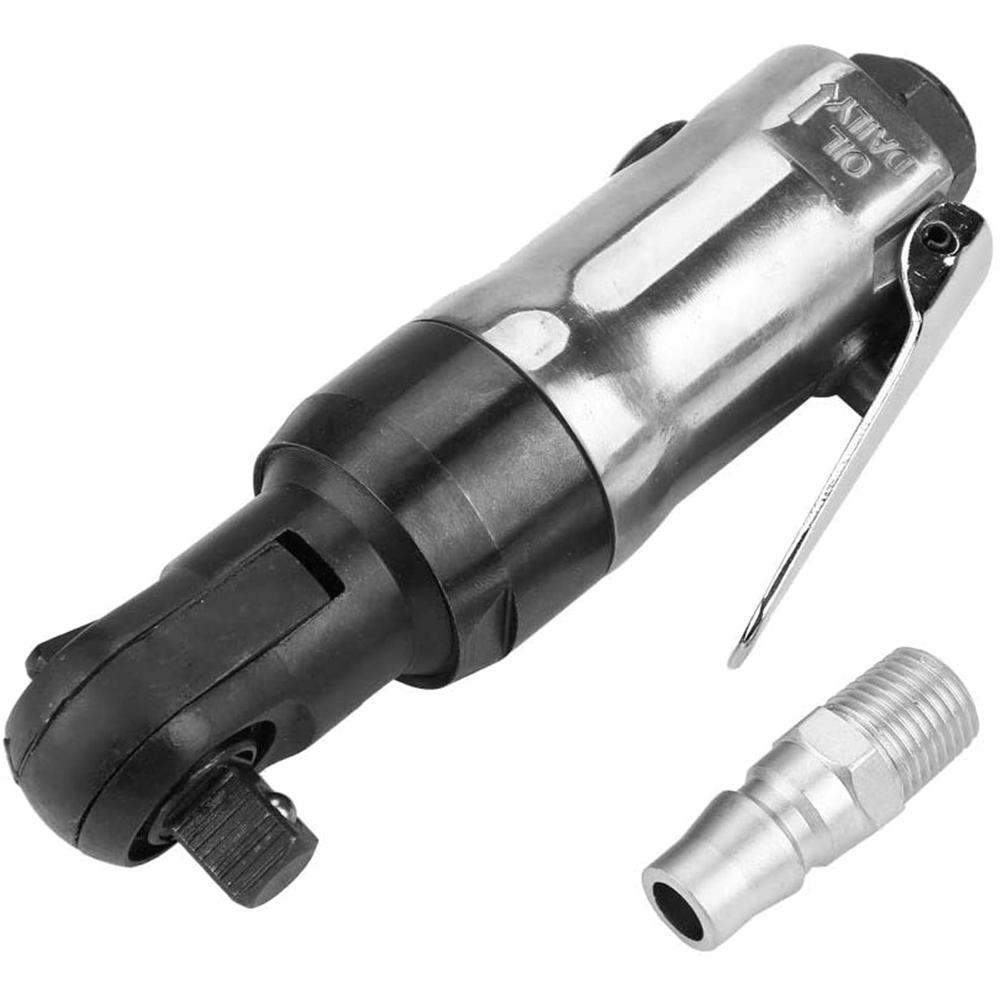

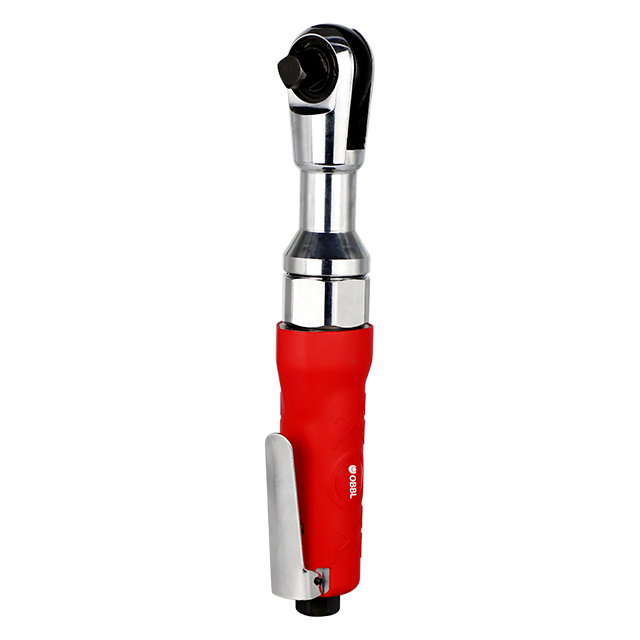

GWR-B808LS REVERSIBLE PNEUMATIC RATCHET WRENCH



  • Ratchet wrench can be used in the narrow working space and fasten bolt and nut easily. It's special tool to solve another air tool can not solve problems.
  • Take out:First, please use hand to loose bolt then push switch lever
  • Lock: Push switch lever to set bolt then using hand to lock.

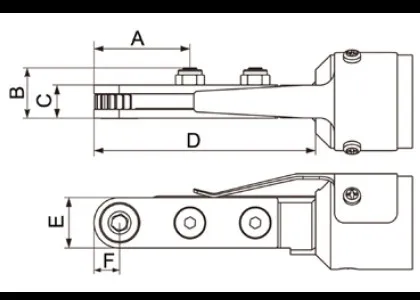

Model A     (mm) B     (mm) C     (mm) D     (mm) E     (mm) F     (mm)
GWR-B808LS 38.2 20 13.2 88.2 20 10.2
GWR-B814LS 44.4 26 18 109 25.2 12.2
GWR-B814LSB 51 26 18 115 33.2 16.6
GWR-B819LS 51 26 18 115 33.2 16.6
GWR-B827LS 59 26 18 123 41 20.5
GWR-B832LS 66 26 18 130 48 24
GWR-B836LS 70 26 18 134 52 26
Model GWR-B808LS GWR-B809LS
Size Order code
6mm GWR-B808LS-6
7mm GWR-B808LS-7
8mm GWR-B808LS-8
9mm GWR-B808LS-9
10mm GWR-B808LS-10 GWR-B809LS-10
11mm GWR-B808LS-11 GWR-B809LS-11
12mm GWR-B808LS-12 GWR-B809LS-12
13mm   GWR-B809LS-13
14mm   GWR-B809LS-14







 Specification (air pressure at 90PSI, 6.2Bar, 6.3kg/cm2)

Model

Bolt Size

Capacity

 Max. Torque Free Speed Air consumption Overall Length Air Inlet Net Weight
(mm) (NM) ft-lb) RPM l/min cfm mm inch (P.T) kg lb
GWR-808LS M6,7,8,10,11,12 10 7 120  127 4.5 300 11.81 1/4  1.3 2.87
