Digital Cable TV Headend IRD Multi Stream Satellite Receiver DVB S/S2

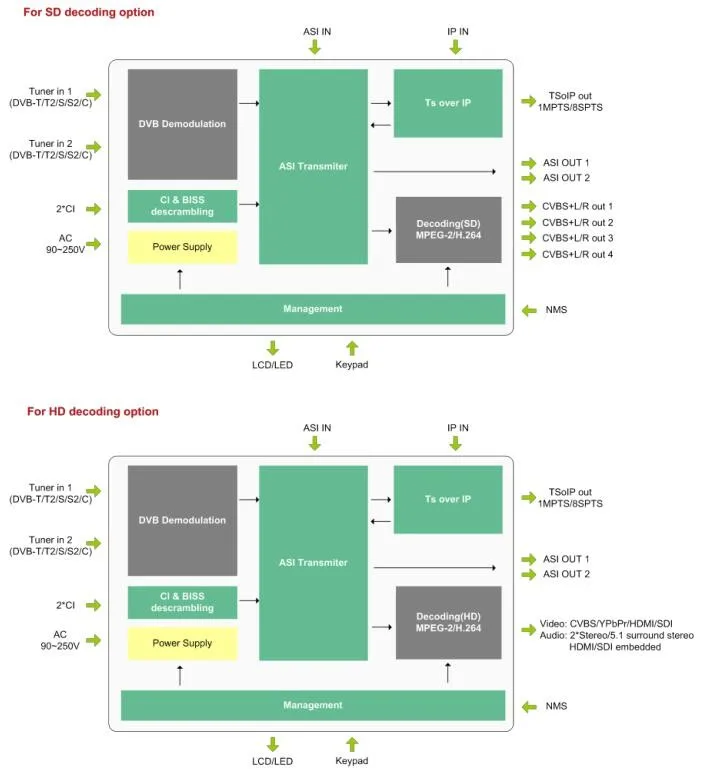

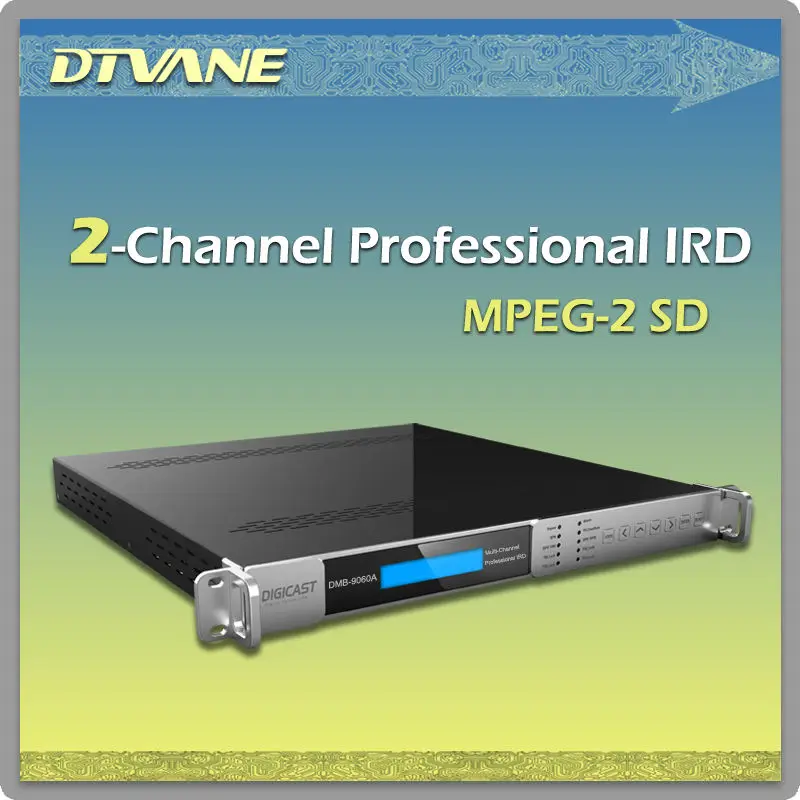

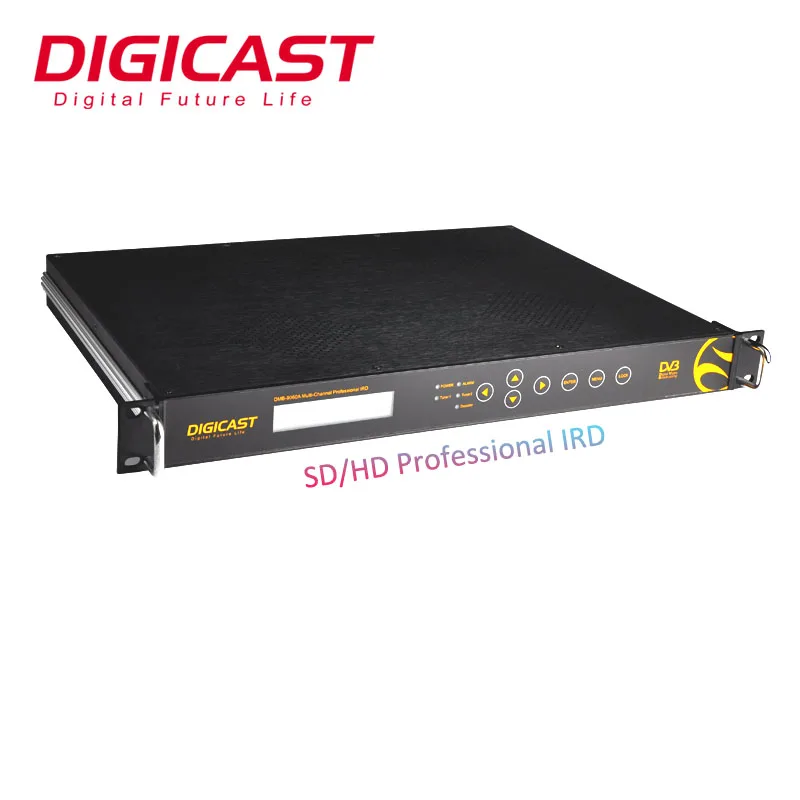

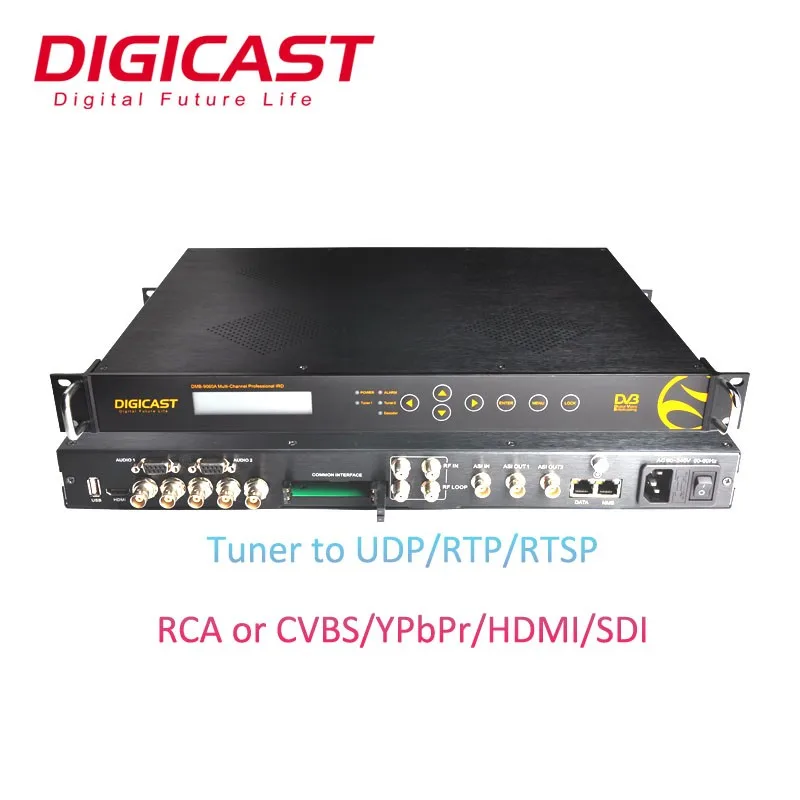

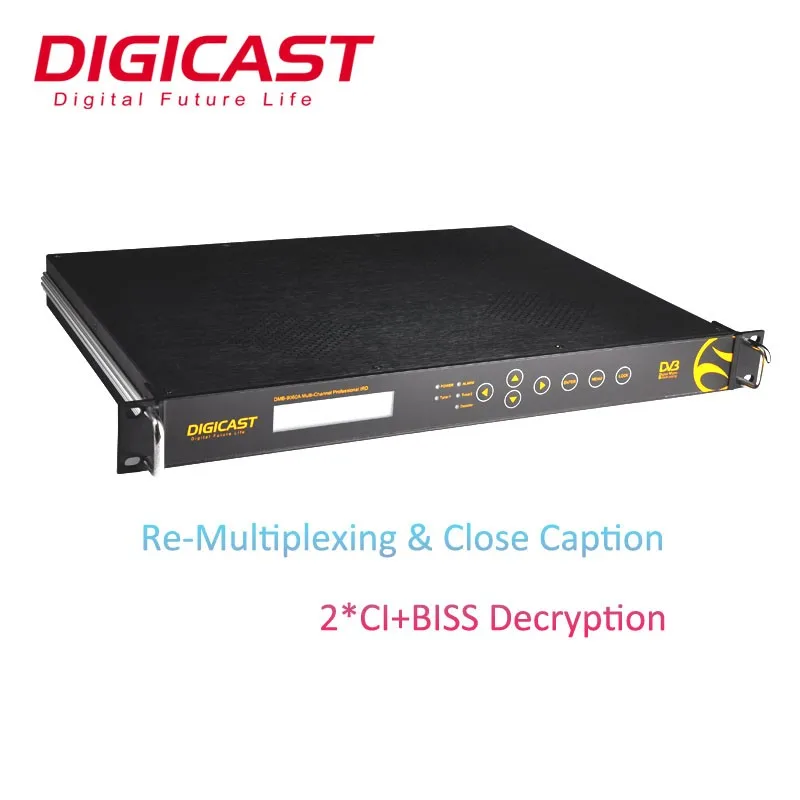

DMB-9060A Two-Channel Professional IRD is a high-density and flexible device, integrating broadcast level receiver, demodulation, decrypting and decoding function. It supports ASI,IP and various of Tuners input which can be selected respectively from DVB-S/S2, DVB-T/T2, and DVB-C with 2* Tuner independent input, and also capable of receiving lots of programs from different frequencies. DMB-9060A is designed in standard 1U Chassis, with a Hot-Pluggable modules (can support 2 channels). Meanwhile, it delivers reliable video quality program source with advanced video decoding (H.264 & MPEG-2) technology, outputs: TS*2(backup) +IP (1*MPTS or 8*SPTS with UDP/RTP/RTSP) and monitoring: 4*CVBS (Independent), 4*RCA(4*Stereo/8*mono). With its 2*DVB common interface slots and BISS decryption, capable of working with most of well-known CAS in the market to decrypt multiple TV pay services. With the compact design of 2*Tuner input and the excellent decoding ability, DMB-9060A is becoming very popular among distribution system, IPTV applications and digital TV head-end system for DTV operators, broadcast service providers and IPTV integrators etc.

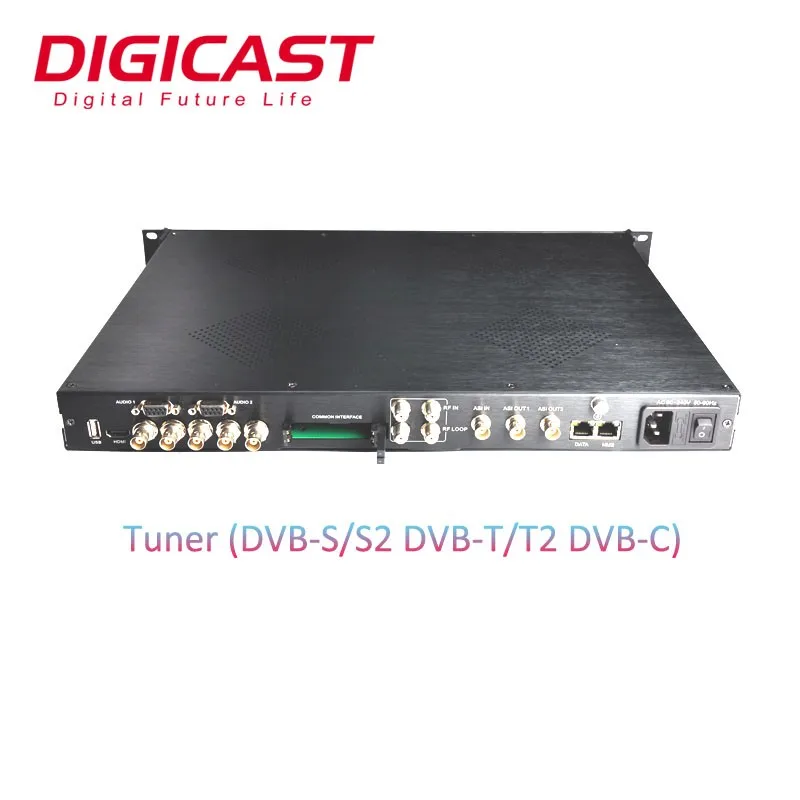

Support 2*Tuner input modules selectable from DVB-T/T2, DVB-C, DVB-S/S2
Provide Modules demodulation, descrambler, and decoder
Support SD/HD MPEG-2 video decoding
Support 1+1*ASI(Backup) and IP(1*MPTS or 8*SPTS with UDP/RTP/RTSP)
Providing variety of outputs mode, including ASI/CVBS, TSoIP
Support multiple programs from tuner, ASI and IP decryption via the CAM card
Support 2*CVBS(independent) and 2*RCA (Stereo/mono) output
Support 1*ASI and 1*IP multiplexing output
Providing 2*LNB input and 2*LNB loop output
Support auto-preserving programs
Support hot-pluggable for demodulator and decoder modules
Support NTSC and PAL modes available
One input can support Max.128 PID re-mapping
Management of support web browser via Ethernet interface
Support software upgrading by Ethernet interface
Power-off memory function

Hangzhou DTVANE(DIGICAST) with decades of years experience on digital tv headends field ,production including: IRD ,receiver,encoder,encoder modulator ,IPTV encoder, transmitter,mpeg ts processor ,IP process and so on .

All of our production with FCC,CE,ROHS,CSI,ACE certification .

We offer 24X7 online technical support and 5 years warranty of after-service .

we will make effort to become a super supplier in the global digital TV filed.

Q1: Where is your Factory located? How can I visit your company?

A1: Our factory is located in Hangzhou City, Zhejiang province of China.

From Shanghai, 1.5 hours by Train,30mins by intercity high-speed rail.

From Shenzhen, 11 hours by Train,2 hours by Aircraft

Worldwide customers are warmly welcome to visit Dtvane!

Q2: What’s your Quality Control policy?

A2: Quality is the most important. Dtvane team members always pay great attention to quality controlling from the very beginning to the end.

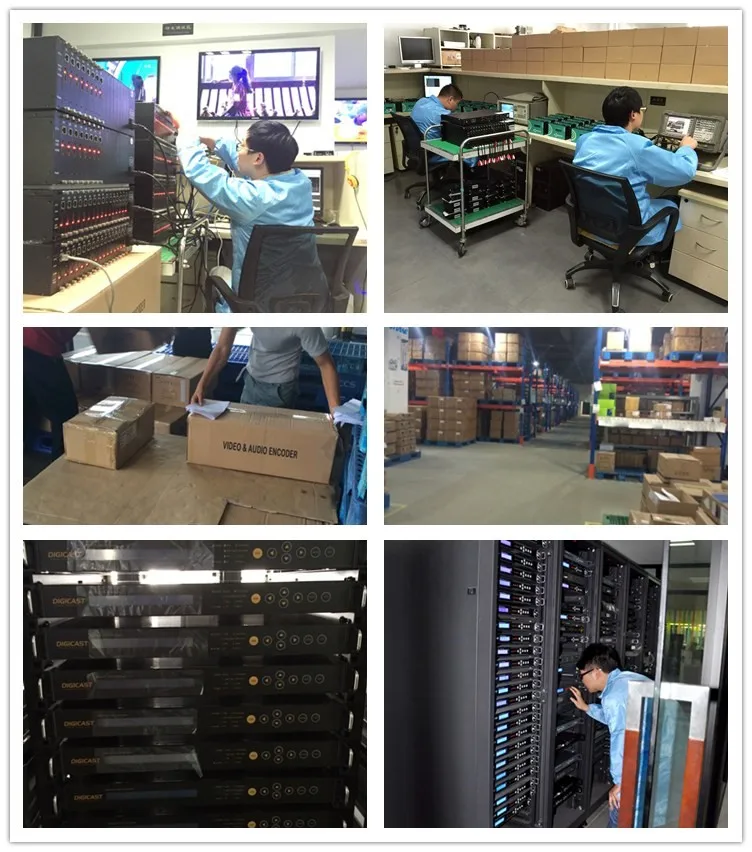

Inspections of each step will be done during the production process
